Isuzu WW
▶
PICKUP
▶
TFR
▶
51516 - TFR(INDIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-84 - BACK TRIM
▶
6-84 — BACK TRIM
(#138109) — 10 parça
Tümü
A - TFB5CF
B - TFB5SF
C - TFB5WF
◀

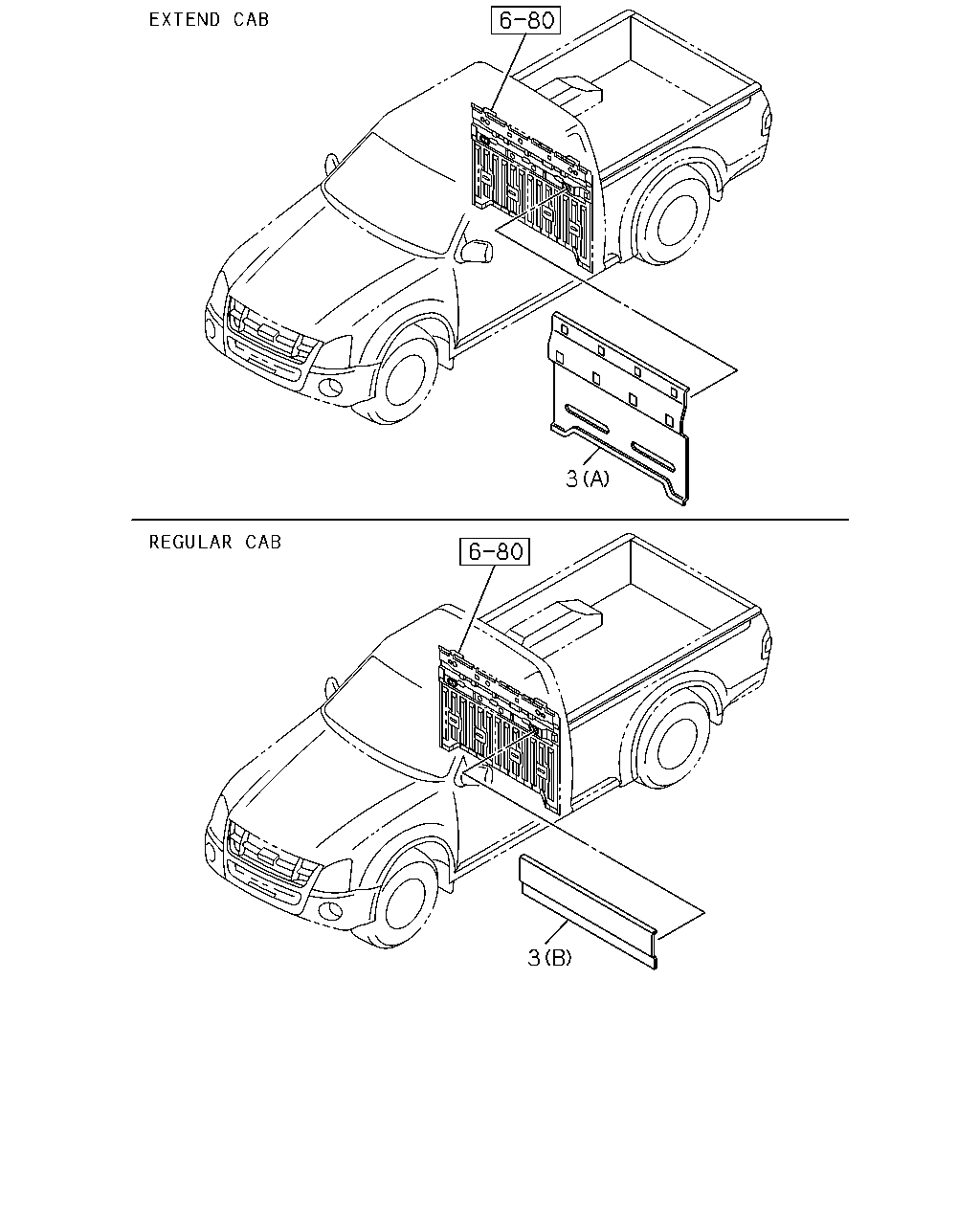

[684A] EXTEND,REGULAR CAB (5 parça)

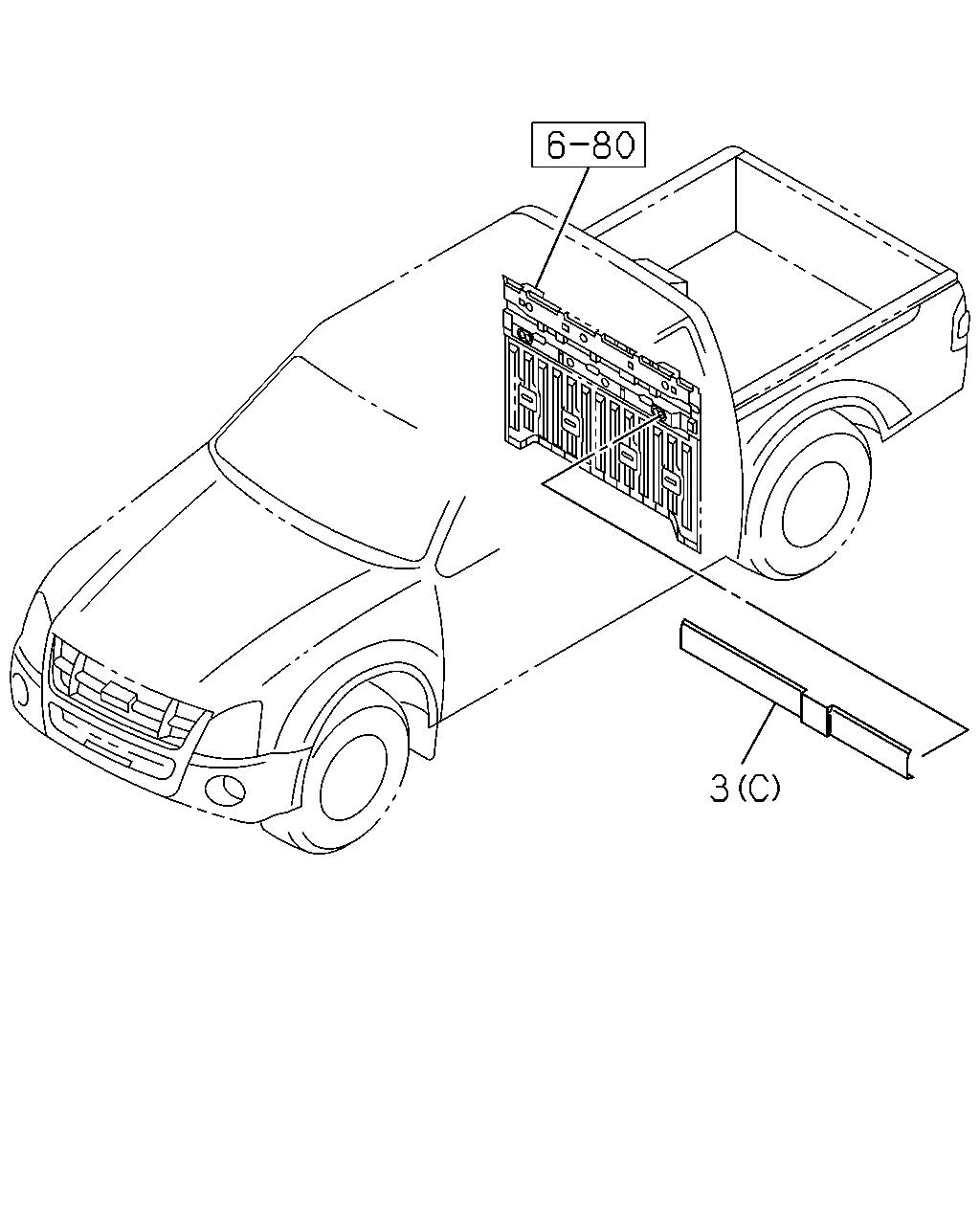

[684A] CREW CAB (5 parça)
▶
3
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
3
TRIM; FULL,BACK UPR
JUMP SEAT<AJ2> (A) DARK GRAY
8-97415-637-0
01
1
1405-
●
3
TRIM; FULL,BACK UPR
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> EXC. JUMP SEAT<AJ2> (A) DARK GRAY
8-97415-638-0
01
1
1405-
●
3
TRIM; FULL,BACK UPR
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. JUMP SEAT<AJ2> (A) DARK GRAY
8-97415-640-0
01
1
1405-
●
3
TRIM; FULL,BACK UPR
(B) DARK GRAY
8-97403-578-0
01
1
1405-
●
3
TRIM; FULL,BACK UPR
(C) DARK GRAY
8-97403-580-0
01
1
1405-
●
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
3
TRIM; FULL,BACK UPR
JUMP SEAT<AJ2> (A) DARK GRAY
8-97415-637-0
01
1
1405-
●
3
TRIM; FULL,BACK UPR
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> EXC. JUMP SEAT<AJ2> (A) DARK GRAY
8-97415-638-0
01
1
1405-
●
3
TRIM; FULL,BACK UPR
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. JUMP SEAT<AJ2> (A) DARK GRAY
8-97415-640-0
01
1
1405-
●
3
TRIM; FULL,BACK UPR
(B) DARK GRAY
8-97403-578-0
01
1
1405-
●
3
TRIM; FULL,BACK UPR
(C) DARK GRAY
8-97403-580-0
01
1
1405-
●
