Sayfa 6-70 - Isuzu EPC

6-70 — FLOOR PANEL (#138103) — 242 parça

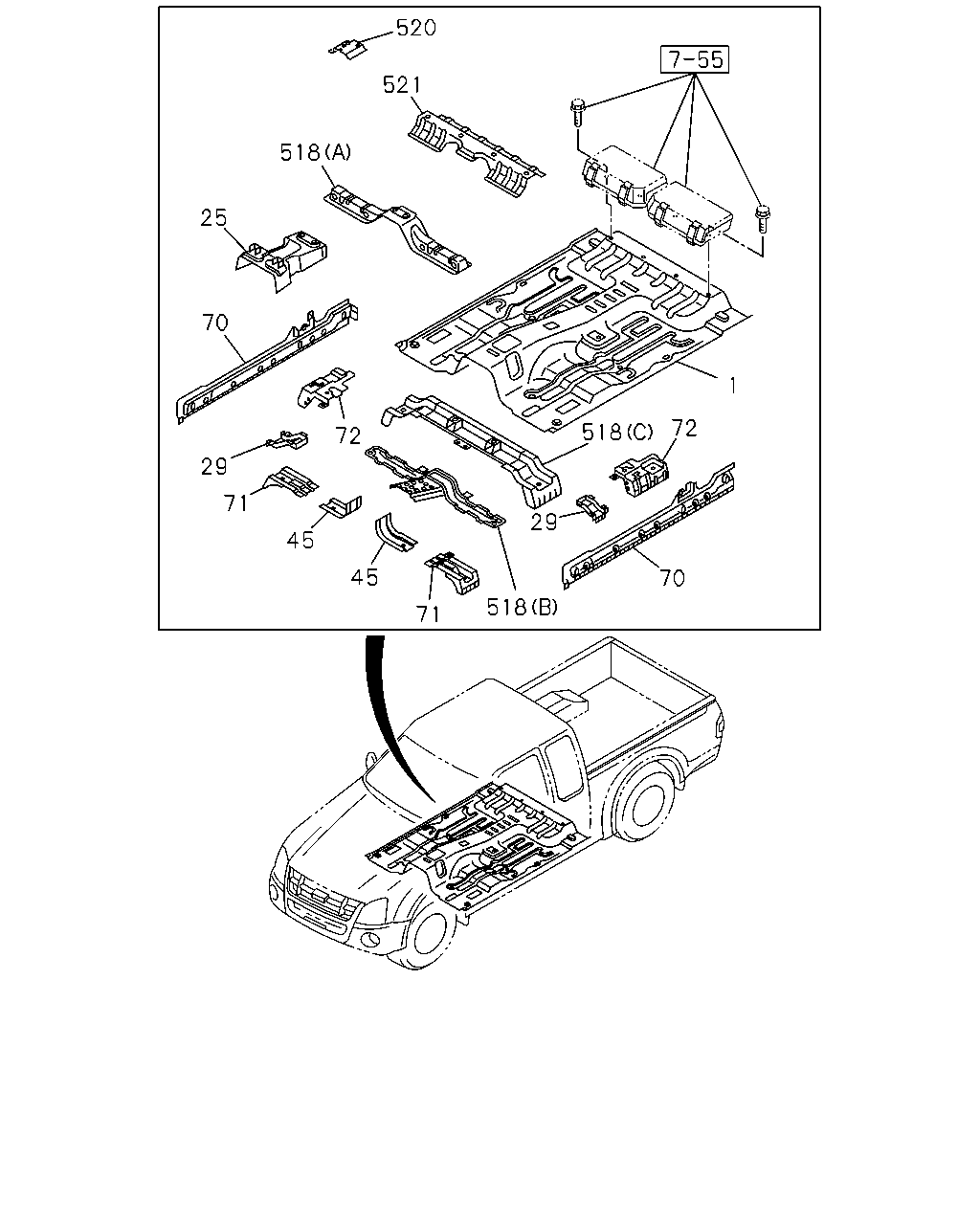

520 521 518 25 70 29 71 45 45 71 518 70 29 72 518 1 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PANEL; FLOOR	8-97357-508-0	01	1	1405-1509	●
1	PANEL; FLOOR PLANT - ISUZU,THAILAND<8KX>	8-97357-508-0	01	1	1510-	●
1	PANEL; FLOOR FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97357-508-0	01	1	1510-	●
1	PANEL; FLOOR SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97357-508-0	01	1	1510-	●
1	PANEL; FLOOR	8-97357-507-0	01	1	1405-		●
1	PANEL; FLOOR	8-97357-509-0	01	1	1405-			●
25	REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55>	8-97380-608-0	01	1	1405-	●	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	1405-1509	●	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT PLANT - ISUZU,THAILAND<8KX> EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	1510-	●
25	REINFORCEMENT; FRAME FLOOR,FRT SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97380-609-0	01	1	1510-	●
25	REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	1510-		●	●
29	GUSSET	8-97349-433-0	02	1	1405-1509	●	●	●
29	GUSSET PLANT - ISUZU,THAILAND<8KX>	8-97349-433-0	02	1	1510-	●
29	GUSSET FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97349-433-0	02	1	1510-	●
29	GUSSET SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97349-433-0	02	1	1510-	●
29	GUSSET	8-97349-433-0	02	1	1510-		●	●
45	REINFORCEMENT; TUNNEL,FRT	8-97235-810-1	01	1	1405-1509	●	●	●
45	REINFORCEMENT; TUNNEL,FRT PLANT - ISUZU,THAILAND<8KX>	8-97235-810-1	01	1	1510-	●
45	REINFORCEMENT; TUNNEL,FRT FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-810-1	01	1	1510-	●
45	REINFORCEMENT; TUNNEL,FRT SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97235-810-1	01	1	1510-	●
45	REINFORCEMENT; TUNNEL,FRT	8-97235-810-1	01	1	1510-		●	●
45	REINFORCEMENT; TUNNEL,FRT	8-97235-811-1	01	1	1405-1509	●	●	●
45	REINFORCEMENT; TUNNEL,FRT PLANT - ISUZU,THAILAND<8KX>	8-97235-811-1	01	1	1510-	●
45	REINFORCEMENT; TUNNEL,FRT FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-811-1	01	1	1510-	●
45	REINFORCEMENT; TUNNEL,FRT SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97235-811-1	01	1	1510-	●
45	REINFORCEMENT; TUNNEL,FRT	8-97235-811-1	01	1	1510-		●	●
70	PANEL; ROCKER INNER	8-97235-543-4	01	1	1405-1509	●
70	PANEL; ROCKER INNER PLANT - ISUZU,THAILAND<8KX>	8-97235-543-4	01	1	1510-	●
70	PANEL; ROCKER INNER FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-543-4	01	1	1510-	●
70	PANEL; ROCKER INNER SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97235-543-4	01	1	1510-	●
70	PANEL; ROCKER INNER	8-97235-547-4	01	1	1405-1509	●
70	PANEL; ROCKER INNER PLANT - ISUZU,THAILAND<8KX>	8-97235-547-4	01	1	1510-	●
70	PANEL; ROCKER INNER FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-547-4	01	1	1510-	●
70	PANEL; ROCKER INNER SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97235-547-4	01	1	1510-	●
70	PANEL; ROCKER INNER	8-97235-542-4	01	1	1405-		●
70	PANEL; ROCKER INNER	8-97235-546-4	01	1	1405-		●
70	PANEL; ROCKER INNER	8-93333-636-3	01	1	1405-			●
70	PANEL; ROCKER INNER	8-93333-637-3	01	1	1405-			●
71	BRACKET; CAB MTG,CENTER	8-97235-857-4	01	1	1405-1509	●	●	●
71	BRACKET; CAB MTG,CENTER PLANT - ISUZU,THAILAND<8KX>	8-97235-857-4	01	1	1510-	●
71	BRACKET; CAB MTG,CENTER FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-857-4	01	1	1510-	●
71	BRACKET; CAB MTG,CENTER SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97235-857-4	01	1	1510-	●
71	BRACKET; CAB MTG,CENTER	8-97235-857-4	01	1	1510-		●	●
71	BRACKET; CAB MTG,CENTER	8-97235-861-3	01	1	1405-1509	●	●	●
71	BRACKET; CAB MTG,CENTER PLANT - ISUZU,THAILAND<8KX>	8-97235-861-3	01	1	1510-	●
71	BRACKET; CAB MTG,CENTER FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-861-3	01	1	1510-	●
71	BRACKET; CAB MTG,CENTER SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97235-861-3	01	1	1510-	●
71	BRACKET; CAB MTG,CENTER	8-97235-861-3	01	1	1510-		●	●
72	BRACKET; CAB MTG,RR	8-97235-859-3	01	1	1405-1509	●
72	BRACKET; CAB MTG,RR PLANT - ISUZU,THAILAND<8KX>	8-97235-859-3	01	1	1510-	●
72	BRACKET; CAB MTG,RR FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-859-3	01	1	1510-	●
72	BRACKET; CAB MTG,RR SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97235-859-3	01	1	1510-	●
72	BRACKET; CAB MTG,RR	8-97235-883-3	01	1	1405-1509	●
72	BRACKET; CAB MTG,RR PLANT - ISUZU,THAILAND<8KX>	8-97235-883-3	01	1	1510-	●
72	BRACKET; CAB MTG,RR FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-883-3	01	1	1510-	●
72	BRACKET; CAB MTG,RR SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97235-883-3	01	1	1510-	●
72	BRACKET; CAB MTG,RR	8-97248-001-4	01	1	1405-		●
72	BRACKET; CAB MTG,RR	8-97235-871-4	01	1	1405-		●	●
72	BRACKET; CAB MTG,RR	8-97235-858-4	01	1	1405-			●
518	SILL; FLOOR (C)	8-97236-099-4	01	1	1405-1509	●
518	SILL; FLOOR PLANT - ISUZU,THAILAND<8KX> (C)	8-97236-099-4	01	1	1510-	●
518	SILL; FLOOR FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX> (C)	8-97236-099-4	01	1	1510-	●
518	SILL; FLOOR SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX> (C)	8-97236-099-4	01	1	1510-	●
518	SILL; FLOOR (A)	8-98048-087-0	01	1	1405-1509	●
518	SILL; FLOOR PLANT - ISUZU,THAILAND<8KX> (A)	8-98048-087-0	01	1	1510-	●
518	SILL; FLOOR FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX> (A)	8-98048-087-0	01	1	1510-	●
518	SILL; FLOOR SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX> (A)	8-98048-087-0	01	1	1510-	●
518	SILL; FLOOR (B)	8-97235-819-5	01	1	1405-1509	●	●	●
518	SILL; FLOOR PLANT - ISUZU,THAILAND<8KX> (B)	8-97235-819-5	01	1	1510-	●
518	SILL; FLOOR FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX> (B)	8-97235-819-5	01	1	1510-	●
518	SILL; FLOOR SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX> (B)	8-97235-819-5	01	1	1510-	●
518	SILL; FLOOR (B)	8-97235-819-5	01	1	1510-		●	●
518	SILL; FLOOR (A)	8-98048-086-0	01	1	1405-		●	●
520	BRACKET; FUEL LID OPENER	8-97236-152-2	01	1	1405-1509	●	●	●
520	BRACKET; FUEL LID OPENER PLANT - ISUZU,THAILAND<8KX>	8-97236-152-2	01	1	1510-	●
520	BRACKET; FUEL LID OPENER FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97236-152-2	01	1	1510-	●
520	BRACKET; FUEL LID OPENER SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97236-152-2	01	1	1510-	●
520	BRACKET; FUEL LID OPENER	8-97236-152-2	01	1	1510-		●	●
521	BRACKET; RR STORAGE	8-97259-225-3	01	1	1405-1509	●
521	BRACKET; RR STORAGE PLANT - ISUZU,THAILAND<8KX>	8-97259-225-3	01	1	1510-	●
521	BRACKET; RR STORAGE FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97259-225-3	01	1	1510-	●
521	BRACKET; RR STORAGE SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97259-225-3	01	1	1510-	●

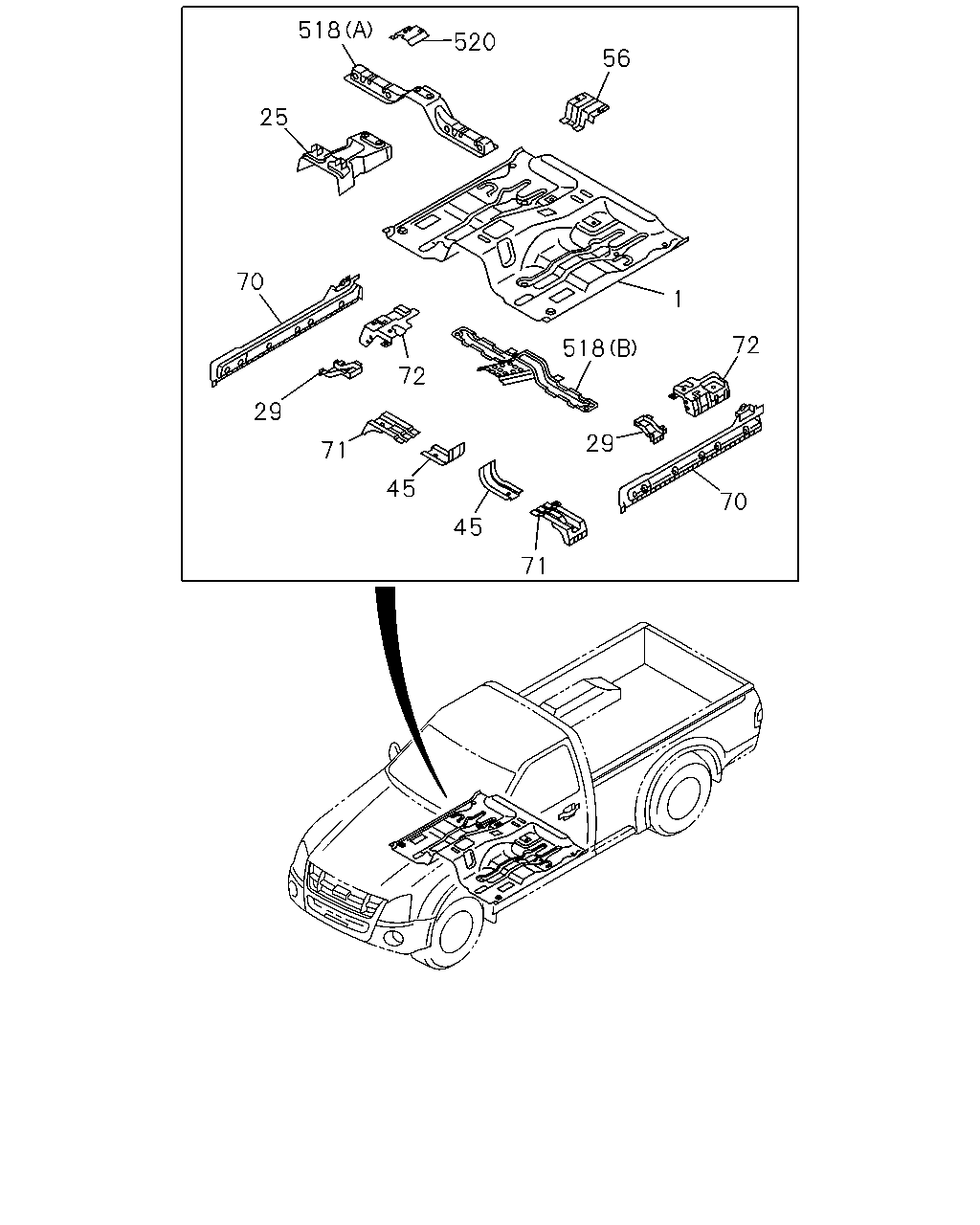

518 520 56 25 70 29 71 45 45 71 70 29 72 518 1 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PANEL; FLOOR	8-97357-508-0	01	1	1405-1509	●
1	PANEL; FLOOR PLANT - ISUZU,THAILAND<8KX>	8-97357-508-0	01	1	1510-	●
1	PANEL; FLOOR FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97357-508-0	01	1	1510-	●
1	PANEL; FLOOR SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97357-508-0	01	1	1510-	●
1	PANEL; FLOOR	8-97357-507-0	01	1	1405-		●
1	PANEL; FLOOR	8-97357-509-0	01	1	1405-			●
25	REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55>	8-97380-608-0	01	1	1405-	●	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	1405-1509	●	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT PLANT - ISUZU,THAILAND<8KX> EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	1510-	●
25	REINFORCEMENT; FRAME FLOOR,FRT SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97380-609-0	01	1	1510-	●
25	REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	1510-		●	●
29	GUSSET	8-97349-433-0	02	1	1405-1509	●	●	●
29	GUSSET PLANT - ISUZU,THAILAND<8KX>	8-97349-433-0	02	1	1510-	●
29	GUSSET FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97349-433-0	02	1	1510-	●
29	GUSSET SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97349-433-0	02	1	1510-	●
29	GUSSET	8-97349-433-0	02	1	1510-		●	●
45	REINFORCEMENT; TUNNEL,FRT	8-97235-810-1	01	1	1405-1509	●	●	●
45	REINFORCEMENT; TUNNEL,FRT PLANT - ISUZU,THAILAND<8KX>	8-97235-810-1	01	1	1510-	●
45	REINFORCEMENT; TUNNEL,FRT FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-810-1	01	1	1510-	●
45	REINFORCEMENT; TUNNEL,FRT SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97235-810-1	01	1	1510-	●
45	REINFORCEMENT; TUNNEL,FRT	8-97235-810-1	01	1	1510-		●	●
45	REINFORCEMENT; TUNNEL,FRT	8-97235-811-1	01	1	1405-1509	●	●	●
45	REINFORCEMENT; TUNNEL,FRT PLANT - ISUZU,THAILAND<8KX>	8-97235-811-1	01	1	1510-	●
45	REINFORCEMENT; TUNNEL,FRT FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-811-1	01	1	1510-	●
45	REINFORCEMENT; TUNNEL,FRT SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97235-811-1	01	1	1510-	●
45	REINFORCEMENT; TUNNEL,FRT	8-97235-811-1	01	1	1510-		●	●
56	BRACKET; JACK	8-97236-363-2	01	1	1405-		●
70	PANEL; ROCKER INNER	8-97235-543-4	01	1	1405-1509	●
70	PANEL; ROCKER INNER PLANT - ISUZU,THAILAND<8KX>	8-97235-543-4	01	1	1510-	●
70	PANEL; ROCKER INNER FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-543-4	01	1	1510-	●
70	PANEL; ROCKER INNER SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97235-543-4	01	1	1510-	●
70	PANEL; ROCKER INNER	8-97235-547-4	01	1	1405-1509	●
70	PANEL; ROCKER INNER PLANT - ISUZU,THAILAND<8KX>	8-97235-547-4	01	1	1510-	●
70	PANEL; ROCKER INNER FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-547-4	01	1	1510-	●
70	PANEL; ROCKER INNER SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97235-547-4	01	1	1510-	●
70	PANEL; ROCKER INNER	8-97235-542-4	01	1	1405-		●
70	PANEL; ROCKER INNER	8-97235-546-4	01	1	1405-		●
70	PANEL; ROCKER INNER	8-93333-636-3	01	1	1405-			●
70	PANEL; ROCKER INNER	8-93333-637-3	01	1	1405-			●
71	BRACKET; CAB MTG,CENTER	8-97235-857-4	01	1	1405-1509	●	●	●
71	BRACKET; CAB MTG,CENTER PLANT - ISUZU,THAILAND<8KX>	8-97235-857-4	01	1	1510-	●
71	BRACKET; CAB MTG,CENTER FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-857-4	01	1	1510-	●
71	BRACKET; CAB MTG,CENTER SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97235-857-4	01	1	1510-	●
71	BRACKET; CAB MTG,CENTER	8-97235-857-4	01	1	1510-		●	●
71	BRACKET; CAB MTG,CENTER	8-97235-861-3	01	1	1405-1509	●	●	●
71	BRACKET; CAB MTG,CENTER PLANT - ISUZU,THAILAND<8KX>	8-97235-861-3	01	1	1510-	●
71	BRACKET; CAB MTG,CENTER FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-861-3	01	1	1510-	●
71	BRACKET; CAB MTG,CENTER SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97235-861-3	01	1	1510-	●
71	BRACKET; CAB MTG,CENTER	8-97235-861-3	01	1	1510-		●	●
72	BRACKET; CAB MTG,RR	8-97235-859-3	01	1	1405-1509	●
72	BRACKET; CAB MTG,RR PLANT - ISUZU,THAILAND<8KX>	8-97235-859-3	01	1	1510-	●
72	BRACKET; CAB MTG,RR FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-859-3	01	1	1510-	●
72	BRACKET; CAB MTG,RR SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97235-859-3	01	1	1510-	●
72	BRACKET; CAB MTG,RR	8-97235-883-3	01	1	1405-1509	●
72	BRACKET; CAB MTG,RR PLANT - ISUZU,THAILAND<8KX>	8-97235-883-3	01	1	1510-	●
72	BRACKET; CAB MTG,RR FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-883-3	01	1	1510-	●
72	BRACKET; CAB MTG,RR SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97235-883-3	01	1	1510-	●
72	BRACKET; CAB MTG,RR	8-97248-001-4	01	1	1405-		●
72	BRACKET; CAB MTG,RR	8-97235-871-4	01	1	1405-		●	●
72	BRACKET; CAB MTG,RR	8-97235-858-4	01	1	1405-			●
518	SILL; FLOOR (C)	8-97236-099-4	01	1	1405-1509	●
518	SILL; FLOOR PLANT - ISUZU,THAILAND<8KX> (C)	8-97236-099-4	01	1	1510-	●
518	SILL; FLOOR FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX> (C)	8-97236-099-4	01	1	1510-	●
518	SILL; FLOOR SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX> (C)	8-97236-099-4	01	1	1510-	●
518	SILL; FLOOR (A)	8-98048-087-0	01	1	1405-1509	●
518	SILL; FLOOR PLANT - ISUZU,THAILAND<8KX> (A)	8-98048-087-0	01	1	1510-	●
518	SILL; FLOOR FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX> (A)	8-98048-087-0	01	1	1510-	●
518	SILL; FLOOR SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX> (A)	8-98048-087-0	01	1	1510-	●
518	SILL; FLOOR (B)	8-97235-819-5	01	1	1405-1509	●	●	●
518	SILL; FLOOR PLANT - ISUZU,THAILAND<8KX> (B)	8-97235-819-5	01	1	1510-	●
518	SILL; FLOOR FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX> (B)	8-97235-819-5	01	1	1510-	●
518	SILL; FLOOR SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX> (B)	8-97235-819-5	01	1	1510-	●
518	SILL; FLOOR (B)	8-97235-819-5	01	1	1510-		●	●
518	SILL; FLOOR (A)	8-98048-086-0	01	1	1405-		●	●
520	BRACKET; FUEL LID OPENER	8-97236-152-2	01	1	1405-1509	●	●	●
520	BRACKET; FUEL LID OPENER PLANT - ISUZU,THAILAND<8KX>	8-97236-152-2	01	1	1510-	●
520	BRACKET; FUEL LID OPENER FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97236-152-2	01	1	1510-	●
520	BRACKET; FUEL LID OPENER SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97236-152-2	01	1	1510-	●
520	BRACKET; FUEL LID OPENER	8-97236-152-2	01	1	1510-		●	●

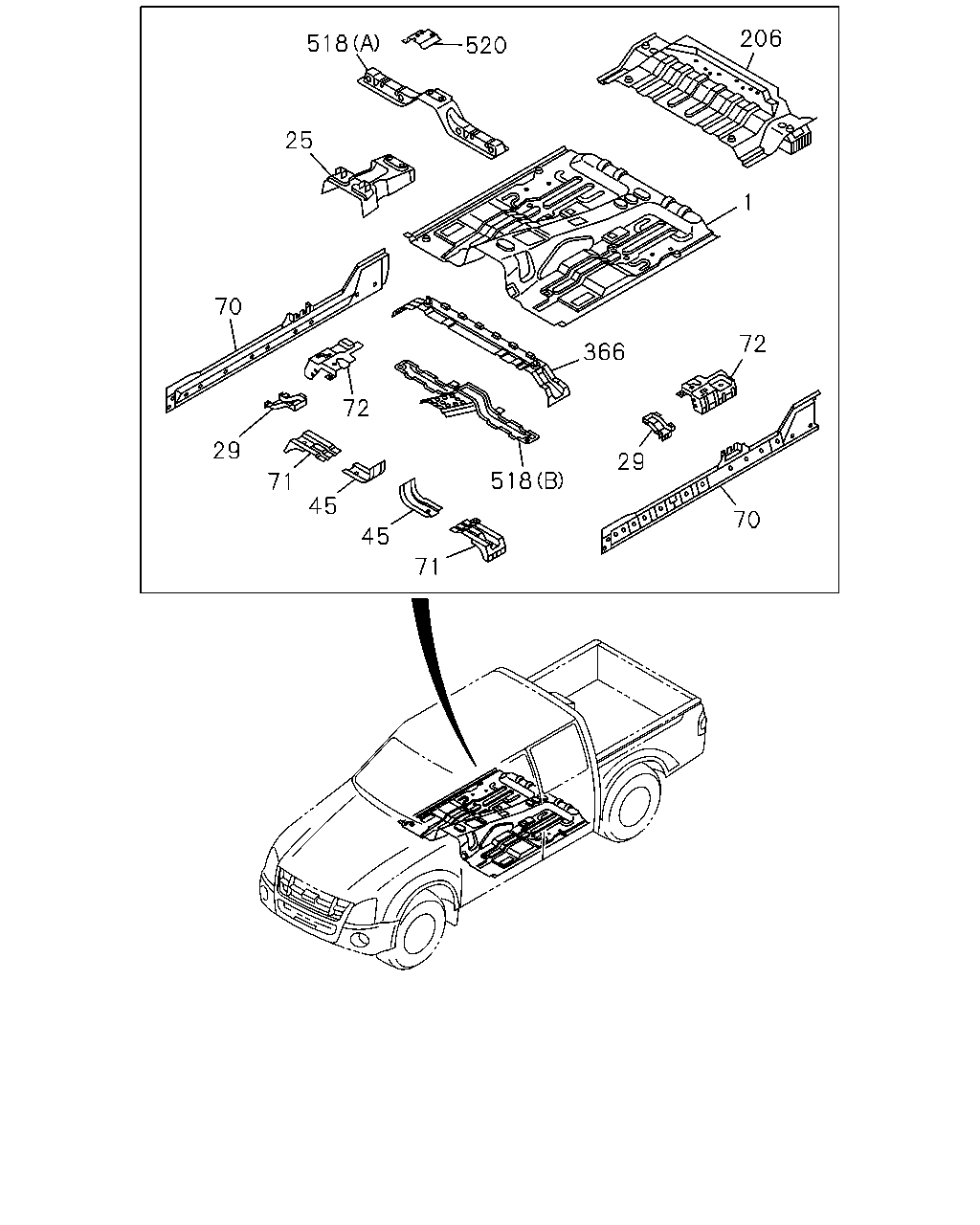

518 520 206 25 70 29 71 45 45 71 518 70 29 72 366 1 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PANEL; FLOOR	8-97357-508-0	01	1	1405-1509	●
1	PANEL; FLOOR PLANT - ISUZU,THAILAND<8KX>	8-97357-508-0	01	1	1510-	●
1	PANEL; FLOOR FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97357-508-0	01	1	1510-	●
1	PANEL; FLOOR SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97357-508-0	01	1	1510-	●
1	PANEL; FLOOR	8-97357-507-0	01	1	1405-		●
1	PANEL; FLOOR	8-97357-509-0	01	1	1405-			●
25	REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55>	8-97380-608-0	01	1	1405-	●	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	1405-1509	●	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT PLANT - ISUZU,THAILAND<8KX> EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	1510-	●
25	REINFORCEMENT; FRAME FLOOR,FRT SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97380-609-0	01	1	1510-	●
25	REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	1510-		●	●
29	GUSSET	8-97349-433-0	02	1	1405-1509	●	●	●
29	GUSSET PLANT - ISUZU,THAILAND<8KX>	8-97349-433-0	02	1	1510-	●
29	GUSSET FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97349-433-0	02	1	1510-	●
29	GUSSET SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97349-433-0	02	1	1510-	●
29	GUSSET	8-97349-433-0	02	1	1510-		●	●
45	REINFORCEMENT; TUNNEL,FRT	8-97235-810-1	01	1	1405-1509	●	●	●
45	REINFORCEMENT; TUNNEL,FRT PLANT - ISUZU,THAILAND<8KX>	8-97235-810-1	01	1	1510-	●
45	REINFORCEMENT; TUNNEL,FRT FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-810-1	01	1	1510-	●
45	REINFORCEMENT; TUNNEL,FRT SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97235-810-1	01	1	1510-	●
45	REINFORCEMENT; TUNNEL,FRT	8-97235-810-1	01	1	1510-		●	●
45	REINFORCEMENT; TUNNEL,FRT	8-97235-811-1	01	1	1405-1509	●	●	●
45	REINFORCEMENT; TUNNEL,FRT PLANT - ISUZU,THAILAND<8KX>	8-97235-811-1	01	1	1510-	●
45	REINFORCEMENT; TUNNEL,FRT FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-811-1	01	1	1510-	●
45	REINFORCEMENT; TUNNEL,FRT SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97235-811-1	01	1	1510-	●
45	REINFORCEMENT; TUNNEL,FRT	8-97235-811-1	01	1	1510-		●	●
70	PANEL; ROCKER INNER	8-97235-543-4	01	1	1405-1509	●
70	PANEL; ROCKER INNER PLANT - ISUZU,THAILAND<8KX>	8-97235-543-4	01	1	1510-	●
70	PANEL; ROCKER INNER FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-543-4	01	1	1510-	●
70	PANEL; ROCKER INNER SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97235-543-4	01	1	1510-	●
70	PANEL; ROCKER INNER	8-97235-547-4	01	1	1405-1509	●
70	PANEL; ROCKER INNER PLANT - ISUZU,THAILAND<8KX>	8-97235-547-4	01	1	1510-	●
70	PANEL; ROCKER INNER FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-547-4	01	1	1510-	●
70	PANEL; ROCKER INNER SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97235-547-4	01	1	1510-	●
70	PANEL; ROCKER INNER	8-97235-542-4	01	1	1405-		●
70	PANEL; ROCKER INNER	8-97235-546-4	01	1	1405-		●
70	PANEL; ROCKER INNER	8-93333-636-3	01	1	1405-			●
70	PANEL; ROCKER INNER	8-93333-637-3	01	1	1405-			●
71	BRACKET; CAB MTG,CENTER	8-97235-857-4	01	1	1405-1509	●	●	●
71	BRACKET; CAB MTG,CENTER PLANT - ISUZU,THAILAND<8KX>	8-97235-857-4	01	1	1510-	●
71	BRACKET; CAB MTG,CENTER FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-857-4	01	1	1510-	●
71	BRACKET; CAB MTG,CENTER SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97235-857-4	01	1	1510-	●
71	BRACKET; CAB MTG,CENTER	8-97235-857-4	01	1	1510-		●	●
71	BRACKET; CAB MTG,CENTER	8-97235-861-3	01	1	1405-1509	●	●	●
71	BRACKET; CAB MTG,CENTER PLANT - ISUZU,THAILAND<8KX>	8-97235-861-3	01	1	1510-	●
71	BRACKET; CAB MTG,CENTER FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-861-3	01	1	1510-	●
71	BRACKET; CAB MTG,CENTER SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97235-861-3	01	1	1510-	●
71	BRACKET; CAB MTG,CENTER	8-97235-861-3	01	1	1510-		●	●
72	BRACKET; CAB MTG,RR	8-97235-859-3	01	1	1405-1509	●
72	BRACKET; CAB MTG,RR PLANT - ISUZU,THAILAND<8KX>	8-97235-859-3	01	1	1510-	●
72	BRACKET; CAB MTG,RR FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-859-3	01	1	1510-	●
72	BRACKET; CAB MTG,RR SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97235-859-3	01	1	1510-	●
72	BRACKET; CAB MTG,RR	8-97235-883-3	01	1	1405-1509	●
72	BRACKET; CAB MTG,RR PLANT - ISUZU,THAILAND<8KX>	8-97235-883-3	01	1	1510-	●
72	BRACKET; CAB MTG,RR FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97235-883-3	01	1	1510-	●
72	BRACKET; CAB MTG,RR SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97235-883-3	01	1	1510-	●
72	BRACKET; CAB MTG,RR	8-97248-001-4	01	1	1405-		●
72	BRACKET; CAB MTG,RR	8-97235-871-4	01	1	1405-		●	●
72	BRACKET; CAB MTG,RR	8-97235-858-4	01	1	1405-			●
206	PANEL; FLOOR BOARD RR	8-98090-608-0	01	1	1405-1509		●	●
206	PANEL; FLOOR BOARD RR	8-98090-608-0	01	1	1510-			●
366	BAR ASM; FRT SEAT MTG	8-93333-631-3	01	1	1405-			●
518	SILL; FLOOR (C)	8-97236-099-4	01	1	1405-1509	●
518	SILL; FLOOR PLANT - ISUZU,THAILAND<8KX> (C)	8-97236-099-4	01	1	1510-	●
518	SILL; FLOOR FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX> (C)	8-97236-099-4	01	1	1510-	●
518	SILL; FLOOR SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX> (C)	8-97236-099-4	01	1	1510-	●
518	SILL; FLOOR (A)	8-98048-087-0	01	1	1405-1509	●
518	SILL; FLOOR PLANT - ISUZU,THAILAND<8KX> (A)	8-98048-087-0	01	1	1510-	●
518	SILL; FLOOR FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX> (A)	8-98048-087-0	01	1	1510-	●
518	SILL; FLOOR SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX> (A)	8-98048-087-0	01	1	1510-	●
518	SILL; FLOOR (B)	8-97235-819-5	01	1	1405-1509	●	●	●
518	SILL; FLOOR PLANT - ISUZU,THAILAND<8KX> (B)	8-97235-819-5	01	1	1510-	●
518	SILL; FLOOR FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX> (B)	8-97235-819-5	01	1	1510-	●
518	SILL; FLOOR SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX> (B)	8-97235-819-5	01	1	1510-	●
518	SILL; FLOOR (B)	8-97235-819-5	01	1	1510-		●	●
518	SILL; FLOOR (A)	8-98048-086-0	01	1	1405-		●	●
520	BRACKET; FUEL LID OPENER	8-97236-152-2	01	1	1405-1509	●	●	●
520	BRACKET; FUEL LID OPENER PLANT - ISUZU,THAILAND<8KX>	8-97236-152-2	01	1	1510-	●
520	BRACKET; FUEL LID OPENER FRONT CONSOLE<D55> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97236-152-2	01	1	1510-	●
520	BRACKET; FUEL LID OPENER SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55>,PLANT - ISUZU, THAILAND<8KX>	8-97236-152-2	01	1	1510-	●
520	BRACKET; FUEL LID OPENER	8-97236-152-2	01	1	1510-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
