6-60 — ROOF PANEL (#138101) — 34 parça

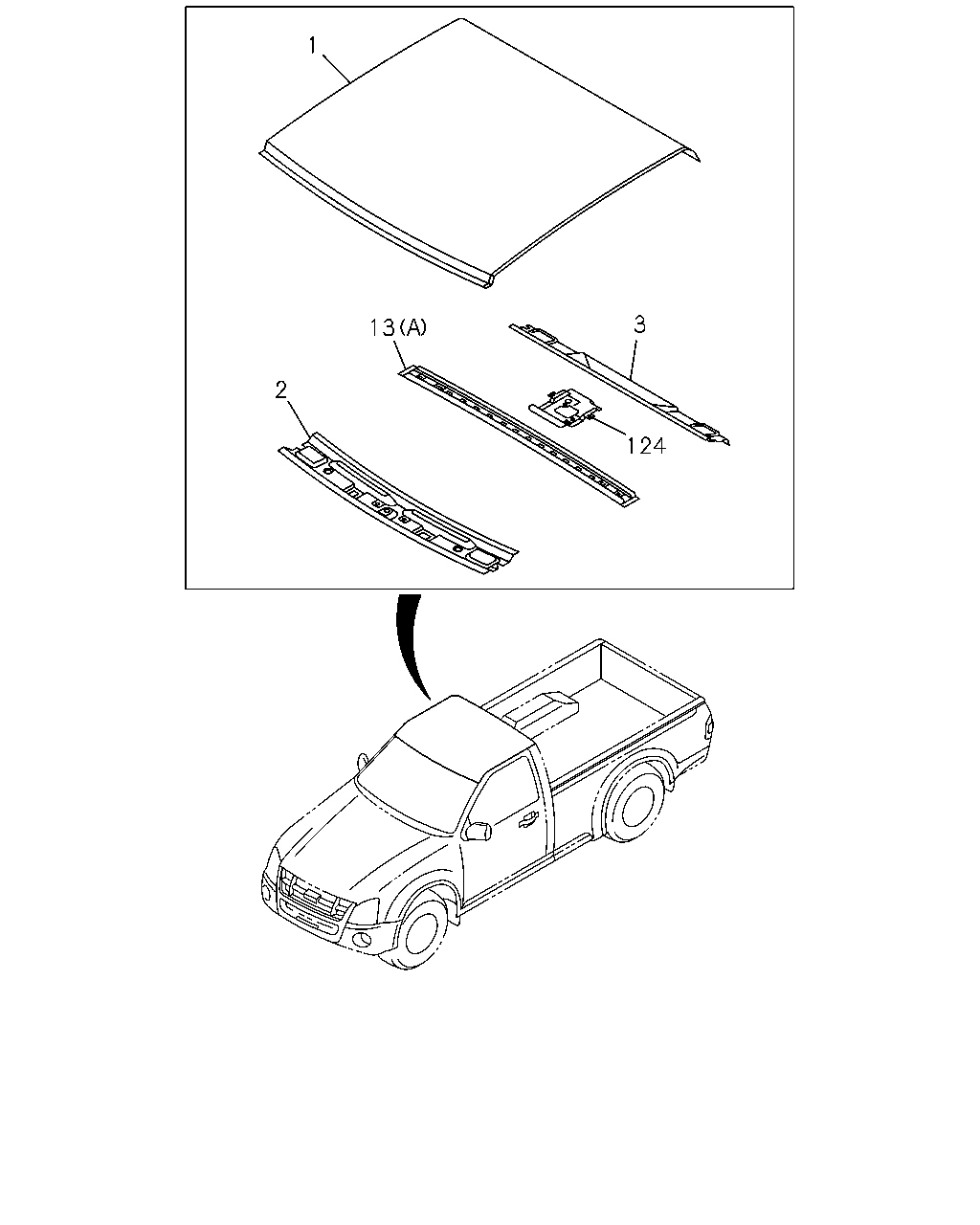

1 2 13 3 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PANEL; ROOF HIGH MOUNT STOP LAMP<TS6>	8-97235-107-3	01	1	1405-	●
1	PANEL; ROOF EXC. HIGH MOUNT STOP LAMP<TS6>,PLANT - ISUZU, THAILAND<8KX>	8-97233-913-3	01	1	1405-	●
1	PANEL; ROOF HIGH MOUNT STOP LAMP<TS6>	8-97235-330-3	01	1	1405-		●
1	PANEL; ROOF EXC. HIGH MOUNT STOP LAMP<TS6>	8-97235-326-3	01	1	1405-		●
1	PANEL; ROOF HIGH MOUNT STOP LAMP<TS6>	8-93290-859-1	01	1	1405-			●
1	PANEL; ROOF EXC. HIGH MOUNT STOP LAMP<TS6>,PLANT - ISUZU, THAILAND<8KX>	8-93298-720-1	01	1	1405-			●
2	PANEL; ROOF,CENTER	8-98050-942-0	01	1	1405-	●	●	●
3	PANEL; ROOF,RR	8-97235-282-3	01	1	1405-	●	●	●
13	PANEL; ROOF SUPPORT (A)	8-97235-279-3	01	1	1405-	●	●	●
13	PANEL; ROOF SUPPORT (B)	8-97235-281-3	01	1	1405-	●		●
13	PANEL; ROOF SUPPORT (C)	8-93291-041-1	01	1	1405-			●
124	BRACKET; ROOM LAMP	8-97235-999-1	01	1	1405-		●

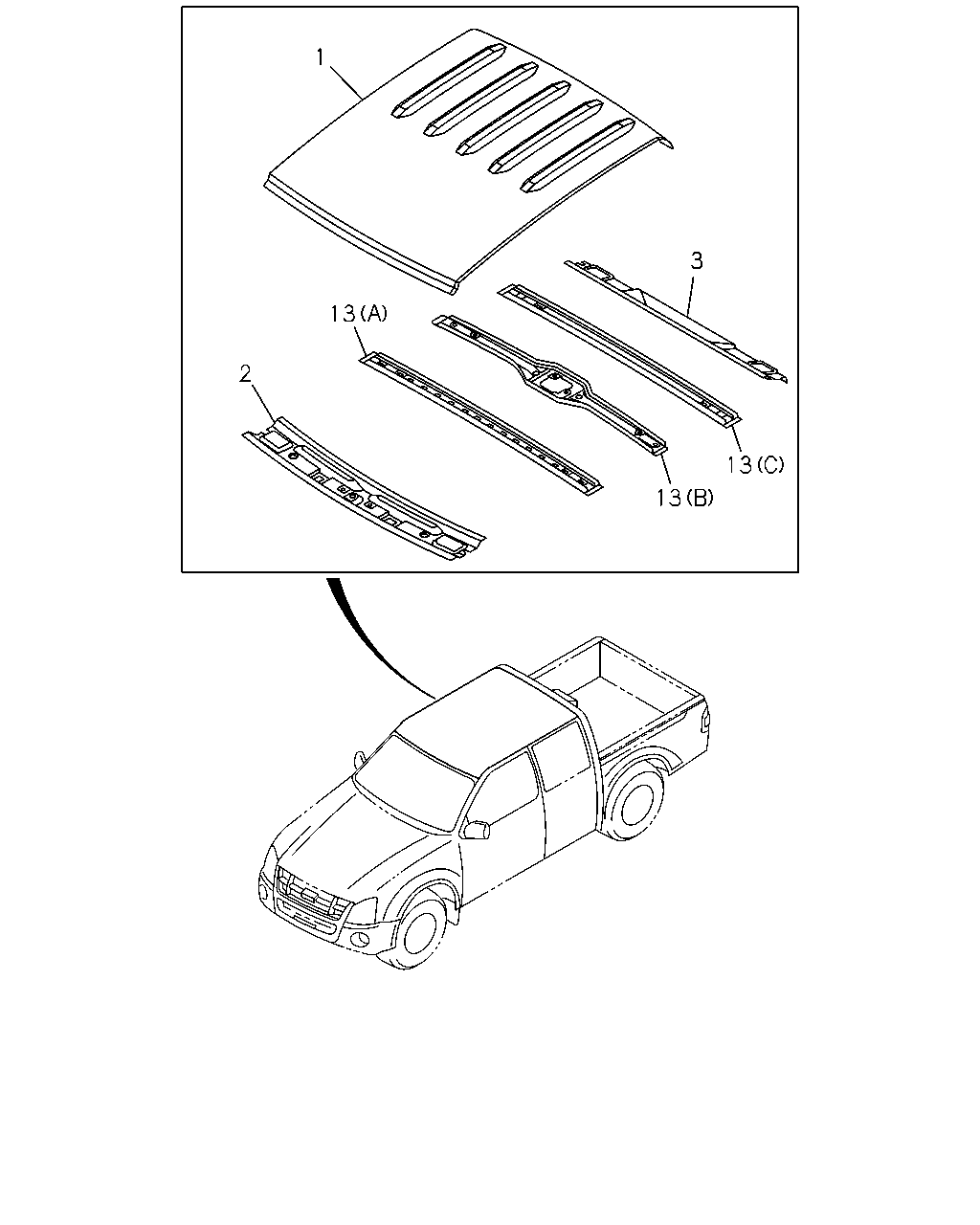

1 2 13 3 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PANEL; ROOF HIGH MOUNT STOP LAMP<TS6>	8-97235-107-3	01	1	1405-	●
1	PANEL; ROOF EXC. HIGH MOUNT STOP LAMP<TS6>,PLANT - ISUZU, THAILAND<8KX>	8-97233-913-3	01	1	1405-	●
1	PANEL; ROOF HIGH MOUNT STOP LAMP<TS6>	8-97235-330-3	01	1	1405-		●
1	PANEL; ROOF EXC. HIGH MOUNT STOP LAMP<TS6>	8-97235-326-3	01	1	1405-		●
1	PANEL; ROOF HIGH MOUNT STOP LAMP<TS6>	8-93290-859-1	01	1	1405-			●
1	PANEL; ROOF EXC. HIGH MOUNT STOP LAMP<TS6>,PLANT - ISUZU, THAILAND<8KX>	8-93298-720-1	01	1	1405-			●
2	PANEL; ROOF,CENTER	8-98050-942-0	01	1	1405-	●	●	●
3	PANEL; ROOF,RR	8-97235-282-3	01	1	1405-	●	●	●
13	PANEL; ROOF SUPPORT (A)	8-97235-279-3	01	1	1405-	●	●	●
13	PANEL; ROOF SUPPORT (B)	8-97235-281-3	01	1	1405-	●		●
13	PANEL; ROOF SUPPORT (C)	8-93291-041-1	01	1	1405-			●

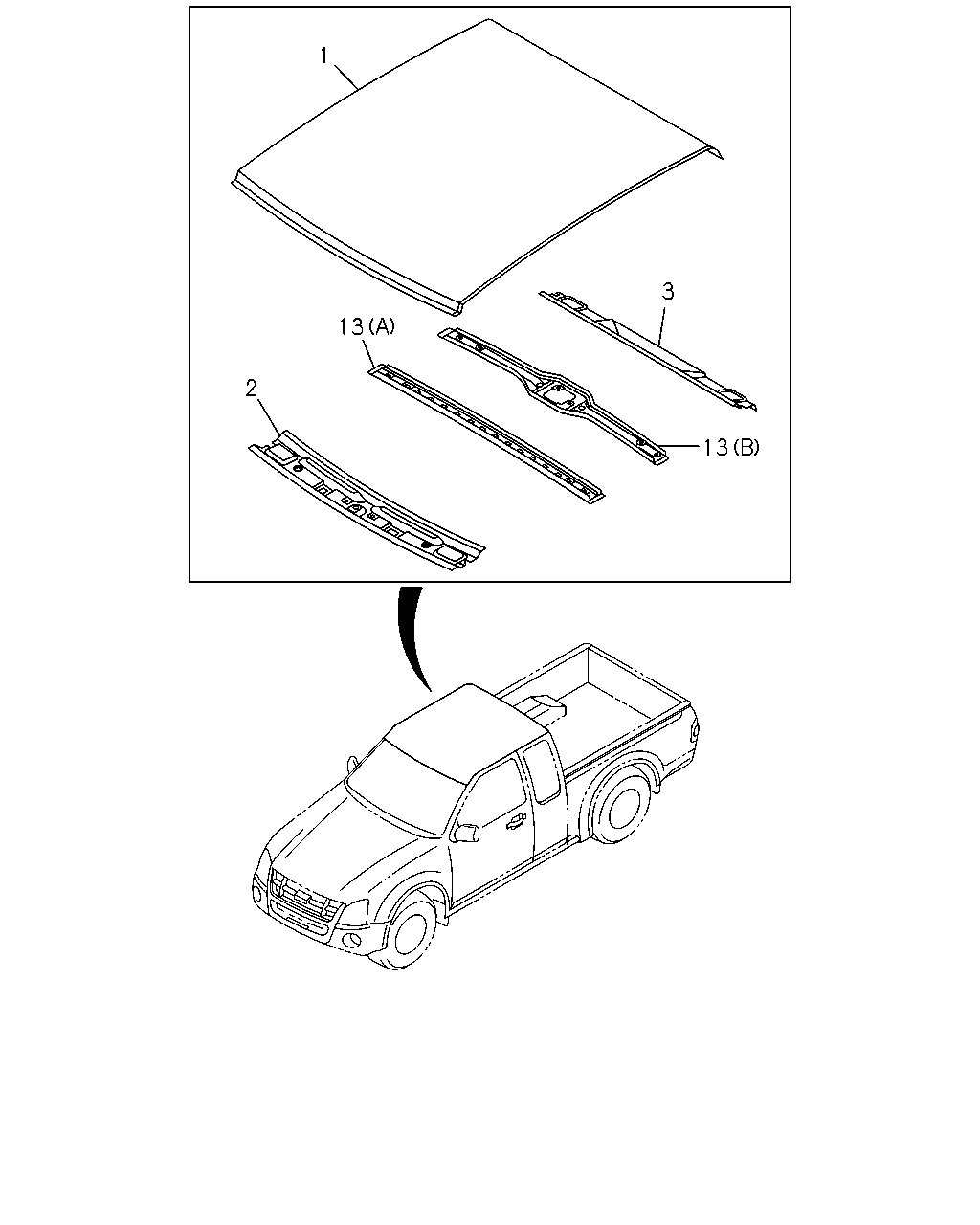

1 2 13 3 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PANEL; ROOF HIGH MOUNT STOP LAMP<TS6>	8-97235-107-3	01	1	1405-	●
1	PANEL; ROOF EXC. HIGH MOUNT STOP LAMP<TS6>,PLANT - ISUZU, THAILAND<8KX>	8-97233-913-3	01	1	1405-	●
1	PANEL; ROOF HIGH MOUNT STOP LAMP<TS6>	8-97235-330-3	01	1	1405-		●
1	PANEL; ROOF EXC. HIGH MOUNT STOP LAMP<TS6>	8-97235-326-3	01	1	1405-		●
1	PANEL; ROOF HIGH MOUNT STOP LAMP<TS6>	8-93290-859-1	01	1	1405-			●
1	PANEL; ROOF EXC. HIGH MOUNT STOP LAMP<TS6>,PLANT - ISUZU, THAILAND<8KX>	8-93298-720-1	01	1	1405-			●
2	PANEL; ROOF,CENTER	8-98050-942-0	01	1	1405-	●	●	●
3	PANEL; ROOF,RR	8-97235-282-3	01	1	1405-	●	●	●
13	PANEL; ROOF SUPPORT (A)	8-97235-279-3	01	1	1405-	●	●	●
13	PANEL; ROOF SUPPORT (B)	8-97235-281-3	01	1	1405-	●		●
13	PANEL; ROOF SUPPORT (C)	8-93291-041-1	01	1	1405-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
