◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10633 - FVZ-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#1381) — 25 parça

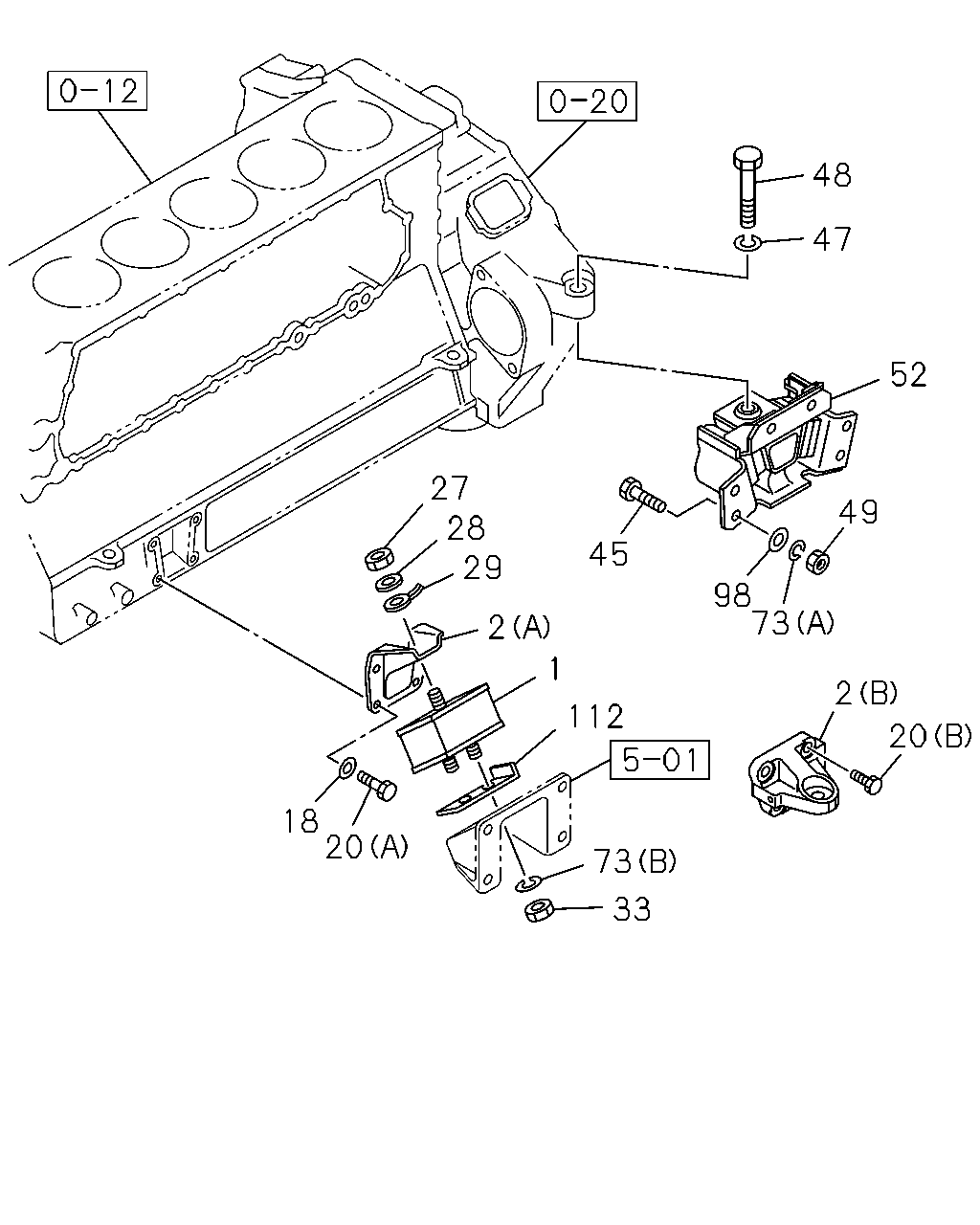

çizim 94040
48 47 52 27 28 29 49 45 98 73 2 1 2 112 20 18 20 73 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 RUBBER; ENG FOOT,FRT 1-53215-179-2 02 1 9203- ● ●
2 FOOT; ENG
(A) 		1-11771-169-1 02 1 9203- ● ●
2 FOOT; ENG
(B) 		1-11773-049-1 01 1 9203- ●
2 FOOT; ENG
(B) 		1-11773-048-3 01 1 9203- ●
18 WASHER; PL,ENG FOOT
ID=10.5 		9-09851-866-0 08 1 9203- ● ●
20 BOLT; ENG FOOT
(A) M10X29 		1-09020-092-0 04 1 9203- ● ●
20 BOLT; ENG FOOT
(A) M10X24.5 		1-09020-093-0 04 1 9203- ● ●
20 BOLT; ENG FOOT
(B) L=50 		1-09070-118-0 06 1 9203- ●
20 BOLT; ENG FOOT
(B) L=40 		1-09070-119-0 02 1 9203- ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M14 		9-99110-514-0 02 1 9203- ● ●
28 WASHER; LK,SUPPORT BRKT
ID=14.2 		9-09150-814-0 02 1 9203- ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-037-3 02 1 9203- ● ●
33 NUT; CUSHION RUBBER TO BRKT
M14 		9-99110-414-0 04 1 9203- ● ●
45 BOLT; CUSHION RUBBER TO FRAME
M14X50 		9-92061-450-0 08 1 9203- ● ●
47 WASHER; LK,CUSHION RUBBER
ID=22.5 		9-09150-622-0 02 1 9203- ● ●
48 BOLT; CUSHION RUBBER TO ENG 1-09020-087-2 02 1 9203- ●
48 BOLT; CUSHION RUBBER TO ENG
M22X60 		1-09020-143-0 02 1 9203- ●
49 NUT; CUSHION RUBBER TO FRAME
M14 		9-99110-514-0 08 1 9203- ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-192-1 02 1 9203- ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-253-3 02 1 9203- ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
(B) ID=14.2 		9-09150-514-0 04 1 9203- ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
(A) ID=14.2 		9-09150-614-0 08 1 9203- ● ●
98 WASHER; PL,CUSHION RUBBER TO FRAME,RR
ID=15 		9-09651-069-0 16 1 9203- ● ●
112 PROTECTOR; HEAT 1-53219-255-1 01 1 9203-9302 ● ●
112 PROTECTOR; HEAT 1-53219-322-0 01 1 9303- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
