◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-52 - REAR DOOR LOCK AND HANDLE ▶
6-52 — REAR DOOR LOCK AND HANDLE (#138099) — 50 parça

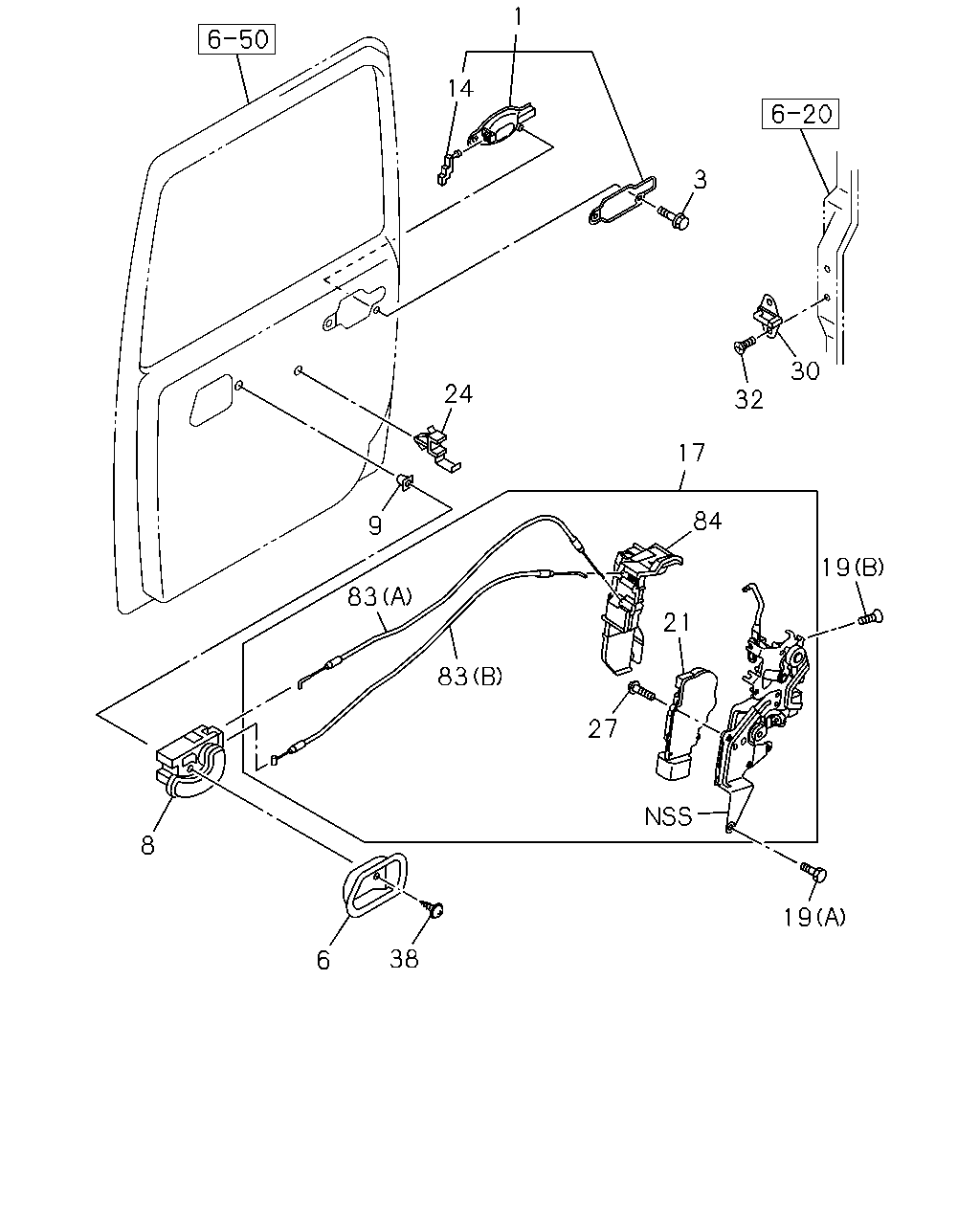

çizim 417161
1 14 3 24 9 83 8 6 38 19 27 83 21 84 19 17 32 30
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; OUTSIDE,RR DOOR
OUTSIDE HANDLE CHROME<E20> KD-PREPARATORY PACK VAR4<7TV> 		8-98050-621-0 01 1 1405-
1 HANDLE; OUTSIDE,RR DOOR
OUTSIDE HANDLE CHROME<E20> KD-PREPARATORY PACK VAR4<7TV> 		8-98050-622-0 01 1 1405-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR HIGHLAND GREEN MET(502) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK GREEN 		8-97408-177-0 01 1 1405-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR HIGHLAND GREEN MET(502) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK GREEN 		8-97408-192-0 01 1 1405-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR TORNADE RED MICA(504) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> RED 		8-97408-180-0 01 1 1405-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR TORNADE RED MICA(504) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> RED 		8-97408-195-0 01 1 1405-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR ROYAL GRAY MET.(505) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK GRAY 		8-97408-179-0 01 1 1405-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR ROYAL GRAY MET.(505) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK GRAY 		8-97408-194-0 01 1 1405-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR ICEBERG BLUE MET.(510) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> BLUE 		8-97408-435-0 01 1 1405-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR ICEBERG BLUE MET.(510) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> BLUE 		8-97408-439-0 01 1 1405-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR MISTY ONYX MICA(518) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> SILVER 		8-97408-202-0 01 1 1405-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR MISTY ONYX MICA(518) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> SILVER 		8-97408-203-0 01 1 1405-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR NAUTILUS BLUE MICA(521) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK BLUE 		8-97414-850-0 01 1 1405-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR NAUTILUS BLUE MICA(521) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK BLUE 		8-97414-852-0 01 1 1405-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR BLACK SAPPHIRE MICA(685) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> BLACK 		8-97408-170-0 01 1 1405-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR BLACK SAPPHIRE MICA(685) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> BLACK 		8-97408-185-0 01 1 1405-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR ALPINE WHITE(877) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> WHITE 		8-97408-172-0 01 1 1405-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR ALPINE WHITE(877) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> WHITE 		8-97408-187-0 01 1 1405-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR STERLING SILVER MET(936) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> SILVER 		8-97408-174-0 01 1 1405-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR STERLING SILVER MET(936) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> SILVER 		8-97408-189-0 01 1 1405-
1 HANDLE; OUTSIDE,RR DOOR
EXC. OUTSIDE HANDLE CHROME<E20> BLACK 		8-98050-615-0 01 1 1405-
1 HANDLE; OUTSIDE,RR DOOR
EXC. OUTSIDE HANDLE CHROME<E20> BLACK 		8-98050-616-0 01 1 1405-
3 BOLT; DOOR OUTSIDE HANDLE
M6X8 FLANGE IMA 		8-98048-996-0 04 1 1405-
6 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK GRAY 		8-97396-656-1 01 1 1405-
6 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK GRAY 		8-97396-657-1 01 1 1405-
8 HANDLE; INSIDE,RR DOOR
DARK GRAY 		8-97404-944-0 01 1 1405-
8 HANDLE; INSIDE,RR DOOR
DARK GRAY 		8-97404-960-0 01 1 1405-
9 GROMMET; SCREW,INSIDE HANDLE
IMA 		8-94152-494-0 02 1 1405-
14 HOLDER; DOOR LK ROD
WHITE 		8-97333-303-0 01 1 1405-
14 HOLDER; DOOR LK ROD
YELLOW 		8-97333-304-0 01 1 1405-
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> 		8-98012-197-1 01 1 1405-
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> 		8-98012-198-1 01 1 1405-
17 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-98012-195-0 01 1 1405-
17 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-98012-196-0 01 1 1405-
19 BOLT; RR DOOR LOCK
AUTO DOOR LOCK<AU4> (A) M6X8 FLANGE IMA 		8-98048-996-0 02 1 1405-
19 BOLT; RR DOOR LOCK
(B) M6X20 		8-98049-000-0 06 1 1405-
21 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97351-081-0 01 1 1405-1502
21 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> IMA 		8-98292-018-0 01 1 1503-
21 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97351-082-0 01 1 1405-1502
21 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> IMA 		8-98292-017-0 01 1 1503-
24 ANTIRATTLER; DOOR INSIDE HANDLE
IMA 		8-97251-932-0 02 1 1405-
27 SCREW; RR DOOR LOCK
AUTO DOOR LOCK<AU4> IMA 		8-97349-997-0 04 1 1405-
30 STRIKER; RR DOOR
IMA 		8-98012-203-0 02 1 1405-
32 SCREW; DOOR STRIKER
M8X35 IMA 		8-98049-360-0 04 1 1405-
38 SCREW; INSIDE LEVER,RR DOOR LK
M5X14 		8-94152-495-0 02 1 1405-
83 CABLE ASM; LOCK CONTROL
(A) 		8-97351-075-0 01 1 1405-
83 CABLE ASM; LOCK CONTROL
(A) 		8-97351-076-0 01 1 1405-
83 CABLE ASM; LOCK CONTROL
(B) 		8-97351-077-0 02 1 1405-
84 COVER; DOOR LOCK 8-97351-079-1 01 1 1405-
84 COVER; DOOR LOCK 8-97351-080-1 01 1 1405-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
