Isuzu WW
▶
PICKUP
▶
TFR
▶
51516 - TFR(INDIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-51 - REAR DOOR GLASS AND REGULATOR
▶

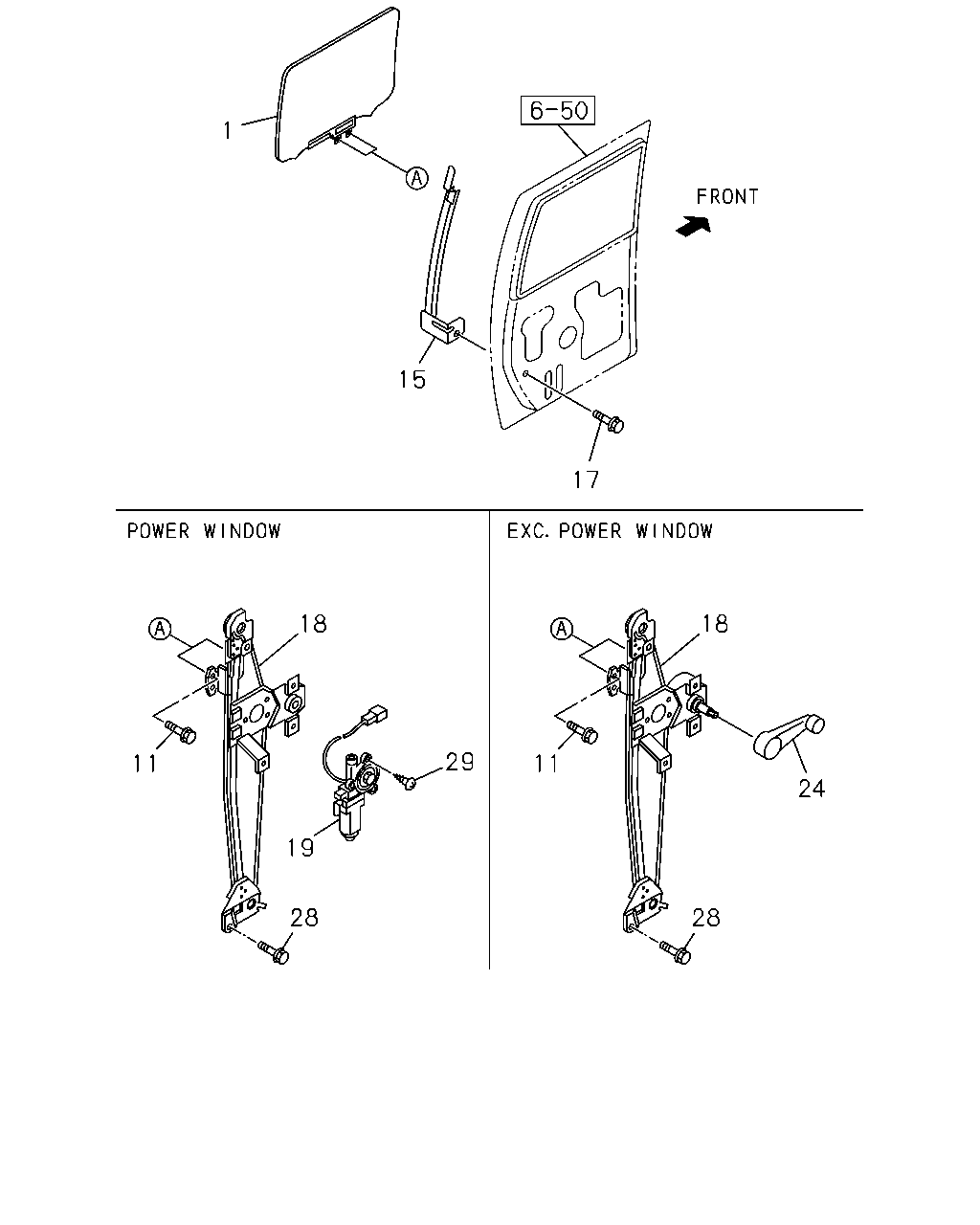

6-51 — REAR DOOR GLASS AND REGULATOR
(#138098) — 16 parça
18
11
19
28
26
28
11
24
18
17
15
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GLASS; RR DOOR
8-98130-014-0
01
1
1405-
1
GLASS; RR DOOR
8-98130-015-0
01
1
1405-
11
BOLT; GLASS
M6X16 FLANGE IMA
0-28650-616-0
04
1
1405-
15
RAIL; RR GUIDE,RR DOOR
8-93298-412-0
01
1
1405-
15
RAIL; RR GUIDE,RR DOOR
8-93298-413-0
01
1
1405-
17
BOLT; RR GUIDE RAIL
M6X8 FLANGE IMA
8-98048-996-0
02
1
1405-
18
REGULATOR; WINDOW,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31>
8-98150-525-0
01
1
1405-
18
REGULATOR; WINDOW,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31>
8-98150-526-0
01
1
1405-
18
REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31>
8-98150-521-0
01
1
1405-
18
REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31>
8-98150-522-0
01
1
1405-
19
MOTOR; POWER WINDOW REG,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31>
8-98196-061-0
01
1
1405-
19
MOTOR; POWER WINDOW REG,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31>
8-98196-062-0
01
1
1405-
24
HANDLE; WINDOW REG,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY
8-97408-066-0
02
1
1405-
28
BOLT; WINDOW REG
POWER WINDOW FRT&REAR DOOR<A31> M6X8 FLANGE IMA
8-98048-996-0
06
1
1405-
28
BOLT; WINDOW REG
EXC. POWER WINDOW FRT&REAR DOOR<A31> M6X8 FLANGE IMA
8-98048-996-0
08
1
1405-
29
SCREW; WINDOW REG
POWER WINDOW FRT&REAR DOOR<A31>
8-98009-809-0
06
1
1405-
