Isuzu WW
▶
PICKUP
▶
TFR
▶
51516 - TFR(INDIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-50 - REAR DOOR AND HINGE
▶

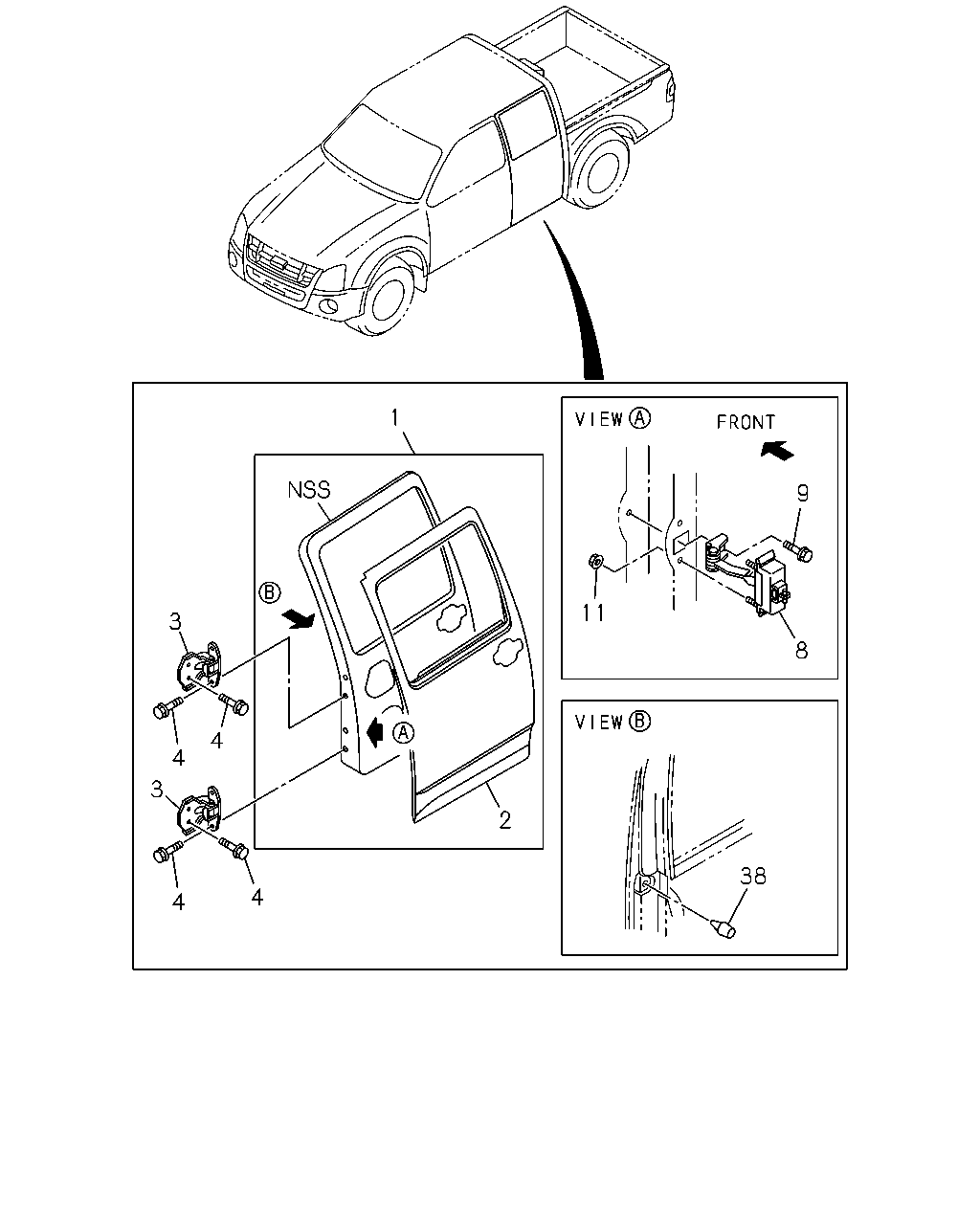

6-50 — REAR DOOR AND HINGE
(#138097) — 15 parça
1
3
4
4
3
4
4
38
8
9
11
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DOOR ASM; REAR
BODY SIDE MOLDING(B84)
8-98042-779-0
01
1
1405-
1
DOOR ASM; REAR
BODY SIDE MOLDING(B84)
8-98042-780-0
01
1
1405-
1
DOOR ASM; REAR
EXC. BODY SIDE MOLDING(B84)
8-98042-901-0
01
1
1405-
1
DOOR ASM; REAR
EXC. BODY SIDE MOLDING(B84)
8-98042-902-0
01
1
1405-
2
PANEL; RR DOOR OUTER
BODY SIDE MOLDING(B84)
8-97306-620-5
01
1
1405-
2
PANEL; RR DOOR OUTER
BODY SIDE MOLDING(B84)
8-97306-621-5
01
1
1405-
2
PANEL; RR DOOR OUTER
EXC. BODY SIDE MOLDING(B84)
8-93291-097-6
01
1
1405-
2
PANEL; RR DOOR OUTER
EXC. BODY SIDE MOLDING(B84)
8-93291-098-6
01
1
1405-
3
HINGE; RR DOOR
LH LOWER,RH UPPER
8-98057-550-0
02
1
1405-
3
HINGE; RR DOOR
LH UPPER,RH LOWER
8-98057-551-0
02
1
1405-
4
BOLT; HINGE
M8X23 FLANGE IMA
8-98005-842-0
08
1
1405-
8
ARM; CHECK,RR DOOR
8-97369-017-0
02
1
1405-
9
BOLT; CHECK ARM
M8X23 IMA
8-98166-694-0
02
1
1405-
11
NUT
M6 FLANGE IMA
8-98049-362-0
04
1
1405-
38
PROTECTOR; RR DOOR
8-97301-795-1
02
1
1405-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
