6-47 — MUD GUARD AND INSULATOR (#138096) — 46 parça

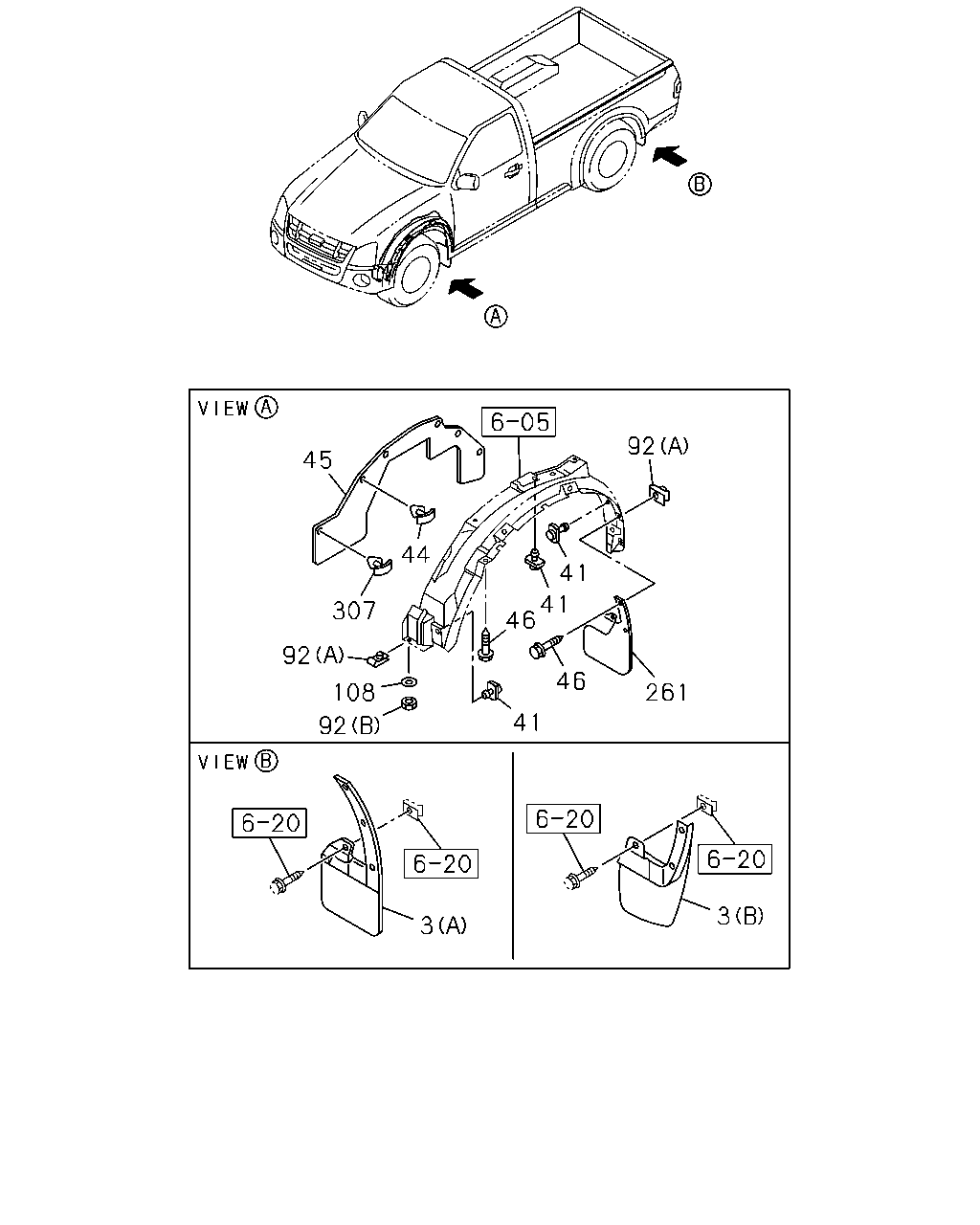

çizim 417125
45 92 11 307 92 108 92 41 261 46 46 41 41 3 3
BalonParca AdiParca NoAdetTipApplied Date A B C
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP<6WL> (B) 		8-97386-727-0 01 1 1510- ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP<6WL> (B) 		8-97386-728-0 01 1 1510- ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) MUD FLAP<VH4> (A) 		8-97386-725-0 01 1 1405-1509 ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) MUD FLAP<VH4> (A) 		8-97386-725-0 01 1 1510- ● ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) MUD FLAP<VH4> (A) 		8-97386-726-0 01 1 1405-1509 ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) MUD FLAP<VH4> (A) 		8-97386-726-0 01 1 1510- ● ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP<6WL> (B) 		8-98007-159-2 01 1 1405- ●
3 GUARD; MUD,RR
(B) 		8-98007-159-2 01 1 1405- ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP<6WL> (B) 		8-98007-160-2 01 1 1405- ●
3 GUARD; MUD,RR
(B) 		8-98007-160-2 01 1 1405- ●
41 RIVET; INNER LINER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> IMA 		8-94221-150-0 16 1 1405-1509 ●
41 RIVET; INNER LINER
IMA 		8-94221-150-0 16 1 1405-1509 ● ●
41 RIVET; INNER LINER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> IMA 		8-94221-150-0 16 1 1510- ● ●
41 RIVET; INNER LINER
IMA 		8-94221-150-0 16 1 1510- ●
41 RIVET; INNER LINER
EXC. MUD FLAP<VH4>,FORMED MUD FLAP<6WL> IMA 		8-94221-150-0 22 1 1405-1509 ●
41 RIVET; INNER LINER
EXC. MUD FLAP<VH4>,FORMED MUD FLAP<6WL> IMA 		8-94221-150-0 22 1 1510- ● ●
44 CLIP; ANCHOR
OD=22 L=10.7 IMA 		8-94215-211-0 10 1 1405- ● ● ●
45 COVER; MUD,FENDER SKIRT 8-97235-457-2 01 1 1405- ● ● ●
45 COVER; MUD,FENDER SKIRT 8-97235-458-1 01 1 1405- ● ● ●
46 SCREW; INNER LINER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> M6X20 TAPPING W/PL WASHER IMA 		8-98167-444-0 10 1 1405-1509 ●
46 SCREW; INNER LINER
M6X20 TAPPING W/PL WASHER IMA 		8-98167-444-0 10 1 1405-1509 ● ●
46 SCREW; INNER LINER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> M6X20 TAPPING W/PL WASHER IMA 		8-98167-444-0 10 1 1510- ● ●
46 SCREW; INNER LINER
M6X20 TAPPING W/PL WASHER IMA 		8-98167-444-0 10 1 1510- ●
46 SCREW; INNER LINER
EXC. MUD FLAP<VH4>,FORMED MUD FLAP<6WL> M6X20 TAPPING W/PL WASHER IMA 		8-98167-444-0 04 1 1405-1509 ●
46 SCREW; INNER LINER
EXC. MUD FLAP<VH4>,FORMED MUD FLAP<6WL> M6X20 TAPPING W/PL WASHER IMA 		8-98167-444-0 04 1 1510- ● ●
92 NUT; MUD COVER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> (A) IMA 		8-97125-519-0 10 1 1405-1509 ●
92 NUT; MUD COVER
(A) IMA 		8-97125-519-0 10 1 1405-1509 ● ●
92 NUT; MUD COVER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> (A) IMA 		8-97125-519-0 10 1 1510- ● ●
92 NUT; MUD COVER
(A) IMA 		8-97125-519-0 10 1 1510- ●
92 NUT; MUD COVER
(B) M6 CAP NUT IMA 		8-98049-850-0 02 1 1405- ● ● ●
92 NUT; MUD COVER
EXC. MUD FLAP<VH4>,FORMED MUD FLAP<6WL> (A) IMA 		8-97125-519-0 04 1 1405-1509 ●
92 NUT; MUD COVER
EXC. MUD FLAP<VH4>,FORMED MUD FLAP<6WL> (A) IMA 		8-97125-519-0 04 1 1510- ● ●
108 WASHER; PL,PANEL TO FRAME
ID=6.5 OD=18 T=1.6 IMA 		8-98049-851-0 02 1 1405- ● ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> 		8-97386-723-0 01 1 1510- ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> 		8-97386-724-0 01 1 1510- ●
261 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> 		8-97386-721-0 01 1 1405-1509 ●
261 RUBBER; FRT,MUD GUARD 8-97386-721-0 01 1 1405-1509 ●
261 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> 		8-97386-721-0 01 1 1510- ● ●
261 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> 		8-97386-722-0 01 1 1405-1509 ●
261 RUBBER; FRT,MUD GUARD 8-97386-722-0 01 1 1405-1509 ●
261 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> 		8-97386-722-0 01 1 1510- ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> 		8-98007-119-2 01 1 1405- ●
261 RUBBER; FRT,MUD GUARD 8-98007-119-2 01 1 1405- ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> 		8-98007-120-2 01 1 1405- ●
261 RUBBER; FRT,MUD GUARD 8-98007-120-2 01 1 1405- ●
307 RETAINER
IMA 		8-98050-462-0 02 1 1405- ● ● ●
