◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#138094) — 73 parça

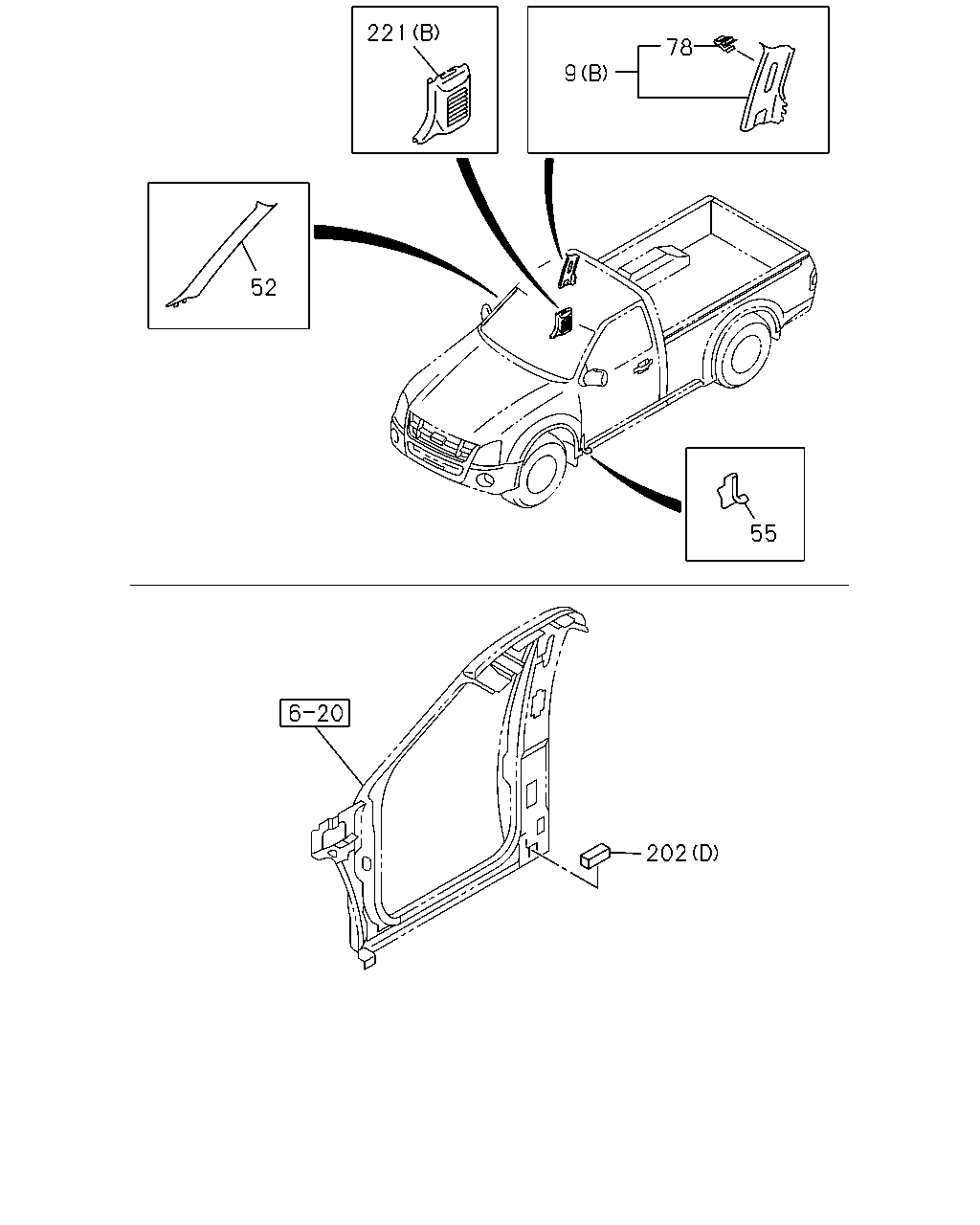

çizim 417074
55 202 52 221 9 78
BalonParca AdiParca NoAdetTipApplied Date A B C
9 TRIM; SIDE PANEL,UPR
(A) LIGHT GRAY 		8-97408-890-0 01 1 1405- ●
9 TRIM; SIDE PANEL,UPR
(A) LIGHT GRAY 		8-97408-892-0 01 1 1405- ●
9 TRIM; SIDE PANEL,UPR
(B) LIGHT GRAY 		8-97408-894-0 01 1 1405- ●
9 TRIM; SIDE PANEL,UPR
(B) LIGHT GRAY 		8-97408-896-0 01 1 1405- ●
9 TRIM; SIDE PANEL,UPR
(C) LIGHT GRAY 		8-97408-886-0 01 1 1405- ●
9 TRIM; SIDE PANEL,UPR
(C) LIGHT GRAY 		8-97408-888-0 01 1 1405- ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97408-871-0 01 1 1405- ● ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97408-873-0 01 1 1405- ● ● ●
55 PAD; TRIM,DASH SIDE
DARK GRAY 		8-97403-459-0 01 1 1405- ● ● ●
55 PAD; TRIM,DASH SIDE
DARK GRAY 		8-97403-461-0 01 1 1405- ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL 8-98057-469-0 14 1 1405- ●
78 CLIP; TRIM PAD,SIDE PANEL 8-98057-469-0 06 1 1405- ●
78 CLIP; TRIM PAD,SIDE PANEL 8-98057-469-0 12 1 1405- ●
202 SEAL; CENTER PILLAR
(C) 		8-97252-083-1 02 1 1405- ●
202 SEAL; CENTER PILLAR
(A) 		8-97362-560-0 02 1 1405- ●
202 SEAL; CENTER PILLAR
(D) IMA 		8-97362-561-0 02 1 1405- ● ● ●
202 SEAL; CENTER PILLAR
(B) 		8-97362-563-0 04 1 1405- ●
221 TRIM; SIDE PANEL,LOWER
(A) DARK GRAY 		8-97403-552-2 01 1 1405- ●
221 TRIM; SIDE PANEL,LOWER
(A) DARK GRAY 		8-97403-554-2 01 1 1405- ●
221 TRIM; SIDE PANEL,LOWER
(B) DARK GRAY 		8-97408-882-0 01 1 1405- ●
221 TRIM; SIDE PANEL,LOWER
(B) DARK GRAY 		8-97408-884-0 01 1 1405- ●
221 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97403-548-1 01 1 1405- ●
221 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97403-550-1 01 1 1405- ●

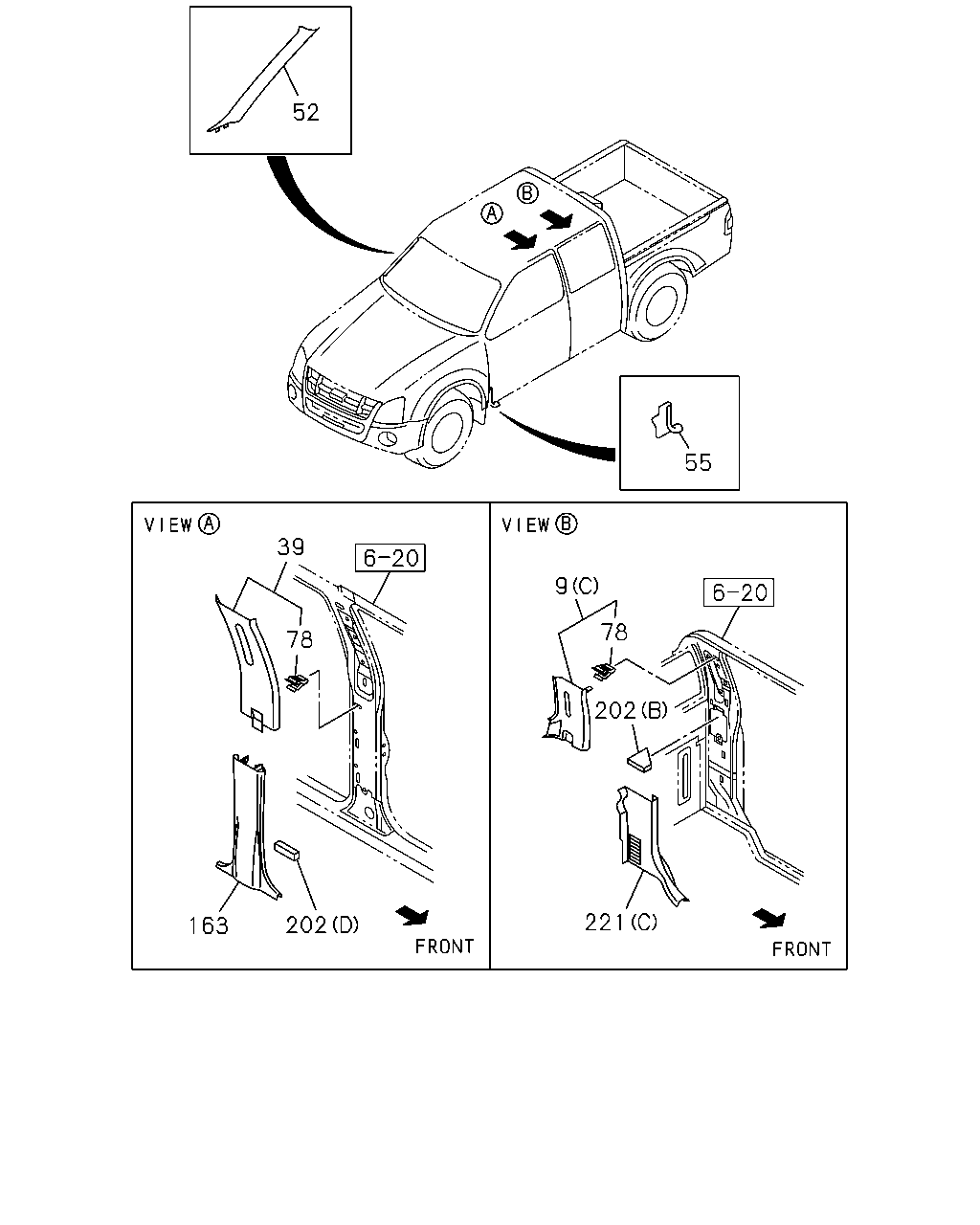

çizim 417077
52 39 78 163 202 9 78 202 221 55
BalonParca AdiParca NoAdetTipApplied Date A B C
9 TRIM; SIDE PANEL,UPR
(A) LIGHT GRAY 		8-97408-890-0 01 1 1405- ●
9 TRIM; SIDE PANEL,UPR
(A) LIGHT GRAY 		8-97408-892-0 01 1 1405- ●
9 TRIM; SIDE PANEL,UPR
(B) LIGHT GRAY 		8-97408-894-0 01 1 1405- ●
9 TRIM; SIDE PANEL,UPR
(B) LIGHT GRAY 		8-97408-896-0 01 1 1405- ●
9 TRIM; SIDE PANEL,UPR
(C) LIGHT GRAY 		8-97408-886-0 01 1 1405- ●
9 TRIM; SIDE PANEL,UPR
(C) LIGHT GRAY 		8-97408-888-0 01 1 1405- ●
39 COVER; TRIM,CENTER PILLAR
LIGHT GRAY 		8-97408-878-0 01 1 1405- ●
39 COVER; TRIM,CENTER PILLAR
LIGHT GRAY 		8-97408-880-0 01 1 1405- ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97408-871-0 01 1 1405- ● ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97408-873-0 01 1 1405- ● ● ●
55 PAD; TRIM,DASH SIDE
DARK GRAY 		8-97403-459-0 01 1 1405- ● ● ●
55 PAD; TRIM,DASH SIDE
DARK GRAY 		8-97403-461-0 01 1 1405- ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL 8-98057-469-0 14 1 1405- ●
78 CLIP; TRIM PAD,SIDE PANEL 8-98057-469-0 06 1 1405- ●
78 CLIP; TRIM PAD,SIDE PANEL 8-98057-469-0 12 1 1405- ●
163 COVER; TRIM,CENTER PILLAR,LWR
DARK GRAY 		8-97403-544-3 01 1 1405- ●
163 COVER; TRIM,CENTER PILLAR,LWR
DARK GRAY 		8-97403-546-3 01 1 1405- ●
202 SEAL; CENTER PILLAR
(C) 		8-97252-083-1 02 1 1405- ●
202 SEAL; CENTER PILLAR
(A) 		8-97362-560-0 02 1 1405- ●
202 SEAL; CENTER PILLAR
(D) IMA 		8-97362-561-0 02 1 1405- ● ● ●
202 SEAL; CENTER PILLAR
(B) 		8-97362-563-0 04 1 1405- ●
221 TRIM; SIDE PANEL,LOWER
(A) DARK GRAY 		8-97403-552-2 01 1 1405- ●
221 TRIM; SIDE PANEL,LOWER
(A) DARK GRAY 		8-97403-554-2 01 1 1405- ●
221 TRIM; SIDE PANEL,LOWER
(B) DARK GRAY 		8-97408-882-0 01 1 1405- ●
221 TRIM; SIDE PANEL,LOWER
(B) DARK GRAY 		8-97408-884-0 01 1 1405- ●
221 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97403-548-1 01 1 1405- ●
221 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97403-550-1 01 1 1405- ●

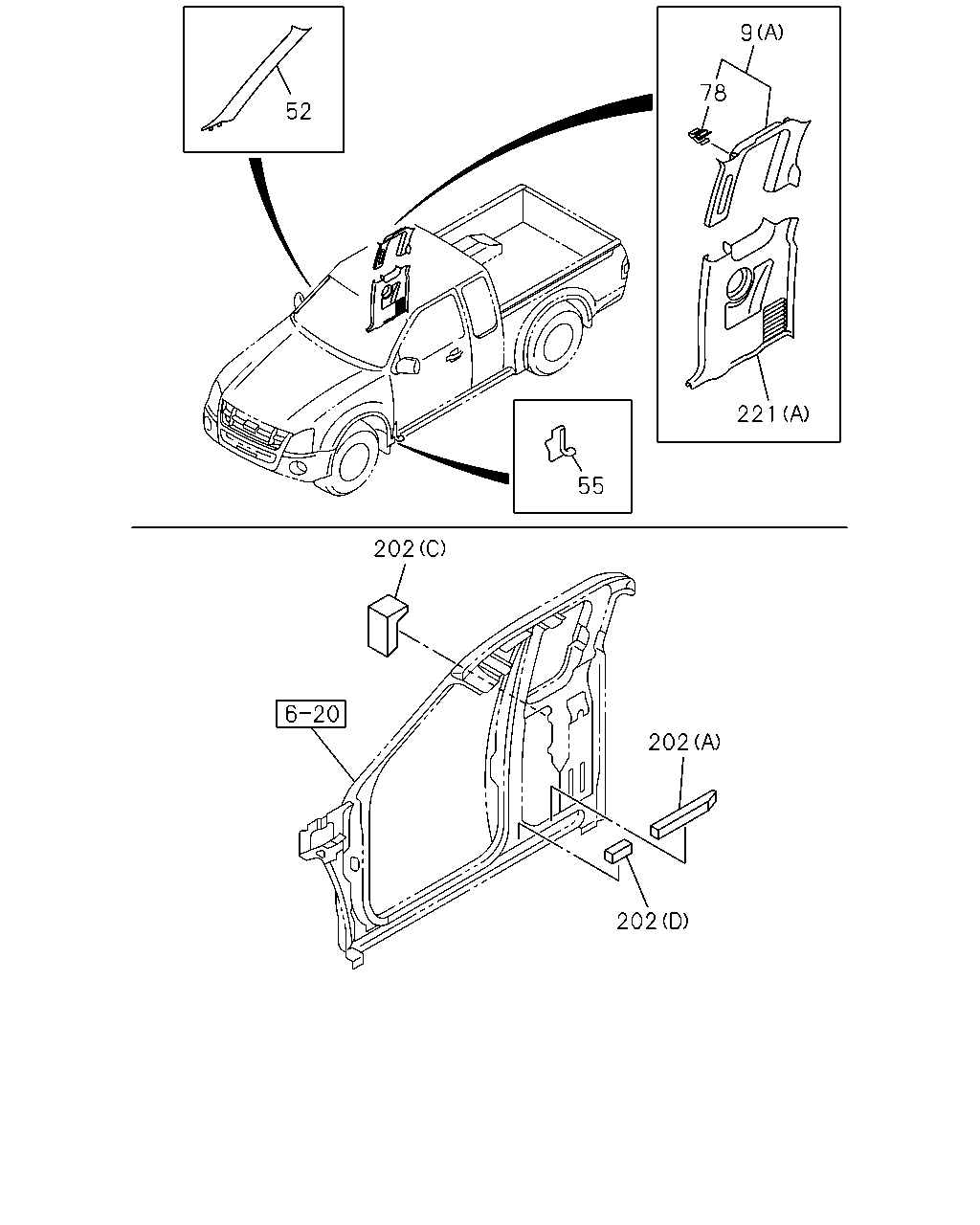

çizim 417086
9 78 221 55 202 202 202 52
BalonParca AdiParca NoAdetTipApplied Date A B C
9 TRIM; SIDE PANEL,UPR
(A) LIGHT GRAY 		8-97408-890-0 01 1 1405- ●
9 TRIM; SIDE PANEL,UPR
(A) LIGHT GRAY 		8-97408-892-0 01 1 1405- ●
9 TRIM; SIDE PANEL,UPR
(B) LIGHT GRAY 		8-97408-894-0 01 1 1405- ●
9 TRIM; SIDE PANEL,UPR
(B) LIGHT GRAY 		8-97408-896-0 01 1 1405- ●
9 TRIM; SIDE PANEL,UPR
(C) LIGHT GRAY 		8-97408-886-0 01 1 1405- ●
9 TRIM; SIDE PANEL,UPR
(C) LIGHT GRAY 		8-97408-888-0 01 1 1405- ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97408-871-0 01 1 1405- ● ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97408-873-0 01 1 1405- ● ● ●
55 PAD; TRIM,DASH SIDE
DARK GRAY 		8-97403-459-0 01 1 1405- ● ● ●
55 PAD; TRIM,DASH SIDE
DARK GRAY 		8-97403-461-0 01 1 1405- ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL 8-98057-469-0 14 1 1405- ●
78 CLIP; TRIM PAD,SIDE PANEL 8-98057-469-0 06 1 1405- ●
78 CLIP; TRIM PAD,SIDE PANEL 8-98057-469-0 12 1 1405- ●
202 SEAL; CENTER PILLAR
(C) 		8-97252-083-1 02 1 1405- ●
202 SEAL; CENTER PILLAR
(A) 		8-97362-560-0 02 1 1405- ●
202 SEAL; CENTER PILLAR
(D) IMA 		8-97362-561-0 02 1 1405- ● ● ●
202 SEAL; CENTER PILLAR
(B) 		8-97362-563-0 04 1 1405- ●
221 TRIM; SIDE PANEL,LOWER
(A) DARK GRAY 		8-97403-552-2 01 1 1405- ●
221 TRIM; SIDE PANEL,LOWER
(A) DARK GRAY 		8-97403-554-2 01 1 1405- ●
221 TRIM; SIDE PANEL,LOWER
(B) DARK GRAY 		8-97408-882-0 01 1 1405- ●
221 TRIM; SIDE PANEL,LOWER
(B) DARK GRAY 		8-97408-884-0 01 1 1405- ●
221 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97403-548-1 01 1 1405- ●
221 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97403-550-1 01 1 1405- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
