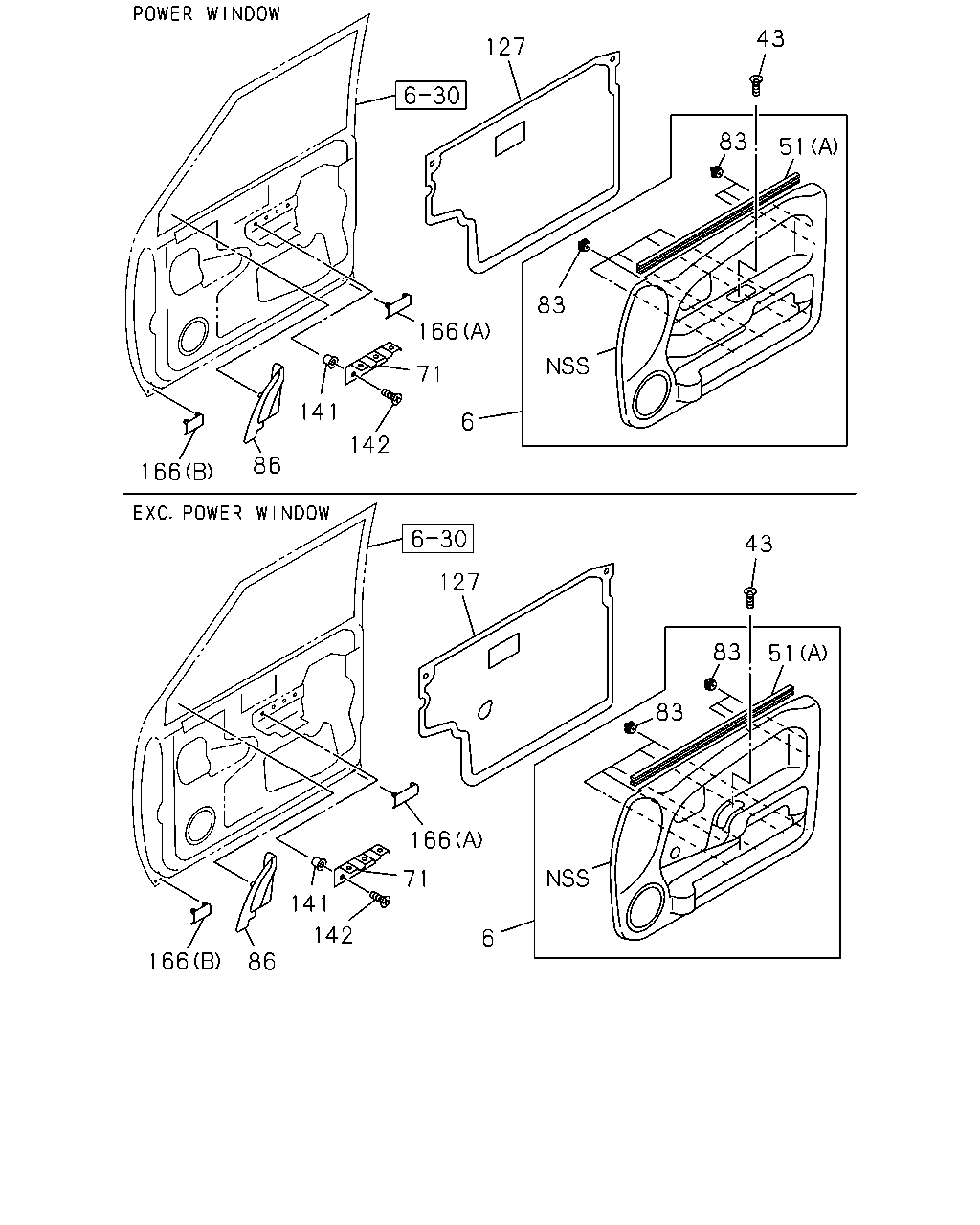

6-35 — FRONT DOOR TRIM (#138092) — 31 parça

43 51 83 83 6 166 71 142 141 86 166 127 51 43 83 83 127 6 166 142 141 86 166 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	TRIM; DOOR,UPR VINYL TRIM<8LJ> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97403-696-0	01	1	1405-	●	●	●
6	TRIM; DOOR,UPR VINYL TRIM<8LJ> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97403-698-0	01	1	1405-	●	●	●
6	TRIM; DOOR,UPR CLOTH TRIM STANDARD, VAR 1<8LK> POWER WINDOW FRT&REAR DOOR<A31> GRAY	8-97403-704-0	01	1	1405-	●	●	●
6	TRIM; DOOR,UPR CLOTH TRIM STANDARD, VAR 1<8LK> POWER WINDOW FRT&REAR DOOR<A31> GRAY	8-97403-705-0	01	1	1405-	●	●	●
6	TRIM; DOOR,UPR CLOTH TRIM STANDARD, VAR 1<8LK> EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY	8-97403-712-0	01	1	1405-	●	●	●
6	TRIM; DOOR,UPR CLOTH TRIM STANDARD, VAR 1<8LK> EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY	8-97403-713-0	01	1	1405-	●	●	●
6	TRIM; DOOR,UPR CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97403-710-0	01	1	1405-	●	●	●
6	TRIM; DOOR,UPR CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97403-711-0	01	1	1405-	●	●	●
6	TRIM; DOOR,UPR CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97403-714-0	01	1	1405-	●	●	●
6	TRIM; DOOR,UPR CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97403-715-0	01	1	1405-	●	●	●
43	SCREW; DOOR POCKET EXC. POWER WINDOW FRT&REAR DOOR<A31> M5X14	8-94152-495-0	04	1	1405-	●	●	●
51	WEATHERSTRIP; FRONT DOOR (A)	8-97364-718-0	01	1	1405-	●	●	●
51	WEATHERSTRIP; FRONT DOOR (A)	8-97364-719-0	01	1	1405-	●	●	●
51	WEATHERSTRIP; FRONT DOOR (B) DARK GRAY	8-97403-590-0	02	1	1405-	●		●
51	WEATHERSTRIP; FRONT DOOR (B) DARK GRAY	8-97403-592-0	02	1	1405-		●
71	BRACKET; ARM REST	8-97238-106-2	02	1	1405-	●	●	●
83	CLIP; DOOR TRIM H=16.7	8-97022-017-0	16	1	1405-	●	●	●
86	COVER ASM; DOOR POCKET BLACK	8-97298-455-2	01	1	1405-	●	●	●
86	COVER ASM; DOOR POCKET BLACK	8-97298-456-2	01	1	1405-	●	●	●
127	SEAL; DOOR INNER POWER WINDOW FRT&REAR DOOR<A31>	8-97360-884-0	01	1	1405-	●	●	●
127	SEAL; DOOR INNER POWER WINDOW FRT&REAR DOOR<A31>	8-97360-885-0	01	1	1405-	●	●	●
127	SEAL; DOOR INNER EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-97360-882-0	01	1	1405-	●	●	●
127	SEAL; DOOR INNER EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-97360-883-0	01	1	1405-	●	●	●
141	GROMMET; SCREW,LWR COVER IMA	8-94152-494-0	04	1	1405-	●	●	●
142	SCREW; LWR COVER,DOOR TRIM M5X14	8-94152-495-0	04	1	1405-	●	●	●
166	PLUG; HOLE (A)	8-98009-499-0	02	1	1405-	●		●
166	PLUG; HOLE (B)	8-98009-500-0	02	1	1405-	●		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

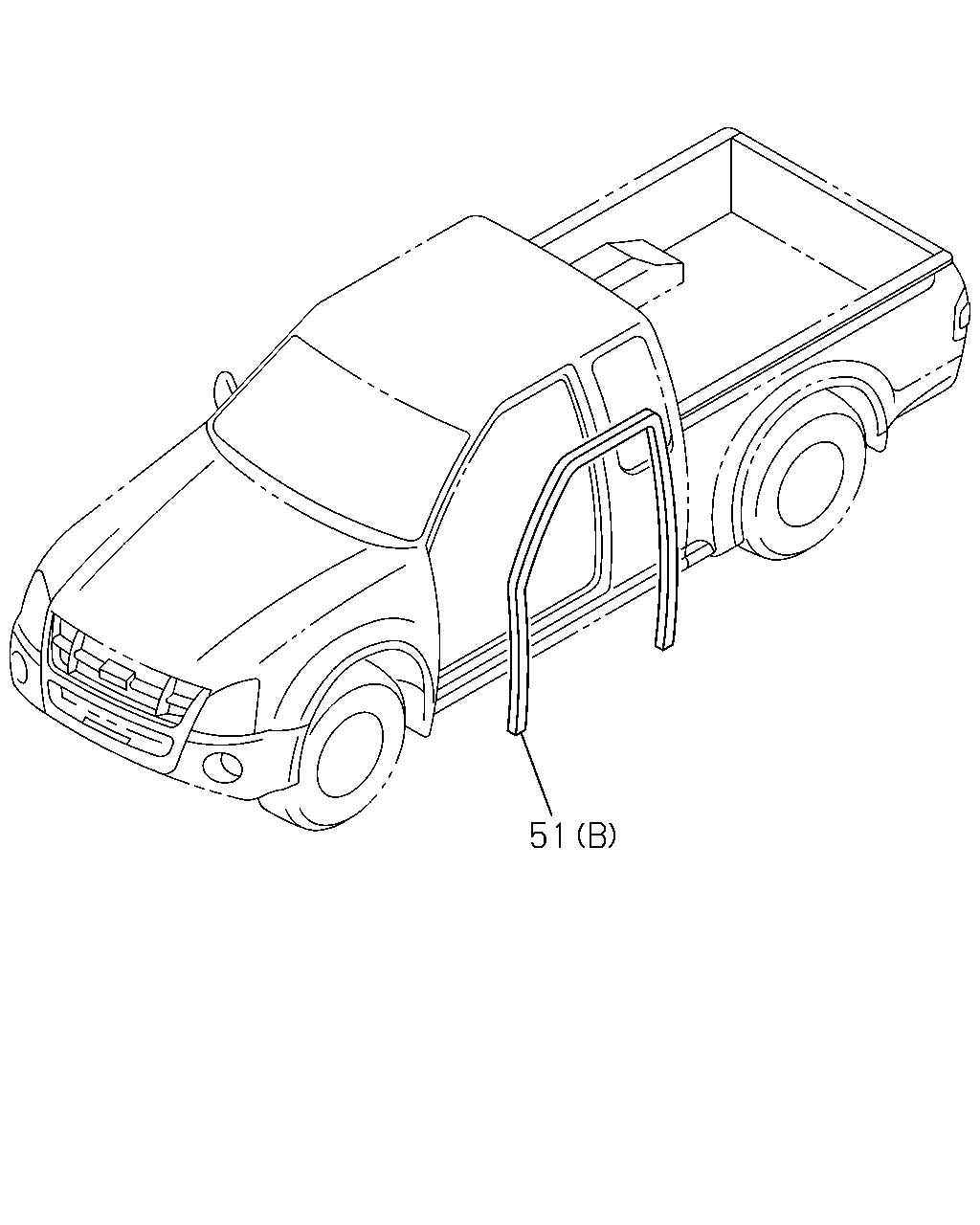

51	WEATHERSTRIP; FRONT DOOR (A)	8-97364-718-0	01	1	1405-	●	●	●
51	WEATHERSTRIP; FRONT DOOR (A)	8-97364-719-0	01	1	1405-	●	●	●
51	WEATHERSTRIP; FRONT DOOR (B) DARK GRAY	8-97403-590-0	02	1	1405-	●		●
51	WEATHERSTRIP; FRONT DOOR (B) DARK GRAY	8-97403-592-0	02	1	1405-		●
