◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-32 - FRONT DOOR LOCK AND HANDLE ▶
6-32 — FRONT DOOR LOCK AND HANDLE (#138091) — 71 parça

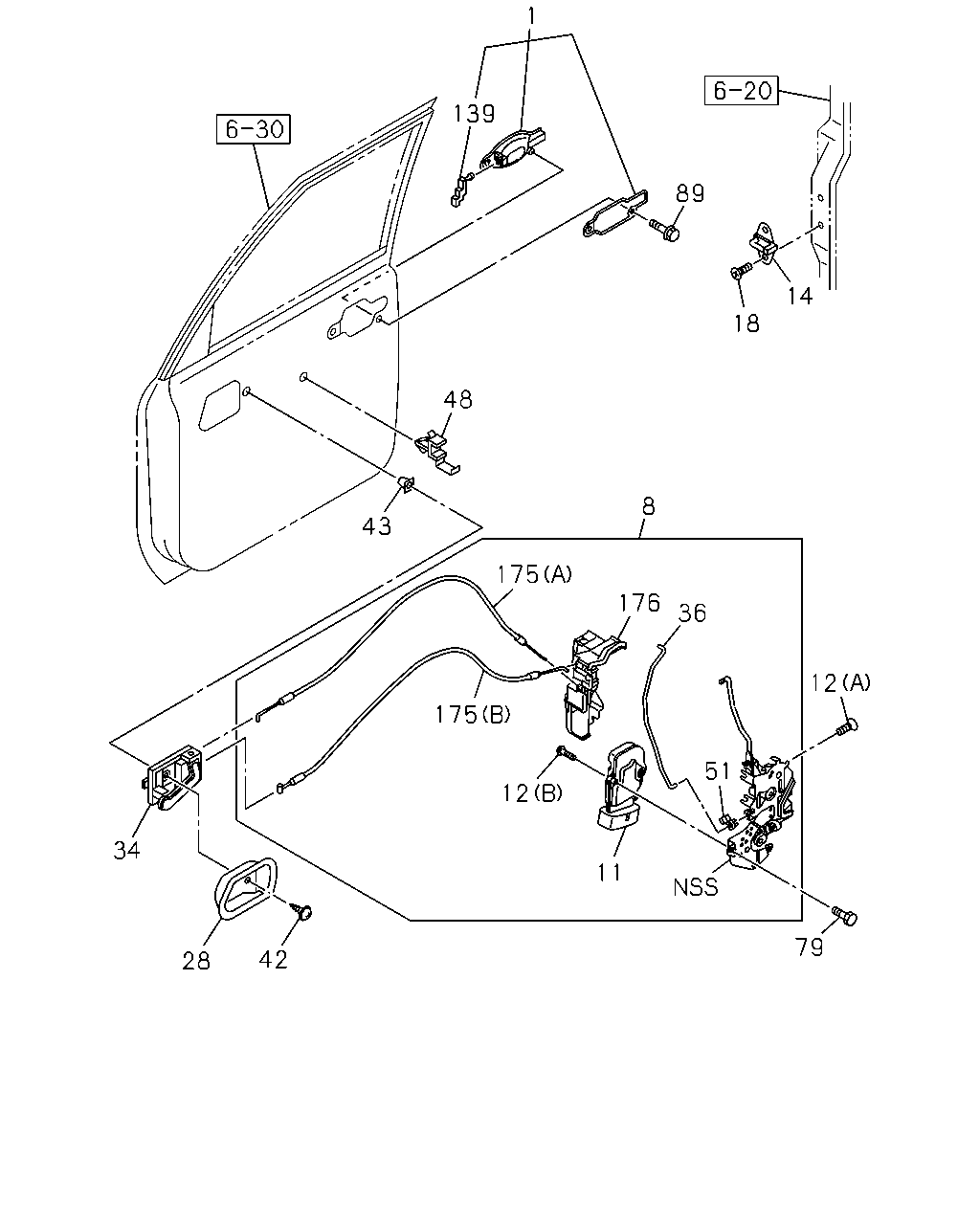

çizim 417113
79 12 36 51 11 8 176 175 175 42 28 34 43 48 14 18 89 1 139 12
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HANDLE; OUTSIDE,FRT DOOR
OUTSIDE HANDLE CHROME<E20> KD-PREPARATORY PACK VAR4<7TV> 		8-98050-609-0 01 1 1405- ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR
OUTSIDE HANDLE CHROME<E20> KD-PREPARATORY PACK VAR4<7TV> 		8-98050-610-0 01 1 1405- ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR HIGHLAND GREEN MET(502) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK GREEN 		8-97408-105-0 01 1 1405-1509 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR HIGHLAND GREEN MET(502) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK GREEN 		8-97408-105-0 01 1 1510- ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR HIGHLAND GREEN MET(502) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK GREEN 		8-97408-120-0 01 1 1405-1509 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR HIGHLAND GREEN MET(502) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK GREEN 		8-97408-120-0 01 1 1510- ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR TORNADE RED MICA(504) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> RED 		8-97408-107-0 01 1 1405-1509 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR TORNADE RED MICA(504) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> RED 		8-97408-107-0 01 1 1510- ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR TORNADE RED MICA(504) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> RED 		8-97408-122-0 01 1 1405-1509 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR TORNADE RED MICA(504) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> RED 		8-97408-122-0 01 1 1510- ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ROYAL GRAY MET.(505) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK GRAY 		8-97408-106-0 01 1 1405-1509 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ROYAL GRAY MET.(505) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK GRAY 		8-97408-106-0 01 1 1510- ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ROYAL GRAY MET.(505) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK GRAY 		8-97408-121-0 01 1 1405-1509 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ROYAL GRAY MET.(505) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK GRAY 		8-97408-121-0 01 1 1510- ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ICEBERG BLUE MET.(510) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> BLUE 		8-97408-416-0 01 1 1405-1509 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ICEBERG BLUE MET.(510) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> BLUE 		8-97408-416-0 01 1 1510- ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ICEBERG BLUE MET.(510) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> BLUE 		8-97408-420-0 01 1 1405-1509 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ICEBERG BLUE MET.(510) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> BLUE 		8-97408-420-0 01 1 1510- ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MISTY ONYX MICA(518) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> SILVER 		8-97408-198-0 01 1 1405-1509 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MISTY ONYX MICA(518) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> SILVER 		8-97408-198-0 01 1 1510- ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MISTY ONYX MICA(518) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> SILVER 		8-97408-199-0 01 1 1405-1509 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MISTY ONYX MICA(518) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> SILVER 		8-97408-199-0 01 1 1510- ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR NAUTILUS BLUE MICA(521) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK BLUE 		8-97414-846-0 01 1 1405-1509 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR NAUTILUS BLUE MICA(521) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK BLUE 		8-97414-846-0 01 1 1510- ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR NAUTILUS BLUE MICA(521) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK BLUE 		8-97414-848-0 01 1 1405-1509 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR NAUTILUS BLUE MICA(521) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK BLUE 		8-97414-848-0 01 1 1510- ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR BLACK SAPPHIRE MICA(685) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> BLACK 		8-97408-097-0 01 1 1405-1509 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR BLACK SAPPHIRE MICA(685) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> BLACK 		8-97408-097-0 01 1 1510- ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR BLACK SAPPHIRE MICA(685) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> BLACK 		8-97408-112-0 01 1 1405-1509 ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR BLACK SAPPHIRE MICA(685) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> BLACK 		8-97408-112-0 01 1 1510- ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE(877) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> WHITE 		8-97408-099-0 01 1 1405- ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE(877) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> WHITE 		8-97408-114-0 01 1 1405- ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET(936) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> SILVER 		8-97408-101-0 01 1 1405- ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET(936) OUTSIDE HANDLE CHROME<E20> EXC. KD-PREPARATORY PACK VAR4<7TV> SILVER 		8-97408-116-0 01 1 1405- ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR
EXC. OUTSIDE HANDLE CHROME<E20> BLACK 		8-98050-605-0 01 1 1405- ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR
EXC. OUTSIDE HANDLE CHROME<E20> BLACK 		8-98050-606-0 01 1 1405- ● ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> 		8-98012-187-1 01 1 1405- ● ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> 		8-98169-046-1 01 1 1405- ● ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-98012-185-0 01 1 1405- ● ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-98012-186-0 01 1 1405- ● ● ●
11 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-97349-993-0 01 1 1405-1502 ● ● ●
11 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> IMA 		8-98292-012-0 01 1 1503- ● ● ●
11 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-97349-995-0 01 1 1405-1502 ● ● ●
11 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> IMA 		8-98292-013-0 01 1 1503- ● ● ●
12 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> (B) IMA 		8-97349-997-0 02 1 1405- ● ● ●
12 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> (B) IMA 		8-97349-997-0 02 1 1405- ● ● ●
12 SCREW; DOOR LK
(A) M6X20 		8-98049-000-0 06 1 1405- ● ● ●
14 STRIKER; FRT DOOR
IMA 		8-98012-203-0 02 1 1405- ● ● ●
18 SCREW; DOOR STRIKER
M8X35 IMA 		8-98049-360-0 04 1 1405- ● ● ●
28 BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY 		8-97396-656-1 01 1 1405- ● ● ●
28 BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY 		8-97396-657-1 01 1 1405- ● ● ●
34 HANDLE; INSIDE,FRT DOOR
DARK GRAY 		8-97404-944-0 01 1 1405- ● ● ●
34 HANDLE; INSIDE,FRT DOOR
DARK GRAY 		8-97404-960-0 01 1 1405- ● ● ●
36 LINK; DOOR LOCK,OUTSIDE 8-97349-983-0 01 1 1405- ● ● ●
36 LINK; DOOR LOCK,OUTSIDE 8-97349-984-0 01 1 1405- ● ● ●
42 SCREW; TAPPING,INSIDE LEVER
M5X14 		8-94152-495-0 02 1 1405- ● ● ●
43 GROMMET; SCREW,INSIDE LEVER,DOOR
IMA 		8-94152-494-0 02 1 1405- ● ● ●
48 ANTIRATTLER; DOOR LINK
IMA 		8-97251-932-0 02 1 1405- ● ● ●
51 SNAP; FRT DOOR LOCK CONT ROD
IMA 		8-97349-985-0 01 1 1405- ● ● ●
51 SNAP; FRT DOOR LOCK CONT ROD
IMA 		8-97349-986-0 01 1 1405- ● ● ●
79 BOLT; DOOR LK ACTUATOR
AUTO DOOR LOCK<AU4> M6X8 FLANGE IMA 		8-98048-996-0 02 1 1405- ● ● ●
89 BOLT; DOOR OUTSIDE HANDLE
M6X8 FLANGE IMA 		8-98048-996-0 04 1 1405- ● ● ●
139 HOLDER; ROD,DOOR HANDLE
WHITE 		8-97333-303-0 01 1 1405- ● ● ●
139 HOLDER; ROD,DOOR HANDLE
YELLOW 		8-97333-304-0 01 1 1405- ● ● ●
175 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> (B) 		8-97349-989-0 01 1 1405- ● ● ●
175 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> (B) 		8-97349-989-0 01 1 1405- ● ● ●
175 CABLE ASM; LOCK CONTROL
(A) 		8-97349-987-0 01 1 1405- ● ● ●
175 CABLE ASM; LOCK CONTROL
(A) 		8-97349-988-0 01 1 1405- ● ● ●
175 CABLE ASM; LOCK CONTROL
EXC. AUTO DOOR LOCK<AU4> (B) 		8-97349-989-0 02 1 1405- ● ● ●
176 COVER; DOOR LOCK
IMA 		8-97349-991-0 01 1 1405- ● ● ●
176 COVER; DOOR LOCK
IMA 		8-97349-992-0 01 1 1405- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
