6-30 — FRONT DOOR AND HINGE (#138089) — 26 parça

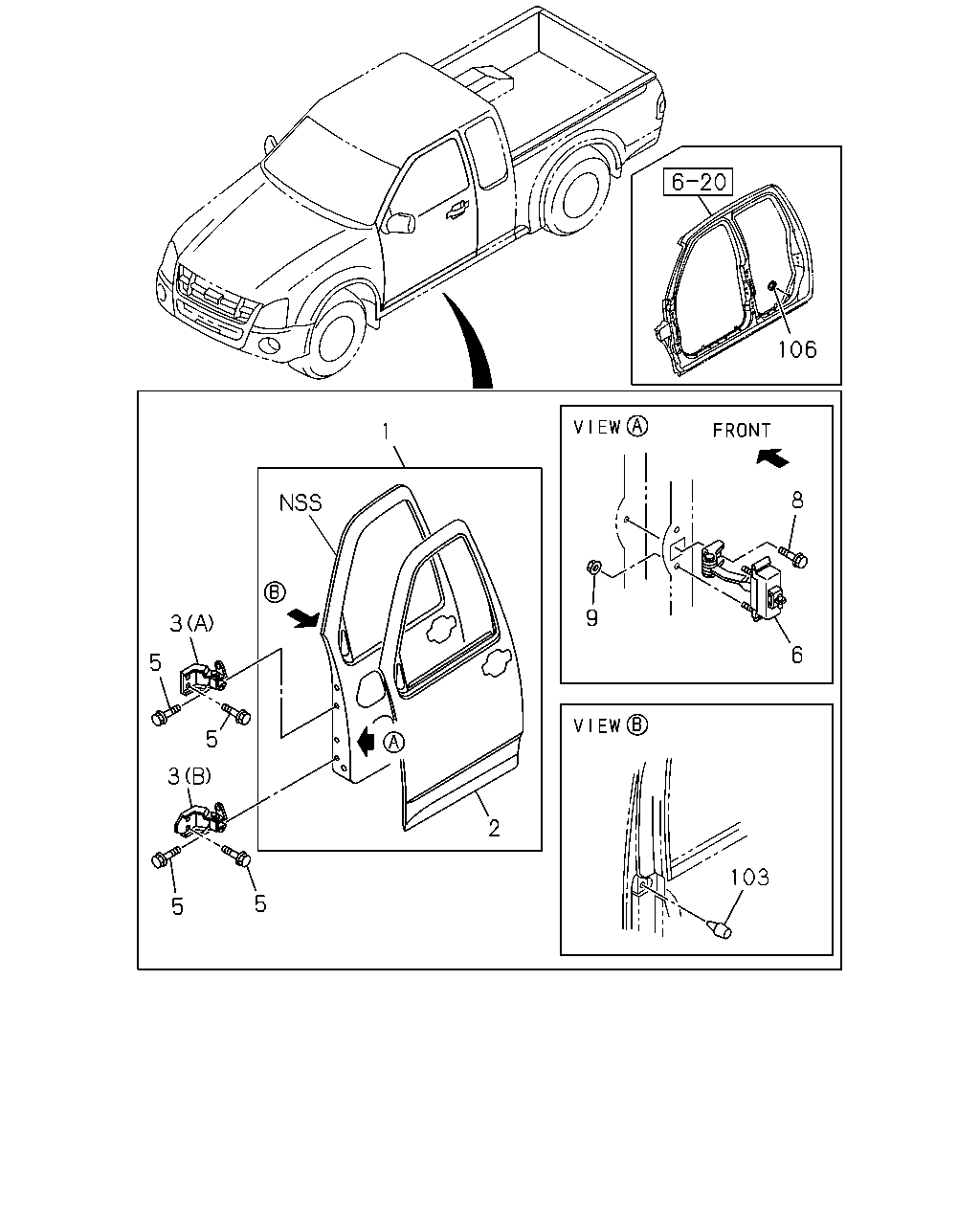

çizim 417175
103 6 8 9 106 1 2 3 5 5 3 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DOOR ASM; FRT,WO/TRIM
BODY SIDE MOLDING(B84) 		8-98043-241-0 01 1 1405- ● ●
1 DOOR ASM; FRT,WO/TRIM
BODY SIDE MOLDING(B84) 		8-98043-242-0 01 1 1405- ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. BODY SIDE MOLDING(B84) 		8-98043-237-0 01 1 1405- ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. BODY SIDE MOLDING(B84) 		8-98043-238-0 01 1 1405- ● ●
1 DOOR ASM; FRT,WO/TRIM
BODY SIDE MOLDING(B84) 		8-98043-243-0 01 1 1405- ●
1 DOOR ASM; FRT,WO/TRIM
BODY SIDE MOLDING(B84) 		8-98043-244-0 01 1 1405- ●
1 DOOR ASM; FRT,WO/TRIM
EXC. BODY SIDE MOLDING(B84) 		8-98043-239-0 01 1 1405- ●
1 DOOR ASM; FRT,WO/TRIM
EXC. BODY SIDE MOLDING(B84) 		8-98043-240-0 01 1 1405- ●
2 PANEL; FRT DOOR OUTER
BODY SIDE MOLDING(B84) 		8-97365-988-0 01 1 1405- ● ●
2 PANEL; FRT DOOR OUTER
BODY SIDE MOLDING(B84) 		8-97365-989-0 01 1 1405- ● ●
2 PANEL; FRT DOOR OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97365-984-0 01 1 1405- ● ●
2 PANEL; FRT DOOR OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97365-985-0 01 1 1405- ● ●
2 PANEL; FRT DOOR OUTER
BODY SIDE MOLDING(B84) 		8-97365-990-0 01 1 1405- ●
2 PANEL; FRT DOOR OUTER
BODY SIDE MOLDING(B84) 		8-97365-991-0 01 1 1405- ●
2 PANEL; FRT DOOR OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97365-986-0 01 1 1405- ●
2 PANEL; FRT DOOR OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97365-987-0 01 1 1405- ●
3 HINGE; DOOR FRT
(A) 		8-98057-546-0 01 1 1405- ● ● ●
3 HINGE; DOOR FRT
(A) 		8-98057-547-0 01 1 1405- ● ● ●
3 HINGE; DOOR FRT
(B) 		8-98057-548-0 01 1 1405- ● ● ●
3 HINGE; DOOR FRT
(B) 		8-98057-549-0 01 1 1405- ● ● ●
5 BOLT; HINGE
M8X23 FLANGE IMA 		8-98005-842-0 16 1 1405- ● ● ●
6 ARM; CHECK,FRT DOOR 8-97369-016-0 02 1 1405- ● ● ●
8 BOLT; CHECK ARM
M8X23 IMA 		8-98166-694-0 02 1 1405- ● ● ●
9 NUT; CHECK ARM
M6 FLANGE IMA 		8-98049-362-0 04 1 1405- ● ● ●
103 PROTECTOR; FRT DOOR 8-97301-795-1 02 1 1405- ● ● ●
106 GROMMET; PROTECTOR
IMA 		8-94279-724-0 02 1 1405- ●
