6-10 — ENGINE HOOD AND LOCK (#138086) — 51 parça
çizim 417070
147 8 152 2 154 5 155 8 153
BalonParca AdiParca NoAdetTipApplied Date A B C
2 PANEL; ENG HOOD
4JA1-TC ENG(L4Z) (A) 		8-98046-692-0 01 1 1510- ● ● ●
2 PANEL; ENG HOOD
(B) 		8-98046-693-0 01 1 1405-1509 ● ● ●
2 PANEL; ENG HOOD
4JK1-TCX ENG(LR0) (B) 		8-98046-693-0 01 1 1510- ● ● ●
5 SCOOP; AIR,CHARGE AIR COOLER,ENG HOOD
PRIMER 		8-98057-978-0 01 1 1405-1504 ● ● ●
5 SCOOP; AIR,CHARGE AIR COOLER,ENG HOOD
4JK1-TCX ENG(LR0) PRIMER 		8-98057-978-0 01 1 1505- ● ● ●
8 SEAL; AIR SCOOP
(B) 		8-98056-056-0 01 1 1405-1509 ● ● ●
8 SEAL; AIR SCOOP
4JK1-TCX ENG(LR0) (B) 		8-98056-056-0 01 1 1510- ● ● ●
8 SEAL; AIR SCOOP
(A) 		8-98007-126-3 01 1 1405-1509 ● ● ●
8 SEAL; AIR SCOOP
4JK1-TCX ENG(LR0) (A) 		8-98007-126-3 01 1 1510- ● ● ●
147 CLIP; COVER
4JK1-TCX ENG(LR0) OD=22 L=10.7 IMA 		8-94215-211-0 06 1 1405- ● ● ●
152 NUT; HOOD
M6 FLANGE IMA 		0-91180-106-0 04 1 1405-1509 ● ● ●
152 NUT; HOOD
4JK1-TCX ENG(LR0) M6 FLANGE IMA 		0-91180-106-0 04 1 1510- ● ● ●
153 STOPPER; SEAL 8-98056-058-0 03 1 1405-1509 ● ● ●
153 STOPPER; SEAL
4JK1-TCX ENG(LR0) 		8-98056-058-0 03 1 1510- ● ● ●
154 STUD 8-98056-035-0 04 1 1405-1509 ● ● ●
154 STUD
4JK1-TCX ENG(LR0) 		8-98056-035-0 04 1 1510- ● ● ●
155 FASTENER; AIR SCOOP 8-98056-037-0 01 1 1405-1509 ● ● ●
155 FASTENER; AIR SCOOP
4JK1-TCX ENG(LR0) 		8-98056-037-0 01 1 1510- ● ● ●

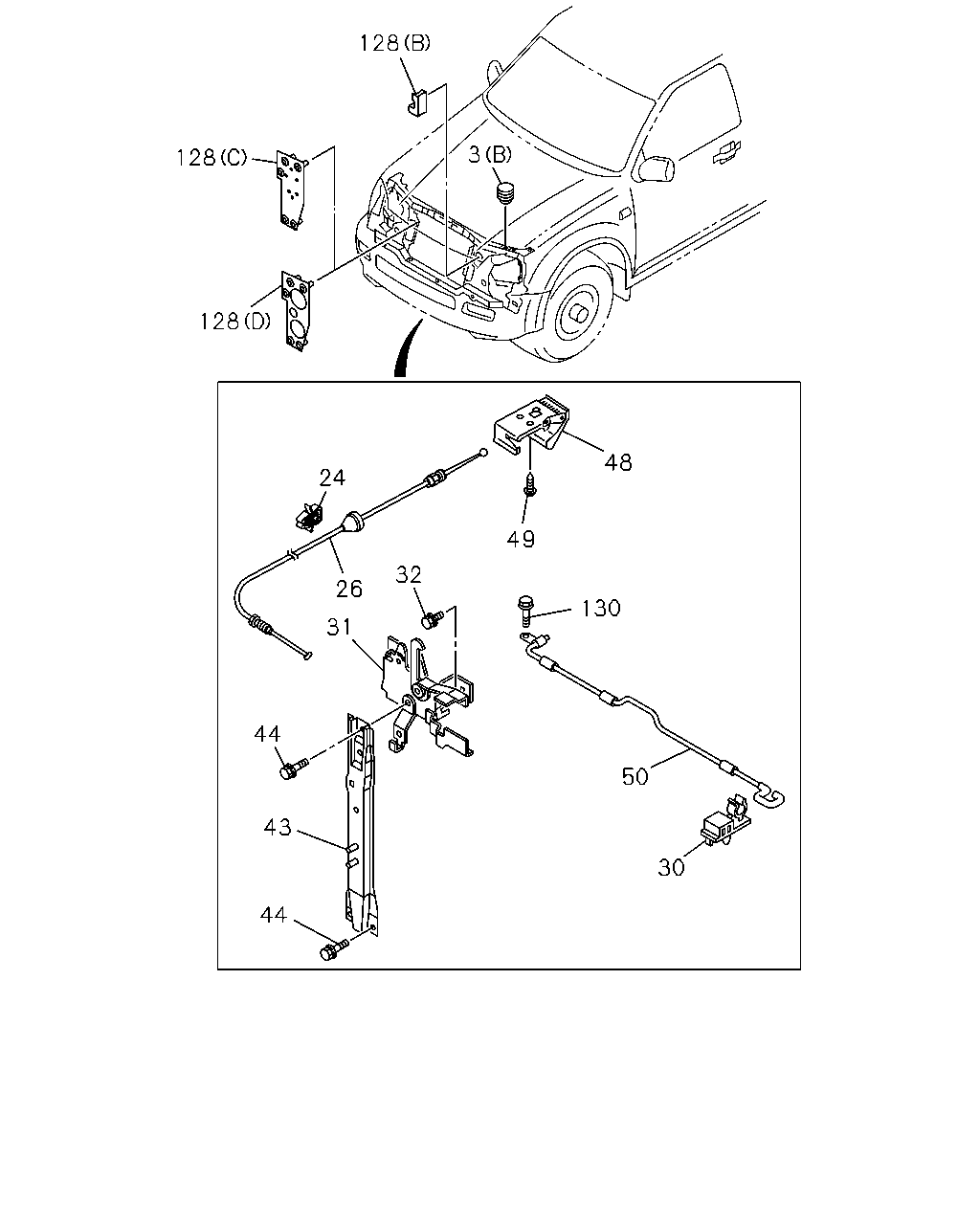

çizim 417160
30 50 44 43 44 31 32 26 130 49 48 24 128 128 128 3
BalonParca AdiParca NoAdetTipApplied Date A B C
3 BUFFER; ENG HOOD,FRT
(B) 		8-97311-876-0 02 1 1405- ● ● ●
3 BUFFER; ENG HOOD,FRT
(A) IMA 		8-97948-266-0 02 1 1405- ● ● ●
24 CLIP; CONT CABLE
IMA 		8-97182-405-0 02 1 1405- ● ● ●
26 CABLE; ENG HOOD CONT 8-98072-367-0 01 1 1405- ● ● ●
30 CLIP; SUPPORT ROD,HOOD
IMA 		8-97301-356-0 01 1 1405- ● ● ●
31 LOCK; ENG HOOD 8-97363-007-0 01 1 1405- ● ● ●
32 BOLT; HOOD LK
M6X20 W/PL WASHER IMA 		8-97370-668-0 02 1 1405- ● ● ●
43 STAY; ENG HOOD,FRT END 8-97362-229-0 01 1 1405- ● ● ●
44 BOLT; STAY,HOOD
M6X20 W/PL WASHER IMA 		8-97370-668-0 04 1 1405- ● ● ●
48 LEVER; ENG HOOD
DARK GRAY 		8-97411-781-0 01 1 1405- ● ● ●
49 SCREW; LEVER,ENG HOOD OPENER
M5X16 TAPPING IMA 		8-98167-449-0 02 1 1405- ● ● ●
50 ROD; SUPPORT,ENG HOOD 8-98044-500-0 01 1 1405- ● ● ●
128 SEAL; PLATFORM
4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98023-877-0 01 1 1510- ● ● ●
128 SEAL; PLATFORM
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97372-864-0 01 1 1405- ● ● ●
128 SEAL; PLATFORM
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98024-523-0 01 1 1405- ● ● ●
128 SEAL; PLATFORM
(C) 		8-98023-875-0 01 1 1405-1509 ● ● ●
128 SEAL; PLATFORM
4JK1-TCX ENG(LR0) (C) 		8-98023-875-0 01 1 1510- ● ● ●
130 BOLT; SUPPORT ROD,HOOD
M6X25 FLANGE IMA 		0-28650-625-0 01 1 1405- ● ● ●

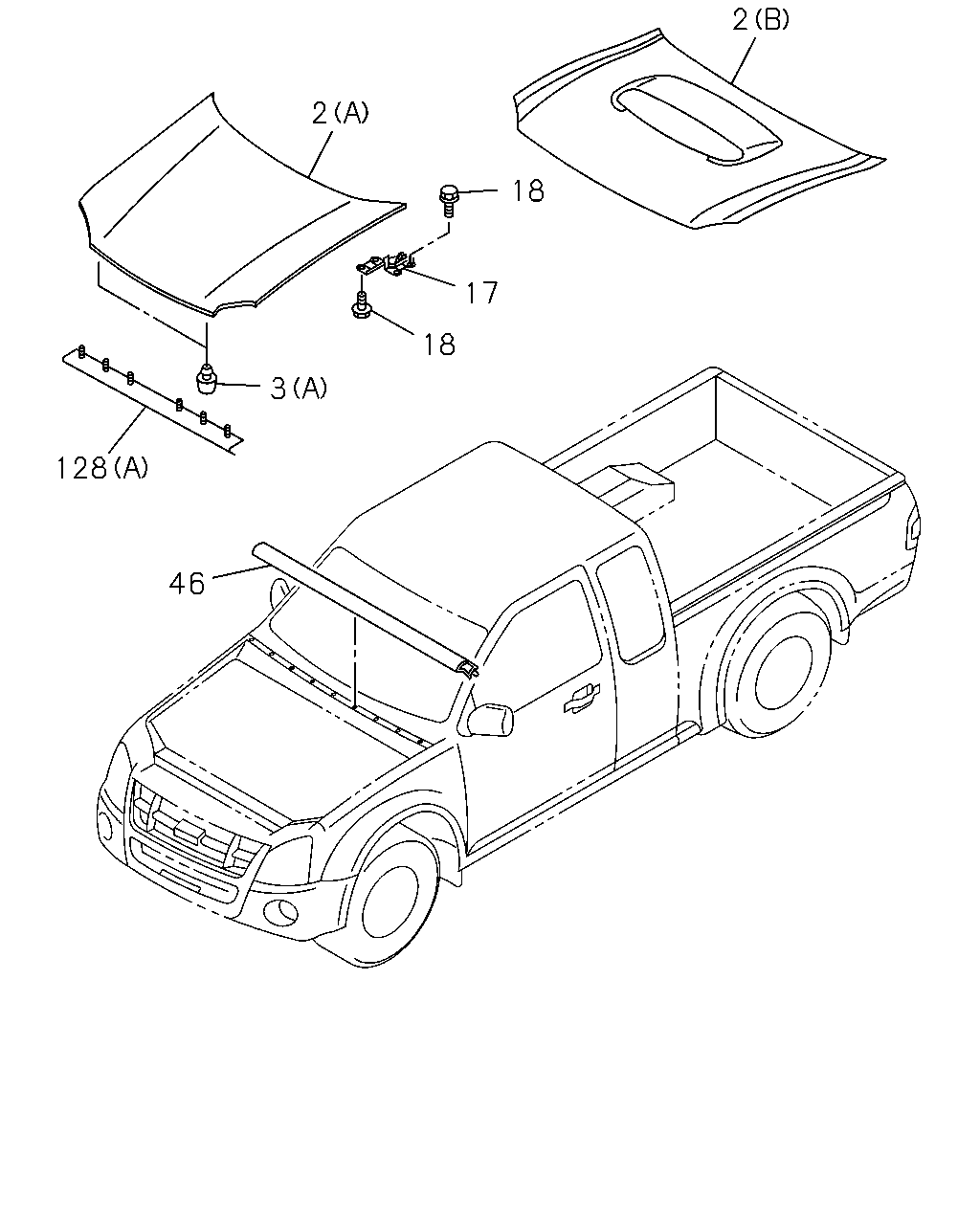

çizim 417218
128 46 2 18 17 18 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 PANEL; ENG HOOD
4JA1-TC ENG(L4Z) (A) 		8-98046-692-0 01 1 1510- ● ● ●
2 PANEL; ENG HOOD
(B) 		8-98046-693-0 01 1 1405-1509 ● ● ●
2 PANEL; ENG HOOD
4JK1-TCX ENG(LR0) (B) 		8-98046-693-0 01 1 1510- ● ● ●
3 BUFFER; ENG HOOD,FRT
(B) 		8-97311-876-0 02 1 1405- ● ● ●
3 BUFFER; ENG HOOD,FRT
(A) IMA 		8-97948-266-0 02 1 1405- ● ● ●
17 HINGE; ENG HOOD 8-98050-664-0 01 1 1405- ● ● ●
17 HINGE; ENG HOOD 8-98050-665-0 01 1 1405- ● ● ●
18 BOLT; HINGE
M8X16 IMA 		8-98056-122-0 04 1 1405- ● ● ●
18 BOLT; HINGE
M8X16 IMA 		8-98056-122-0 04 1 1405- ● ● ●
46 SEAL; ENG HOOD 8-97235-437-0 01 1 1405- ● ● ●
128 SEAL; PLATFORM
4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98023-877-0 01 1 1510- ● ● ●
128 SEAL; PLATFORM
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97372-864-0 01 1 1405- ● ● ●
128 SEAL; PLATFORM
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98024-523-0 01 1 1405- ● ● ●
128 SEAL; PLATFORM
(C) 		8-98023-875-0 01 1 1405-1509 ● ● ●
128 SEAL; PLATFORM
4JK1-TCX ENG(LR0) (C) 		8-98023-875-0 01 1 1510- ● ● ●
