6-05 — FRONT PANEL (#138084) — 20 parça

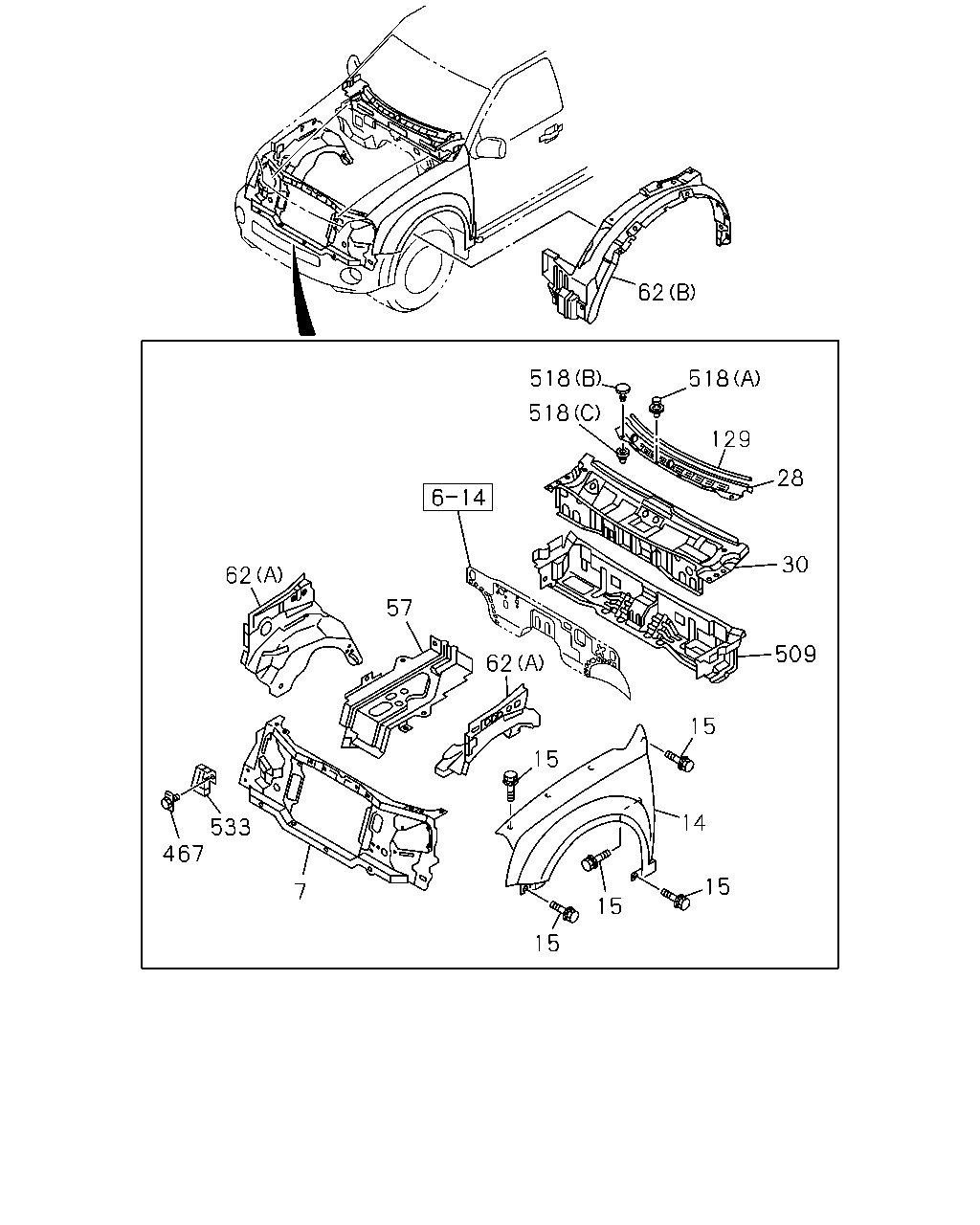

çizim 417151
62 518 518 129 30 28 518 57 62 467 7 15 15 14 15 15 15 533 62 509
BalonParca AdiParca NoAdetTipApplied Date A B C
7 PANEL; DEFLECTOR 8-97387-380-0 01 1 1405- ● ● ●
14 FENDER; FRT 8-97387-369-1 01 1 1405- ● ●
14 FENDER; FRT 8-97387-370-1 01 1 1405- ● ●
14 FENDER; FRT 8-97387-361-0 01 1 1405- ●
14 FENDER; FRT 8-97387-362-0 01 1 1405- ●
15 BOLT; FENDER
M6X15 W/LK&PL WASHER IMA 		8-98167-615-0 16 1 1405- ● ● ●
28 COVER; DASH COWL 8-98009-237-0 01 1 1405- ● ● ●
30 PANEL; COWL UPR 8-98061-608-0 01 1 1405- ● ● ●
57 TRAY; BATTERY 8-97326-537-1 01 1 1405- ● ● ●
62 PANEL; WHEEL HOUSE
(A) 		8-97234-964-4 01 1 1405- ● ● ●
62 PANEL; WHEEL HOUSE
(A) 		8-97363-273-0 01 1 1405- ● ● ●
62 PANEL; WHEEL HOUSE
(B) 		8-98007-130-3 01 1 1405- ● ● ●
62 PANEL; WHEEL HOUSE
(B) 		8-98007-133-3 01 1 1405- ● ● ●
129 FINISHER; COWL COVER 8-97333-282-2 01 1 1405- ● ● ●
467 RIVET; PLASTIC,DRIP MOLDING
IMA 		8-94221-150-0 01 1 1405- ● ● ●
509 PANEL; DASH 8-98061-610-0 01 1 1405- ● ● ●
518 SCREW; BRKT,COWL COVER
(A) 		8-97013-997-0 03 1 1405- ● ● ●
518 SCREW; BRKT,COWL COVER
(B) 		8-97329-760-0 01 1 1405- ● ● ●
518 SCREW; BRKT,COWL COVER
(C) 		8-97329-761-0 01 1 1405- ● ● ●
533 SEAL; FRT PANEL 8-97316-861-0 01 1 1405- ● ● ●
