◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#138083) — 21 parça

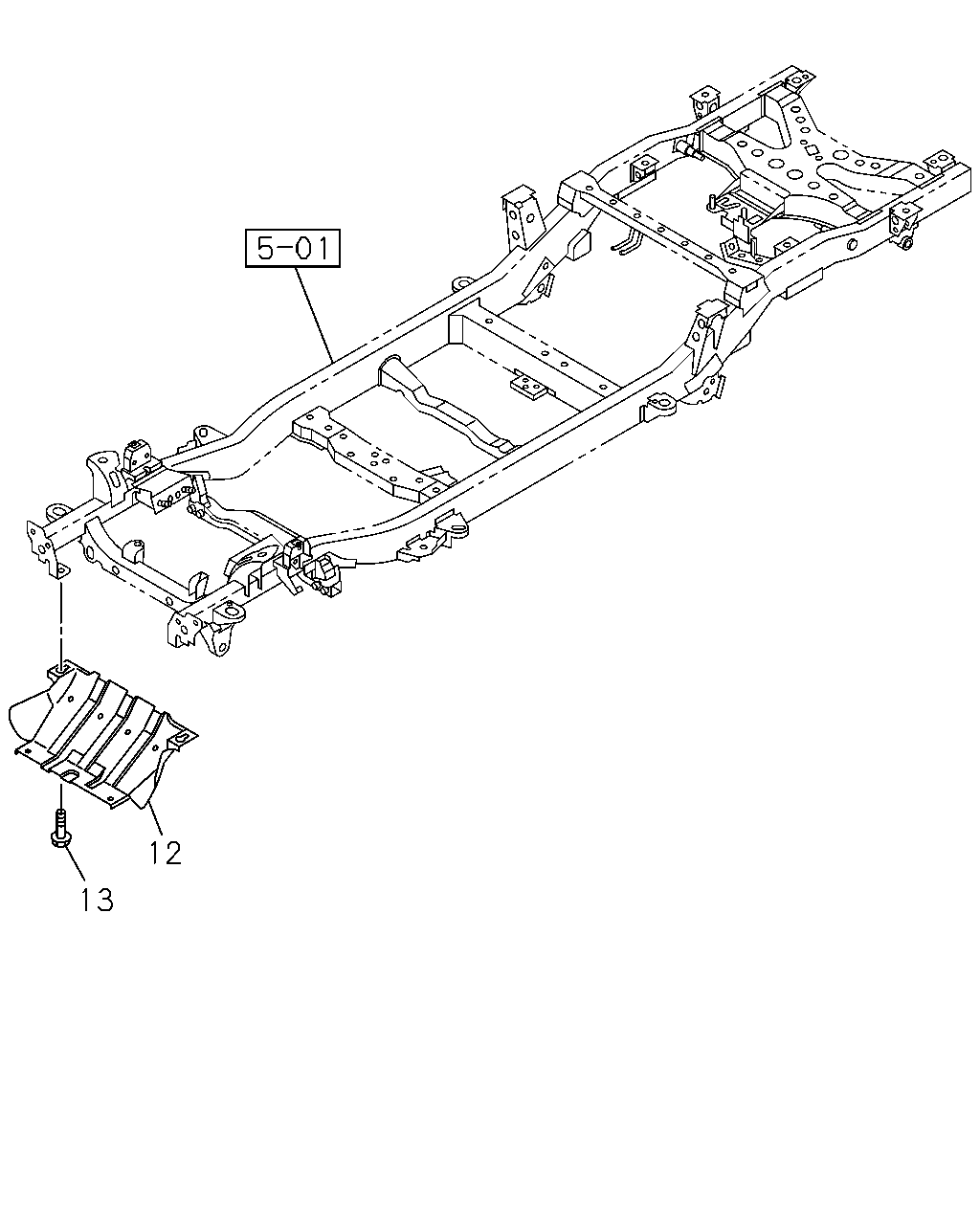

çizim 417069
12 13
BalonParca AdiParca NoAdetTipApplied Date A B C
12 PLATE; SKID,RAD
4JK1-TCX ENG(LR0) 		8-97944-848-1 01 1 1405- ● ● ●
13 BOLT; RAD SKID PLATE
4JK1-TCX ENG(LR0) M10X28 W/LK&PL WASHER IMA 		8-97945-706-0 04 1 1405- ● ● ●

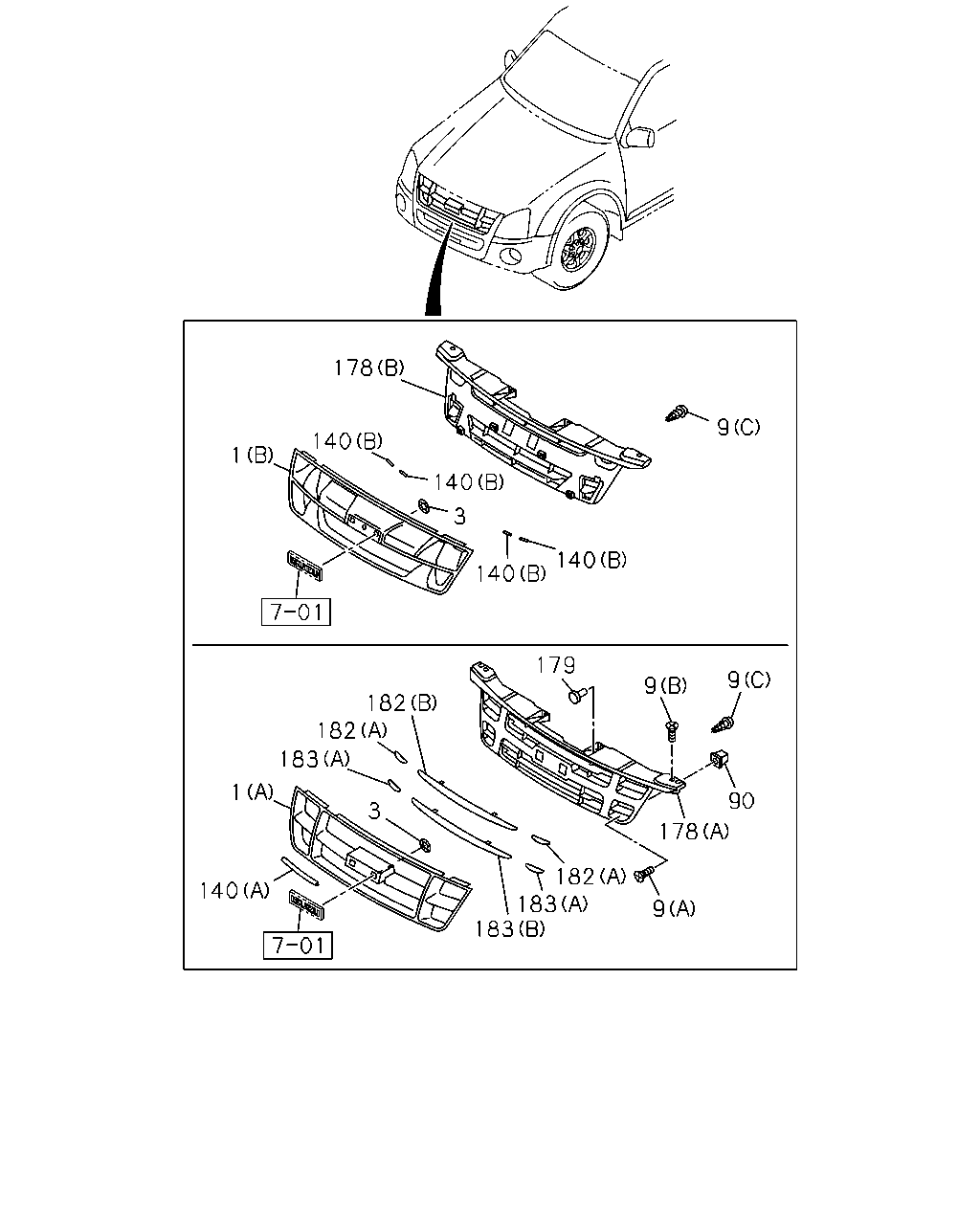

çizim 417146
178 140 1 140 140 140 3 9 182 182 183 1 3 140 183 182 183 9 178 9 9 90 179
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GRILLE; RAD
BASE VEHICLE GRILLE<VWX> (A) 		8-98012-479-1 01 1 1405- ● ● ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (B) PLATED 		8-98159-148-0 01 1 1405- ● ● ●
3 CLIP; GRILLE 8-97182-223-0 02 1 1405- ● ● ●
9 SCREW; RAD GRILLE
BASE VEHICLE GRILLE<VWX> (C) 		8-98070-852-0 17 1 1405- ● ● ●
9 SCREW; RAD GRILLE
BRIGHT RAD GRILLE<V22> (C) 		8-98070-852-0 13 1 1405- ● ● ●
9 SCREW; RAD GRILLE
(B) 		8-98049-358-0 02 1 1405- ● ● ●
9 SCREW; RAD GRILLE
(A) M5X16 IMA 		8-98167-352-0 03 1 1405- ● ● ●
90 NUT; RAD GRILLE
D=7X7 L=7.5 IMA 		8-94291-927-0 03 1 1405- ● ● ●
140 SEAL; RAD GRILLE
BASE VEHICLE GRILLE<VWX> (A) 		8-98070-854-0 01 1 1405- ● ● ●
140 SEAL; RAD GRILLE
BRIGHT RAD GRILLE<V22> (B) 		8-98130-916-0 04 1 1405- ● ● ●
178 GRILLE; INNER,RAD
BASE VEHICLE GRILLE<VWX> (A) 		8-98012-483-2 01 1 1405- ● ● ●
178 GRILLE; INNER,RAD
BRIGHT RAD GRILLE<V22> (B) 		8-98109-370-1 01 1 1405- ● ● ●
179 RETAINER; GRILLE,RAD
IMA 		8-97301-188-0 02 1 1405- ● ● ●
182 MOLDING; RAD GRILLE,UPR
BASE VEHICLE GRILLE<VWX> (B) 		8-98012-484-0 01 1 1405- ● ● ●
182 MOLDING; RAD GRILLE,UPR
BASE VEHICLE GRILLE<VWX> (A) 		8-98012-485-0 01 1 1405- ● ● ●
182 MOLDING; RAD GRILLE,UPR
BASE VEHICLE GRILLE<VWX> (A) 		8-98012-486-0 01 1 1405- ● ● ●
183 MOLDING; RAD GRILLE,LWR
BASE VEHICLE GRILLE<VWX> (B) 		8-98012-487-0 01 1 1405- ● ● ●
183 MOLDING; RAD GRILLE,LWR
BASE VEHICLE GRILLE<VWX> (A) 		8-98012-488-0 01 1 1405- ● ● ●
183 MOLDING; RAD GRILLE,LWR
BASE VEHICLE GRILLE<VWX> (A) 		8-98012-489-0 01 1 1405- ● ● ●
