◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 5 - Frame, Cab Mounting ▶ 5-40 - ENGINE ROOM INSULATOR ▶
5-40 — ENGINE ROOM INSULATOR (#138081) — 9 parça

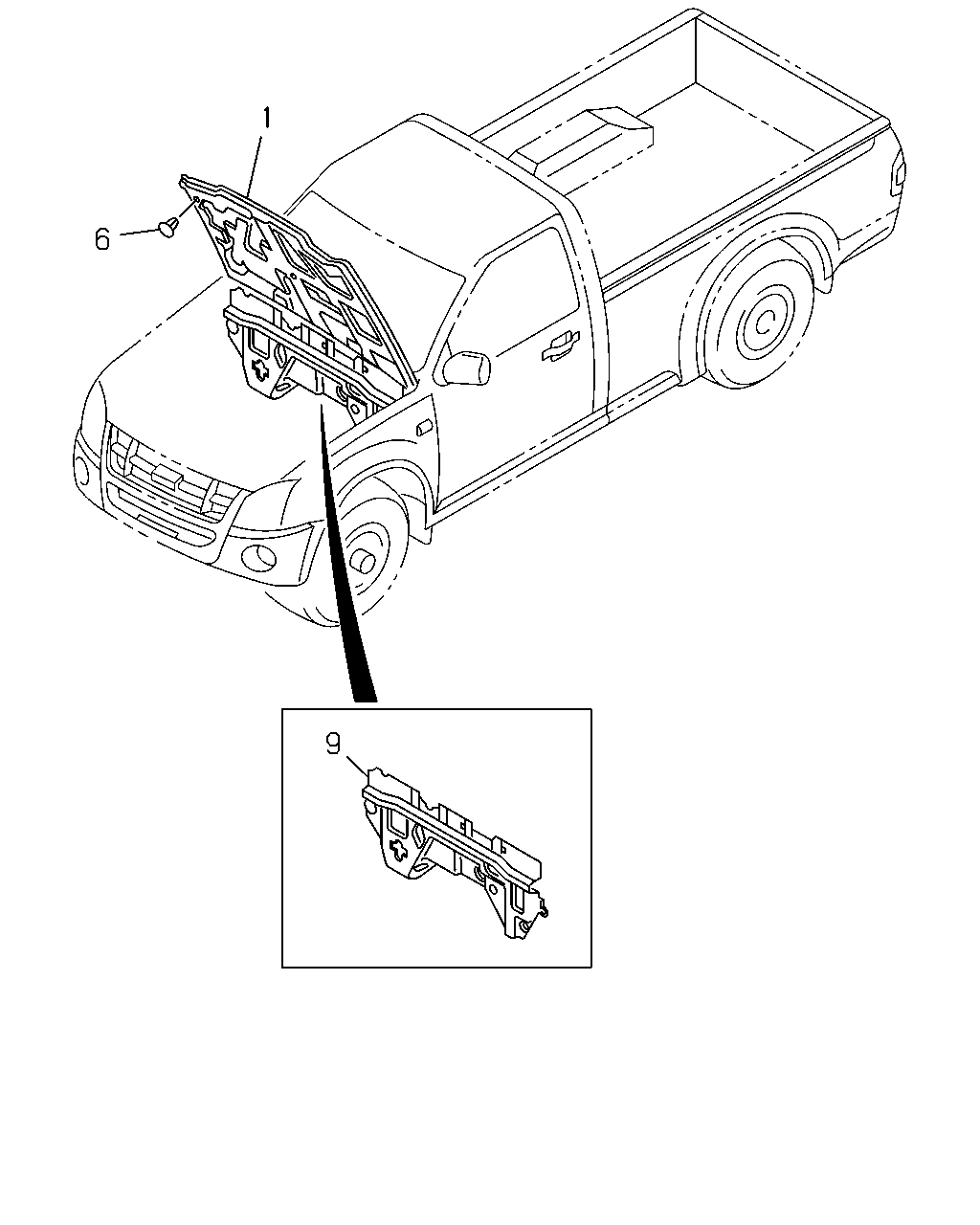

çizim 417080
1 6 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 INSULATION; ENG HOOD
4JA1-TC ENG(L4Z) 		8-98311-820-0 01 1 1510- ● ● ●
1 INSULATION; ENG HOOD 8-98007-123-4 01 1 1405-1509 ● ● ●
1 INSULATION; ENG HOOD
4JK1-TCX ENG(LR0) 		8-98007-123-4 01 1 1510- ● ● ●
6 CLIP; ENG HOOD INSULATION
4JA1-TC ENG(L4Z) ID=6.2 L=11.4 IMA 		8-97808-623-0 13 1 1510- ● ● ●
6 CLIP; ENG HOOD INSULATION
ID=6.2 L=11.4 IMA 		8-97808-623-0 14 1 1405-1509 ● ● ●
6 CLIP; ENG HOOD INSULATION
4JK1-TCX ENG(LR0) ID=6.2 L=11.4 IMA 		8-97808-623-0 14 1 1510- ● ● ●
9 INSULATION; DASH ENG ROOM 8-98021-496-0 01 1 1405- ● ● ●

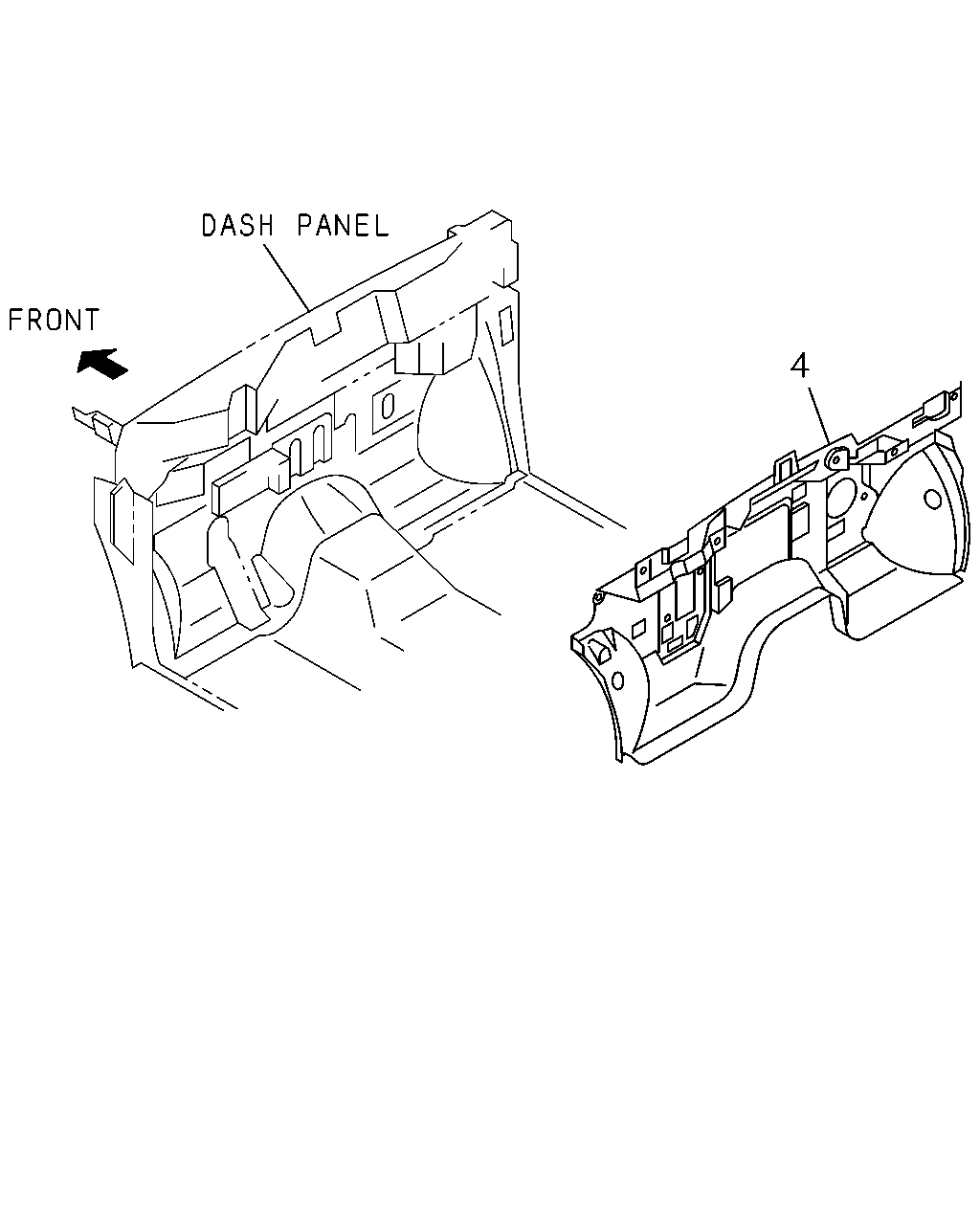

çizim 417229
4
BalonParca AdiParca NoAdetTipApplied Date A B C
4 INSULATION; DASH PNL,INNER
4JA1-TC ENG(L4Z) 		8-98012-634-0 01 1 1510- ● ● ●
4 INSULATION; DASH PNL,INNER 8-98013-149-0 01 1 1405- ● ● ●
