◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#138080) — 27 parça

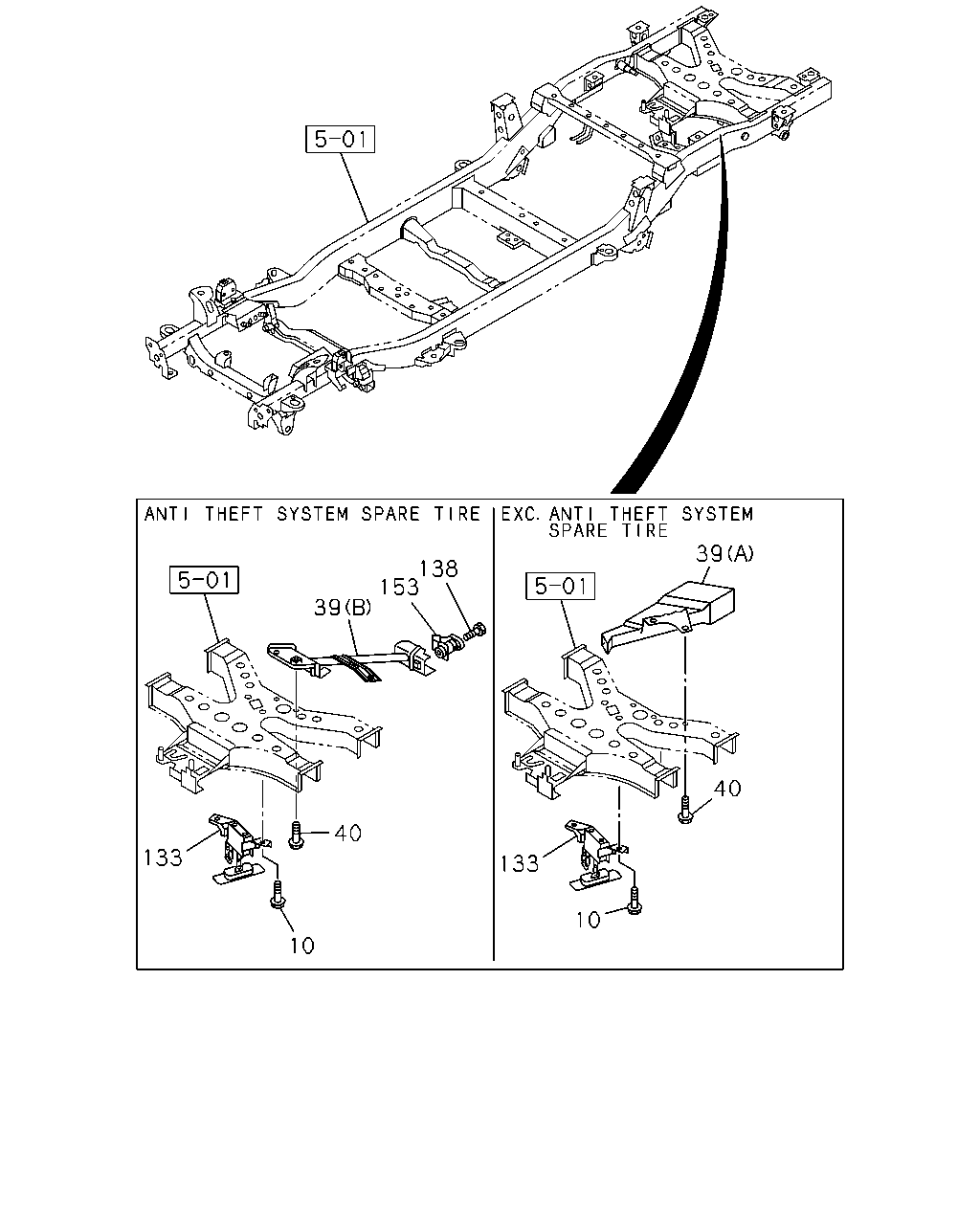

çizim 417079
133 10 40 39 138 153 39 40 10 133
BalonParca AdiParca NoAdetTipApplied Date A B C
10 BOLT; TIRE HANGER
M8X16 FLANGE IMA 		0-28050-816-0 02 1 1405- ● ● ●
39 GUIDE; SPARE TIRE HANGER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-97945-303-0 01 1 1405-1509 ●
39 GUIDE; SPARE TIRE HANGER
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) 		8-97945-303-0 01 1 1405-1509 ●
39 GUIDE; SPARE TIRE HANGER
(A) 		8-97945-303-0 01 1 1405-1509 ●
39 GUIDE; SPARE TIRE HANGER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-97945-303-0 01 1 1510- ● ●
39 GUIDE; SPARE TIRE HANGER
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) 		8-97945-303-0 01 1 1510- ● ●
39 GUIDE; SPARE TIRE HANGER
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B) 		8-97945-299-0 01 1 1405-1509 ●
39 GUIDE; SPARE TIRE HANGER
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B) 		8-97945-299-0 01 1 1510- ● ●
39 GUIDE; SPARE TIRE HANGER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-97945-304-0 01 1 1405- ●
39 GUIDE; SPARE TIRE HANGER
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) 		8-97945-304-0 01 1 1405- ●
39 GUIDE; SPARE TIRE HANGER
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B) 		8-97945-300-0 01 1 1405- ●
40 BOLT; GUIDE TO FRAME
M8X16 FLANGE IMA 		0-28050-816-0 02 1 1405- ● ● ●
133 HANGER; SPARE TIRE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97944-941-0 01 1 1405-1509 ● ●
133 HANGER; SPARE TIRE
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),ANTI THEFT SYSTEM SPARE TIRE<8CF> 		8-97944-941-0 01 1 1405-1509 ● ●
133 HANGER; SPARE TIRE 8-97944-941-0 01 1 1405-1509 ●
133 HANGER; SPARE TIRE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97944-941-0 01 1 1510- ● ● ●
133 HANGER; SPARE TIRE
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),ANTI THEFT SYSTEM SPARE TIRE<8CF> 		8-97944-941-0 01 1 1510- ● ● ●
133 HANGER; SPARE TIRE
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97945-344-0 01 1 1405-1509 ● ●
133 HANGER; SPARE TIRE
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97945-344-0 01 1 1510- ● ● ●
138 BOLT; COVER
REAR BODY DBL WALL CTR PULL(E63) ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) M8X29.5 W/LK+PL WASHER 		8-98073-082-0 01 1 1405-1509 ●
138 BOLT; COVER
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) M8X29.5 W/LK+PL WASHER 		8-98073-082-0 01 1 1405-1509 ●
138 BOLT; COVER
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) M8X29.5 W/LK+PL WASHER 		8-98073-082-0 01 1 1510- ● ●
138 BOLT; COVER
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) M8X29.5 W/LK+PL WASHER 		8-98073-082-0 01 1 1510- ●
153 CASE; LOCK CYL
REAR BODY DBL WALL CTR PULL(E63) ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97259-729-1 01 1 1405-1509 ●
153 CASE; LOCK CYL
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97259-729-1 01 1 1405-1509 ●
153 CASE; LOCK CYL
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97259-729-1 01 1 1510- ● ●
153 CASE; LOCK CYL
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97259-729-1 01 1 1510- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
