5-10 — CAB MOUNTING; FRAME SIDE (#138078) — 28 parça

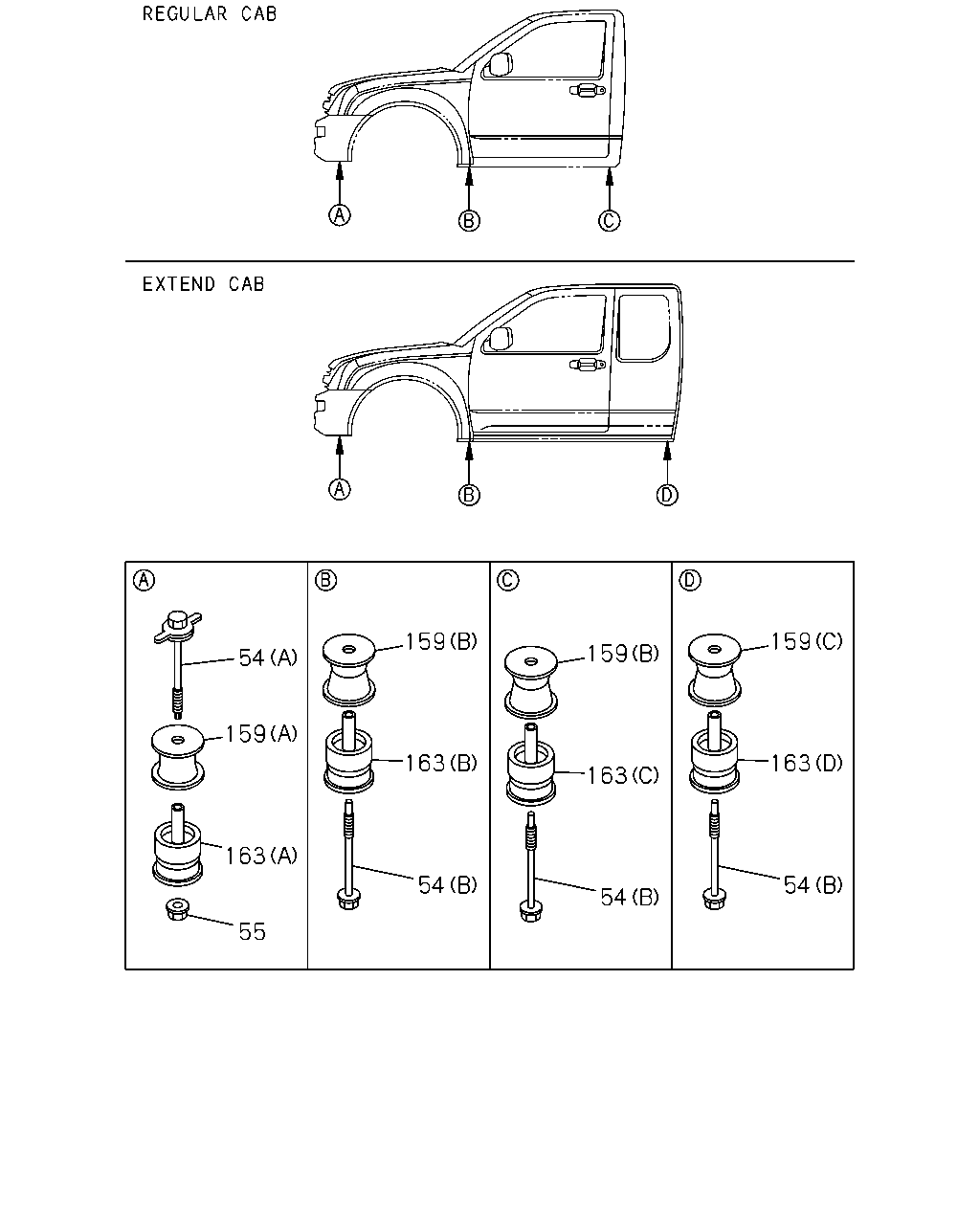

çizim 417119
54 163 159 159 163 54 54 163 159 54 159 163 55
BalonParca AdiParca NoAdetTipApplied Date A B C
54 BOLT; RUBBER
(A) M10X117.3 FLANGE IMA 		8-97365-219-0 02 1 1405- ● ● ●
54 BOLT; RUBBER
(B) 		8-98178-536-0 04 1 1405- ● ● ●
54 BOLT; RUBBER
(B) 		8-98178-536-0 02 1 1405- ●
55 NUT; RUBBER
M10 FLANGE IMA 		0-91280-210-0 02 1 1405- ● ● ●
159 RUBBER; CUSHION,CAB MTG
(C) STAMP P 		8-97367-287-0 02 1 1405- ●
159 RUBBER; CUSHION,CAB MTG
(B) STAMP W 		8-97367-286-0 02 1 1405- ● ● ●
159 RUBBER; CUSHION,CAB MTG
(B) STAMP W 		8-97367-286-0 02 1 1405- ● ●
159 RUBBER; CUSHION,CAB MTG
(B) STAMP W 		8-97367-286-0 02 1 1405- ●
159 RUBBER; CUSHION,CAB MTG
(A) STAMP SB 		8-97367-285-0 02 1 1405- ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(D) STAMP B 		8-98051-329-0 02 1 1405- ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) STAMP SP 		8-98051-326-0 02 1 1405- ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) STAMP Y 		8-98051-327-0 02 1 1405- ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) STAMP G 		8-98051-328-0 02 1 1405- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) STAMP G 		8-98051-328-0 02 1 1405- ●
çizim 417195
159 163 54 163 159 54 55 163 159 54
BalonParca AdiParca NoAdetTipApplied Date A B C
54 BOLT; RUBBER
(A) M10X117.3 FLANGE IMA 		8-97365-219-0 02 1 1405- ● ● ●
54 BOLT; RUBBER
(B) 		8-98178-536-0 04 1 1405- ● ● ●
54 BOLT; RUBBER
(B) 		8-98178-536-0 02 1 1405- ●
55 NUT; RUBBER
M10 FLANGE IMA 		0-91280-210-0 02 1 1405- ● ● ●
159 RUBBER; CUSHION,CAB MTG
(C) STAMP P 		8-97367-287-0 02 1 1405- ●
159 RUBBER; CUSHION,CAB MTG
(B) STAMP W 		8-97367-286-0 02 1 1405- ● ● ●
159 RUBBER; CUSHION,CAB MTG
(B) STAMP W 		8-97367-286-0 02 1 1405- ● ●
159 RUBBER; CUSHION,CAB MTG
(B) STAMP W 		8-97367-286-0 02 1 1405- ●
159 RUBBER; CUSHION,CAB MTG
(A) STAMP SB 		8-97367-285-0 02 1 1405- ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(D) STAMP B 		8-98051-329-0 02 1 1405- ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) STAMP SP 		8-98051-326-0 02 1 1405- ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) STAMP Y 		8-98051-327-0 02 1 1405- ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) STAMP G 		8-98051-328-0 02 1 1405- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) STAMP G 		8-98051-328-0 02 1 1405- ●
