4-65 — REAR LEAF SPRING (#138075) — 52 parça

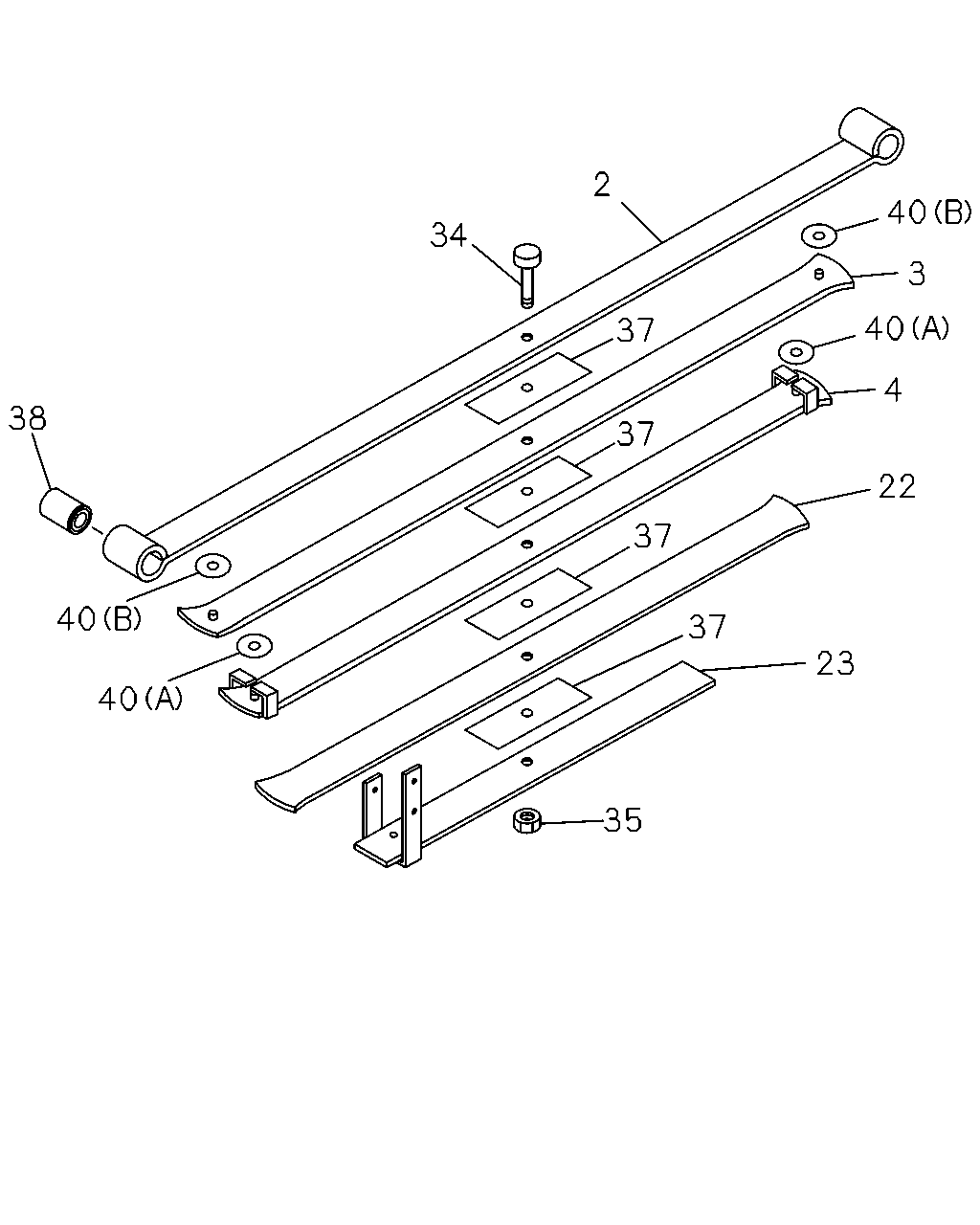

40 3 40 4 22 23 37 37 37 37 2 34 35 40 40 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-97946-809-0	8-97246-604-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-97946-810-0	8-97385-869-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-98101-072-1	8-98113-350-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97946-809-0	8-97246-608-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97946-810-0	8-97385-870-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-98101-072-1	8-98113-351-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97946-809-0	8-97246-614-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97946-810-0	8-97385-871-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-98101-072-1	8-98113-352-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97946-809-0	8-97368-641-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97946-810-0	8-97385-873-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-98101-072-1	8-98113-354-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-97946-809-0	8-97368-642-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-97946-810-0	8-97385-874-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: C = 8-98101-072-1	8-98113-355-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X56 ASM PART: A = 8-97946-809-0	8-94468-050-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X75, IMA ASM PART: B = 8-97946-810-0, C = 8-98101-072-1	8-97304-264-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, IMA ASM PART: A = 8-97946-809-0, B = 8-97946-810-0, C = 8-98101-072-1	8-97945-821-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR ASM PART: B = 8-97946-810-0, C = 8-98101-072-1	8-94468-305-0	05	1	-
37	SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97946-809-0	8-94468-305-0	04	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 8-97946-809-0, B = 8-97946-810-0, C = 8-98101-072-1	8-97332-642-0	01	1	-
40	LINER; LEAF SPR,RR (B) ASM PART: B = 8-97946-810-0, C = 8-98101-072-1	8-97360-245-0	04	1	-
40	LINER; LEAF SPR,RR (B) ASM PART: A = 8-97946-809-0	8-97360-245-0	02	1	-
40	LINER; LEAF SPR,RR (A) ASM PART: A = 8-97946-809-0, B = 8-97946-810-0, C = 8-98101-072-1	8-97360-246-0	02	1	-

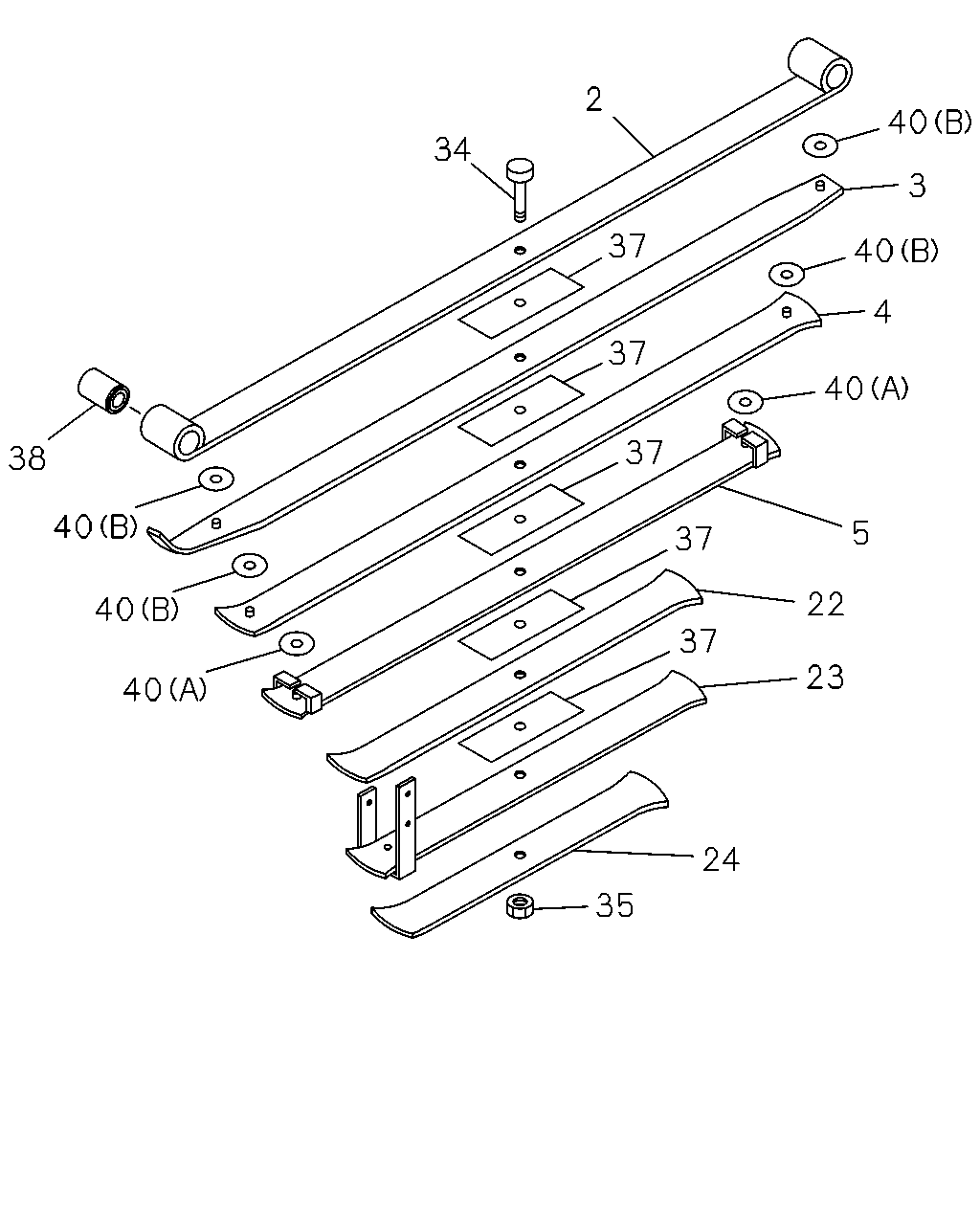

40 40 3 4 40 5 22 23 24 35 37 37 37 37 37 2 34 38 40 40 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-97946-809-0	8-97246-604-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-97946-810-0	8-97385-869-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-98101-072-1	8-98113-350-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97946-809-0	8-97246-608-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97946-810-0	8-97385-870-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-98101-072-1	8-98113-351-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97946-809-0	8-97246-614-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97946-810-0	8-97385-871-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-98101-072-1	8-98113-352-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-97946-810-0	8-97385-872-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 8-98101-072-1	8-98113-353-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97946-809-0	8-97368-641-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97946-810-0	8-97385-873-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-98101-072-1	8-98113-354-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-97946-809-0	8-97368-642-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-97946-810-0	8-97385-874-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: C = 8-98101-072-1	8-98113-355-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: B = 8-97946-810-0	8-97385-875-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: C = 8-98101-072-1	8-98113-356-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X56 ASM PART: A = 8-97946-809-0	8-94468-050-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X75, IMA ASM PART: B = 8-97946-810-0, C = 8-98101-072-1	8-97304-264-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, IMA ASM PART: A = 8-97946-809-0, B = 8-97946-810-0, C = 8-98101-072-1	8-97945-821-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR ASM PART: B = 8-97946-810-0, C = 8-98101-072-1	8-94468-305-0	05	1	-
37	SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97946-809-0	8-94468-305-0	04	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 8-97946-809-0, B = 8-97946-810-0, C = 8-98101-072-1	8-97332-642-0	01	1	-
40	LINER; LEAF SPR,RR (B) ASM PART: B = 8-97946-810-0, C = 8-98101-072-1	8-97360-245-0	04	1	-
40	LINER; LEAF SPR,RR (B) ASM PART: A = 8-97946-809-0	8-97360-245-0	02	1	-
40	LINER; LEAF SPR,RR (A) ASM PART: A = 8-97946-809-0, B = 8-97946-810-0, C = 8-98101-072-1	8-97360-246-0	02	1	-
