Isuzu WW
▶
PICKUP
▶
TFR
▶
51516 - TFR(INDIA)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

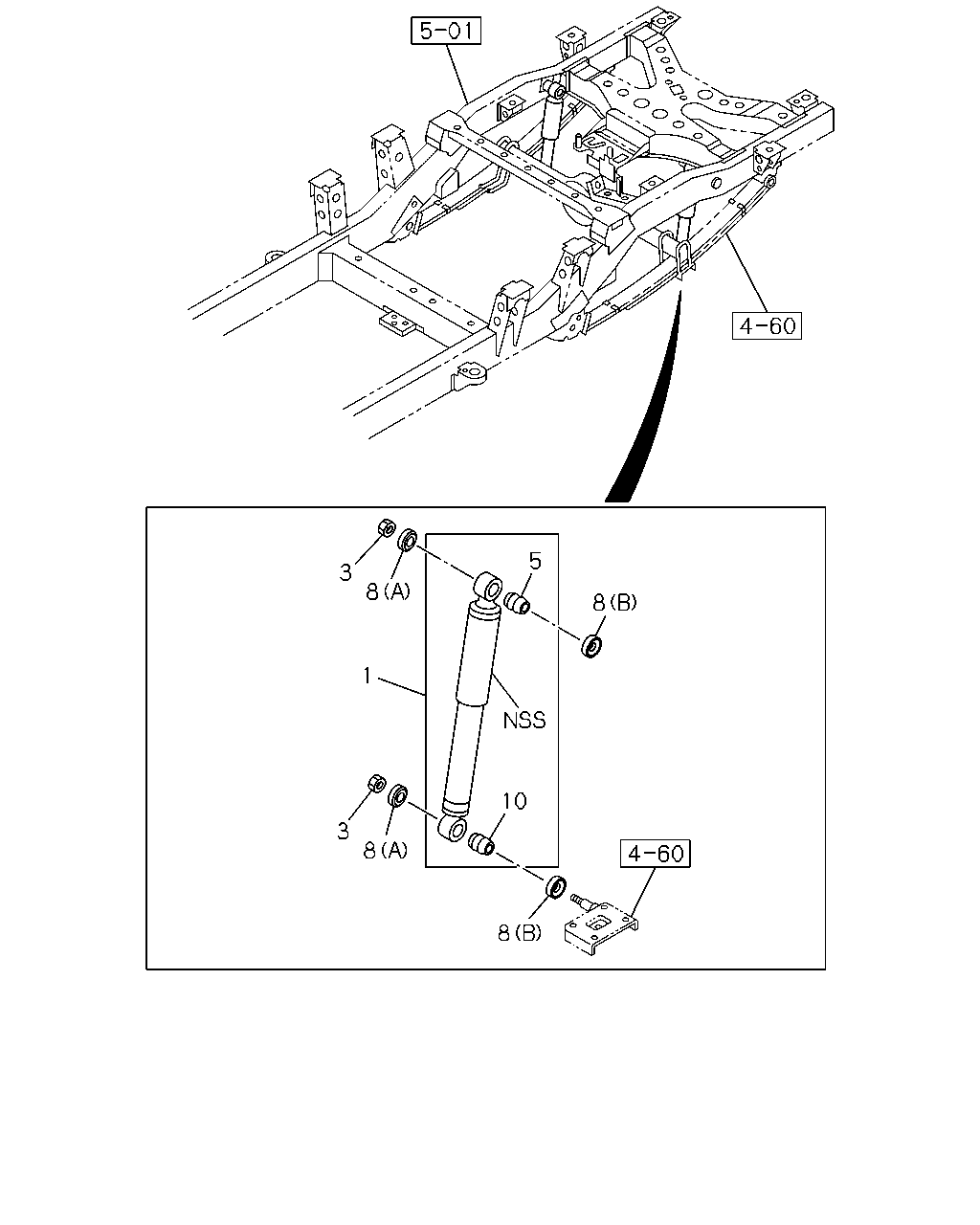

4-61 - SHOCK ABSORBER; REAR SUSPENSION
▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION
(#138074) — 10 parça
Tümü
A - TFB5CF
B - TFB5WF
C - TFB5SF
3
8
5
8
1
3
8
10
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
ABSORBER ASM; SHOCK,RR
4JA1-TC ENG(L4Z) REAR SPRING HEAVY DUTY(G50)
8-98152-222-0
02
1
1510-
●
●
1
ABSORBER ASM; SHOCK,RR
4JA1-TC ENG(L4Z)
8-98152-222-0
02
1
1510-
●
1
ABSORBER ASM; SHOCK,RR
4JK1-TCX ENG(LR0) REAR SPRING HEAVY DUTY(G50)
8-98152-223-0
02
1
1405-
●
●
1
ABSORBER ASM; SHOCK,RR
4JK1-TCX ENG(LR0)
8-98152-223-0
02
1
1405-
●
1
ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50)
8-98152-221-0
02
1
1405-
●
●
3
NUT; S/ABS
M12 FLANGE IMA
8-97256-670-0
04
1
1405-
●
●
●
5
BUSHING; RUBBER,S/ABS,UPR
8-97302-810-0
02
1
1405-
●
●
●
8
WASHER; S/ABS
(B) ID=12.5 IMA
8-98005-969-0
04
1
1405-
●
●
●
8
WASHER; S/ABS
(A) ID=16.5 IMA
8-98005-970-0
04
1
1405-
●
●
●
10
BUSHING; RUBBER,S/ABS
8-97302-810-0
02
1
1405-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
