◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#138073) — 21 parça

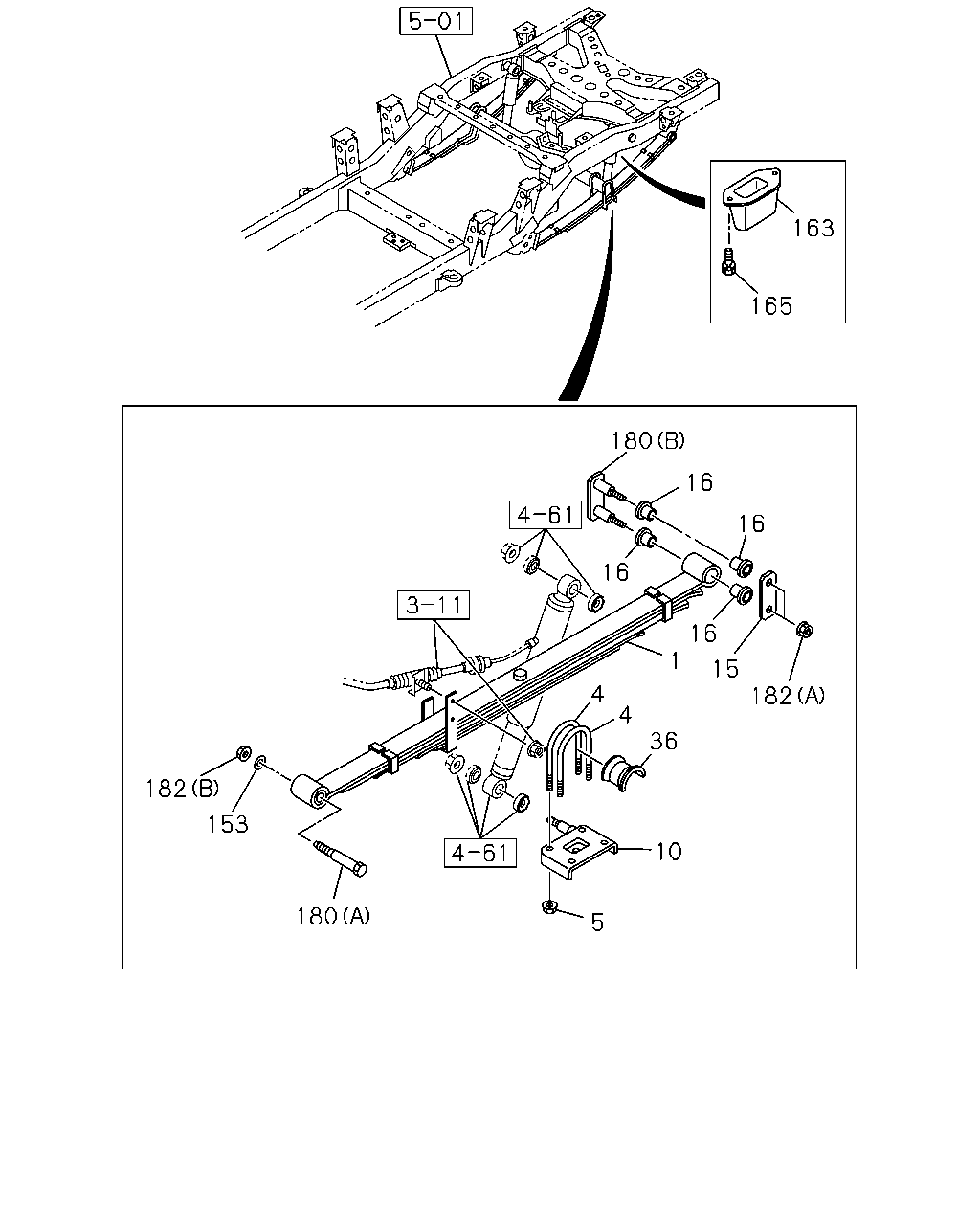

çizim 417156
163 165 180 16 182 15 16 16 1 16 4 4 36 10 5 180 153 182
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 4JA1-TC ENG(L4Z) REAR SPRING HEAVY DUTY(G50) 		8-97946-810-0 02 1 1510- ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 4JA1-TC ENG(L4Z) 		8-97946-810-0 02 1 1510- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 4JK1-TCX ENG(LR0) REAR SPRING HEAVY DUTY(G50) 		8-98101-072-1 02 1 1405- ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 4JK1-TCX ENG(LR0) 		8-98101-072-1 02 1 1405- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY(G50) 		8-97946-809-0 02 1 1405- ● ●
4 U-BOLT; RR SPR
REAR SPRING HEAVY DUTY(G50) L=187 IMA 		8-97248-621-1 04 1 1405- ● ●
4 U-BOLT; RR SPR
L=187 IMA 		8-97248-621-1 04 1 1405- ●
4 U-BOLT; RR SPR
EXC. REAR SPRING HEAVY DUTY(G50) 		8-97248-620-1 04 1 1405- ● ●
5 NUT; U-BOLT,RR SPR
M14 FLANGE IMA 		8-97245-635-0 08 1 1405- ● ● ●
10 CLAMP; LWR,RR SPR 8-97365-391-0 01 1 1405- ● ● ●
10 CLAMP; LWR,RR SPR 8-97365-393-0 01 1 1405- ● ● ●
15 SHACKLE; RR SPR
IMA 		8-98005-815-0 02 1 1405- ● ● ●
16 BUSHING; SHACKLE,RR SPR
IMA 		8-97357-492-0 08 1 1405- ● ● ●
36 SEAT; HELPER RUBBER,RR SPR 8-98005-878-0 02 1 1405- ● ● ●
153 WASHER; PL,SPRING PIN
ID=14.5 OD=30 IMA 		8-98005-921-0 02 1 1405- ● ● ●
163 RUBBER; HELPER,RR SPR 8-97235-926-0 02 1 1405- ● ● ●
165 BOLT; HELPER RUBBER
M10X30 FLANGE 		0-28651-030-0 04 1 1405- ● ● ●
180 PIN; RR SPR
(A) M14X106 		8-97245-647-0 02 1 1405- ● ● ●
180 PIN; RR SPR
(B) IMA 		8-98005-814-0 02 1 1405- ● ● ●
182 NUT; PIN,RR SPR
(A) M14 FLANGE IMA 		0-91180-114-0 04 1 1405- ● ● ●
182 NUT; PIN,RR SPR
(B) M14 FLANGE IMA 		8-97245-651-0 02 1 1405- ● ● ●
