◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#138072) — 52 parça

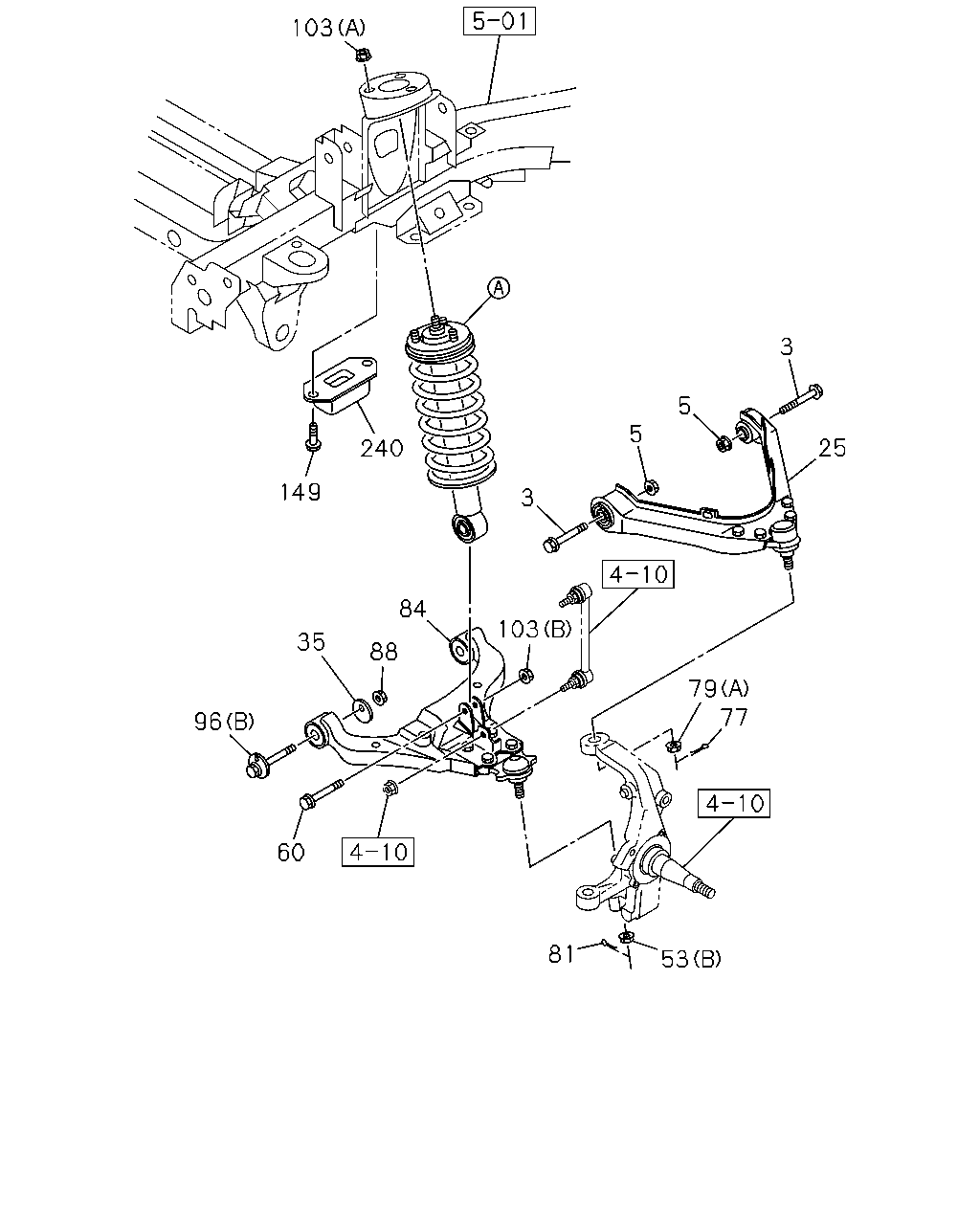

çizim 417136
103 149 240 84 35 88 96 60 103 3 5 5 3 25 79 77 81 53
BalonParca AdiParca NoAdetTipApplied Date A B C
3 BOLT; UPR LINK TO FRAME 8-97214-816-0 04 1 1405- ● ● ●
5 NUT; UPR LINK TO FRAME
M14 FLANGE IMA 		8-97245-635-0 04 1 1405- ● ● ●
25 ARM; UPR CONT 8-98005-836-0 01 1 1405- ● ● ●
25 ARM; UPR CONT 8-98005-837-0 01 1 1405- ● ● ●
35 PLATE; BUSHING SUPPORT
IMA 		8-97214-814-0 04 1 1405- ● ● ●
53 NUT; LWR LINK
(A) M12 FLANGE IMA 		0-91180-212-0 08 1 1405- ● ● ●
53 NUT; LWR LINK
(B) M18 SLOTTED 		8-97245-632-0 02 1 1405- ● ● ●
60 BOLT; S/ABS TO LWR LINK
M14X69 FLANGE 		8-97245-641-0 02 1 1405- ● ● ●
77 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=28 IMA 		0-81123-028-0 02 1 1405- ● ● ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M14 IMA 		0-91110-514-0 02 1 1405- ● ● ●
79 NUT; UPR LINK END TO KNUCKLE
(B) M8 FLANGE IMA 		0-91180-208-0 08 1 1405- ● ● ●
81 PIN; SPLIT,LWR LINK TO KNUCKLE
OD=2.8 L=28 IMA 		0-81123-028-0 02 1 1405- ● ● ●
84 ARM; LWR CONT 8-98005-832-0 01 1 1405- ● ● ●
84 ARM; LWR CONT 8-98005-833-0 01 1 1405- ● ● ●
88 NUT; LWR LINK
M16 FLANGE IMA 		8-97245-631-0 04 1 1405- ● ● ●
96 BOLT; LWR LINK
(A) M12X37 FLANGE IMA 		8-97245-639-0 08 1 1405- ● ● ●
96 BOLT; LWR LINK
(B) M16X102 W/PLATE IMA 		8-98186-404-0 04 1 1405- ● ● ●
103 NUT; S/ABS TO LWR LINK
(B) M14 FLANGE IMA 		8-97245-635-0 02 1 1405- ● ● ●
103 NUT; S/ABS TO LWR LINK
(A) M10 FLANGE IMA 		8-97245-637-0 06 1 1405- ● ● ●
149 BOLT; ARM TO LWR CONT ARM
M10X25 FLANGE IMA 		0-28651-025-0 04 1 1405- ● ● ●
240 BUMPER; LWR CONT ARM 8-97215-052-0 02 1 1405- ● ● ●

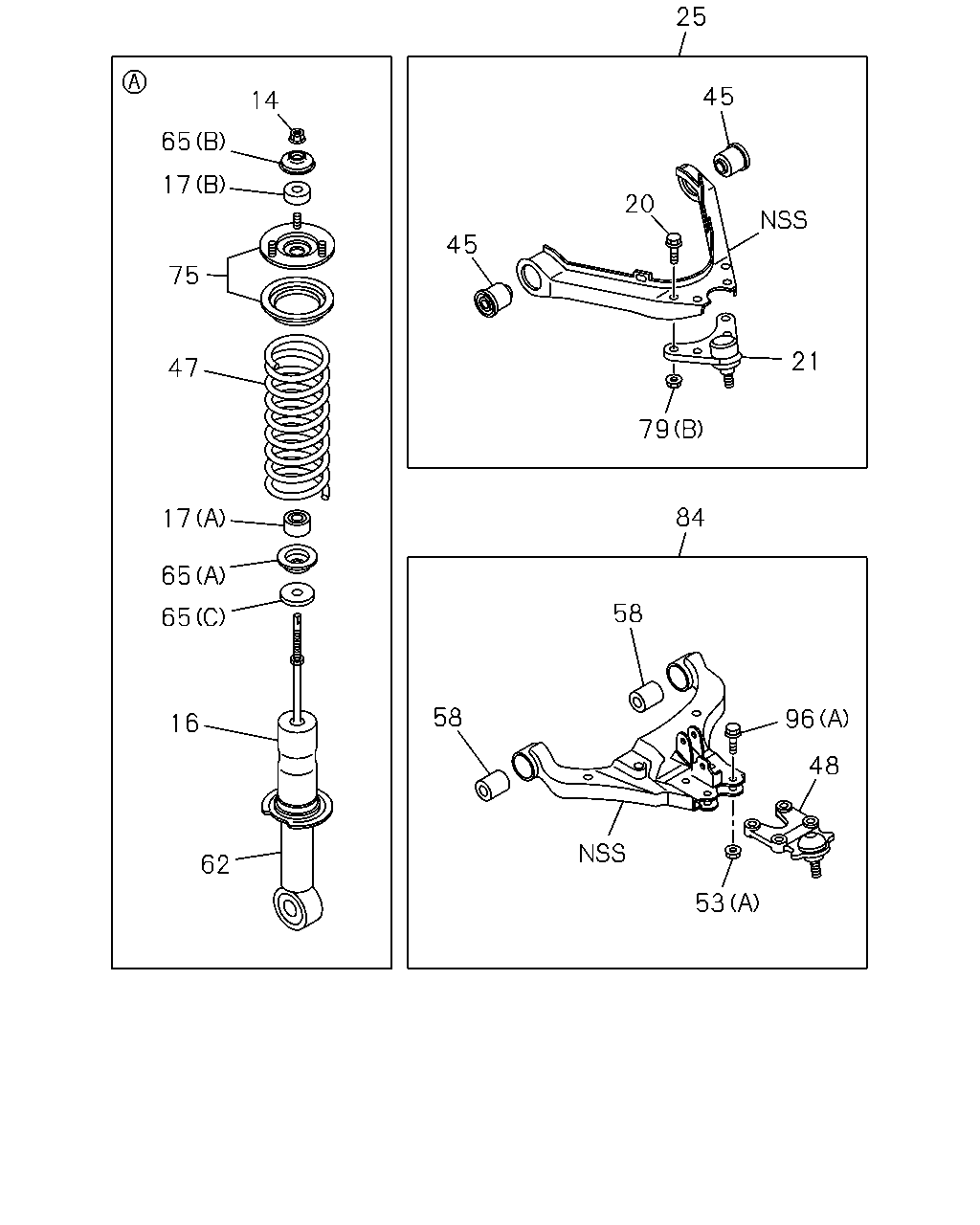

çizim 417145
79 21 20 45 45 25 84 58 58 53 48 96 16 62 65 17 65 47 75 17 65 14
BalonParca AdiParca NoAdetTipApplied Date A B C
14 NUT; S/ABS,UPR
M12 FLANGE 		8-97236-304-0 02 1 1405- ● ● ●
16 COVER; DUST,FRT S/ABS 8-97944-566-0 02 1 1405- ● ● ●
17 BUSHING; RUBBER,S/ABS
(A) 		8-97236-303-0 02 1 1405- ● ● ●
17 BUSHING; RUBBER,S/ABS
(B) 		8-97264-184-0 02 1 1405- ● ● ●
20 BOLT; UPR LINK END TO UPR LINK
M8X25 FLANGE IMA 		0-28060-825-0 08 1 1405- ● ● ●
21 JOINT ASM; BALL,UPR CONT ARM 8-98005-827-0 02 1 1405- ● ● ●
25 ARM; UPR CONT 8-98005-836-0 01 1 1405- ● ● ●
25 ARM; UPR CONT 8-98005-837-0 01 1 1405- ● ● ●
45 BUSHING; UPR LINK,FRT 8-97364-173-0 04 1 1405- ● ● ●
47 SPRING; COIL,FRT SUSP 8-97245-069-0 02 1 1405- ● ● ●
48 JOINT ASM; BALL,LWR CONT ARM 8-98005-874-0 02 1 1405- ● ● ●
53 NUT; LWR LINK
(A) M12 FLANGE IMA 		0-91180-212-0 08 1 1405- ● ● ●
53 NUT; LWR LINK
(B) M18 SLOTTED 		8-97245-632-0 02 1 1405- ● ● ●
58 BUSHING; LWR LINK 8-97364-174-0 04 1 1405- ● ● ●
62 ABSORBER ASM; SHOCK,FRT
4JK1-TCX ENG(LR0) EXC. REAR SPRING HEAVY DUTY(G50) 		8-98152-164-0 02 1 1405-1509 ●
62 ABSORBER ASM; SHOCK,FRT
4JK1-TCX ENG(LR0) 		8-98152-164-0 02 1 1405-1509 ●
62 ABSORBER ASM; SHOCK,FRT
4JA1-TC ENG(L4Z) 		8-98152-164-0 02 1 1510- ● ●
62 ABSORBER ASM; SHOCK,FRT
4JK1-TCX ENG(LR0) EXC. REAR SPRING HEAVY DUTY(G50) 		8-98152-164-0 02 1 1510- ●
62 ABSORBER ASM; SHOCK,FRT
4JK1-TCX ENG(LR0),4JA1-TC ENG(L4Z) 		8-98152-164-0 02 1 1510- ●
62 ABSORBER ASM; SHOCK,FRT
4JK1-TCX ENG(LR0) REAR SPRING HEAVY DUTY(G50) 		8-98152-165-0 02 1 1405- ●
62 ABSORBER ASM; SHOCK,FRT
4JK1-TCX ENG(LR0) 		8-98152-165-0 02 1 1405- ●
65 WASHER; S/ABS
(C) 		8-97944-892-0 02 1 1405- ● ● ●
65 WASHER; S/ABS
(B) 		8-98005-971-0 02 1 1405- ● ● ●
65 WASHER; S/ABS
(A) 		8-98005-972-0 02 1 1405- ● ● ●
75 BRACKET; FRT S/ABS 8-98005-829-0 02 1 1405- ● ● ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M14 IMA 		0-91110-514-0 02 1 1405- ● ● ●
79 NUT; UPR LINK END TO KNUCKLE
(B) M8 FLANGE IMA 		0-91180-208-0 08 1 1405- ● ● ●
84 ARM; LWR CONT 8-98005-832-0 01 1 1405- ● ● ●
84 ARM; LWR CONT 8-98005-833-0 01 1 1405- ● ● ●
96 BOLT; LWR LINK
(A) M12X37 FLANGE IMA 		8-97245-639-0 08 1 1405- ● ● ●
96 BOLT; LWR LINK
(B) M16X102 W/PLATE IMA 		8-98186-404-0 04 1 1405- ● ● ●
