4-42 — POWER STEERING OIL PUMP (#138071) — 46 parça

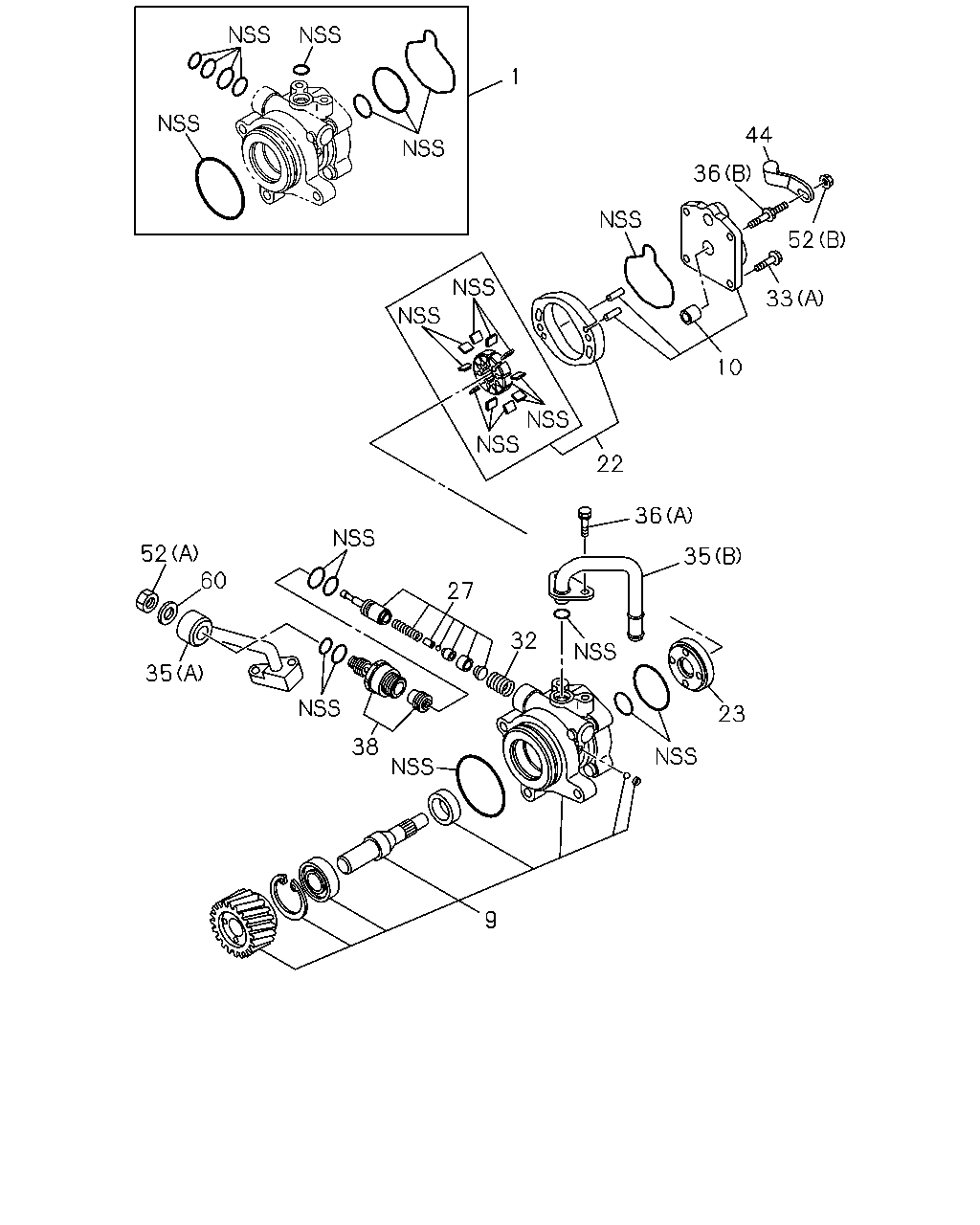

1 44 36 52 33 10 22 36 35 27 32 23 52 60 35 38 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 8-97946-697-0	8-97184-735-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: B = 8-97946-698-0	8-98002-698-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97946-697-0	8-97946-693-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97946-698-0	8-98002-697-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-97946-697-0, B = 8-97946-698-0	8-97946-689-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97946-697-0, B = 8-97946-698-0	8-97946-615-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 8-97946-697-0, B = 8-97946-698-0	8-97184-728-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 8-97946-697-0	8-97184-731-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: B = 8-97946-698-0	8-98034-043-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 8-97946-697-0, B = 8-97946-698-0	8-97184-766-0	01	1	-
33	BOLT; COVER (A) ASM PART: A = 8-97946-697-0, B = 8-97946-698-0	8-98028-773-0	03	1	-
33	BOLT; COVER (B) ASM PART: A = 8-97946-697-0	8-98034-093-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP (A) ASM PART: B = 8-97946-698-0	8-97946-174-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP (C) ASM PART: A = 8-97946-697-0	8-98033-923-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP (B) ASM PART: B = 8-97946-698-0	8-98033-924-0	01	1	-
36	BOLT; CONN,PIPE (A) ASM PART: A = 8-97946-697-0	8-98028-783-0	01	1	-
36	BOLT; CONN,PIPE (A) ASM PART: B = 8-97946-698-0	8-98028-783-0	02	1	-
36	BOLT; CONN,PIPE (B) ASM PART: B = 8-97946-698-0	8-98034-052-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: A = 8-97946-697-0	8-97184-732-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: B = 8-97946-698-0	8-97943-866-0	01	1	-
44	BRACKET; OIL PUMP,P/S & EDS ASM PART: B = 8-97946-698-0	8-98034-047-0	01	1	-
52	NUT; OIL PUMP (A) ASM PART: B = 8-97946-698-0	8-98034-050-0	01	1	-
52	NUT; OIL PUMP (B) ASM PART: B = 8-97946-698-0	8-98034-051-0	01	1	-
60	WASHER; LK,OIL PUMP ASM PART: B = 8-97946-698-0	8-98034-048-0	01	1	-

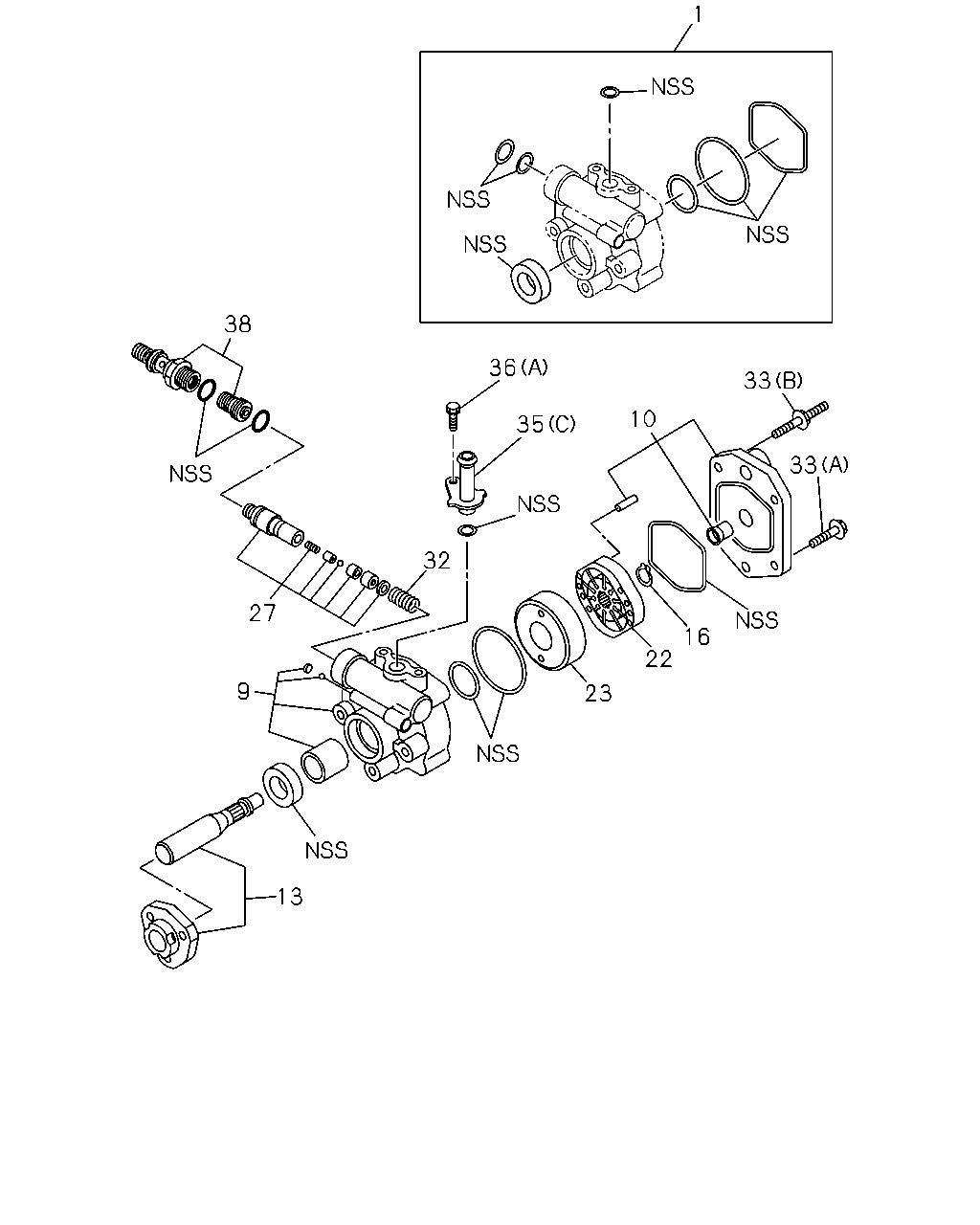

36 38 35 27 32 9 13 23 22 16 10 1 33 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 8-97946-697-0	8-97184-735-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: B = 8-97946-698-0	8-98002-698-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97946-697-0	8-97946-693-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97946-698-0	8-98002-697-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-97946-697-0, B = 8-97946-698-0	8-97946-689-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 8-97946-697-0	8-97306-614-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 8-97946-697-0	8-94411-358-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97946-697-0, B = 8-97946-698-0	8-97946-615-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 8-97946-697-0, B = 8-97946-698-0	8-97184-728-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 8-97946-697-0	8-97184-731-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: B = 8-97946-698-0	8-98034-043-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 8-97946-697-0, B = 8-97946-698-0	8-97184-766-0	01	1	-
33	BOLT; COVER (A) ASM PART: A = 8-97946-697-0, B = 8-97946-698-0	8-98028-773-0	03	1	-
33	BOLT; COVER (B) ASM PART: A = 8-97946-697-0	8-98034-093-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP (A) ASM PART: B = 8-97946-698-0	8-97946-174-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP (C) ASM PART: A = 8-97946-697-0	8-98033-923-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP (B) ASM PART: B = 8-97946-698-0	8-98033-924-0	01	1	-
36	BOLT; CONN,PIPE (A) ASM PART: A = 8-97946-697-0	8-98028-783-0	01	1	-
36	BOLT; CONN,PIPE (A) ASM PART: B = 8-97946-698-0	8-98028-783-0	02	1	-
36	BOLT; CONN,PIPE (B) ASM PART: B = 8-97946-698-0	8-98034-052-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: A = 8-97946-697-0	8-97184-732-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: B = 8-97946-698-0	8-97943-866-0	01	1	-
