◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#138069) — 38 parça

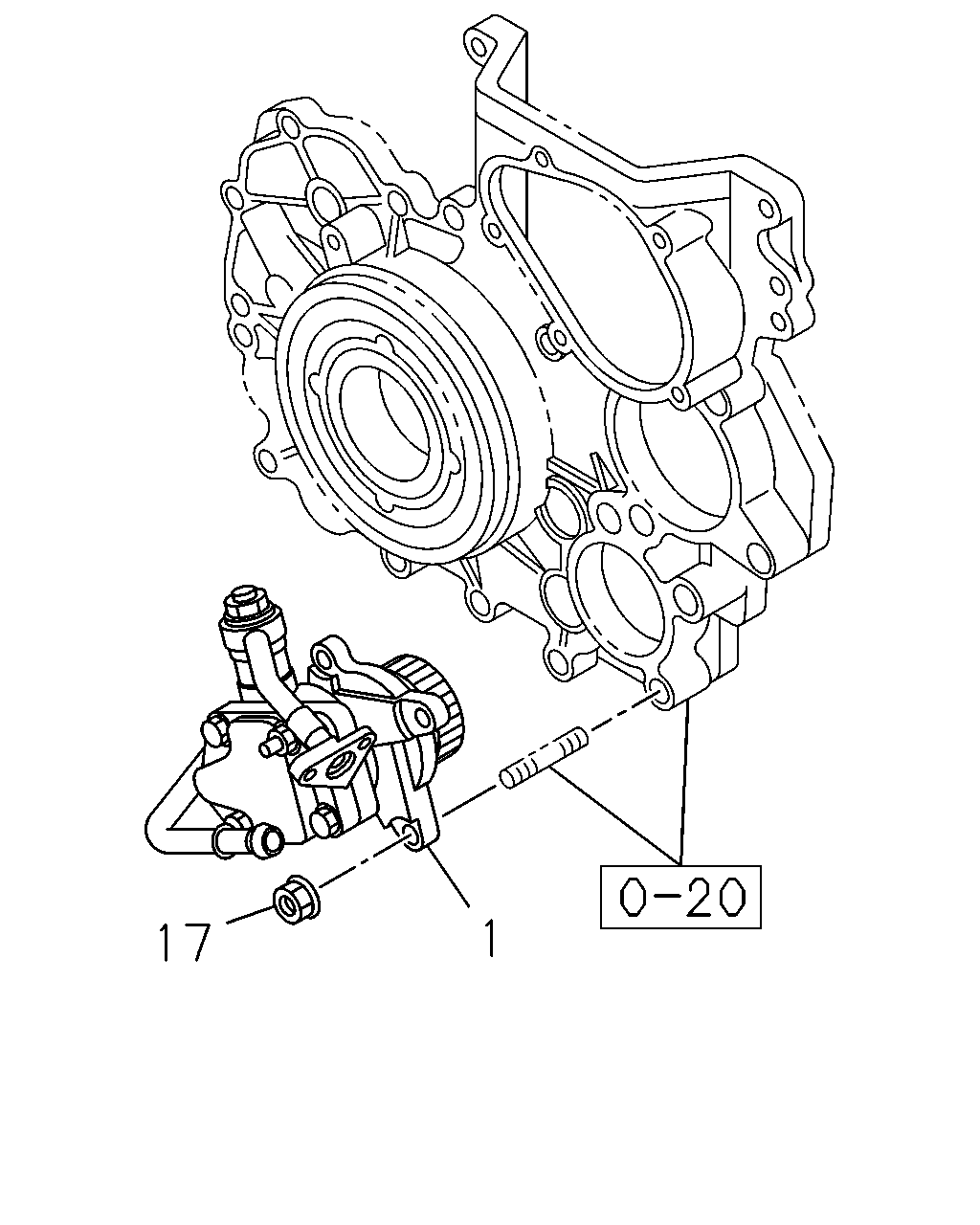

çizim 417233
1 17
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JA1-TC ENG(L4Z) 		8-97946-697-0 01 1 1510- ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-97946-698-0 01 1 1405-1509 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JK1-TCX ENG(LR0) 		8-97946-698-0 01 1 1510- ● ● ●
17 NUT; POWER STRG PUMP
4JA1-TC ENG(L4Z) M8 FLANGE IND 		8-97446-879-0 01 1 1510- ● ● ●
17 NUT; POWER STRG PUMP
M8 FLANGE IMA 		0-91180-208-0 03 1 1405-1509 ● ● ●
17 NUT; POWER STRG PUMP
4JK1-TCX ENG(LR0) M8 FLANGE IMA 		0-91180-208-0 03 1 1510- ● ● ●

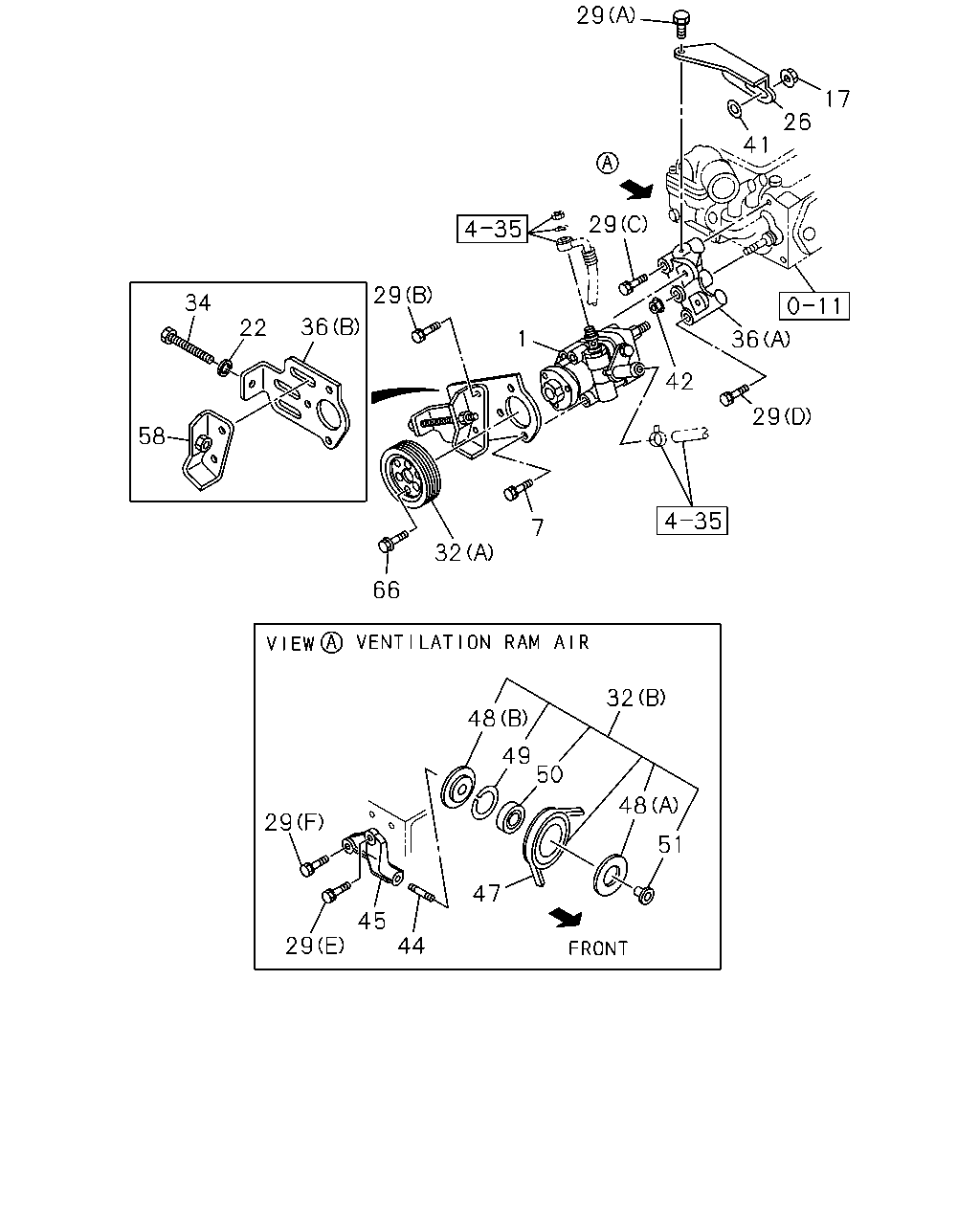

çizim 498248
29 17 41 26 36 29 42 1 7 32 66 29 36 22 34 58 29 29 44 45 47 48 49 50 48 51 32 29
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JA1-TC ENG(L4Z) 		8-97946-697-0 01 1 1510- ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-97946-698-0 01 1 1405-1509 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JK1-TCX ENG(LR0) 		8-97946-698-0 01 1 1510- ● ● ●
7 BOLT; OIL PUMP,P/S
4JA1-TC ENG(L4Z) M10X28 W/LK WASHER IMA 		8-98136-233-0 03 1 1510- ● ● ●
17 NUT; POWER STRG PUMP
4JA1-TC ENG(L4Z) M8 FLANGE IND 		8-97446-879-0 01 1 1510- ● ● ●
17 NUT; POWER STRG PUMP
M8 FLANGE IMA 		0-91180-208-0 03 1 1405-1509 ● ● ●
17 NUT; POWER STRG PUMP
4JK1-TCX ENG(LR0) M8 FLANGE IMA 		0-91180-208-0 03 1 1510- ● ● ●
22 WASHER; LK,OIL PUMP,P/S
4JA1-TC ENG(L4Z) ID=10.2 		0-91510-510-0 01 1 1510- ● ● ●
26 BRACKET; P/S PUMP,RR
4JA1-TC ENG(L4Z) IMA 		8-97941-415-0 01 1 1510- ● ● ●
29 BOLT; BRKT,POWER STRG
4JA1-TC ENG(L4Z) (B) M10X25 FLANGE IMA 		0-28051-025-0 02 1 1510- ● ● ●
29 BOLT; BRKT,POWER STRG
4JA1-TC ENG(L4Z) (D) M8X60 W/LK WASHER IMA 		0-50540-860-0 01 1 1510- ● ● ●
29 BOLT; BRKT,POWER STRG
4JA1-TC ENG(L4Z) (C) M10X60 W/LK WASHER IMA 		0-50541-060-0 01 1 1510- ● ● ●
29 BOLT; BRKT,POWER STRG
4JA1-TC ENG(L4Z) (A) M8X16 FLANGE IND 		8-97446-850-0 01 1 1510- ● ● ●
29 BOLT; BRKT,POWER STRG
4JA1-TC ENG(L4Z) VENTILATION RAM AIR(6TN) (F) M8X30 W/LK WASHER IMA 		0-50540-830-0 01 1 1510- ● ● ●
29 BOLT; BRKT,POWER STRG
4JA1-TC ENG(L4Z) VENTILATION RAM AIR(6TN) (E) M10X35 W/LK WASHER IMA 		0-50541-035-0 01 1 1510- ● ● ●
32 PULLEY; IDLER,P/S
4JA1-TC ENG(L4Z) (A) 		8-97942-187-0 01 1 1510- ● ● ●
32 PULLEY; IDLER,P/S
4JA1-TC ENG(L4Z) VENTILATION RAM AIR(6TN) (B) IMA 		8-97112-740-1 01 1 1510- ● ● ●
34 BOLT; ADJ PLATE
4JA1-TC ENG(L4Z) M10X70 		0-20801-070-0 01 1 1510- ● ● ●
36 BRACKET; PLATE,P/S PUMP
4JA1-TC ENG(L4Z) (A) IMA 		8-97941-414-0 01 1 1510- ● ● ●
36 BRACKET; PLATE,P/S PUMP
4JA1-TC ENG(L4Z) (B) 		8-97942-483-0 01 1 1510- ● ● ●
41 WASHER; PL,BRKT
4JA1-TC ENG(L4Z) ID=8.5 OD=22 T=4 IMA 		9-09851-649-0 01 1 1510- ● ● ●
42 NUT; ADJ PLATE
4JA1-TC ENG(L4Z) M8 FLANGE IND 		8-97446-879-0 01 1 1510- ● ● ●
44 STUD; IDLER PULLEY
4JA1-TC ENG(L4Z) VENTILATION RAM AIR(6TN) M10X25 L=40 IMA 		9-04411-025-0 01 1 1510- ● ● ●
45 BRACKET; IDLE PULLEY,P/S
4JA1-TC ENG(L4Z) VENTILATION RAM AIR(6TN) IMA 		8-94449-652-0 01 1 1510- ● ● ●
47 BELT; P/S PUMP
4JA1-TC ENG(L4Z) VENTILATION RAM AIR(6TN) L=1399 IMA 		5-13671-111-0 01 1 1510- ● ● ●
48 COVER; IDLER
4JA1-TC ENG(L4Z) VENTILATION RAM AIR(6TN) (B) IMA 		8-97092-819-0 01 1 1510- ● ● ●
48 COVER; IDLER
4JA1-TC ENG(L4Z) VENTILATION RAM AIR(6TN) (A) IMA 		9-13669-603-0 01 1 1510- ● ● ●
49 RING; SNAP,IDLER
4JA1-TC ENG(L4Z) VENTILATION RAM AIR(6TN) IMA 		8-94175-036-0 01 1 1510- ● ● ●
50 BEARING; IDLER
4JA1-TC ENG(L4Z) VENTILATION RAM AIR(6TN) IMA 		8-94251-052-0 01 1 1510- ● ● ●
51 NUT; IDLER
4JA1-TC ENG(L4Z) VENTILATION RAM AIR(6TN) IMA 		8-97092-813-0 01 1 1510- ● ● ●
58 SLIDER; BELT ADJ,P/S OIL PUMP
4JA1-TC ENG(L4Z) 		8-97941-329-0 01 1 1510- ● ● ●
66 BOLT; PULLEY
4JA1-TC ENG(L4Z) M8X12 FLANGE IND 		8-97446-849-0 03 1 1510- ● ● ●
