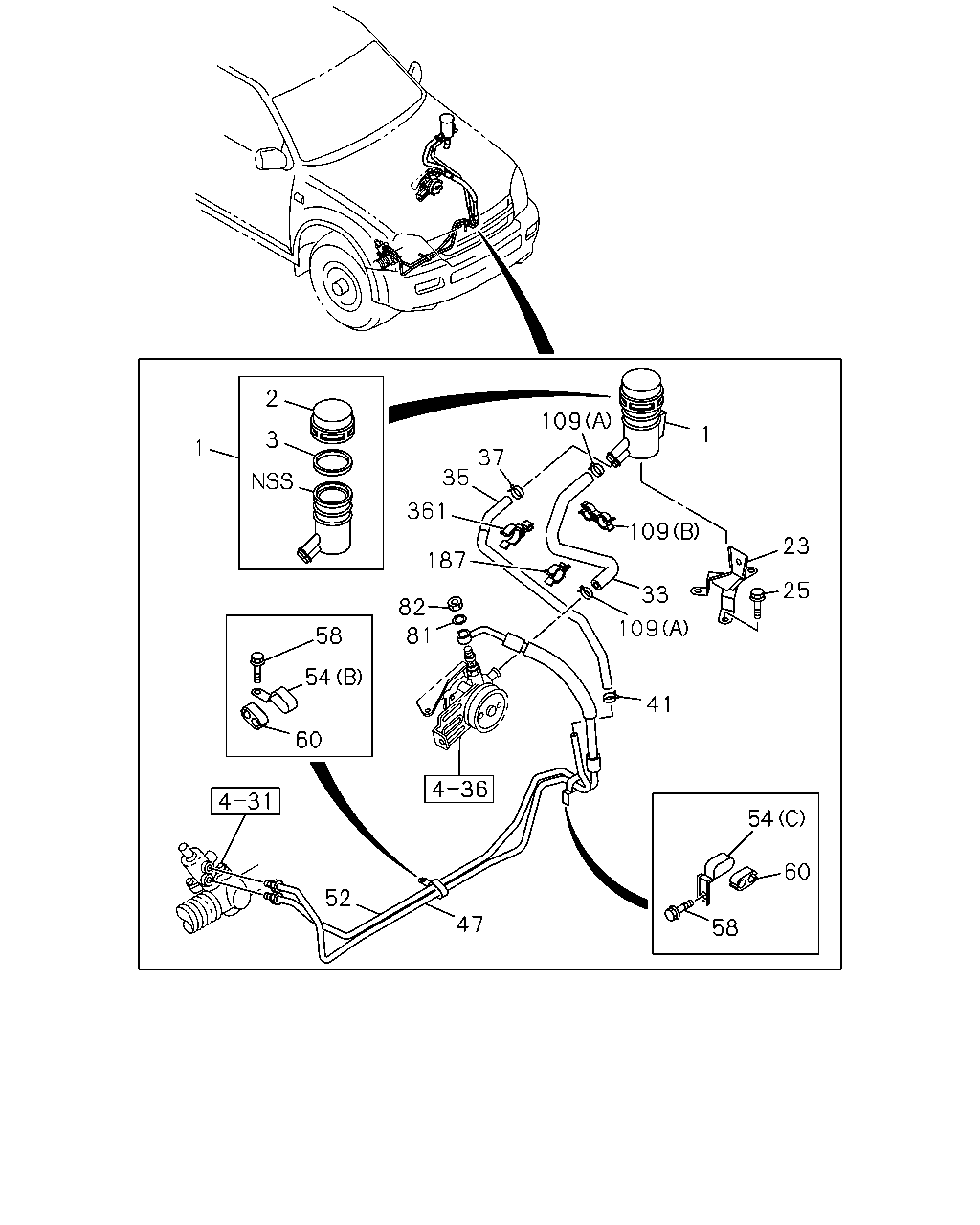

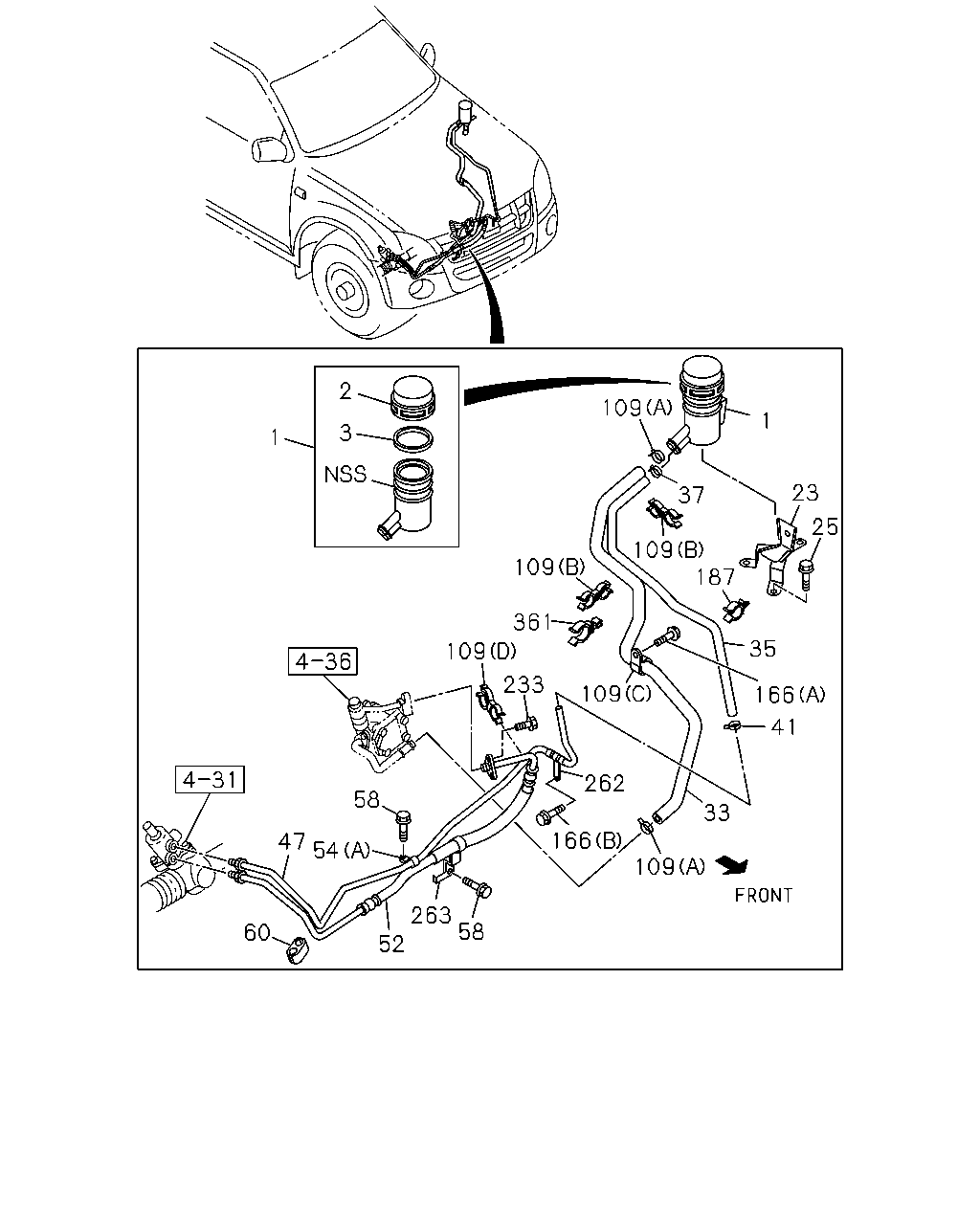

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#138068) — 69 parça

1 109 37 23 109 109 361 109 233 109 166 35 187 25 41 33 109 166 262 58 263 52 60 47 54 58 1 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; OIL,P/S IMA	8-97234-350-0	01	1	1405-	●	●	●
2	CAP; OIL TANK,P/S IMA	8-97349-476-0	01	1	1405-	●	●	●
3	GASKET; OIL TANK,P/S IMA	8-97349-477-0	01	1	1405-	●	●	●
23	BRACKET; OIL TANK,P/S	8-97234-380-1	01	1	1405-	●	●	●
25	BOLT; OIL TANK BRKT M6X16 FLANGE IMA	0-28650-616-0	03	1	1405-	●	●	●
33	HOSE; RUBBER,POWER STRG 4JA1-TC ENG(L4Z)	8-97943-682-0	01	1	1510-	●	●	●
33	HOSE; RUBBER,POWER STRG 4JK1-TCX ENG(LR0)	8-97943-485-1	01	1	1405-	●	●	●
35	HOSE; RETURN,P/S TANK 4JA1-TC ENG(L4Z) PLANT - ISUZU,THAILAND<8KX>	8-97943-971-0	01	1	1510-	●	●	●
35	HOSE; RETURN,P/S TANK 4JK1-TCX ENG(LR0)	8-97234-899-2	01	1	1405-1509	●	●	●
35	HOSE; RETURN,P/S TANK 4JK1-TCX ENG(LR0)	8-97234-899-2	01	1	1510-	●	●	●
35	HOSE; RETURN,P/S TANK 4JA1-TC ENG(L4Z) EXC. PLANT - ISUZU,THAILAND<8KX>	8-97234-899-2	01	1	1510-	●	●	●
37	CLIP; HOSE,P/S ID=16 IMA	8-98030-682-0	01	1	1405-	●	●	●
41	CLIP; HOSE,P/S ID=16 IMA	8-98030-682-0	01	1	1405-	●	●	●
47	PIPE; RETURN 4JA1-TC ENG(L4Z)	8-97944-600-0	01	1	1510-	●	●	●
47	PIPE; RETURN 4JK1-TCX ENG(LR0)	8-97944-596-0	01	1	1405-	●	●	●
52	HOSE; FLEX,P/S CONT VLV 4JA1-TC ENG(L4Z)	8-97944-580-0	01	1	1510-	●	●	●
52	HOSE; FLEX,P/S CONT VLV 4JK1-TCX ENG(LR0)	8-97944-576-0	01	1	1405-	●	●	●
54	CLIP; OIL PIPE 4JA1-TC ENG(L4Z) (B)	8-97164-013-2	01	1	1510-	●	●	●
54	CLIP; OIL PIPE 4JA1-TC ENG(L4Z) (C)	8-98177-574-0	01	1	1510-	●	●	●
54	CLIP; OIL PIPE 4JK1-TCX ENG(LR0) (A) ID=11 L=16	0-95235-022-0	01	1	1405-	●	●	●
58	BOLT; CLIP M6X16 FLANGE IMA	0-28650-616-0	02	1	1405-	●	●	●
60	CLAMP; PIPE,RETURN ID=10X2 H=22 IMA	8-94252-455-2	01	1	1405-1509	●	●	●
60	CLAMP; PIPE,RETURN ID=10X2 H=22 IMA	8-94252-455-2	01	1	1510-	●	●	●
60	CLAMP; PIPE,RETURN 4JA1-TC ENG(L4Z) ID=10X2 H=22 IMA	8-94252-455-2	01	1	1510-	●	●	●
109	CLIP; RUBBER HOSE 4JA1-TC ENG(L4Z) (B) ID=17.5 & 21 IMA	8-97177-580-0	01	1	1510-	●	●	●
109	CLIP; RUBBER HOSE 4JK1-TCX ENG(LR0) (B) ID=17.5 & 21 IMA	8-97177-580-0	02	1	1405-	●	●	●
109	CLIP; RUBBER HOSE 4JK1-TCX ENG(LR0) (D) ID=21 & 9.8 IMA	8-97309-945-0	01	1	1405-	●	●	●
109	CLIP; RUBBER HOSE (A) ID=20.8 IMA	8-97944-127-0	02	1	1405-	●	●	●
109	CLIP; RUBBER HOSE 4JK1-TCX ENG(LR0) (C) ID=24 L=32	8-98006-816-0	01	1	1405-	●	●	●
166	BOLT; CLIP 4JK1-TCX ENG(LR0) (A) M8X16 FLANGE IMA	0-28050-816-0	01	1	1405-	●	●	●
166	BOLT; CLIP 4JK1-TCX ENG(LR0) (B) M6X16 FLANGE IMA	0-28650-616-0	01	1	1405-	●	●	●
187	CLIP; P/S OIL PIPE ID=17 IMA	8-94382-792-1	01	1	1405-	●	●	●
233	BOLT; PIPE CLIP,P/S 4JK1-TCX ENG(LR0) M6X16 FLANGE IMA	0-28650-616-0	02	1	1405-	●	●	●
262	CLIP; P/S PIPE 4JK1-TCX ENG(LR0) ID=11 L=50	0-95235-082-0	01	1	1405-	●	●	●
263	BRACKET; P/S PIPE 4JK1-TCX ENG(LR0)	8-97944-610-0	01	1	1405-	●	●	●
361	RETAINER; P/S	8-97943-488-0	01	1	1405-	●	●	●

1 2 3 109 1 109 33 109 41 25 23 37 35 361 187 82 81 58 54 60 54 60 58 47 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; OIL,P/S IMA	8-97234-350-0	01	1	1405-	●	●	●
2	CAP; OIL TANK,P/S IMA	8-97349-476-0	01	1	1405-	●	●	●
3	GASKET; OIL TANK,P/S IMA	8-97349-477-0	01	1	1405-	●	●	●
23	BRACKET; OIL TANK,P/S	8-97234-380-1	01	1	1405-	●	●	●
25	BOLT; OIL TANK BRKT M6X16 FLANGE IMA	0-28650-616-0	03	1	1405-	●	●	●
33	HOSE; RUBBER,POWER STRG 4JA1-TC ENG(L4Z)	8-97943-682-0	01	1	1510-	●	●	●
33	HOSE; RUBBER,POWER STRG 4JK1-TCX ENG(LR0)	8-97943-485-1	01	1	1405-	●	●	●
35	HOSE; RETURN,P/S TANK 4JA1-TC ENG(L4Z) PLANT - ISUZU,THAILAND<8KX>	8-97943-971-0	01	1	1510-	●	●	●
35	HOSE; RETURN,P/S TANK 4JK1-TCX ENG(LR0)	8-97234-899-2	01	1	1405-1509	●	●	●
35	HOSE; RETURN,P/S TANK 4JK1-TCX ENG(LR0)	8-97234-899-2	01	1	1510-	●	●	●
35	HOSE; RETURN,P/S TANK 4JA1-TC ENG(L4Z) EXC. PLANT - ISUZU,THAILAND<8KX>	8-97234-899-2	01	1	1510-	●	●	●
37	CLIP; HOSE,P/S ID=16 IMA	8-98030-682-0	01	1	1405-	●	●	●
41	CLIP; HOSE,P/S ID=16 IMA	8-98030-682-0	01	1	1405-	●	●	●
47	PIPE; RETURN 4JA1-TC ENG(L4Z)	8-97944-600-0	01	1	1510-	●	●	●
47	PIPE; RETURN 4JK1-TCX ENG(LR0)	8-97944-596-0	01	1	1405-	●	●	●
52	HOSE; FLEX,P/S CONT VLV 4JA1-TC ENG(L4Z)	8-97944-580-0	01	1	1510-	●	●	●
52	HOSE; FLEX,P/S CONT VLV 4JK1-TCX ENG(LR0)	8-97944-576-0	01	1	1405-	●	●	●
54	CLIP; OIL PIPE 4JA1-TC ENG(L4Z) (B)	8-97164-013-2	01	1	1510-	●	●	●
54	CLIP; OIL PIPE 4JA1-TC ENG(L4Z) (C)	8-98177-574-0	01	1	1510-	●	●	●
54	CLIP; OIL PIPE 4JK1-TCX ENG(LR0) (A) ID=11 L=16	0-95235-022-0	01	1	1405-	●	●	●
58	BOLT; CLIP M6X16 FLANGE IMA	0-28650-616-0	02	1	1405-	●	●	●
60	CLAMP; PIPE,RETURN ID=10X2 H=22 IMA	8-94252-455-2	01	1	1405-1509	●	●	●
60	CLAMP; PIPE,RETURN ID=10X2 H=22 IMA	8-94252-455-2	01	1	1510-	●	●	●
60	CLAMP; PIPE,RETURN 4JA1-TC ENG(L4Z) ID=10X2 H=22 IMA	8-94252-455-2	01	1	1510-	●	●	●
81	WASHER; LK,FLEX HOSE 4JA1-TC ENG(L4Z) ID=12.2 IMA	0-91510-812-0	01	1	1510-	●	●	●
82	NUT; FLEX HOSE,P/S 4JA1-TC ENG(L4Z) M12 IMA	0-91111-512-0	01	1	1510-	●	●	●
109	CLIP; RUBBER HOSE 4JA1-TC ENG(L4Z) (B) ID=17.5 & 21 IMA	8-97177-580-0	01	1	1510-	●	●	●
109	CLIP; RUBBER HOSE 4JK1-TCX ENG(LR0) (B) ID=17.5 & 21 IMA	8-97177-580-0	02	1	1405-	●	●	●
109	CLIP; RUBBER HOSE 4JK1-TCX ENG(LR0) (D) ID=21 & 9.8 IMA	8-97309-945-0	01	1	1405-	●	●	●
109	CLIP; RUBBER HOSE (A) ID=20.8 IMA	8-97944-127-0	02	1	1405-	●	●	●
109	CLIP; RUBBER HOSE 4JK1-TCX ENG(LR0) (C) ID=24 L=32	8-98006-816-0	01	1	1405-	●	●	●
187	CLIP; P/S OIL PIPE ID=17 IMA	8-94382-792-1	01	1	1405-	●	●	●
361	RETAINER; P/S	8-97943-488-0	01	1	1405-	●	●	●
