4-31 — STEERING COLUMN AND SHAFT (#138066) — 22 parça

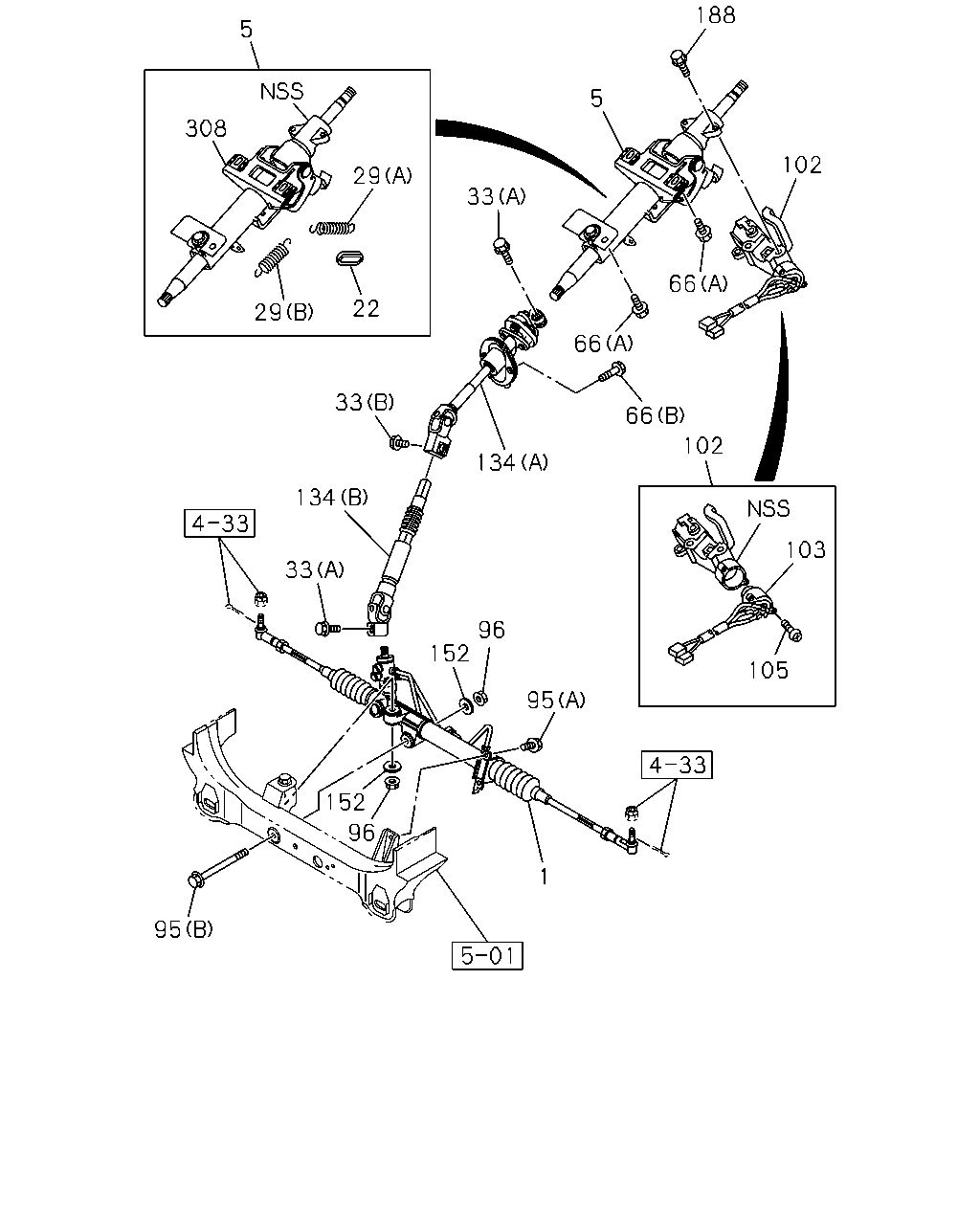

çizim 417092
105 103 66 102 102 188 5 66 66 33 29 5 308 29 22 33 134 134 33 96 95 152 96 95 152 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-97944-516-0 01 1 1405- ● ● ●
5 COLUMN; STRG
TILT STEERING<N33> 		8-97945-772-0 01 1 1405- ● ● ●
5 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97945-770-0 01 1 1405- ● ● ●
22 BUSHING; STRG COLUMN
TILT STEERING<N33> 		8-97349-938-0 01 1 1405- ● ● ●
29 SPRING; COLUMN
TILT STEERING<N33> (A) 		8-97349-937-0 01 1 1405- ● ● ●
29 SPRING; COLUMN
TILT STEERING<N33> (B) 		8-97349-939-0 01 1 1405- ● ● ●
33 BOLT; STRG SHAFT TO UNIT
(A) M8X35 FLANGE IMA 		8-97249-320-0 02 1 1405- ● ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) 		8-98140-802-0 01 1 1405- ● ● ●
66 BOLT; STRG COLUMN
(A) M8X30 FLANGE IMA 		0-28650-830-0 04 1 1405- ● ● ●
66 BOLT; STRG COLUMN
(B) 		8-97249-319-1 02 1 1405- ● ● ●
95 BOLT; STRG UNIT
(A) M12X30 FLANGE IMA 		0-28661-230-0 02 1 1405- ● ● ●
95 BOLT; STRG UNIT
(B) M16X195 W/PL WASHER 		8-97245-661-0 01 1 1405- ● ● ●
96 NUT; STRG UNIT
M16 IMA 		0-91110-516-0 02 1 1405- ● ● ●
102 LOCK ASM; STRG 8-97349-940-0 01 1 1405- ● ● ●
103 SWITCH; IGNITION 8-97350-071-0 01 1 1405- ● ● ●
105 SCREW; IGN SW 8-97349-945-0 02 1 1405- ● ● ●
134 SHAFT; STRG,2ND
(B) 		8-97256-547-0 01 1 1405- ● ● ●
134 SHAFT; STRG,2ND
(A) 		8-98108-807-0 01 1 1405- ● ● ●
152 WASHER; LK,STRG UNIT
ID=16.5 OD=45 		8-97944-809-0 02 1 1405- ● ● ●
188 BOLT; TORQUE,STEERING
TILT STEERING<N33> 		8-98133-262-0 02 1 1405- ● ● ●
188 BOLT; TORQUE,STEERING
EXC. TILT STEERING<N33> M8X18.5 TWISTED OFF IMA 		8-97945-749-0 02 1 1405- ● ● ●
308 BRACKET; HOLDER,IGN SW,STRG COLUMN
EXC. TILT STEERING<N33> 		8-98047-095-0 01 1 1405- ● ● ●
