◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#138065) — 24 parça

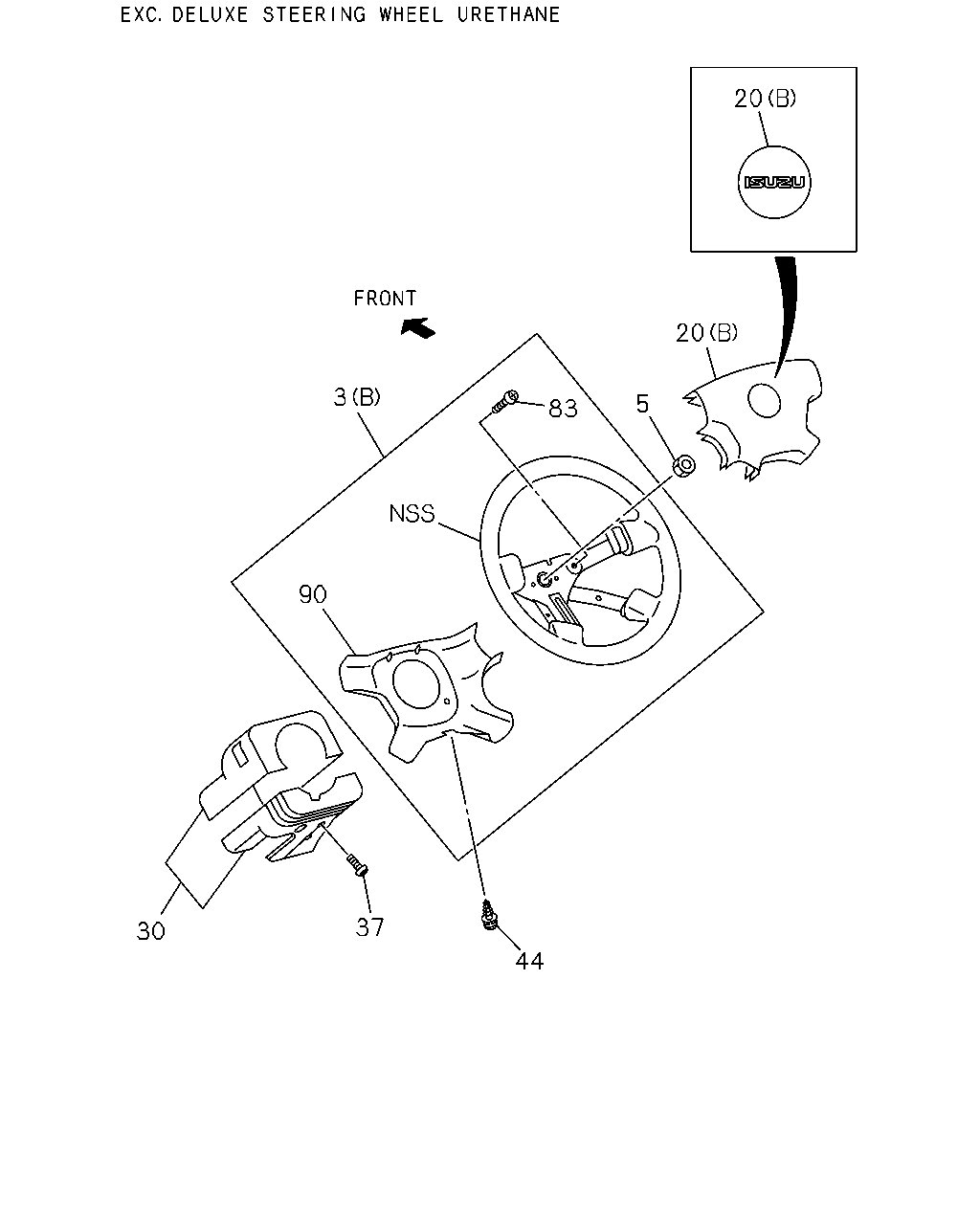

çizim 417201
20 20 83 5 3 90 37 44 30
BalonParca AdiParca NoAdetTipApplied Date A B C
3 WHEEL; STRG
DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY 		8-97403-871-1 01 1 1405- ● ● ●
3 WHEEL; STRG
EXC. DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY 		8-97403-689-0 01 1 1405- ● ● ●
5 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER IMA 		8-94455-487-1 01 1 1405- ● ● ●
20 SHROUD; PAD,STRG WHEEL
DELUXE STEERING WHEEL URETHANE<N30> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97408-845-0 01 1 1405- ● ● ●
20 SHROUD; PAD,STRG WHEEL
DELUXE STEERING WHEEL URETHANE<N30> EXC. INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97408-848-0 01 1 1405- ● ● ●
20 SHROUD; PAD,STRG WHEEL
EXC. DELUXE STEERING WHEEL URETHANE<N30>, INTERIORSTEERING CENTER PAD BADGE<8MB> (B) DARK GRAY 		8-97403-875-0 01 1 1405- ● ● ●
30 COWL; STEERING
DARK GRAY 		8-97422-707-0 01 1 1405- ● ● ●
37 SCREW; STRG COWL UPR
M4X12 W/PL WASHER IMA 		0-36210-412-0 03 1 1405- ● ● ●
44 SCREW; STRG COWL
M5X19 W/LK&PL WASHER 		8-98023-674-0 01 1 1405- ● ● ●
83 SCREW; LWR COVER TO WHEEL 8-97350-037-0 04 1 1405- ● ● ●
90 COVER ASM; STRG WHEEL,LWR
DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY 		8-97403-939-1 01 1 1405- ● ● ●
90 COVER ASM; STRG WHEEL,LWR
EXC. DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY 		8-97403-938-0 01 1 1405- ● ● ●

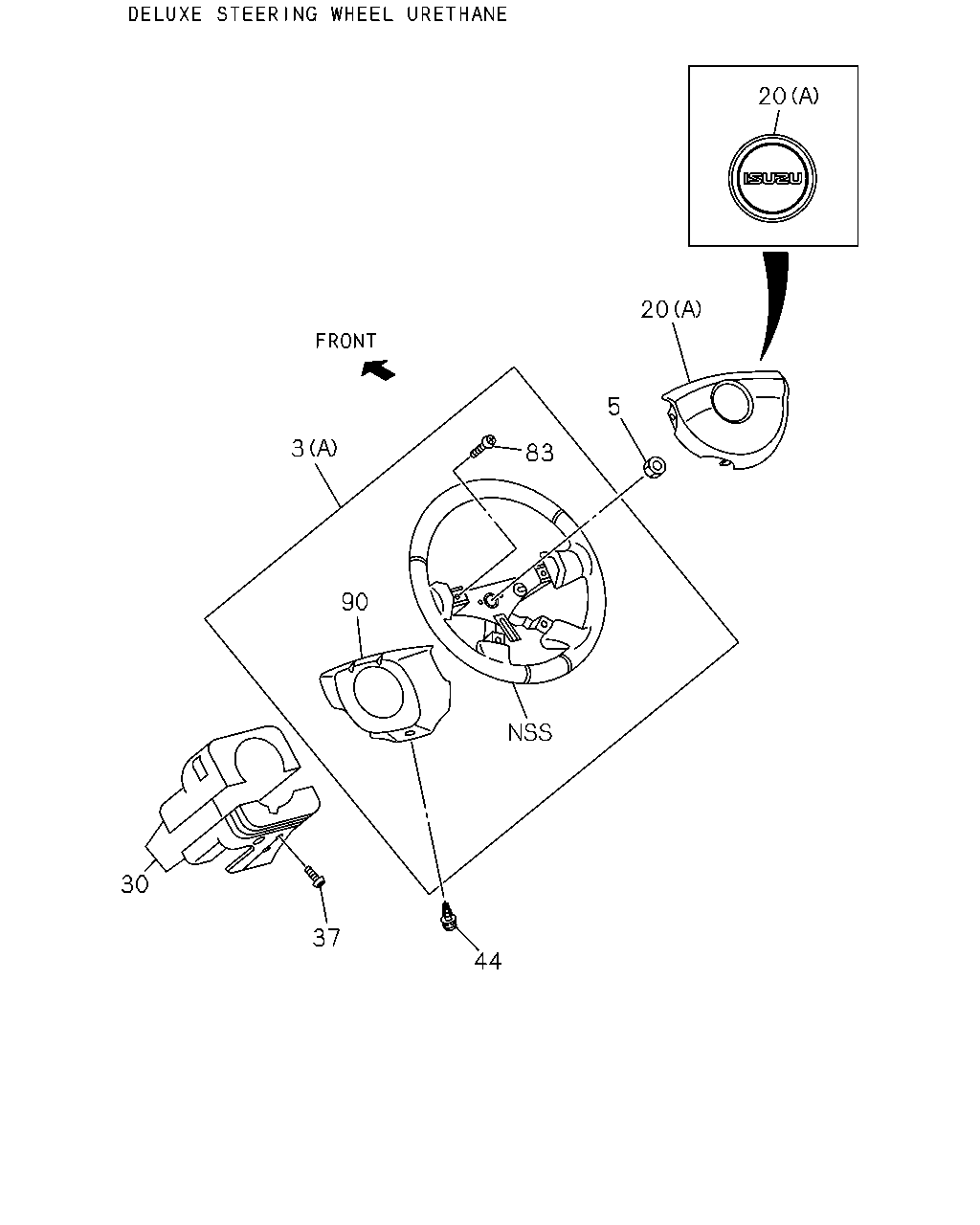

çizim 417203
20 20 5 83 90 3 44 37 30
BalonParca AdiParca NoAdetTipApplied Date A B C
3 WHEEL; STRG
DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY 		8-97403-871-1 01 1 1405- ● ● ●
3 WHEEL; STRG
EXC. DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY 		8-97403-689-0 01 1 1405- ● ● ●
5 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER IMA 		8-94455-487-1 01 1 1405- ● ● ●
20 SHROUD; PAD,STRG WHEEL
DELUXE STEERING WHEEL URETHANE<N30> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97408-845-0 01 1 1405- ● ● ●
20 SHROUD; PAD,STRG WHEEL
DELUXE STEERING WHEEL URETHANE<N30> EXC. INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97408-848-0 01 1 1405- ● ● ●
20 SHROUD; PAD,STRG WHEEL
EXC. DELUXE STEERING WHEEL URETHANE<N30>, INTERIORSTEERING CENTER PAD BADGE<8MB> (B) DARK GRAY 		8-97403-875-0 01 1 1405- ● ● ●
30 COWL; STEERING
DARK GRAY 		8-97422-707-0 01 1 1405- ● ● ●
37 SCREW; STRG COWL UPR
M4X12 W/PL WASHER IMA 		0-36210-412-0 03 1 1405- ● ● ●
44 SCREW; STRG COWL
M5X19 W/LK&PL WASHER 		8-98023-674-0 01 1 1405- ● ● ●
83 SCREW; LWR COVER TO WHEEL 8-97350-037-0 04 1 1405- ● ● ●
90 COVER ASM; STRG WHEEL,LWR
DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY 		8-97403-939-1 01 1 1405- ● ● ●
90 COVER ASM; STRG WHEEL,LWR
EXC. DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY 		8-97403-938-0 01 1 1405- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
