4-25 — REAR FINAL DRIVE (#138064) — 150 parça

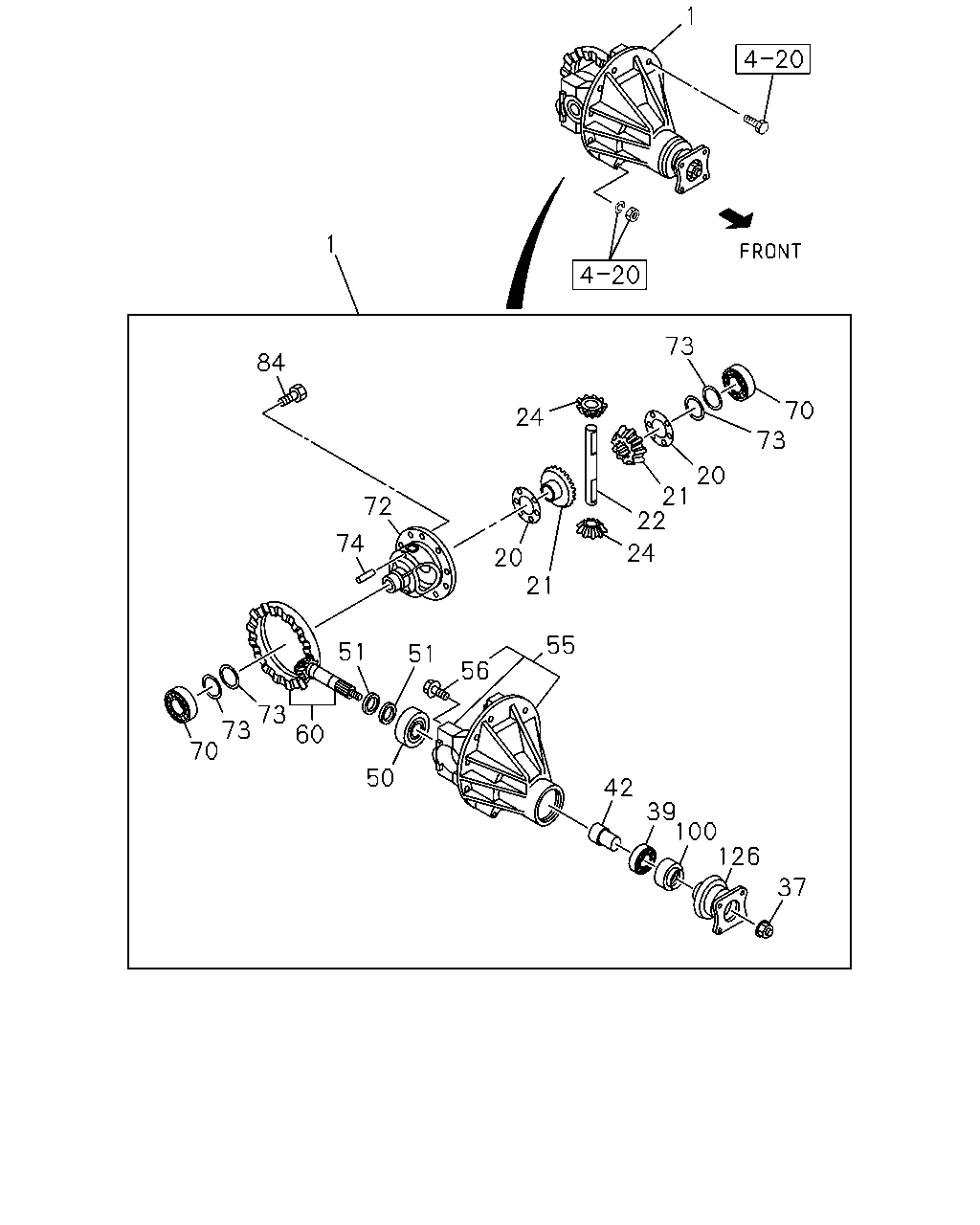

çizim 417098
37 126 100 39 42 70 73 20 21 22 24 21 55 24 20 73 1 1 84 72 74 56 51 51 50 60 73 73 70
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRIVE ASM; FINAL,RR
4JA1-TC ENG(L4Z) 43/10 		8-98283-879-0 01 1 1510- ● ● ●
1 DRIVE ASM; FINAL,RR
41/11 IMA 		8-98190-115-0 01 1 1405-1509 ● ● ●
1 DRIVE ASM; FINAL,RR
4JK1-TCX ENG(LR0) 41/11 IMA 		8-98190-115-0 01 1 1510- ● ● ●
20 WASHER; THRUST,SIDE GEAR
4JA1-TC ENG(L4Z) T=1.00 IMA 		5-41562-005-1 02 1 1510- ● ● ●
20 WASHER; THRUST,SIDE GEAR
4JA1-TC ENG(L4Z) T=1.05 IMA 		5-41562-006-1 02 1 1510- ● ● ●
20 WASHER; THRUST,SIDE GEAR
4JA1-TC ENG(L4Z) T=1.10 IMA 		5-41562-007-1 02 1 1510- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=0.80 IMA 		8-94435-343-0 02 1 1405-1509 ● ● ●
20 WASHER; THRUST,SIDE GEAR
4JK1-TCX ENG(LR0) T=0.80 IMA 		8-94435-343-0 02 1 1510- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=0.90 IMA 		8-94435-344-0 02 1 1405-1509 ● ● ●
20 WASHER; THRUST,SIDE GEAR
4JK1-TCX ENG(LR0) T=0.90 IMA 		8-94435-344-0 02 1 1510- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=1.10 IMA 		8-94435-345-0 02 1 1405-1509 ● ● ●
20 WASHER; THRUST,SIDE GEAR
4JK1-TCX ENG(LR0) T=1.10 IMA 		8-94435-345-0 02 1 1510- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=1.20 IMA 		8-94435-346-0 02 1 1405-1509 ● ● ●
20 WASHER; THRUST,SIDE GEAR
4JK1-TCX ENG(LR0) T=1.20 IMA 		8-94435-346-0 02 1 1510- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=1.30 IMA 		8-94435-347-0 02 1 1405-1509 ● ● ●
20 WASHER; THRUST,SIDE GEAR
4JK1-TCX ENG(LR0) T=1.30 IMA 		8-94435-347-0 02 1 1510- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=1.00 IMA 		9-41562-602-0 02 1 1405-1509 ● ● ●
20 WASHER; THRUST,SIDE GEAR
4JK1-TCX ENG(LR0) T=1.00 IMA 		9-41562-602-0 02 1 1510- ● ● ●
21 GEAR; SIDE,DIFF
4JA1-TC ENG(L4Z) Z=17 IMA 		8-97079-519-2 02 1 1510- ● ● ●
21 GEAR; SIDE,DIFF
Z=18 IMA 		8-98186-828-1 02 1 1405-1509 ● ● ●
21 GEAR; SIDE,DIFF
4JK1-TCX ENG(LR0) Z=18 IMA 		8-98186-828-1 02 1 1510- ● ● ●
22 SPIDER; DIFF PINION
4JA1-TC ENG(L4Z) IMA 		9-41521-044-1 01 1 1510- ● ● ●
22 SPIDER; DIFF PINION
IMA 		8-94435-308-1 01 1 1405-1509 ● ● ●
22 SPIDER; DIFF PINION
4JK1-TCX ENG(LR0) IMA 		8-94435-308-1 01 1 1510- ● ● ●
24 GEAR; PINION,DIFF
4JA1-TC ENG(L4Z) Z=10 IMA 		8-97079-518-0 02 1 1510- ● ● ●
24 GEAR; PINION,DIFF
Z=10 IMA 		8-98186-829-0 02 1 1405-1509 ● ● ●
24 GEAR; PINION,DIFF
4JK1-TCX ENG(LR0) Z=10 IMA 		8-98186-829-0 02 1 1510- ● ● ●
37 NUT; DRIVING PINION
4JA1-TC ENG(L4Z) M18 LOCK NUT IMA 		8-94376-262-0 01 1 1510- ● ● ●
37 NUT; DRIVING PINION
M24 FLANGE IMA 		8-94376-261-1 01 1 1405-1509 ● ● ●
37 NUT; DRIVING PINION
4JK1-TCX ENG(LR0) M24 FLANGE IMA 		8-94376-261-1 01 1 1510- ● ● ●
39 BEARING; FINAL PINION
4JA1-TC ENG(L4Z) NSK IMA 		8-94472-099-0 01 1 1510- ● ● ●
39 BEARING; FINAL PINION
4JA1-TC ENG(L4Z) JTEKT IMA 		8-94472-100-1 01 1 1510- ● ● ●
39 BEARING; FINAL PINION
NSK IMA 		9-00093-078-0 01 1 1405-1509 ● ● ●
39 BEARING; FINAL PINION
4JK1-TCX ENG(LR0) NSK IMA 		9-00093-078-0 01 1 1510- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
4JA1-TC ENG(L4Z) IMA 		8-94472-118-0 01 1 1510- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
IMA 		8-97035-399-0 01 1 1405-1509 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
4JK1-TCX ENG(LR0) IMA 		8-97035-399-0 01 1 1510- ● ● ●
50 BEARING; FINAL PINION
4JA1-TC ENG(L4Z) NSK IMA 		9-00093-621-1 01 1 1510- ● ● ●
50 BEARING; FINAL PINION
NSK IMA 		8-94435-342-0 01 1 1405-1509 ● ● ●
50 BEARING; FINAL PINION
4JK1-TCX ENG(LR0) NSK IMA 		8-94435-342-0 01 1 1510- ● ● ●
50 BEARING; FINAL PINION
JTEKT IMA 		8-94452-448-0 01 1 1405-1509 ● ● ●
50 BEARING; FINAL PINION
4JK1-TCX ENG(LR0) JTEKT IMA 		8-94452-448-0 01 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JA1-TC ENG(L4Z) T=2.18 IMA 		9-41519-153-1 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JA1-TC ENG(L4Z) T=2.20 IMA 		9-41519-154-1 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JA1-TC ENG(L4Z) T=2.22 IMA 		9-41519-155-1 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JA1-TC ENG(L4Z) T=2.24 IMA 		9-41519-156-1 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JA1-TC ENG(L4Z) T=2.26 IMA 		9-41519-157-1 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JA1-TC ENG(L4Z) T=2.28 IMA 		9-41519-158-1 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JA1-TC ENG(L4Z) T=2.30 IMA 		9-41519-159-1 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JA1-TC ENG(L4Z) T=2.32 IMA 		9-41519-160-1 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JA1-TC ENG(L4Z) T=2.34 IMA 		9-41519-161-1 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JA1-TC ENG(L4Z) T=2.36 IMA 		9-41519-162-1 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JA1-TC ENG(L4Z) T=2.38 IMA 		9-41519-163-1 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JA1-TC ENG(L4Z) T=2.40 IMA 		9-41519-164-1 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JA1-TC ENG(L4Z) T=2.42 IMA 		9-41519-165-1 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JA1-TC ENG(L4Z) T=2.44 IMA 		9-41519-166-1 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JA1-TC ENG(L4Z) T=2.46 IMA 		9-41519-167-1 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JA1-TC ENG(L4Z) T=2.48 IMA 		9-41519-168-1 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JA1-TC ENG(L4Z) T=2.50 IMA 		9-41519-169-1 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JA1-TC ENG(L4Z) T=2.52 IMA 		9-41519-170-1 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JA1-TC ENG(L4Z) T=2.54 IMA 		9-41519-171-1 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JA1-TC ENG(L4Z) T=2.56 IMA 		9-41519-172-1 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=1.94 IMA 		8-94435-356-0 AR 1 1405-1509 ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JK1-TCX ENG(LR0) T=1.94 IMA 		8-94435-356-0 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=1.96 IMA 		8-94435-357-0 AR 1 1405-1509 ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JK1-TCX ENG(LR0) T=1.96 IMA 		8-94435-357-0 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=1.98 IMA 		8-94435-358-0 AR 1 1405-1509 ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JK1-TCX ENG(LR0) T=1.98 IMA 		8-94435-358-0 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.00 IMA 		8-94435-359-0 AR 1 1405-1509 ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JK1-TCX ENG(LR0) T=2.00 IMA 		8-94435-359-0 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.02 IMA 		8-94435-360-0 AR 1 1405-1509 ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JK1-TCX ENG(LR0) T=2.02 IMA 		8-94435-360-0 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.04 IMA 		8-94435-361-0 AR 1 1405-1509 ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JK1-TCX ENG(LR0) T=2.04 IMA 		8-94435-361-0 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.06 IMA 		8-94435-362-0 AR 1 1405-1509 ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JK1-TCX ENG(LR0) T=2.06 IMA 		8-94435-362-0 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.08 IMA 		8-94435-363-0 AR 1 1405-1509 ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JK1-TCX ENG(LR0) T=2.08 IMA 		8-94435-363-0 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.10 IMA 		8-94435-364-0 AR 1 1405-1509 ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JK1-TCX ENG(LR0) T=2.10 IMA 		8-94435-364-0 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.12 IMA 		8-94435-365-0 AR 1 1405-1509 ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JK1-TCX ENG(LR0) T=2.12 IMA 		8-94435-365-0 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.14 IMA 		8-94435-366-0 AR 1 1405-1509 ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JK1-TCX ENG(LR0) T=2.14 IMA 		8-94435-366-0 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.16 IMA 		8-94435-367-0 AR 1 1405-1509 ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JK1-TCX ENG(LR0) T=2.16 IMA 		8-94435-367-0 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.18 IMA 		8-94435-368-0 AR 1 1405-1509 ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JK1-TCX ENG(LR0) T=2.18 IMA 		8-94435-368-0 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.20 IMA 		8-94435-369-0 AR 1 1405-1509 ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JK1-TCX ENG(LR0) T=2.20 IMA 		8-94435-369-0 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.22 IMA 		8-94435-370-0 AR 1 1405-1509 ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JK1-TCX ENG(LR0) T=2.22 IMA 		8-94435-370-0 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.24 IMA 		8-94435-371-0 AR 1 1405-1509 ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JK1-TCX ENG(LR0) T=2.24 IMA 		8-94435-371-0 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.26 IMA 		8-94435-372-0 AR 1 1405-1509 ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JK1-TCX ENG(LR0) T=2.26 IMA 		8-94435-372-0 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.28 IMA 		8-94435-373-0 AR 1 1405-1509 ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JK1-TCX ENG(LR0) T=2.28 IMA 		8-94435-373-0 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.30 IMA 		8-94435-374-0 AR 1 1405-1509 ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JK1-TCX ENG(LR0) T=2.30 IMA 		8-94435-374-0 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.32 IMA 		8-94435-375-0 AR 1 1405-1509 ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JK1-TCX ENG(LR0) T=2.32 IMA 		8-94435-375-0 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.34 IMA 		8-94435-376-0 AR 1 1405-1509 ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JK1-TCX ENG(LR0) T=2.34 IMA 		8-94435-376-0 AR 1 1510- ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.36 IMA 		8-94435-377-0 AR 1 1405-1509 ● ● ●
51 SHIM; PINION,FINAL DRIVE
4JK1-TCX ENG(LR0) T=2.36 IMA 		8-94435-377-0 AR 1 1510- ● ● ●
55 CARRIER; DIFF
4JA1-TC ENG(L4Z) 		5-41110-014-3 01 1 1510- ● ● ●
55 CARRIER; DIFF
IMA 		8-97240-889-2 01 1 1405-1509 ● ● ●
55 CARRIER; DIFF
4JK1-TCX ENG(LR0) IMA 		8-97240-889-2 01 1 1510- ● ● ●
56 BOLT; BRG CAP
4JA1-TC ENG(L4Z) M12X62 IMA 		8-94376-322-0 04 1 1510- ● ● ●
56 BOLT; BRG CAP
M12X75 FLANGE IMA 		8-98176-233-0 04 1 1405-1509 ● ● ●
56 BOLT; BRG CAP
4JK1-TCX ENG(LR0) M12X75 FLANGE IMA 		8-98176-233-0 04 1 1510- ● ● ●
60 GEAR SET; FINAL DRIVE,RR
4JA1-TC ENG(L4Z) 43/10 		8-97218-303-1 01 1 1510- ● ● ●
60 GEAR SET; FINAL DRIVE,RR
41/11 IMA 		8-98030-515-1 01 1 1405-1509 ● ● ●
60 GEAR SET; FINAL DRIVE,RR
4JK1-TCX ENG(LR0) 41/11 IMA 		8-98030-515-1 01 1 1510- ● ● ●
70 BEARING; DIFF CAGE
4JA1-TC ENG(L4Z) NSK IMA 		9-00093-074-1 02 1 1510- ● ● ●
70 BEARING; DIFF CAGE
NSK IMA 		8-94435-355-0 02 1 1405-1509 ● ● ●
70 BEARING; DIFF CAGE
4JK1-TCX ENG(LR0) NSK IMA 		8-94435-355-0 02 1 1510- ● ● ●
70 BEARING; DIFF CAGE
JTEKT IMA 		8-94452-449-1 02 1 1405-1509 ● ● ●
70 BEARING; DIFF CAGE
4JK1-TCX ENG(LR0) JTEKT IMA 		8-94452-449-1 02 1 1510- ● ● ●
72 CAGE; DIFF
4JA1-TC ENG(L4Z) IMA 		8-97038-515-1 01 1 1510- ● ● ●
72 CAGE; DIFF
IMA 		8-94325-448-0 01 1 1405-1509 ● ● ●
72 CAGE; DIFF
4JK1-TCX ENG(LR0) IMA 		8-94325-448-0 01 1 1510- ● ● ●
73 SHIM; DIFF SIDE BRG
4JA1-TC ENG(L4Z) T=0.10 IMA 		8-97130-386-0 AR 1 1510- ● ● ●
73 SHIM; DIFF SIDE BRG
4JA1-TC ENG(L4Z) T=0.50 IMA 		8-97130-387-0 AR 1 1510- ● ● ●
73 SHIM; DIFF SIDE BRG
4JA1-TC ENG(L4Z) T=0.24 IMA 		9-41519-109-0 AR 1 1510- ● ● ●
73 SHIM; DIFF SIDE BRG
4JA1-TC ENG(L4Z) T=0.15 IMA 		9-41519-111-0 AR 1 1510- ● ● ●
73 SHIM; DIFF SIDE BRG
T=0.12 IMA 		8-94435-348-0 AR 1 1405-1509 ● ● ●
73 SHIM; DIFF SIDE BRG
4JK1-TCX ENG(LR0) T=0.12 IMA 		8-94435-348-0 AR 1 1510- ● ● ●
73 SHIM; DIFF SIDE BRG
T=0.15 IMA 		8-94435-349-0 AR 1 1405-1509 ● ● ●
73 SHIM; DIFF SIDE BRG
4JK1-TCX ENG(LR0) T=0.15 IMA 		8-94435-349-0 AR 1 1510- ● ● ●
73 SHIM; DIFF SIDE BRG
T=0.18 IMA 		8-94435-350-0 AR 1 1405-1509 ● ● ●
73 SHIM; DIFF SIDE BRG
4JK1-TCX ENG(LR0) T=0.18 IMA 		8-94435-350-0 AR 1 1510- ● ● ●
73 SHIM; DIFF SIDE BRG
T=0.25 IMA 		8-94435-351-0 AR 1 1405-1509 ● ● ●
73 SHIM; DIFF SIDE BRG
4JK1-TCX ENG(LR0) T=0.25 IMA 		8-94435-351-0 AR 1 1510- ● ● ●
73 SHIM; DIFF SIDE BRG
T=0.30 IMA 		8-94435-352-0 AR 1 1405-1509 ● ● ●
73 SHIM; DIFF SIDE BRG
4JK1-TCX ENG(LR0) T=0.30 IMA 		8-94435-352-0 AR 1 1510- ● ● ●
73 SHIM; DIFF SIDE BRG
T=0.50 IMA 		8-94435-353-0 AR 1 1405-1509 ● ● ●
73 SHIM; DIFF SIDE BRG
4JK1-TCX ENG(LR0) T=0.50 IMA 		8-94435-353-0 AR 1 1510- ● ● ●
74 PIN; LK,CROSS PIN
OD=5 L=35 IMA 		9-09878-096-0 01 1 1405- ● ● ●
84 BOLT; FINAL DRIVE GEAR
4JA1-TC ENG(L4Z) M10X17 IMA 		8-97038-065-0 10 1 1510- ● ● ●
84 BOLT; FINAL DRIVE GEAR
M10X18.5 IMA 		8-97038-064-0 12 1 1405-1509 ● ● ●
84 BOLT; FINAL DRIVE GEAR
4JK1-TCX ENG(LR0) M10X18.5 IMA 		8-97038-064-0 12 1 1510- ● ● ●
100 SEAL; OIL,FINAL PINION
4JA1-TC ENG(L4Z) NOK 		8-97146-826-0 01 1 1510- ● ● ●
100 SEAL; OIL,FINAL PINION
4JA1-TC ENG(L4Z) TKK 		8-97207-784-0 01 1 1510- ● ● ●
100 SEAL; OIL,FINAL PINION
NOK IMA 		8-97328-648-0 01 1 1405-1509 ● ● ●
100 SEAL; OIL,FINAL PINION
4JK1-TCX ENG(LR0) NOK IMA 		8-97328-648-0 01 1 1510- ● ● ●
126 COUPLING; DRIVING PINION
4JA1-TC ENG(L4Z) 		8-97321-411-1 01 1 1510- ● ● ●
126 COUPLING; DRIVING PINION
IMA 		8-98166-552-1 01 1 1405-1509 ● ● ●
126 COUPLING; DRIVING PINION
4JK1-TCX ENG(LR0) IMA 		8-98166-552-1 01 1 1510- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
