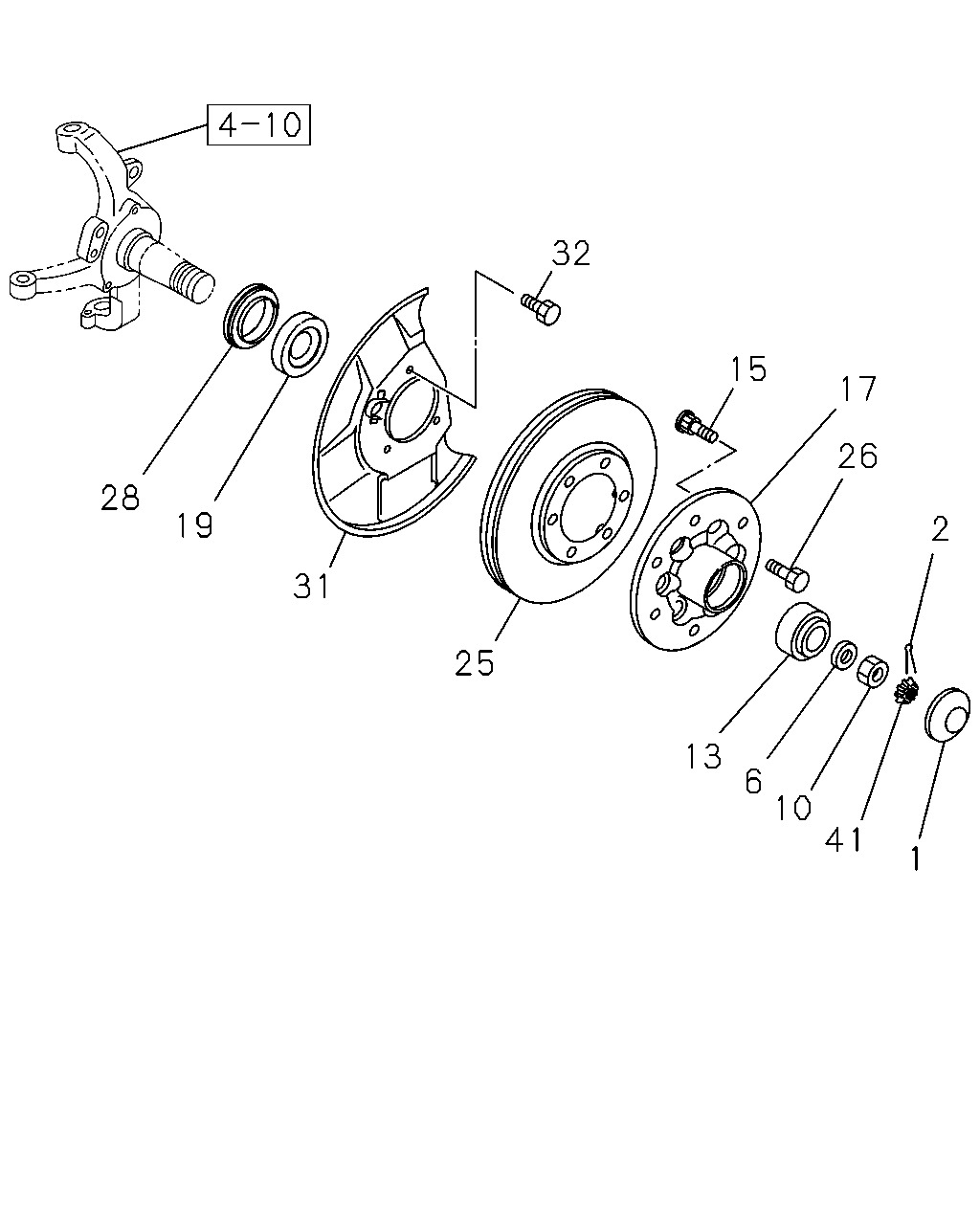

4-11 — FRONT HUB AND DRUM OR ROTOR
(#138062) — 15 parça
Tümü
A - TFB5CF
B - TFB5SF
C - TFB5WF
1
41
10
6
13
2
26
17
15
32
25
31
19
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
CAP; HUB,FRT AXLE
IMA
8-98006-055-0
02
1
1405-
●
●
●
2
PIN; SPLIT,HUB TO AXLE SHAFT
OD=3.7 L=30 IMA
0-81124-030-0
02
1
1405-
●
●
●
6
WASHER; LK,FRT HUB
T=3.2 OD=35 IMA
8-97382-661-0
02
1
1405-
●
●
●
10
NUT; FRT HUB BRG
M18 IMA
8-94243-927-1
02
1
1405-
●
●
●
13
BEARING; HUB OUTER,FRT AXLE
NSK IMA
8-94242-913-0
02
1
1405-
●
●
●
15
PIN; WHEEL,FRT AXLE
M12X37.5 IMA
8-97944-564-1
12
1
1405-
●
●
●
17
HUB; FRT AXLE
8-97238-417-1
02
1
1405-
●
●
●
19
BEARING; HUB INNER,FRT AXLE
NSK IMA
8-94242-683-0
02
1
1405-
●
●
●
25
ROTOR; DISC BRK,FRT
8-98006-259-1
02
1
1405-
●
●
●
26
BOLT; BRK,DISC TO HUB
M12X31.5 FLANGE IMA
8-98006-065-0
12
1
1405-
●
●
●
28
SEAL; OIL,FRT HUB
IMA
8-98036-593-0
02
1
1405-
●
●
●
31
COVER; DUST,FRT BRAKE
IMA
8-98008-150-0
01
1
1405-
●
●
●
31
COVER; DUST,FRT BRAKE
IMA
8-98008-151-0
01
1
1405-
●
●
●
32
BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER IMA
8-98006-352-0
06
1
1405-
●
●
●
41
RETAINER; NUT,FRT HUB
IMA
8-94243-928-1
02
1
1405-
●
●
●
