◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#138060) — 31 parça

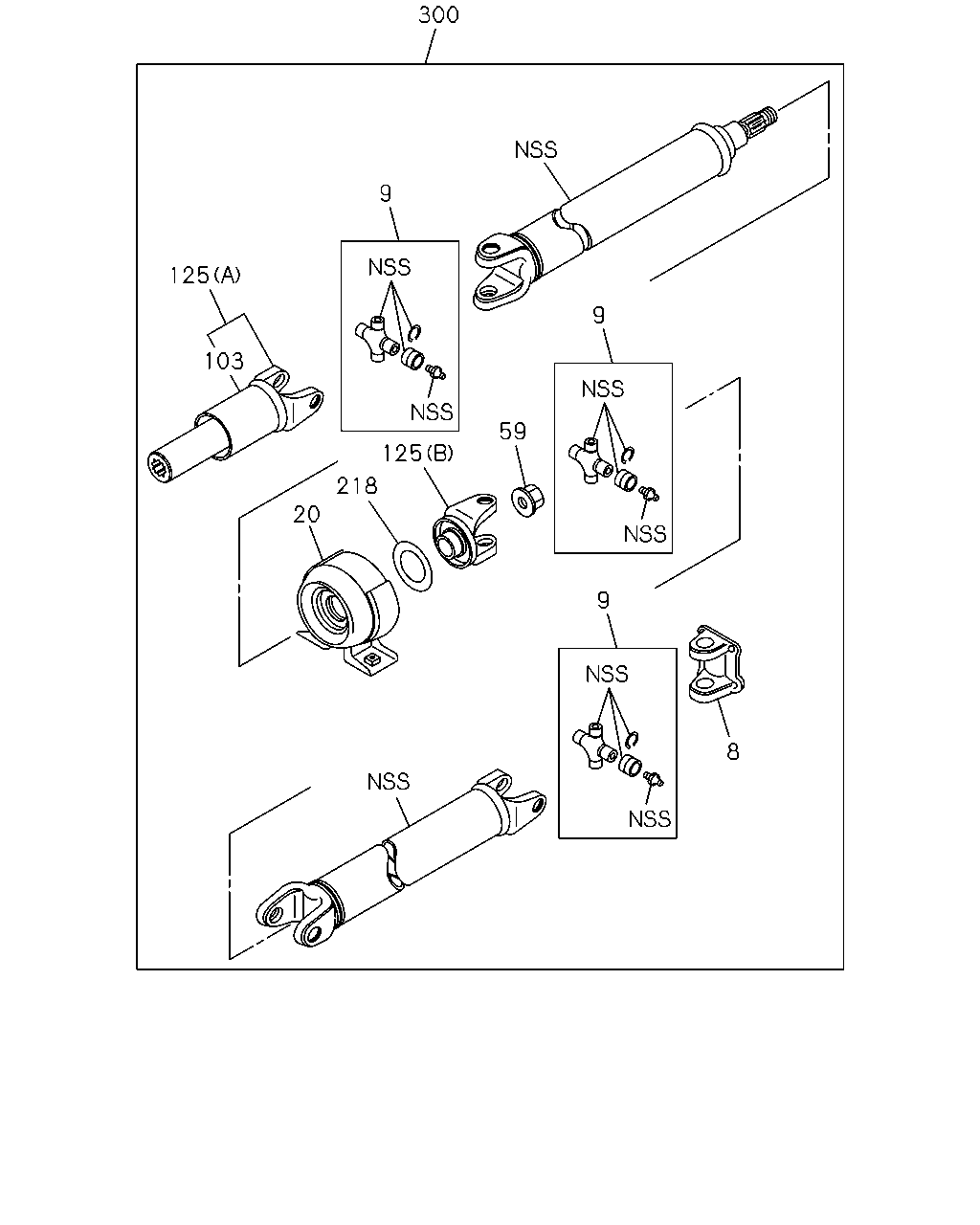

çizim 417065
9 8 9 59 125 218 20 103 125 9 300
BalonParca AdiParca NoAdetTipApplied Date A B C
8 YOKE; FLANGE,PROP SHAFT
4JA1-TC ENG(L4Z) M/T MSG 5 SPEED(M75) IMA 		8-97948-772-0 01 1 1510- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 8-97943-048-0 01 1 1405-1407 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
IMA 		8-97948-771-0 01 1 1408-1509 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) IMA 		8-97948-771-0 01 1 1510- ● ● ●
9 JOURNAL ASM; PROP SHAFT
4JA1-TC ENG(L4Z) M/T MSG 5 SPEED(M75) IMA 		8-97947-642-0 03 1 1510- ● ● ●
9 JOURNAL ASM; PROP SHAFT
IMA 		8-97947-643-0 03 1 1405-1509 ● ● ●
9 JOURNAL ASM; PROP SHAFT
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) IMA 		8-97947-643-0 03 1 1510- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
4JA1-TC ENG(L4Z) M/T MSG 5 SPEED(M75) 		8-97946-252-0 01 1 1510- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-97946-253-0 01 1 1405-1509 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-97946-253-0 01 1 1510- ● ● ●
59 NUT; RET TO SUPPORT
IMA 		8-97947-557-0 01 1 1405- ● ● ●
103 BOOT; PROP SHAFT
IMA 		8-97940-114-0 01 1 1405- ● ● ●
125 YOKE ASM; SPLINED,PROP SHAFT
4JA1-TC ENG(L4Z) M/T MSG 5 SPEED(M75) (B) 		8-97945-189-0 01 1 1510- ● ● ●
125 YOKE ASM; SPLINED,PROP SHAFT
4JA1-TC ENG(L4Z) M/T MSG 5 SPEED(M75) (A) 		8-97947-987-0 01 1 1510- ● ● ●
125 YOKE ASM; SPLINED,PROP SHAFT
(B) 		8-97947-664-0 01 1 1405-1509 ● ● ●
125 YOKE ASM; SPLINED,PROP SHAFT
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (B) 		8-97947-664-0 01 1 1510- ● ● ●
125 YOKE ASM; SPLINED,PROP SHAFT
(A) 		8-97947-726-0 01 1 1405-1509 ● ● ●
125 YOKE ASM; SPLINED,PROP SHAFT
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (A) 		8-97947-726-0 01 1 1510- ● ● ●
218 WASHER; PL,PROP SHAFT
ID=30 H=40 L=35 IMA 		8-97192-641-0 01 1 1405- ● ● ●
300 SHAFT ASM; PROP,RR
4JA1-TC ENG(L4Z) M/T MSG 5 SPEED(M75) L=1821.5 		8-97948-704-0 01 1 1510- ● ● ●
300 SHAFT ASM; PROP,RR
L=1801.5 		8-97947-550-0 01 1 1405-1407 ● ● ●
300 SHAFT ASM; PROP,RR
L=1801.5 		8-97948-706-0 01 1 1408-1509 ● ● ●
300 SHAFT ASM; PROP,RR
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) L=1801.5 		8-97948-706-0 01 1 1510- ● ● ●
çizim 417194
147 300 89 90 120
BalonParca AdiParca NoAdetTipApplied Date A B C
89 NUT; YOKE TO RR AXLE
M10 FLANGE IMA 		8-97246-900-0 04 1 1405- ● ● ●
90 WASHER; LK,YOKE TO RR AXLE
ID=10.1 IMA 		8-97246-901-0 04 1 1405- ● ● ●
120 BOLT; YOKE TO RR AXLE
M10X29 IMA 		8-97246-859-0 04 1 1405- ● ● ●
147 BOLT; CENTER BRG MTG
M12X25 FLANGE 		0-28761-225-0 02 1 1405- ● ● ●
300 SHAFT ASM; PROP,RR
4JA1-TC ENG(L4Z) M/T MSG 5 SPEED(M75) L=1821.5 		8-97948-704-0 01 1 1510- ● ● ●
300 SHAFT ASM; PROP,RR
L=1801.5 		8-97947-550-0 01 1 1405-1407 ● ● ●
300 SHAFT ASM; PROP,RR
L=1801.5 		8-97948-706-0 01 1 1408-1509 ● ● ●
300 SHAFT ASM; PROP,RR
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) L=1801.5 		8-97948-706-0 01 1 1510- ● ● ●
