Isuzu WW
▶
PICKUP
▶
TFR
▶
51516 - TFR(INDIA)
▶
3 - Brakes, Brake System
▶
3-60 - BRAKE PIPING; VACUUM
▶
3-60 — BRAKE PIPING; VACUUM
(#138059) — 17 parça
Tümü
A - TFB5CF
B - TFB5SF
C - TFB5WF
◀

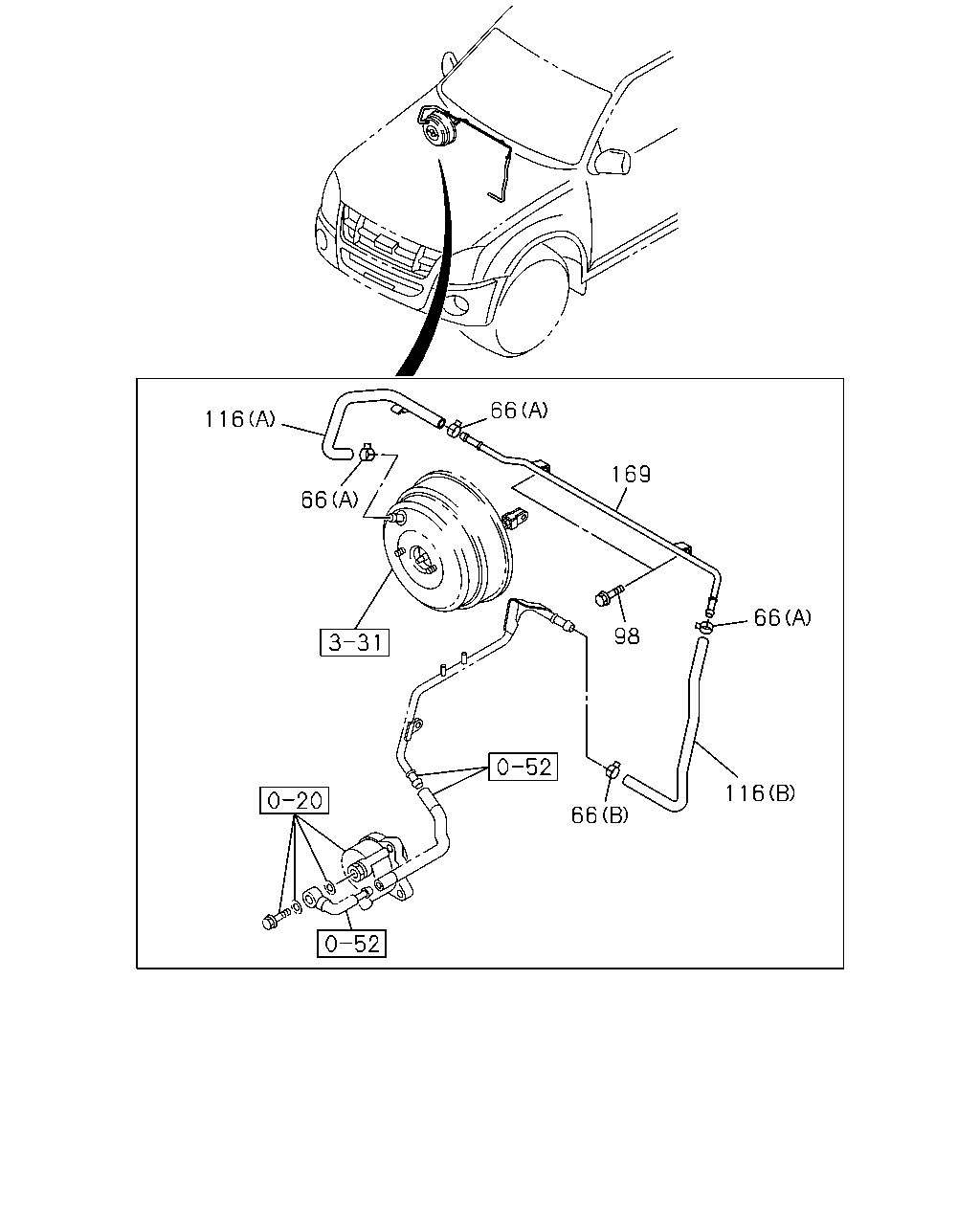

[360A] 4JK1 (8 parça)

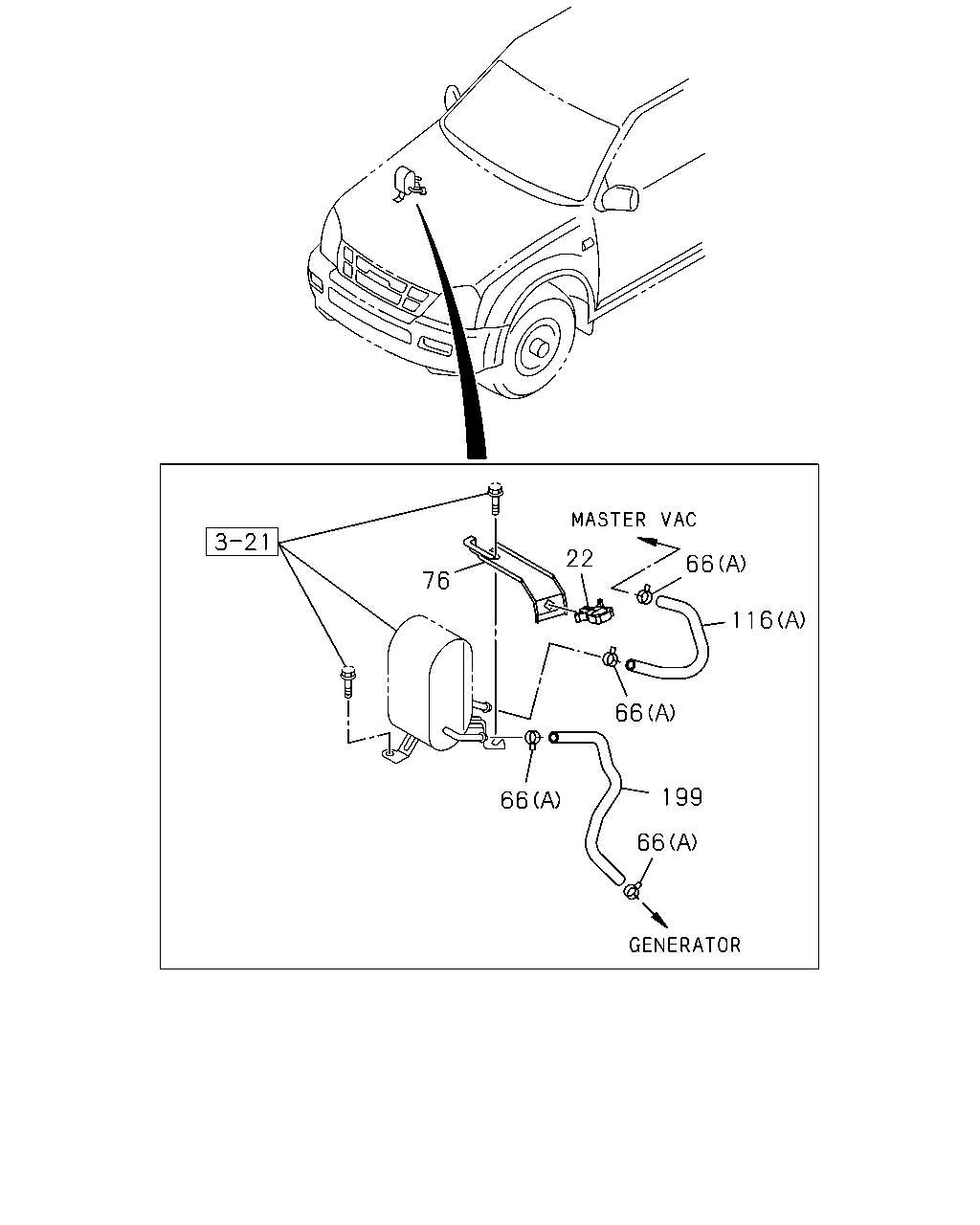

[360A] 4JA1 (9 parça)
▶
66
169
66
98
116
66
66
116
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
66
CLIP; VAC HOSE,M/VAC
4JA1-TC ENG(L4Z) (A) ID=15.5
8-98035-872-0
04
1
1510-
●
●
●
66
CLIP; VAC HOSE,M/VAC
4JK1-TCX ENG(LR0) (A) ID=15.5
8-98035-872-0
03
1
1405-
●
●
●
66
CLIP; VAC HOSE,M/VAC
4JK1-TCX ENG(LR0) (B) ID=16 IMA
8-98036-539-0
01
1
1405-
●
●
●
98
BOLT; VAC PIPE FIX
4JK1-TCX ENG(LR0) M6X16 FLANGE IMA
0-28650-616-0
02
1
1405-
●
●
●
116
HOSE; VAC,M/VAC
4JA1-TC ENG(L4Z) (A)
8-97944-834-0
01
1
1510-
●
●
●
116
HOSE; VAC,M/VAC
4JK1-TCX ENG(LR0) (A)
8-97944-840-1
01
1
1405-
●
●
●
116
HOSE; VAC,M/VAC
4JK1-TCX ENG(LR0) (B)
8-97944-841-0
01
1
1405-
●
●
●
169
PIPE; VAC,BOOSTER SIDE
4JK1-TCX ENG(LR0)
8-97944-847-1
01
1
1405-
●
●
●
66
116
22
76
66
199
66
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
22
CLIP; HOSE,VAC TANK
4JA1-TC ENG(L4Z) IMA
8-97089-536-0
01
1
1510-
●
●
●
66
CLIP; VAC HOSE,M/VAC
4JA1-TC ENG(L4Z) (A) ID=15.5
8-98035-872-0
04
1
1510-
●
●
●
66
CLIP; VAC HOSE,M/VAC
4JK1-TCX ENG(LR0) (A) ID=15.5
8-98035-872-0
03
1
1405-
●
●
●
66
CLIP; VAC HOSE,M/VAC
4JK1-TCX ENG(LR0) (B) ID=16 IMA
8-98036-539-0
01
1
1405-
●
●
●
76
BRACKET; VAC HOSE CLIP
4JA1-TC ENG(L4Z)
8-98050-712-0
01
1
1510-
●
●
●
116
HOSE; VAC,M/VAC
4JA1-TC ENG(L4Z) (A)
8-97944-834-0
01
1
1510-
●
●
●
116
HOSE; VAC,M/VAC
4JK1-TCX ENG(LR0) (A)
8-97944-840-1
01
1
1405-
●
●
●
116
HOSE; VAC,M/VAC
4JK1-TCX ENG(LR0) (B)
8-97944-841-0
01
1
1405-
●
●
●
199
HOSE; VAC,VAC TANK TO VAC PUMP
4JA1-TC ENG(L4Z)
8-97385-746-0
01
1
1510-
●
●
●
