3-58 — FIXING PARTS; OIL PIPING (#138058) — 54 parça

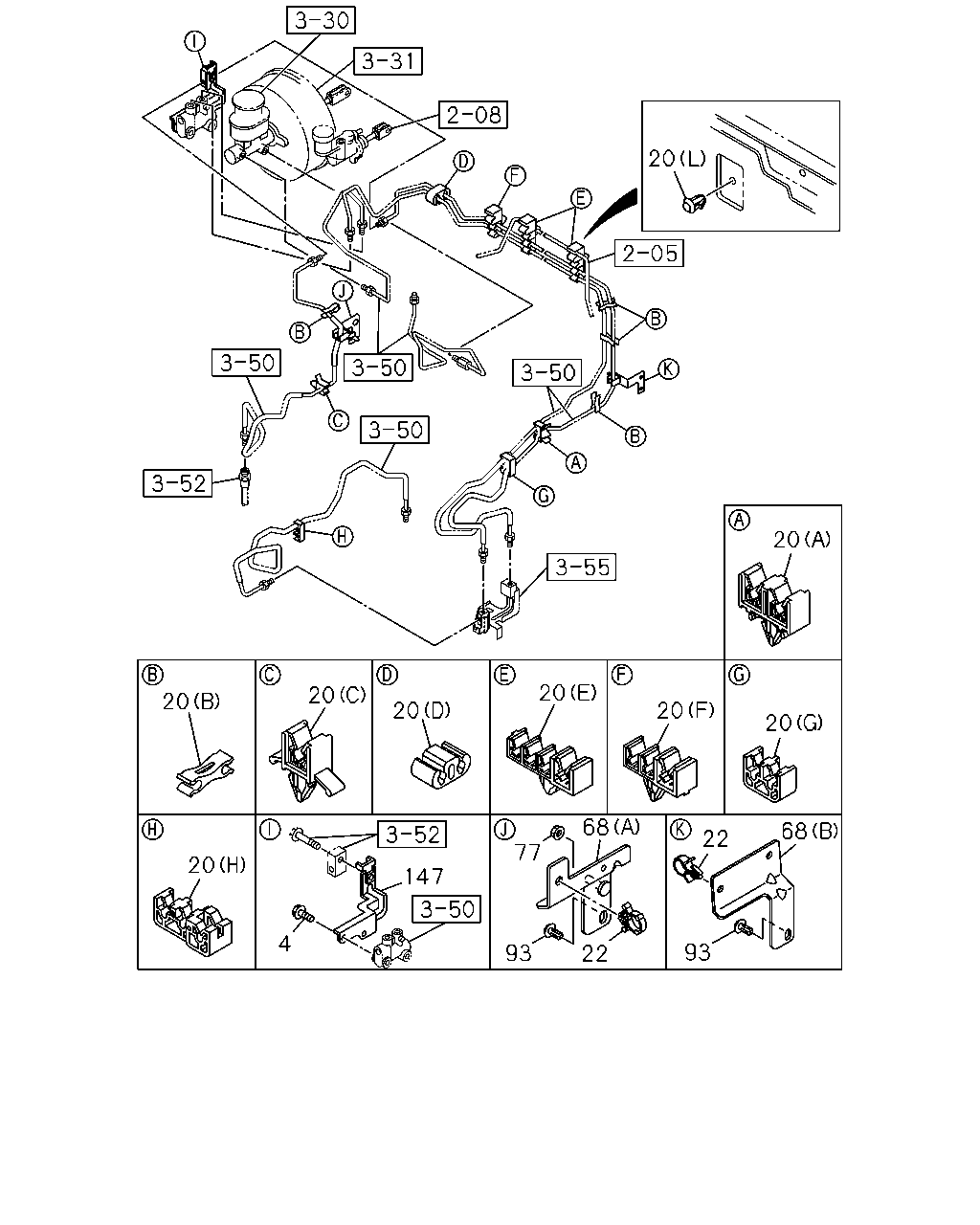

çizim 417082
20 20 20 20 20 20 68 22 68 77 147 20 93 22 93 4 20 20
BalonParca AdiParca NoAdetTipApplied Date A B C
4 BOLT; BRKT
M8X16 FLANGE IMA 		0-28050-816-0 02 1 1405- ● ● ●
20 CLIP; BRK PIPE
(H) ID=8.4 & 6.8X2 IMA 		8-97251-127-0 01 1 1405-1509 ● ● ●
20 CLIP; BRK PIPE
(H) ID=8.4 & 6.8X2 IMA 		8-97251-127-0 01 1 1405-1509 ● ● ●
20 CLIP; BRK PIPE
(I) ID=4.76X3 IMA 		8-97216-721-1 02 1 1510- ● ● ●
20 CLIP; BRK PIPE
(B) ID=4.6X2 		8-94241-454-0 03 1 1405-1509 ● ● ●
20 CLIP; BRK PIPE
4JA1-TC ENG(L4Z) (M) ID=6.8X2 IMA 		8-97251-124-0 02 1 1510- ● ● ●
20 CLIP; BRK PIPE
(D) ID=4.8X2 		8-94389-060-0 01 1 1405-1509 ● ● ●
20 CLIP; BRK PIPE
(H) ID=8.4 & 6.8X2 IMA 		8-97251-127-0 01 1 1510- ● ● ●
20 CLIP; BRK PIPE
(H) ID=8.4 & 6.8X2 IMA 		8-97251-127-0 01 1 1510- ● ● ●
20 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97201-752-0 02 1 1405- ● ● ●
20 CLIP; BRK PIPE
(I) ID=4.76X3 IMA 		8-97216-721-1 02 1 1405-1509 ● ● ●
20 CLIP; BRK PIPE
(B) ID=4.6X2 		8-94241-454-0 03 1 1510- ● ● ●
20 CLIP; BRK PIPE
(A) ID=4.76X2 		8-97249-905-0 01 1 1405- ● ● ●
20 CLIP; BRK PIPE
(K) ID=10 & 6.8X2 OR 8.4X3 IMA 		8-97249-906-1 04 1 1405-1509 ● ● ●
20 CLIP; BRK PIPE
(D) ID=4.8X2 		8-94389-060-0 01 1 1510- ● ● ●
20 CLIP; BRK PIPE
(K) ID=10 & 6.8X2 OR 8.4X3 IMA 		8-97249-906-1 04 1 1510- ● ● ●
20 CLIP; BRK PIPE
(G) ID=6.8X2 IMA 		8-97251-122-0 01 1 1405- ● ● ●
20 CLIP; BRK PIPE
(F) 		8-97264-768-0 01 1 1405- ● ● ●
20 CLIP; BRK PIPE
(C) ID=4.76 IMA 		8-97300-443-0 01 1 1405- ● ● ●
20 CLIP; BRK PIPE
(L) 		8-97310-401-0 01 1 1405- ● ● ●
20 CLIP; BRK PIPE
(J) ID=8.7 & 7.1X3 		8-98043-266-0 02 1 1405-1509 ● ● ●
20 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) (J) ID=8.7 & 7.1X3 		8-98043-266-0 02 1 1510- ● ● ●
22 CLIP; PIPE TO FRAME
ID=9 IMA 		5-09707-027-0 01 1 1405- ● ● ●
68 BRACKET; CLIP
(C) 		8-97944-655-0 01 1 1405- ● ● ●
68 BRACKET; CLIP
(A) 		8-97944-661-0 01 1 1405- ● ● ●
68 BRACKET; CLIP
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (B) 		8-98034-935-0 01 1 1405- ● ● ●
77 NUT; BRKT,OIL PIPE
M6 FLANGE IMA 		0-91180-106-0 01 1 1405- ● ● ●
93 CLIP; BRKT
OD=18 IMA 		8-94269-290-0 01 1 1405- ● ● ●
147 BRACKET; CONNECTOR 8-97944-702-0 01 1 1405- ● ● ●

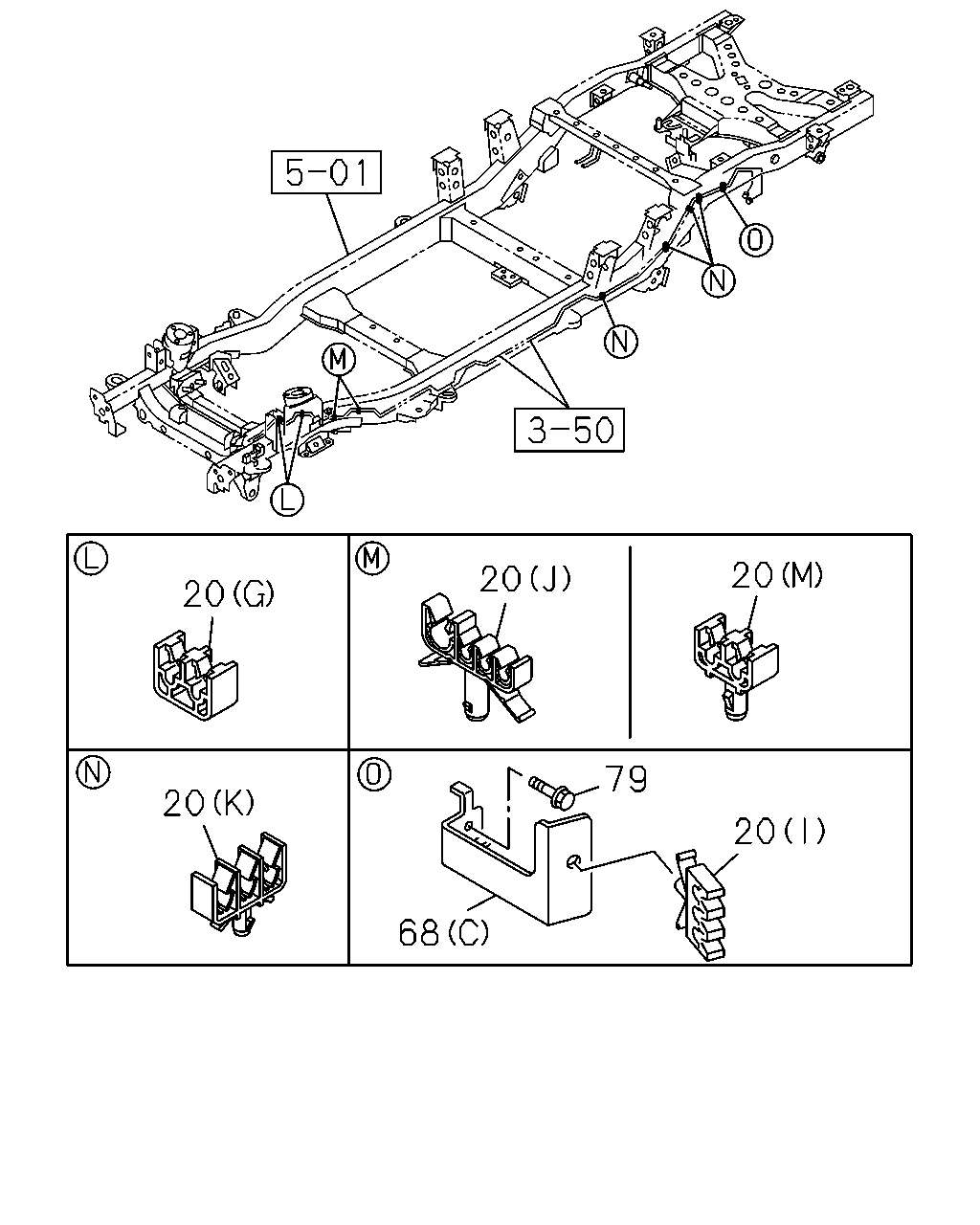

çizim 417224
20 20 20 79 20 68 20
BalonParca AdiParca NoAdetTipApplied Date A B C
20 CLIP; BRK PIPE
(H) ID=8.4 & 6.8X2 IMA 		8-97251-127-0 01 1 1405-1509 ● ● ●
20 CLIP; BRK PIPE
(H) ID=8.4 & 6.8X2 IMA 		8-97251-127-0 01 1 1405-1509 ● ● ●
20 CLIP; BRK PIPE
(I) ID=4.76X3 IMA 		8-97216-721-1 02 1 1510- ● ● ●
20 CLIP; BRK PIPE
(B) ID=4.6X2 		8-94241-454-0 03 1 1405-1509 ● ● ●
20 CLIP; BRK PIPE
4JA1-TC ENG(L4Z) (M) ID=6.8X2 IMA 		8-97251-124-0 02 1 1510- ● ● ●
20 CLIP; BRK PIPE
(D) ID=4.8X2 		8-94389-060-0 01 1 1405-1509 ● ● ●
20 CLIP; BRK PIPE
(H) ID=8.4 & 6.8X2 IMA 		8-97251-127-0 01 1 1510- ● ● ●
20 CLIP; BRK PIPE
(H) ID=8.4 & 6.8X2 IMA 		8-97251-127-0 01 1 1510- ● ● ●
20 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97201-752-0 02 1 1405- ● ● ●
20 CLIP; BRK PIPE
(I) ID=4.76X3 IMA 		8-97216-721-1 02 1 1405-1509 ● ● ●
20 CLIP; BRK PIPE
(B) ID=4.6X2 		8-94241-454-0 03 1 1510- ● ● ●
20 CLIP; BRK PIPE
(A) ID=4.76X2 		8-97249-905-0 01 1 1405- ● ● ●
20 CLIP; BRK PIPE
(K) ID=10 & 6.8X2 OR 8.4X3 IMA 		8-97249-906-1 04 1 1405-1509 ● ● ●
20 CLIP; BRK PIPE
(D) ID=4.8X2 		8-94389-060-0 01 1 1510- ● ● ●
20 CLIP; BRK PIPE
(K) ID=10 & 6.8X2 OR 8.4X3 IMA 		8-97249-906-1 04 1 1510- ● ● ●
20 CLIP; BRK PIPE
(G) ID=6.8X2 IMA 		8-97251-122-0 01 1 1405- ● ● ●
20 CLIP; BRK PIPE
(F) 		8-97264-768-0 01 1 1405- ● ● ●
20 CLIP; BRK PIPE
(C) ID=4.76 IMA 		8-97300-443-0 01 1 1405- ● ● ●
20 CLIP; BRK PIPE
(L) 		8-97310-401-0 01 1 1405- ● ● ●
20 CLIP; BRK PIPE
(J) ID=8.7 & 7.1X3 		8-98043-266-0 02 1 1405-1509 ● ● ●
20 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) (J) ID=8.7 & 7.1X3 		8-98043-266-0 02 1 1510- ● ● ●
68 BRACKET; CLIP
(C) 		8-97944-655-0 01 1 1405- ● ● ●
68 BRACKET; CLIP
(A) 		8-97944-661-0 01 1 1405- ● ● ●
68 BRACKET; CLIP
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (B) 		8-98034-935-0 01 1 1405- ● ● ●
79 BOLT; CLIP,OIL PIPE
M6X16 FLANGE IMA 		0-28650-616-0 01 1 1405- ● ● ●
