3-10 — BRAKE PEDAL AND CONTROL (#138050) — 18 parça

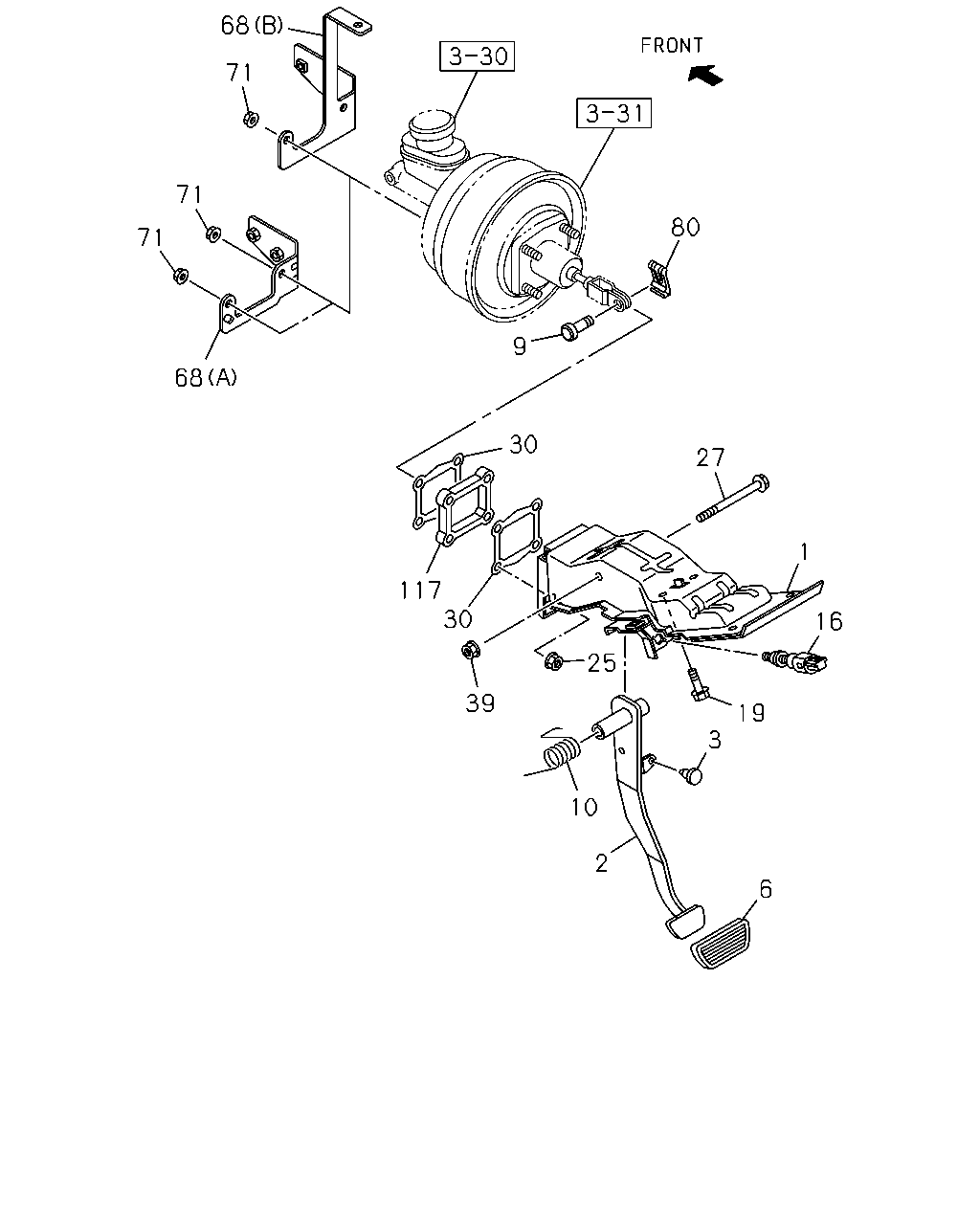

çizim 417056
6 3 2 10 19 16 1 27 30 117 30 39 25 80 9 71 68 71 71 68
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BRACKET ASM; PEDAL 8-98013-694-0 01 1 1405- ● ● ●
2 PEDAL; BRK 8-97327-158-1 01 1 1405- ● ● ●
3 STOPPER; BRK PEDAL 8-97302-035-0 01 1 1405- ● ● ●
6 COVER; BRK PEDAL
IMA 		8-97318-799-0 01 1 1405- ● ● ●
9 PIN; JAW JOINT
IMA 		8-97311-602-0 01 1 1405- ● ● ●
10 SPRING; RETURN,BRK PEDAL 8-97387-812-0 01 1 1405- ● ● ●
16 SWITCH; STOP LAMP 8-97301-684-0 01 1 1405- ● ● ●
19 BOLT; BRKT
M8X20 FLANGE IMA 		0-28650-820-0 02 1 1405- ● ● ●
25 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE IMA 		8-97581-233-0 04 1 1405- ● ● ●
27 SHAFT; BRK PEDAL 8-97304-171-0 01 1 1405- ● ● ●
30 GASKET; M/VAC TO BODY 8-97943-457-0 02 1 1405- ● ● ●
39 NUT; STOPPER LK
M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 1405- ● ● ●
68 BRACKET; SERVO TO DASH PANEL
4JA1-TC ENG(L4Z) (B) 		8-98007-771-0 01 1 1510- ● ● ●
68 BRACKET; SERVO TO DASH PANEL
(A) 		8-98007-772-0 01 1 1405-1509 ● ● ●
68 BRACKET; SERVO TO DASH PANEL
4JK1-TCX ENG(LR0) (A) 		8-98007-772-0 01 1 1510- ● ● ●
71 NUT; BRK M/CYL 8-98031-675-0 02 1 1405- ● ● ●
80 PIN; SNAP,BRK PEDAL
IMA 		8-98007-161-0 01 1 1405- ● ● ●
117 SPACER; M/VAC TO BODY 8-98008-278-0 01 1 1405- ● ● ●
