3-05 — REAR WHEEL BRAKE (#138049) — 31 parça

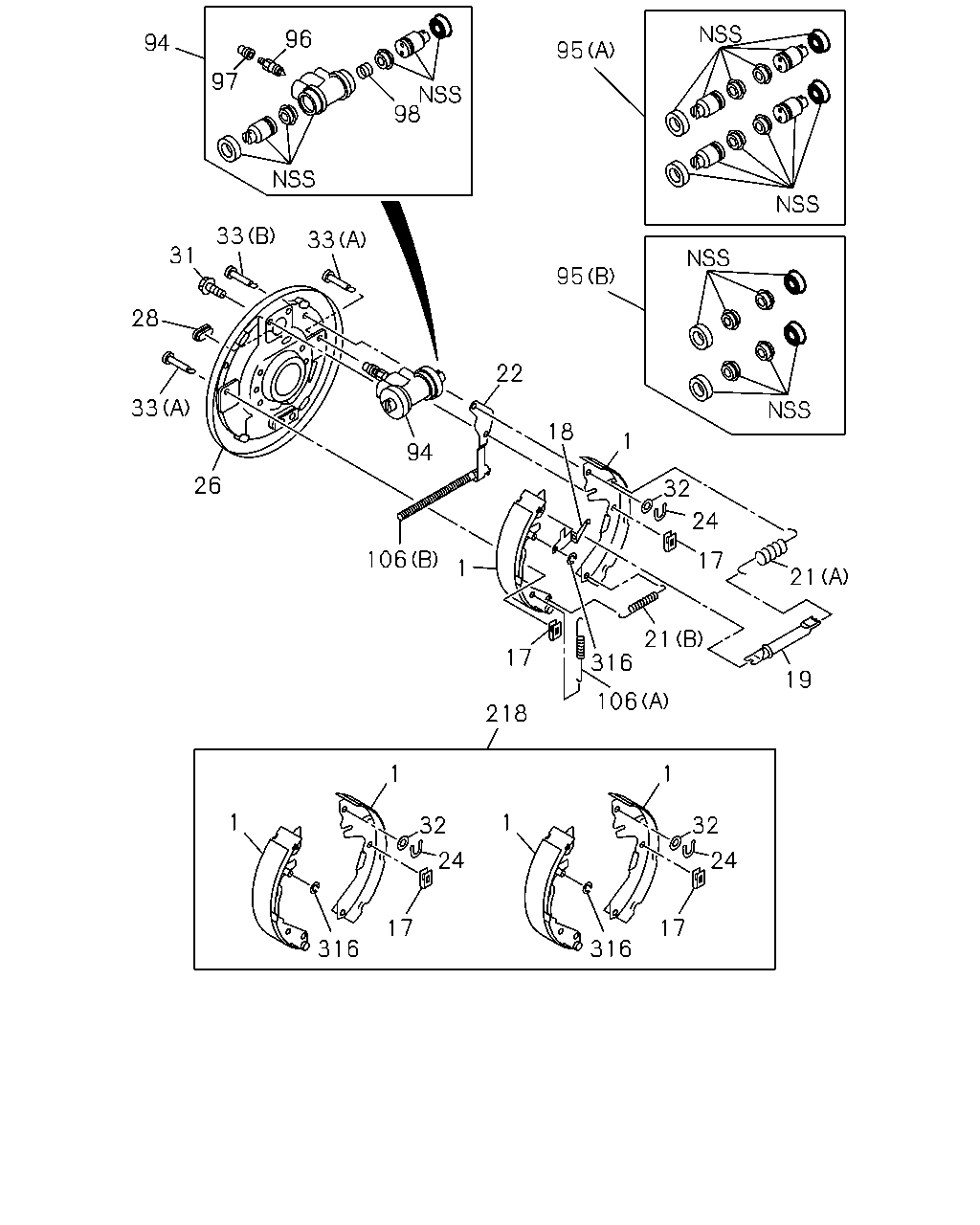

çizim 417057
95 95 22 18 32 17 24 1 21 19 21 316 106 1 32 24 17 316 1 24 32 1 1 17 316 218 17 1 106 94 26 33 28 31 33 33 98 96 97 94
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHOE; BRK,RR
TRAILING 		8-97351-921-1 02 1 1405- ● ● ●
1 SHOE; BRK,RR
LEADING 		8-98007-962-0 01 1 1405- ● ● ●
1 SHOE; BRK,RR
LEADING 		8-98007-963-0 01 1 1405- ● ● ●
17 SPRING; SHOE HOLD DOWN 8-97301-510-0 04 1 1405- ● ● ●
18 LEVER; AUTO ADJ
IMA 		8-98007-996-0 01 1 1405- ● ● ●
18 LEVER; AUTO ADJ
IMA 		8-98007-997-0 01 1 1405- ● ● ●
19 ADJUSTER; RR BRK 8-98007-979-0 01 1 1405- ● ● ●
19 ADJUSTER; RR BRK 8-98007-980-0 01 1 1405- ● ● ●
21 SPRING; SHOE,RET
(B) IMA 		8-98008-002-0 02 1 1405- ● ● ●
21 SPRING; SHOE,RET
(A) 		8-98008-005-0 02 1 1405- ● ● ●
22 LEVER; PARKING BRK,WHEEL BRK 8-98007-966-0 01 1 1405- ● ● ●
22 LEVER; PARKING BRK,WHEEL BRK 8-98007-967-0 01 1 1405- ● ● ●
24 RETAINER; PARKING BRK
IMA 		8-97301-493-0 02 1 1405- ● ● ●
26 PLATE; BACK,RR BRK 8-97301-514-1 01 1 1405- ● ● ●
26 PLATE; BACK,RR BRK 8-97301-515-1 01 1 1405- ● ● ●
28 COVER; ADJ HOLE
IMA 		8-97301-477-0 04 1 1405- ● ● ●
31 BOLT; RR WHEEL CYL 8-98008-015-0 04 1 1405- ● ● ●
32 WASHER; LK 8-97301-492-0 02 1 1405- ● ● ●
33 PIN; SHOE HOLD DOWN
(A) IMA 		8-97301-509-0 04 1 1405- ● ● ●
33 PIN; SHOE HOLD DOWN
(B) IMA 		8-98008-034-0 02 1 1405- ● ● ●
94 CYLINDER; WHEEL,RR BRK
IMA 		8-97319-300-0 02 1 1405- ● ● ●
95 CUP SET; RR WHEEL CYL
(A) W/PISTON 		5-87832-068-0 01 1 1405- ● ● ●
95 CUP SET; RR WHEEL CYL
(B) WO/PISTON 		5-87832-247-0 01 1 1405- ● ● ●
96 SCREW; BLEEDER,RR BRK
IMA 		8-97301-484-0 02 1 1405- ● ● ●
97 CAP; BLEEDER,RR WHEEL CYL
IMA 		8-97301-485-0 02 1 1405- ● ● ●
98 SPRING; RR WHEEL CYL
IMA 		8-97301-483-0 02 1 1405- ● ● ●
106 SPRING; ADJ LEVER
(A) IMA 		8-98008-006-0 01 1 1405- ● ● ●
106 SPRING; ADJ LEVER
(A) IMA 		8-98008-007-0 01 1 1405- ● ● ●
106 SPRING; ADJ LEVER
(B) 		8-98009-797-0 02 1 1405- ● ● ●
218 SHOE KIT; BRK,RR 8-98018-036-0 01 1 1405- ● ● ●
316 RING; SNAP
IMA 		8-97330-511-0 02 1 1405- ● ● ●
