2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#138047) — 20 parça

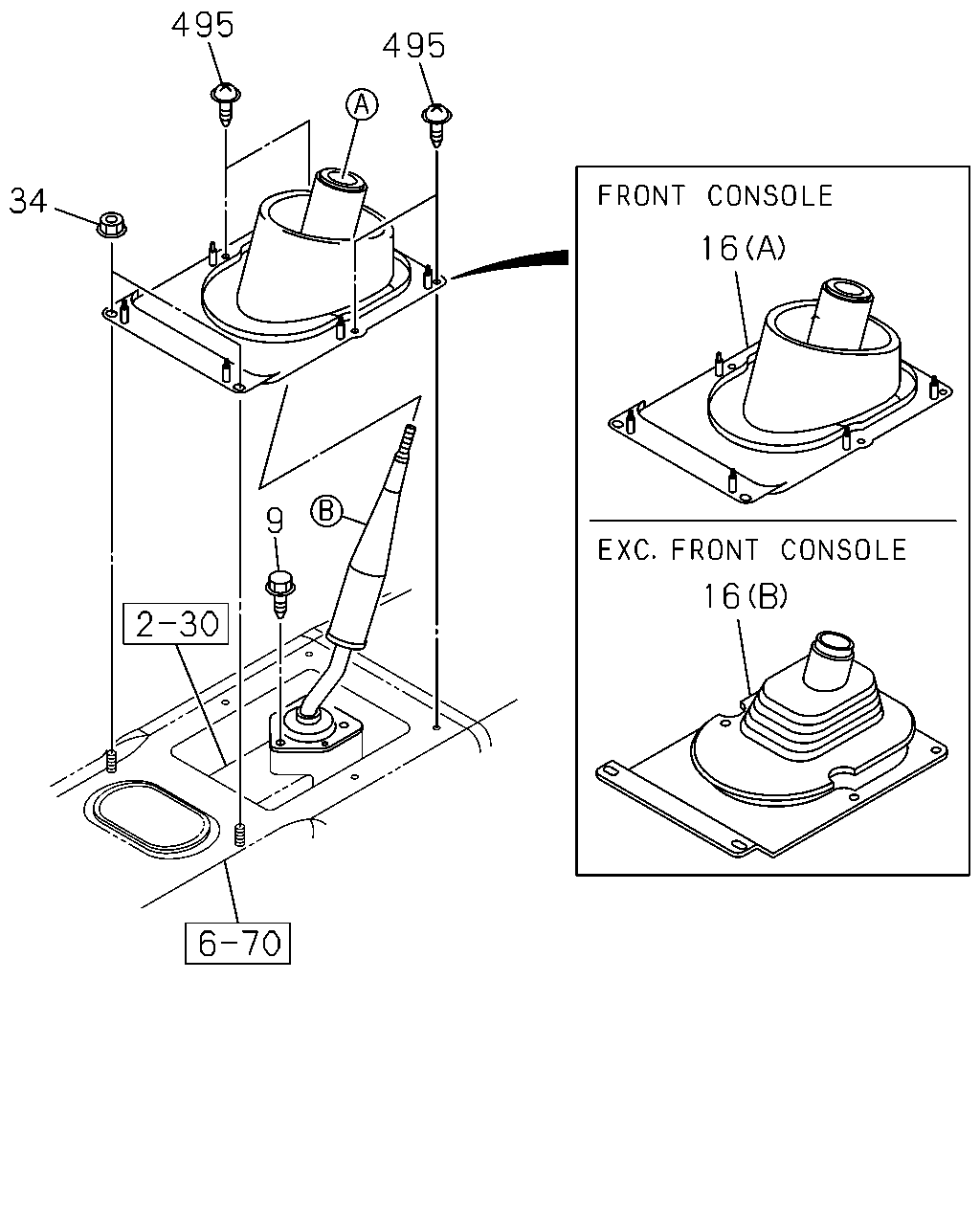

çizim 417185
495 495 34 9 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
9 BOLT; CHANGE LEVER
M8X20 FLANGE IMA 		0-28650-820-0 03 1 1405-1509 ●
9 BOLT; CHANGE LEVER
M8X20 FLANGE IMA 		0-28650-820-0 03 1 1510- ● ●
16 BOOT; CHANGE LEVER
FRONT CONSOLE<D55> (A) 		8-97235-879-2 01 1 1405-1509 ●
16 BOOT; CHANGE LEVER
FRONT CONSOLE<D55> (A) 		8-97235-879-2 01 1 1510- ● ●
16 BOOT; CHANGE LEVER
EXC. FRONT CONSOLE<D55> (B) 		8-98003-438-0 01 1 1405-1509 ●
16 BOOT; CHANGE LEVER
EXC. FRONT CONSOLE<D55> (B) 		8-98003-438-0 01 1 1510- ● ●
34 NUT
M6 FLANGE IMA 		8-98055-704-0 02 1 1405-1509 ●
34 NUT
M6 FLANGE IMA 		8-98055-704-0 02 1 1510- ● ●
495 SCREW; GROMMET
M5X16 TAPPING W/PL WASHER 		0-74365-516-0 04 1 1405-1509 ●
495 SCREW; GROMMET
M5X16 TAPPING W/PL WASHER 		0-74365-516-0 04 1 1510- ● ●
çizim 417205
24 22 1 1 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) DARK GRAY 		8-97406-184-0 01 1 1405-1509 ●
1 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) DARK GRAY 		8-97406-184-0 01 1 1510- ● ●
1 KNOB; CHANGE LEVER
EXC. SHIFT KNOB SPORTS<KAE> (B) 		8-97371-734-0 01 1 1405-1509 ●
1 KNOB; CHANGE LEVER
EXC. SHIFT KNOB SPORTS<KAE> (B) 		8-97371-734-0 01 1 1510- ● ●
8 LEVER; CHANGE 8-97945-853-0 01 1 1510- ●
8 LEVER; CHANGE 8-97945-847-0 01 1 1405- ●
22 COVER; DUST,CHANGE LEVER
IMA 		8-97945-801-0 01 1 1405-1509 ●
22 COVER; DUST,CHANGE LEVER
IMA 		8-97945-801-0 01 1 1510- ● ●
24 BUSHING; CHANGE LEVER
IMA 		8-97943-618-0 01 1 1405-1509 ●
24 BUSHING; CHANGE LEVER
IMA 		8-97943-618-0 01 1 1510- ● ●
