Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#138045) — 224 parça

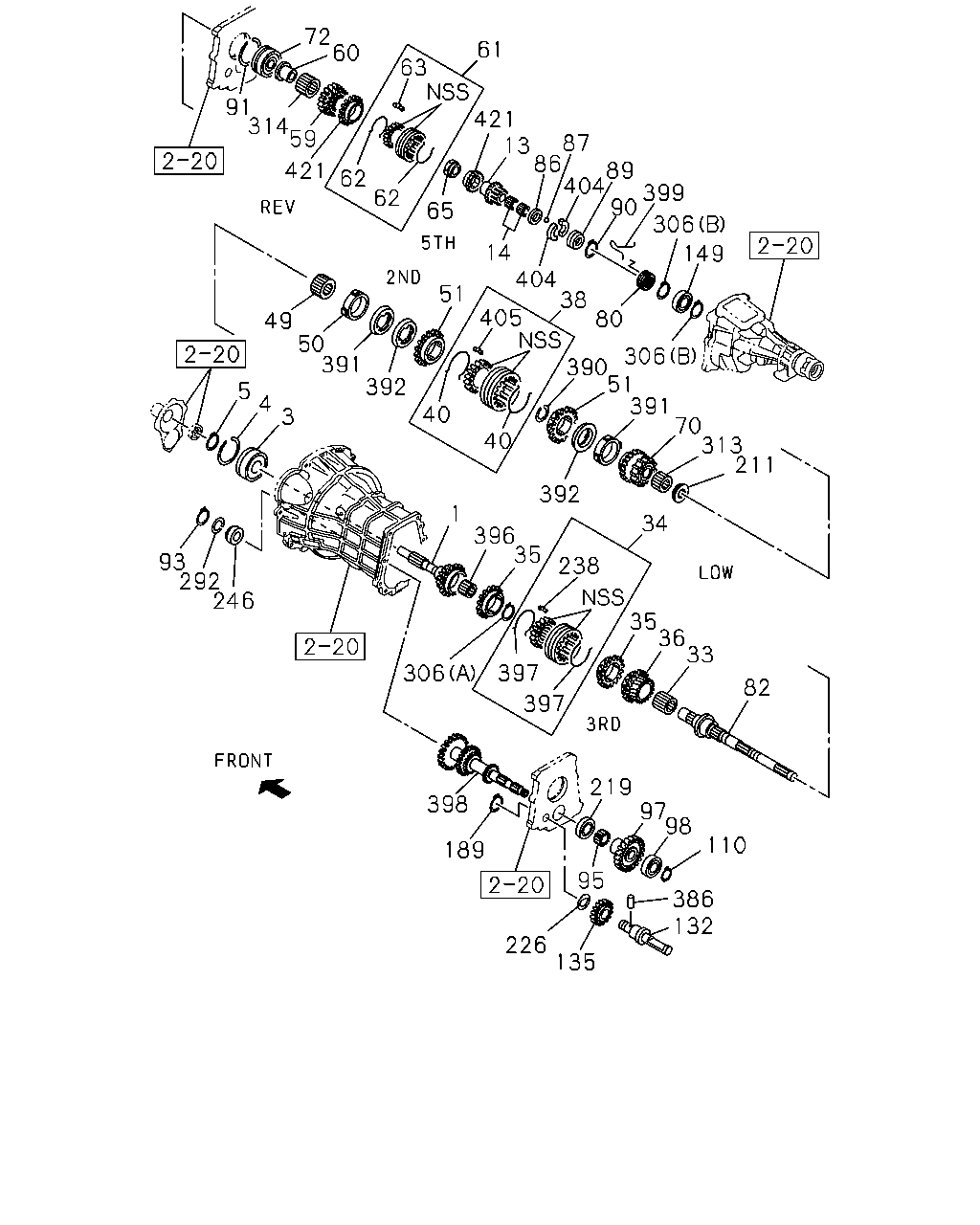

132 135 226 95 386 110 98 97 219 189 398 397 397 306 246 292 93 1 82 33 36 35 238 35 396 392 211 34 313 70 391 51 390 40 40 392 391 50 49 3 4 5 51 306 405 80 38 404 14 149 306 99 89 404 87 90 86 13 421 61 63 60 72 65 62 62 421 59 314 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=23 IND	5-87225-062-0	01	1	1510-	●
1	SHAFT; TOP GEAR,TRANS Z=26	8-98210-225-0	01	1	1405-		●
3	BEARING; TOP GEAR SHAFT IND	5-87225-034-0	01	1	1510-	●
3	BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	1405-		●
4	RING; SNAP,BRG TO TOP GEAR SHAFT IND	5-87225-040-0	01	1	1510-	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK IMA	8-94422-083-0	01	1	1405-		●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.0 IND	5-87225-090-0	01	1	1510-	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.4 IMA	8-97254-316-0	01	1	1405-		●
13	GEAR; 5TH,MAINSHAFT Z=25 IND	5-87225-030-0	01	1	1510-	●
13	GEAR; 5TH,MAINSHAFT Z=22 IMA	8-98210-227-0	01	1	1405-		●
14	BEARING; NEEDLE,5TH IND	5-87225-033-0	01	1	1510-	●
14	BEARING; NEEDLE,5TH NTN IMA	8-98172-356-0	01	1	1405-		●
33	BEARING; NEEDLE,3RD GEAR NSK IMA	1-09811-028-1	01	1	1405-		●
34	SYNCHRONIZER; 4TH & 3RD IND	5-87225-029-0	01	1	1510-	●
34	SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	1405-		●
35	RING; BLOCK,4TH & 3RD Z=30 IND	5-87225-068-0	02	1	1510-	●
35	RING; BLOCK,4TH & 3RD Z=45 IMA	8-94151-510-3	02	1	1405-		●
36	GEAR; 3RD,MAINSHAFT Z=29 IND	5-87225-028-0	01	1	1510-	●
36	GEAR; 3RD,MAINSHAFT Z=27	8-98210-226-0	01	1	1405-		●
38	SYNCHRONIZER; LOW & 2ND IND	5-87225-059-0	01	1	1510-	●
38	SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	1405-		●
40	SPRING; INSERT,LOW & 2ND IND	5-87225-022-0	02	1	1510-	●
40	SPRING; INSERT,LOW & 2ND IMA	8-94448-045-0	02	1	1405-		●
49	BEARING; NEEDLE,2ND GEAR JTEKT IMA	9-00096-625-0	01	1	1405-		●
50	GEAR; 2ND,MAINSHAFT Z=31 IND	5-87225-054-0	01	1	1510-	●
50	GEAR; 2ND,MAINSHAFT Z=34	8-97300-953-1	01	1	1405-		●
51	RING; BLOCK,LOW & 2ND Z=45 IND	5-87225-020-0	02	1	1510-	●
51	RING; BLOCK,LOW & 2ND Z=36 IMA	8-98115-804-0	02	1	1405-		●
59	GEAR; REV MAINSHAFT Z=37 IND	5-87225-080-0	01	1	1510-	●
59	GEAR; REV MAINSHAFT Z=41 IMA	8-98210-228-0	01	1	1405-		●
60	COLLAR; REV MAIN IMA	8-97031-079-0	01	1	1405-		●
61	SYNCHRONIZER; REV & 5TH IND	5-87225-013-0	01	1	1510-	●
61	SYNCHRONIZER; REV & 5TH IMA	8-97030-106-1	01	1	1405-		●
62	SPRING; INSERT,REV & 5TH IND	5-87225-015-0	02	1	1510-	●
62	SPRING; INSERT,REV & 5TH IMA	5-33264-012-0	02	1	1405-		●
63	INSERT; SYN,REV & 5TH IND	5-87225-014-0	03	1	1510-	●
63	INSERT; SYN,REV & 5TH IMA	5-33263-001-0	03	1	1405-		●
65	NUT; MAINSHAFT M32 IND	5-87225-041-0	01	1	1510-	●
65	NUT; MAINSHAFT M34 IMA	8-94422-071-1	01	1	1405-		●
70	GEAR; 1ST,MAINSHAFT Z=41 IND	5-87225-051-0	01	1	1510-	●
70	GEAR; 1ST,MAINSHAFT Z=45	8-97300-952-1	01	1	1405-		●
72	BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	1405-		●
80	GEAR; SPD DRIVE Z=6	8-94161-086-1	01	1	1510-	●
80	GEAR; SPD DRIVE Z=6	8-97227-220-0	01	1	1405-		●
82	SHAFT; MAIN,TRANS Z=26-24-27 IND	5-87225-063-0	01	1	1510-	●
82	SHAFT; MAIN,TRANS Z=28-34-26-27 IMA	8-97300-981-0	01	1	1405-		●
86	WASHER; THRUST,5TH T=7.80 IND	5-87225-043-0	01	1	1510-	●
86	WASHER; THRUST,5TH T=7.90 IND	5-87225-044-0	01	1	1510-	●
86	WASHER; THRUST,5TH T=8.00 IND	5-87225-045-0	01	1	1510-	●
86	WASHER; THRUST,5TH T=8.10 IND	5-87225-046-0	01	1	1510-	●
86	WASHER; THRUST,5TH T=8.20 IND	5-87225-047-0	01	1	1510-	●
86	WASHER; THRUST,5TH T=8.30 IND	5-87225-048-0	01	1	1510-	●
86	WASHER; THRUST,5TH T=7.90 WHITE IMA	8-94422-110-2	01	1	1405-		●
86	WASHER; THRUST,5TH T=8.00 YELLOW IMA	8-94422-111-2	01	1	1405-		●
86	WASHER; THRUST,5TH T=8.10 GREEN IMA	8-94422-112-2	01	1	1405-		●
86	WASHER; THRUST,5TH T=8.20 BLUE IMA	8-94422-113-2	01	1	1405-		●
87	BALL; THRUST WASHER IND	5-87225-039-0	01	1	1510-	●
87	BALL; THRUST WASHER IMA	8-94201-356-0	01	1	1405-		●
89	RING; RET,THRUST RING ID=31.8 IMA	8-94422-395-0	01	1	1405-		●
90	RING; SNAP,THRUST RING ID=37.0 IND	5-87225-090-0	01	1	1510-	●
90	RING; SNAP,THRUST RING ID=29.6 IMA	9-09180-032-0	01	1	1405-		●
91	RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2 IMA	8-94322-411-0	01	1	1405-		●
93	RING; SNAP,COUNTER FRT BRG ID=23.2 IMA	9-09180-025-0	01	1	1405-		●
95	GEAR; REV,COUNTER Z=16 IND	5-87225-027-0	01	1	1510-	●
95	GEAR; REV,COUNTER Z=19 IMA	8-94377-433-0	01	1	1405-		●
97	GEAR; 5TH,COUNTER Z=47 IND	5-87225-025-0	01	1	1510-	●
97	GEAR; 5TH,COUNTER Z=50 IMA	8-94377-434-0	01	1	1405-		●
98	BEARING; BALL,COUNTER END IND	5-87225-074-0	01	1	1510-	●
98	BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	1405-		●
99	WASHER; PL,COUNTER 5TH GEAR ID=17 IND	5-87225-087-0	01	1	1510-	●
110	RING; SNAP,COUNTER BRG T=1.10 WHITE IMA	8-94422-103-0	01	1	1405-		●
110	RING; SNAP,COUNTER BRG T=1.20 YELLOW IMA	8-94422-104-0	01	1	1405-		●
110	RING; SNAP,COUNTER BRG T=1.30 BLUE IMA	8-94422-105-0	01	1	1405-		●
110	RING; SNAP,COUNTER BRG T=1.40 PINK IMA	8-94422-106-0	01	1	1405-		●
110	RING; SNAP,COUNTER BRG T=1.50 GREEN IMA	8-94422-107-0	01	1	1405-		●
110	RING; SNAP,COUNTER BRG T=1.60 BROWN IMA	8-94422-108-0	01	1	1405-		●
132	SHAFT; REV IND	5-87225-060-0	01	1	1510-	●
132	SHAFT; REV	8-98249-849-0	01	1	1405-		●
135	GEAR; REV IDLER Z=23 IND	5-87225-026-0	01	1	1510-	●
135	GEAR; REV IDLER Z=33	8-98146-726-1	01	1	1405-		●
149	BEARING; NEEDLE,MAINSHAFT,RR NSK	8-94173-863-0	01	1	1405-		●
189	RING; SNAP,REV,GEAR T=1.20 WHITE IMA	8-94422-100-0	01	1	1405-		●
189	RING; SNAP,REV,GEAR T=1.30 YELLOW IMA	8-94422-101-0	01	1	1405-		●
189	RING; SNAP,REV,GEAR T=1.40 BLUE IMA	8-94422-102-0	01	1	1405-		●
211	BEARING; THRUST NEEDLE,1ST GEAR NSK IMA	8-94148-935-0	01	1	1405-		●
219	BEARING; BALL,CLUSTER,RR NSK IMA	8-94436-929-0	01	1	1405-		●
226	WASHER; THRUST,REV GEAR,COUNTER ID=30.0 IMA	8-94223-069-1	01	1	1405-		●
238	INSERT IMA	8-94448-202-2	03	1	1405-		●
246	BEARING; ROLLER,COUNTER SHAFT FRT NSK IMA	8-97029-600-4	01	1	1405-		●
292	RING; SNAP,BRG OUTER NSK IMA	8-94422-081-0	01	1	1405-		●
306	RING; SNAP,MAINSHAFT (C) T=1.50 IND	5-87225-005-0	01	1	1510-	●
306	RING; SNAP,MAINSHAFT (C) T=1.55 IND	5-87225-006-0	01	1	1510-	●
306	RING; SNAP,MAINSHAFT (C) T=1.60 IND	5-87225-007-0	01	1	1510-	●
306	RING; SNAP,MAINSHAFT (C) T=1.65 IND	5-87225-008-0	01	1	1510-	●
306	RING; SNAP,MAINSHAFT (A) T=1.90 BLUE IMA	8-97129-615-0	01	1	1405-		●
306	RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW IMA	8-97129-616-0	01	1	1405-		●
306	RING; SNAP,MAINSHAFT (A) T=1.80 WHITE IMA	8-97129-617-0	01	1	1405-		●
306	RING; SNAP,MAINSHAFT (B) ID=27.9 IMA	9-09180-030-0	02	1	1405-		●
313	BEARING; NEEDLE,LOW GEAR NSK IMA	1-09811-028-1	01	1	1405-		●
314	BEARING; NEEDLE,REV GEAR NSK IMA	8-94422-064-0	01	1	1405-		●
314	BEARING; NEEDLE,REV GEAR JTEKT IMA	8-94422-065-1	01	1	1405-		●
386	PIN; REV SHAFT OD=6 L=40 IMA	9-08150-640-0	01	1	1405-		●
390	RING; SNAP,CLU HUB T=1.80 WHITE IMA	8-94422-088-2	01	1	1405-		●
390	RING; SNAP,CLU HUB T=1.85 YELLOW IMA	8-94422-089-1	01	1	1405-		●
390	RING; SNAP,CLU HUB T=1.90 BLUE IMA	8-94422-090-2	01	1	1405-		●
391	RING; INSIDE,SYN OD=95.8 IMA	8-94363-056-0	02	1	1405-		●
392	RING; OUTSIDE,SYN OD=90.0 IMA	8-98115-793-0	02	1	1405-		●
396	BEARING; NEEDLE,MAINSHAFT IND	5-87225-085-0	01	1	1510-	●
396	BEARING; NEEDLE,MAINSHAFT NSK IMA	8-98172-355-0	01	1	1405-		●
397	SPRING; INSERT,4TH & 3RD IND	5-87225-015-0	02	1	1510-	●
397	SPRING; INSERT,4TH & 3RD IMA	8-94422-075-0	02	1	1405-		●
398	GEAR; COUNTER Z=37-31-20-16 IND	5-87225-069-0	01	1	1510-	●
398	GEAR; COUNTER Z=44-32-25-19	8-97216-164-1	01	1	1405-		●
399	CLIP; SPEEDOMETER DRIVE GEAR IMA	8-94310-229-0	01	1	1405-		●
404	PLATE; THRUST IMA	8-94421-892-0	02	1	1405-		●
405	INSERT; SYN,LOW & 2ND IND	5-87225-021-0	03	1	1510-	●
405	INSERT; SYN,LOW & 2ND IMA	8-94363-062-1	03	1	1405-		●
421	RING; BLOCK,REV & 5TH Z=36 IMA	8-97071-688-0	02	1	1405-		●

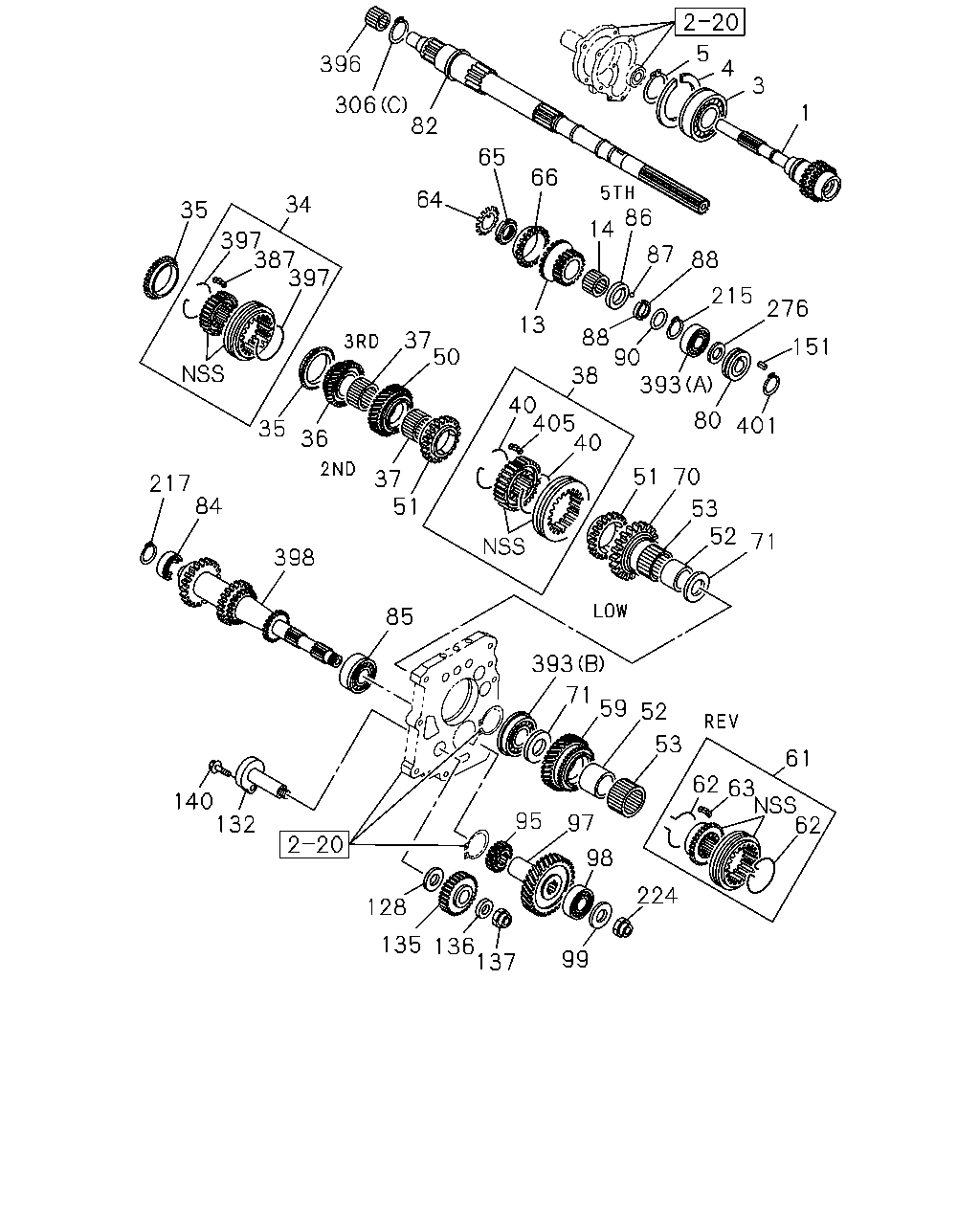

99 137 136 135 128 132 140 217 84 398 85 393 71 59 52 53 61 62 63 62 71 51 37 36 35 35 397 387 51 38 13 37 34 306 396 82 64 65 66 14 86 87 88 215 276 151 401 80 393 90 88 3 4 5 1 95 97 98 224 70 53 52 40 405 40 50 397

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=23 IND	5-87225-062-0	01	1	1510-	●
1	SHAFT; TOP GEAR,TRANS Z=26	8-98210-225-0	01	1	1405-		●
3	BEARING; TOP GEAR SHAFT IND	5-87225-034-0	01	1	1510-	●
3	BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	1405-		●
4	RING; SNAP,BRG TO TOP GEAR SHAFT IND	5-87225-040-0	01	1	1510-	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK IMA	8-94422-083-0	01	1	1405-		●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.0 IND	5-87225-090-0	01	1	1510-	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.4 IMA	8-97254-316-0	01	1	1405-		●
13	GEAR; 5TH,MAINSHAFT Z=25 IND	5-87225-030-0	01	1	1510-	●
13	GEAR; 5TH,MAINSHAFT Z=22 IMA	8-98210-227-0	01	1	1405-		●
14	BEARING; NEEDLE,5TH IND	5-87225-033-0	01	1	1510-	●
14	BEARING; NEEDLE,5TH NTN IMA	8-98172-356-0	01	1	1405-		●
34	SYNCHRONIZER; 4TH & 3RD IND	5-87225-029-0	01	1	1510-	●
34	SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	1405-		●
35	RING; BLOCK,4TH & 3RD Z=30 IND	5-87225-068-0	02	1	1510-	●
35	RING; BLOCK,4TH & 3RD Z=45 IMA	8-94151-510-3	02	1	1405-		●
36	GEAR; 3RD,MAINSHAFT Z=29 IND	5-87225-028-0	01	1	1510-	●
36	GEAR; 3RD,MAINSHAFT Z=27	8-98210-226-0	01	1	1405-		●
37	BEARING; NEEDLE,2ND & 3RD IND	5-87225-031-0	02	1	1510-	●
38	SYNCHRONIZER; LOW & 2ND IND	5-87225-059-0	01	1	1510-	●
38	SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	1405-		●
40	SPRING; INSERT,LOW & 2ND IND	5-87225-022-0	02	1	1510-	●
40	SPRING; INSERT,LOW & 2ND IMA	8-94448-045-0	02	1	1405-		●
50	GEAR; 2ND,MAINSHAFT Z=31 IND	5-87225-054-0	01	1	1510-	●
50	GEAR; 2ND,MAINSHAFT Z=34	8-97300-953-1	01	1	1405-		●
51	RING; BLOCK,LOW & 2ND Z=45 IND	5-87225-020-0	02	1	1510-	●
51	RING; BLOCK,LOW & 2ND Z=36 IMA	8-98115-804-0	02	1	1405-		●
52	COLLAR; NEEDLE BRG,LOW IND	5-87225-050-0	02	1	1510-	●
53	BEARING; NEEDLE,LOW & REV IND	5-87225-032-0	02	1	1510-	●
59	GEAR; REV MAINSHAFT Z=37 IND	5-87225-080-0	01	1	1510-	●
59	GEAR; REV MAINSHAFT Z=41 IMA	8-98210-228-0	01	1	1405-		●
61	SYNCHRONIZER; REV & 5TH IND	5-87225-013-0	01	1	1510-	●
61	SYNCHRONIZER; REV & 5TH IMA	8-97030-106-1	01	1	1405-		●
62	SPRING; INSERT,REV & 5TH IND	5-87225-015-0	02	1	1510-	●
62	SPRING; INSERT,REV & 5TH IMA	5-33264-012-0	02	1	1405-		●
63	INSERT; SYN,REV & 5TH IND	5-87225-014-0	03	1	1510-	●
63	INSERT; SYN,REV & 5TH IMA	5-33263-001-0	03	1	1405-		●
64	WASHER; LK,LOW IND	5-87225-042-0	01	1	1510-	●
65	NUT; MAINSHAFT M32 IND	5-87225-041-0	01	1	1510-	●
65	NUT; MAINSHAFT M34 IMA	8-94422-071-1	01	1	1405-		●
66	RING; BLOCK,SYN Z=30 IND	5-87225-068-0	01	1	1510-	●
70	GEAR; 1ST,MAINSHAFT Z=41 IND	5-87225-051-0	01	1	1510-	●
70	GEAR; 1ST,MAINSHAFT Z=45	8-97300-952-1	01	1	1405-		●
71	WASHER; THRUST,LOW ID=32.0 IND	5-87225-012-0	02	1	1510-	●
80	GEAR; SPD DRIVE Z=6	8-94161-086-1	01	1	1510-	●
80	GEAR; SPD DRIVE Z=6	8-97227-220-0	01	1	1405-		●
82	SHAFT; MAIN,TRANS Z=26-24-27 IND	5-87225-063-0	01	1	1510-	●
82	SHAFT; MAIN,TRANS Z=28-34-26-27 IMA	8-97300-981-0	01	1	1405-		●
84	BEARING; COUNTER SHAFT,FRT ID=20 OD=47 IND	5-87225-073-0	01	1	1510-	●
85	BEARING; ANGULAR BALL,CLUSTER ID=25 OD=52 IND	5-87225-019-0	01	1	1510-	●
86	WASHER; THRUST,5TH T=7.80 IND	5-87225-043-0	01	1	1510-	●
86	WASHER; THRUST,5TH T=7.90 IND	5-87225-044-0	01	1	1510-	●
86	WASHER; THRUST,5TH T=8.00 IND	5-87225-045-0	01	1	1510-	●
86	WASHER; THRUST,5TH T=8.10 IND	5-87225-046-0	01	1	1510-	●
86	WASHER; THRUST,5TH T=8.20 IND	5-87225-047-0	01	1	1510-	●
86	WASHER; THRUST,5TH T=8.30 IND	5-87225-048-0	01	1	1510-	●
86	WASHER; THRUST,5TH T=7.90 WHITE IMA	8-94422-110-2	01	1	1405-		●
86	WASHER; THRUST,5TH T=8.00 YELLOW IMA	8-94422-111-2	01	1	1405-		●
86	WASHER; THRUST,5TH T=8.10 GREEN IMA	8-94422-112-2	01	1	1405-		●
86	WASHER; THRUST,5TH T=8.20 BLUE IMA	8-94422-113-2	01	1	1405-		●
87	BALL; THRUST WASHER IND	5-87225-039-0	01	1	1510-	●
87	BALL; THRUST WASHER IMA	8-94201-356-0	01	1	1405-		●
88	RING; THRUST,THRUST WASHER IND	5-87225-070-0	02	1	1510-	●
90	RING; SNAP,THRUST RING ID=37.0 IND	5-87225-090-0	01	1	1510-	●
90	RING; SNAP,THRUST RING ID=29.6 IMA	9-09180-032-0	01	1	1405-		●
95	GEAR; REV,COUNTER Z=16 IND	5-87225-027-0	01	1	1510-	●
95	GEAR; REV,COUNTER Z=19 IMA	8-94377-433-0	01	1	1405-		●
97	GEAR; 5TH,COUNTER Z=47 IND	5-87225-025-0	01	1	1510-	●
97	GEAR; 5TH,COUNTER Z=50 IMA	8-94377-434-0	01	1	1405-		●
98	BEARING; BALL,COUNTER END IND	5-87225-074-0	01	1	1510-	●
98	BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	1405-		●
99	WASHER; PL,COUNTER 5TH GEAR ID=17 IND	5-87225-087-0	01	1	1510-	●
128	WASHER; THRUST,REV SHAFT ID=22.0 IND	5-87225-017-0	01	1	1510-	●
132	SHAFT; REV IND	5-87225-060-0	01	1	1510-	●
132	SHAFT; REV	8-98249-849-0	01	1	1405-		●
135	GEAR; REV IDLER Z=23 IND	5-87225-026-0	01	1	1510-	●
135	GEAR; REV IDLER Z=33	8-98146-726-1	01	1	1405-		●
136	WASHER; THRUST,REV IDLE,RR ID=16.2 IND	5-87225-016-0	01	1	1510-	●
137	NUT; REV GEAR M16 IND	5-87225-092-0	01	1	1510-	●
140	BOLT; LK PIECE M8X16 FLANGE IND	5-87225-004-0	01	1	1510-	●
151	KEY; FEATHER,SPD DRIVE GEAR IND	5-87225-086-0	01	1	1510-	●
215	RING; SNAP,BALL BRG ID=27.9 IND	5-87225-089-0	01	1	1510-	●
217	RING; SNAP,COUNTER FRT BRG ID=18.5 IND	5-87225-088-0	01	1	1510-	●
224	NUT; SELF LK,COUNTER M16 IND	5-87225-092-0	01	1	1510-	●
276	SPACER; BRG TO DRIVE GEAR IND	5-87225-024-0	01	1	1510-	●
306	RING; SNAP,MAINSHAFT (C) T=1.50 IND	5-87225-005-0	01	1	1510-	●
306	RING; SNAP,MAINSHAFT (C) T=1.55 IND	5-87225-006-0	01	1	1510-	●
306	RING; SNAP,MAINSHAFT (C) T=1.60 IND	5-87225-007-0	01	1	1510-	●
306	RING; SNAP,MAINSHAFT (C) T=1.65 IND	5-87225-008-0	01	1	1510-	●
306	RING; SNAP,MAINSHAFT (A) T=1.90 BLUE IMA	8-97129-615-0	01	1	1405-		●
306	RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW IMA	8-97129-616-0	01	1	1405-		●
306	RING; SNAP,MAINSHAFT (A) T=1.80 WHITE IMA	8-97129-617-0	01	1	1405-		●
306	RING; SNAP,MAINSHAFT (B) ID=27.9 IMA	9-09180-030-0	02	1	1405-		●
387	INSERT; SYN,4TH & 3RD IND	5-87225-093-0	03	1	1510-	●
393	BEARING; MAINSHAFT END (A) IND	5-87225-037-0	01	1	1510-	●
393	BEARING; MAINSHAFT END (B) IND	5-87225-038-0	01	1	1510-	●
396	BEARING; NEEDLE,MAINSHAFT IND	5-87225-085-0	01	1	1510-	●
396	BEARING; NEEDLE,MAINSHAFT NSK IMA	8-98172-355-0	01	1	1405-		●
397	SPRING; INSERT,4TH & 3RD IND	5-87225-015-0	02	1	1510-	●
397	SPRING; INSERT,4TH & 3RD IMA	8-94422-075-0	02	1	1405-		●
398	GEAR; COUNTER Z=37-31-20-16 IND	5-87225-069-0	01	1	1510-	●
398	GEAR; COUNTER Z=44-32-25-19	8-97216-164-1	01	1	1405-		●
399	CLIP; SPEEDOMETER DRIVE GEAR IMA	8-94310-229-0	01	1	1405-		●
401	RING; SNAP,SPD DRIVE GEAR ID=27.9 IND	5-87225-089-0	01	1	1510-	●
405	INSERT; SYN,LOW & 2ND IND	5-87225-021-0	03	1	1510-	●
405	INSERT; SYN,LOW & 2ND IMA	8-94363-062-1	03	1	1405-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
