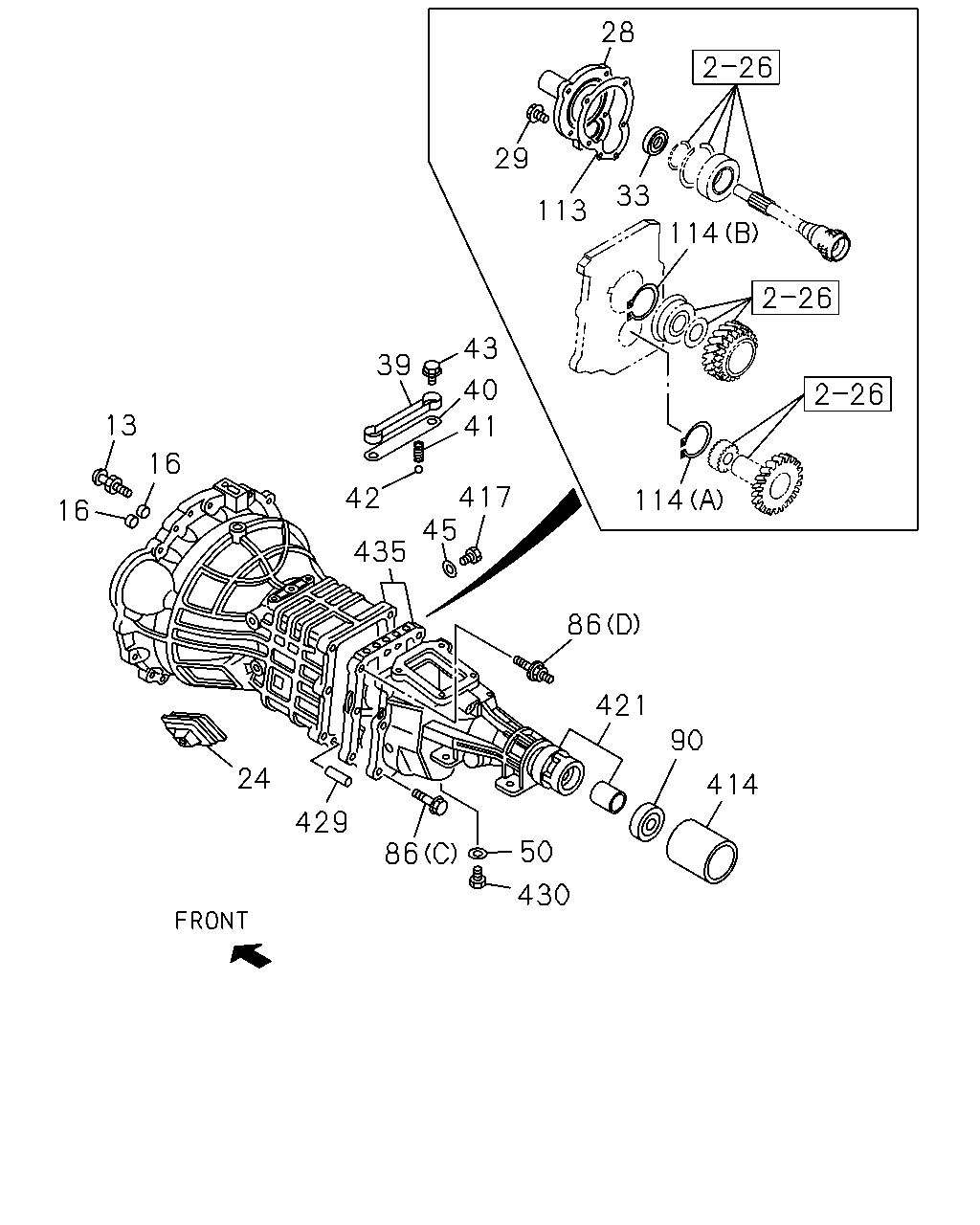

2-20 — MANUAL TRANSMISSION ASM AND CASE (#138043) — 102 parça

1 1

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

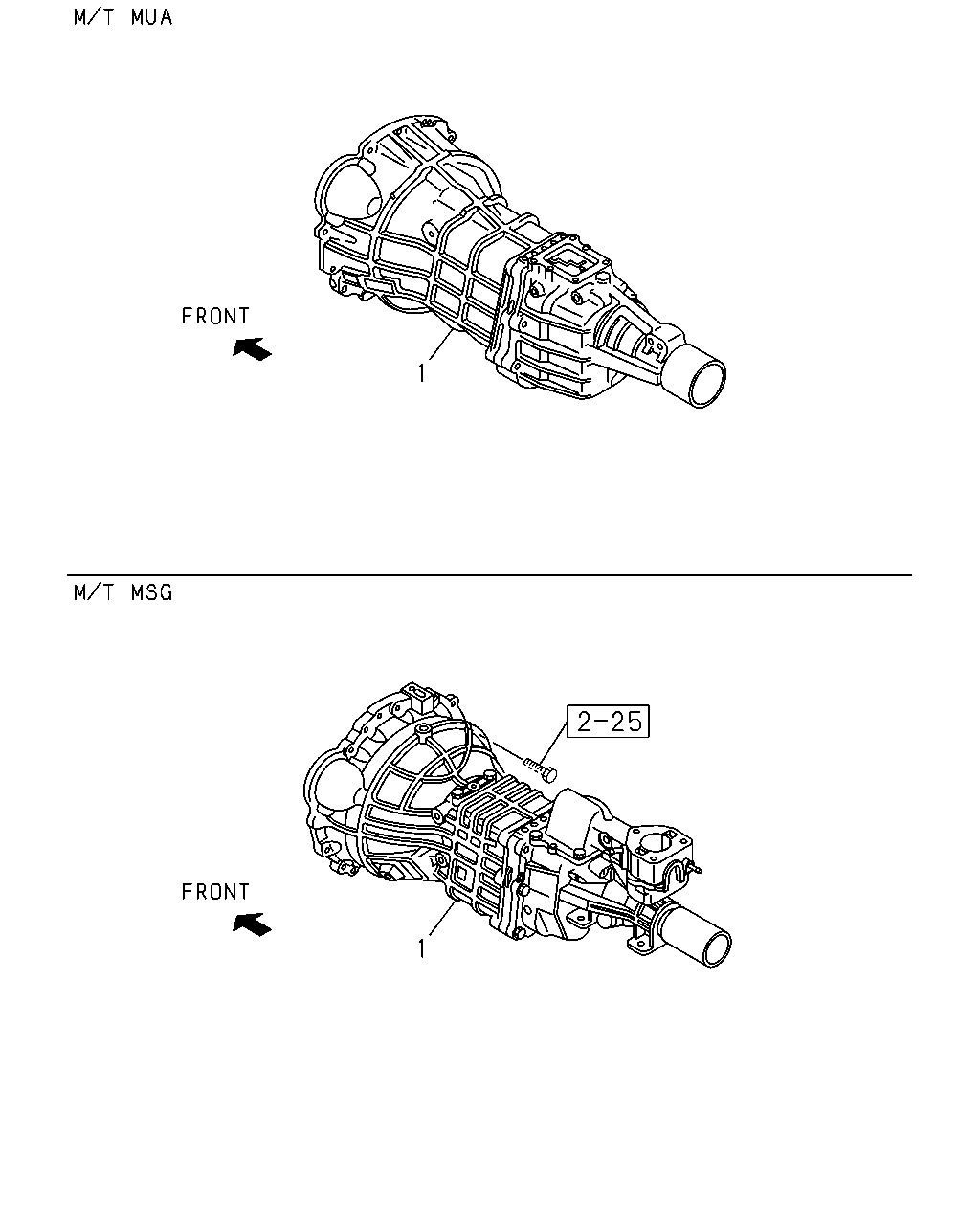

	1	TRANSMISSION ASM; MANUAL IND	8-97445-259-1	01	1	1510-	●
	1	TRANSMISSION ASM; MANUAL	8-98150-146-0	01	1	1405-		●

28 29 113 33 114 114 43 41 40 417 86 421 90 414 430 50 86 429 24 16 16 13 42 435 45 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	SUPPORT; SHIFT FORK L=47.5 IND	5-87225-075-0	01	1	1510-	●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	1405-		●
16	PLUG; SHIFT ROD IND	8-97445-416-0	02	1	1510-	●
16	PLUG; SHIFT ROD OD=14 IMA	8-97358-601-0	02	1	1405-		●
24	COVER; CHECK HOLE,DUST IND	5-87225-023-0	01	1	1510-	●
24	COVER; CHECK HOLE,DUST IMA	8-94156-700-0	01	1	1405-		●
28	COVER; FRT,TRANS CASE IND	5-87225-079-0	01	1	1510-	●
28	COVER; FRT,TRANS CASE	8-97104-676-0	01	1	1405-		●
29	BOLT; FRT COVER M8X22 FLANGE IND	5-87225-066-0	06	1	1510-	●
29	BOLT; FRT COVER M8X22 FLANGE IMA	8-97365-376-0	06	1	1405-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IND	5-87225-055-0	01	1	1510-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	1405-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	1405-		●
39	PLATE; DETENT SPR IND	5-87225-056-0	01	1	1510-	●
39	PLATE; DETENT SPR IMA	8-98035-571-0	01	1	1405-		●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). IND	5-87225-071-0	01	1	1510-	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-600-1	01	1	1405-		●
41	SPRING; DETENT BALL L=25.6 IND	5-87225-065-0	03	1	1510-	●
41	SPRING; DETENT BALL L=26.8 IMA	8-94320-193-0	03	1	1405-		●
42	BALL; DETENT,GEAR SHIFT IND	5-87225-064-0	03	1	1510-	●
42	BALL; DETENT,GEAR SHIFT IMA	8-94435-335-0	03	1	1405-		●
43	BOLT; PLATE TO PLATE M8X16 FLANGE IND	5-87225-004-0	02	1	1510-	●
43	BOLT; PLATE TO PLATE M8X22 FLANGE IMA	8-97365-376-0	02	1	1405-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IND	5-87225-078-0	01	1	1510-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1405-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IND	5-87225-078-0	01	1	1510-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1405-		●
86	BOLT; RR COVER (C) M10X55 FLANGE IND	5-87225-072-0	06	1	1510-	●
86	BOLT; RR COVER (D) M10X18 M10X55 L=86.8 IND	5-87225-084-0	02	1	1510-	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	05	1	1405-		●
86	BOLT; RR COVER (A) M10X55 FLANGE IMA	8-98035-672-0	03	1	1405-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IND	5-87225-058-0	01	1	1510-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-705-3	01	1	1405-		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). IND	5-87225-077-0	01	1	1510-	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-589-0	01	1	1405-		●
114	RING; SNAP,BALL BRG (A) ID=49.6 IND	5-87225-009-0	01	1	1510-	●
114	RING; SNAP,BALL BRG (B) ID=71.7 IND	5-87225-010-0	01	1	1510-	●
414	COVER; DUST,RR COVER IND	5-87225-052-0	01	1	1510-	●
414	COVER; DUST,RR COVER IMA	8-98027-802-0	01	1	1405-		●
417	PLUG; OIL FILLER,TRANS IND	5-87225-053-0	01	1	1510-	●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	1405-		●
421	COVER; RR,TRANS IND	5-87225-076-0	01	1	1510-	●
421	COVER; RR,TRANS	8-98191-921-0	01	1	1405-		●
429	PIN; STRAIGHT IND	8-97445-415-0	02	1	1510-	●
429	PIN; STRAIGHT OD=10 L=40 IMA	5-09740-018-1	02	1	1405-		●
430	PLUG; OIL DRAIN IND	5-87225-091-0	01	1	1510-	●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	1405-		●
435	CASE; TRANS IND	8-97445-412-0	01	1	1510-	●
435	CASE; TRANS	8-98162-753-0	01	1	1405-		●

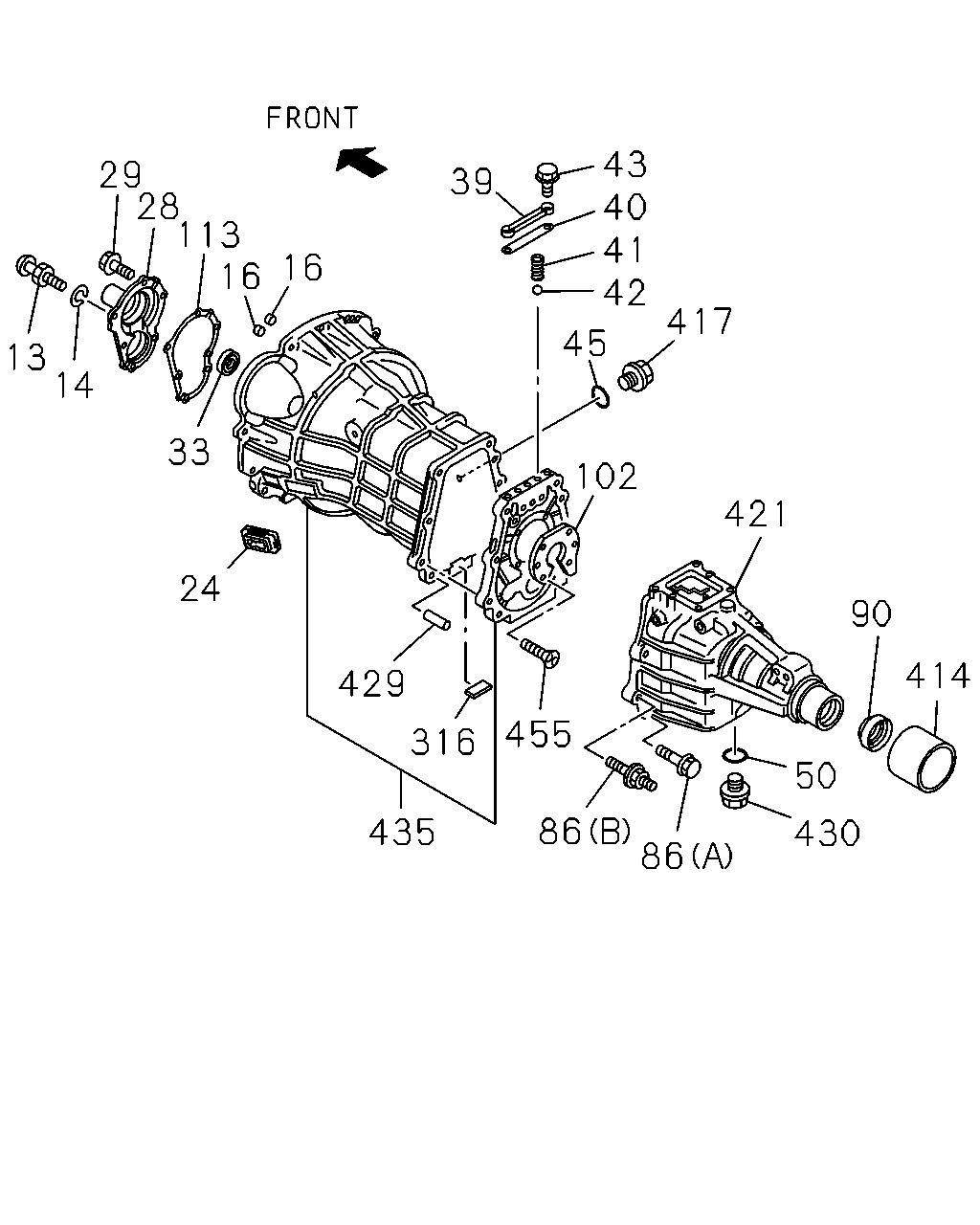

417 421 90 430 414 50 86 86 455 316 435 429 102 45 42 41 40 43 39 16 16 113 28 29 33 24 14 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	SUPPORT; SHIFT FORK L=47.5 IND	5-87225-075-0	01	1	1510-	●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	1405-		●
14	WASHER; LK,SUPPORT ID=12.2 IMA	0-91510-512-0	01	1	1405-		●
16	PLUG; SHIFT ROD IND	8-97445-416-0	02	1	1510-	●
16	PLUG; SHIFT ROD OD=14 IMA	8-97358-601-0	02	1	1405-		●
24	COVER; CHECK HOLE,DUST IND	5-87225-023-0	01	1	1510-	●
24	COVER; CHECK HOLE,DUST IMA	8-94156-700-0	01	1	1405-		●
28	COVER; FRT,TRANS CASE IND	5-87225-079-0	01	1	1510-	●
28	COVER; FRT,TRANS CASE	8-97104-676-0	01	1	1405-		●
29	BOLT; FRT COVER M8X22 FLANGE IND	5-87225-066-0	06	1	1510-	●
29	BOLT; FRT COVER M8X22 FLANGE IMA	8-97365-376-0	06	1	1405-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IND	5-87225-055-0	01	1	1510-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	1405-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	1405-		●
39	PLATE; DETENT SPR IND	5-87225-056-0	01	1	1510-	●
39	PLATE; DETENT SPR IMA	8-98035-571-0	01	1	1405-		●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). IND	5-87225-071-0	01	1	1510-	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-600-1	01	1	1405-		●
41	SPRING; DETENT BALL L=25.6 IND	5-87225-065-0	03	1	1510-	●
41	SPRING; DETENT BALL L=26.8 IMA	8-94320-193-0	03	1	1405-		●
42	BALL; DETENT,GEAR SHIFT IND	5-87225-064-0	03	1	1510-	●
42	BALL; DETENT,GEAR SHIFT IMA	8-94435-335-0	03	1	1405-		●
43	BOLT; PLATE TO PLATE M8X16 FLANGE IND	5-87225-004-0	02	1	1510-	●
43	BOLT; PLATE TO PLATE M8X22 FLANGE IMA	8-97365-376-0	02	1	1405-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IND	5-87225-078-0	01	1	1510-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1405-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IND	5-87225-078-0	01	1	1510-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1405-		●
86	BOLT; RR COVER (C) M10X55 FLANGE IND	5-87225-072-0	06	1	1510-	●
86	BOLT; RR COVER (D) M10X18 M10X55 L=86.8 IND	5-87225-084-0	02	1	1510-	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	05	1	1405-		●
86	BOLT; RR COVER (A) M10X55 FLANGE IMA	8-98035-672-0	03	1	1405-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IND	5-87225-058-0	01	1	1510-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-705-3	01	1	1405-		●
102	RETAINER; BRG UPR,MAINSHAFT IMA	8-97138-673-0	01	1	1405-		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). IND	5-87225-077-0	01	1	1510-	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-589-0	01	1	1405-		●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	1405-		●
414	COVER; DUST,RR COVER IND	5-87225-052-0	01	1	1510-	●
414	COVER; DUST,RR COVER IMA	8-98027-802-0	01	1	1405-		●
417	PLUG; OIL FILLER,TRANS IND	5-87225-053-0	01	1	1510-	●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	1405-		●
421	COVER; RR,TRANS IND	5-87225-076-0	01	1	1510-	●
421	COVER; RR,TRANS	8-98191-921-0	01	1	1405-		●
429	PIN; STRAIGHT IND	8-97445-415-0	02	1	1510-	●
429	PIN; STRAIGHT OD=10 L=40 IMA	5-09740-018-1	02	1	1405-		●
430	PLUG; OIL DRAIN IND	5-87225-091-0	01	1	1510-	●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	1405-		●
435	CASE; TRANS IND	8-97445-412-0	01	1	1510-	●
435	CASE; TRANS	8-98162-753-0	01	1	1405-		●
455	SCREW; BRG RET M8X22 IMA	8-98035-654-0	04	1	1405-		●
