2-08 — CLUTCH MASTER CYLINDER (#138041) — 22 parça

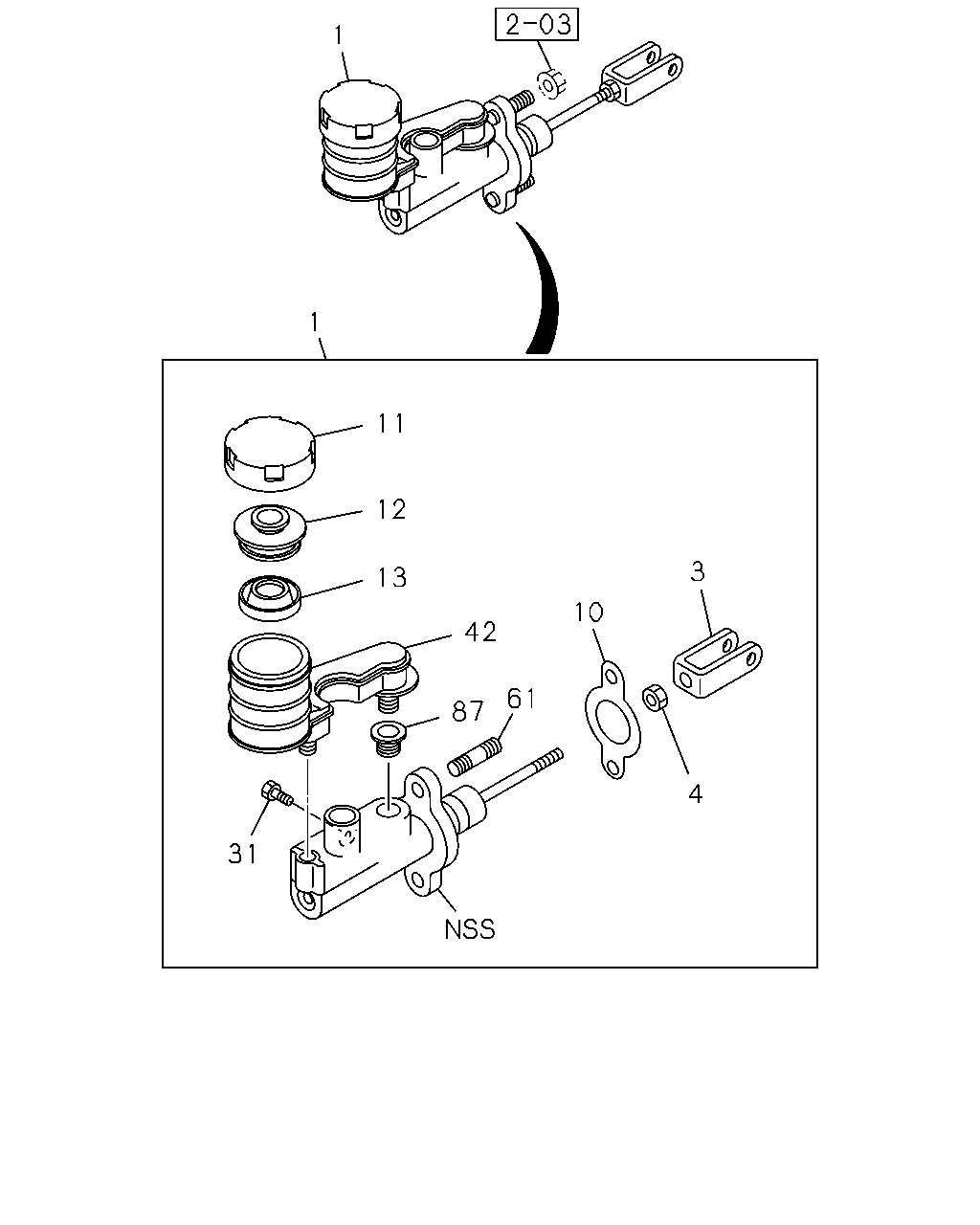

çizim 417186
1 1 11 12 13 42 87 61 10 3 31 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER 8-97945-438-0 01 1 1510- ●
1 CYLINDER ASM; CLUTCH MASTER 8-97944-509-1 01 1 1405- ●
3 JOINT; JAW,CLU M/CYL
IMA 		8-97945-449-0 01 1 1405-1509 ●
3 JOINT; JAW,CLU M/CYL
IMA 		8-97945-449-0 01 1 1510- ● ●
4 NUT; JAW JOINT
M8 IMA 		0-91111-508-0 01 1 1405-1509 ●
4 NUT; JAW JOINT
M8 IMA 		0-91111-508-0 01 1 1510- ● ●
10 GASKET; CLU M/CYL
IMA 		8-97184-654-0 01 1 1405-1509 ●
10 GASKET; CLU M/CYL
IMA 		8-97184-654-0 01 1 1510- ● ●
11 CAP; OUTER,CLU M/CYL 8-97942-836-0 01 1 1405-1509 ●
11 CAP; OUTER,CLU M/CYL 8-97942-836-0 01 1 1510- ● ●
12 CAP; INNER,OIL TANK,CLU M/CYL 8-94412-206-0 01 1 1405-1509 ●
12 CAP; INNER,OIL TANK,CLU M/CYL 8-94412-206-0 01 1 1510- ● ●
13 GASKET; OIL TANK 8-94412-205-0 01 1 1405-1509 ●
13 GASKET; OIL TANK 8-94412-205-0 01 1 1510- ● ●
31 BOLT; JOINT,CLU M/CYL 8-97945-452-0 01 1 1405-1509 ●
31 BOLT; JOINT,CLU M/CYL 8-97945-452-0 01 1 1510- ● ●
42 TANK; OIL,CLU 8-97942-835-0 01 1 1510- ●
42 TANK; OIL,CLU 8-97945-451-0 01 1 1405- ●
61 BOLT; STUD
IMA 		8-97945-450-0 02 1 1405-1509 ●
61 BOLT; STUD
IMA 		8-97945-450-0 02 1 1510- ● ●
87 GROMMET; CLU M/CYL 8-97942-834-0 01 1 1405-1509 ●
87 GROMMET; CLU M/CYL 8-97942-834-0 01 1 1510- ● ●
