◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06 - CLUTCH SLAVE CYLINDER ▶
2-06 — CLUTCH SLAVE CYLINDER (#138040) — 12 parça

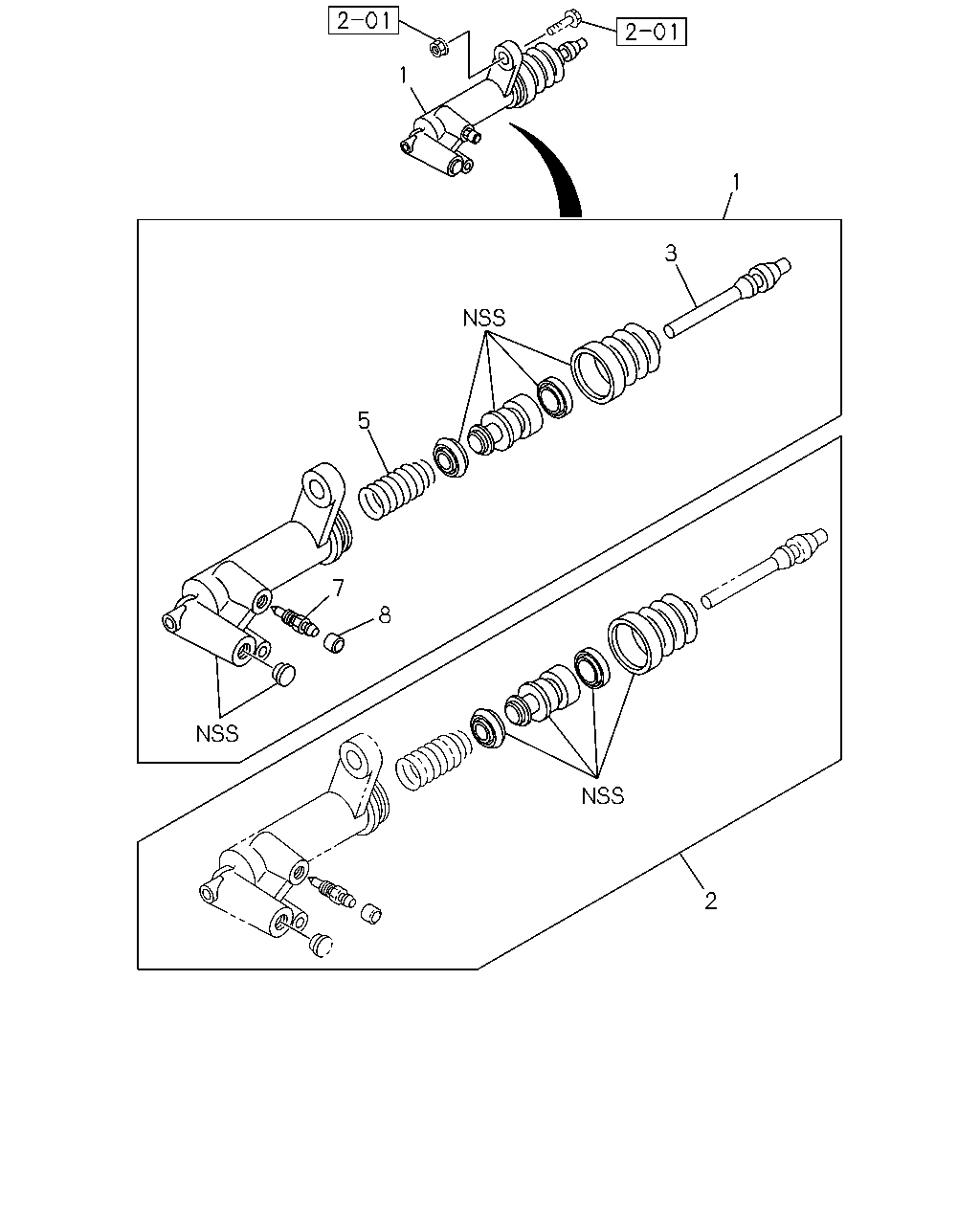

çizim 417264
1 1 3 5 7 8 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER; SLAVE,CLU 8-97942-296-0 01 1 1510- ●
1 CYLINDER; SLAVE,CLU
IMA 		8-97945-177-0 01 1 1405- ●
2 REPAIR KIT; CLU SLAVE CYL 5-87832-049-0 01 1 1510- ●
2 REPAIR KIT; CLU SLAVE CYL 5-87832-048-0 01 1 1405- ●
3 ROD; PUSH,SLAVE CYL 8-97942-803-0 01 1 1510- ●
3 ROD; PUSH,SLAVE CYL
IMA 		8-97945-722-0 01 1 1405- ●
5 SPRING ASM; PISTON,SLAVE CYL 8-97942-802-0 01 1 1510- ●
5 SPRING ASM; PISTON,SLAVE CYL
IMA 		8-97942-801-0 01 1 1405- ●
7 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 1510- ●
7 SCREW; BLEEDER,SLAVE CYL
M8X10 IMA 		8-98020-477-0 01 1 1405- ●
8 CAP; BLEEDER,SLAVE CYL
OD=10 IMA 		8-97940-638-0 01 1 1405-1509 ●
8 CAP; BLEEDER,SLAVE CYL
OD=10 IMA 		8-97940-638-0 01 1 1510- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
