◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11129 - FVM(THAI)EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#13804) — 181 parça

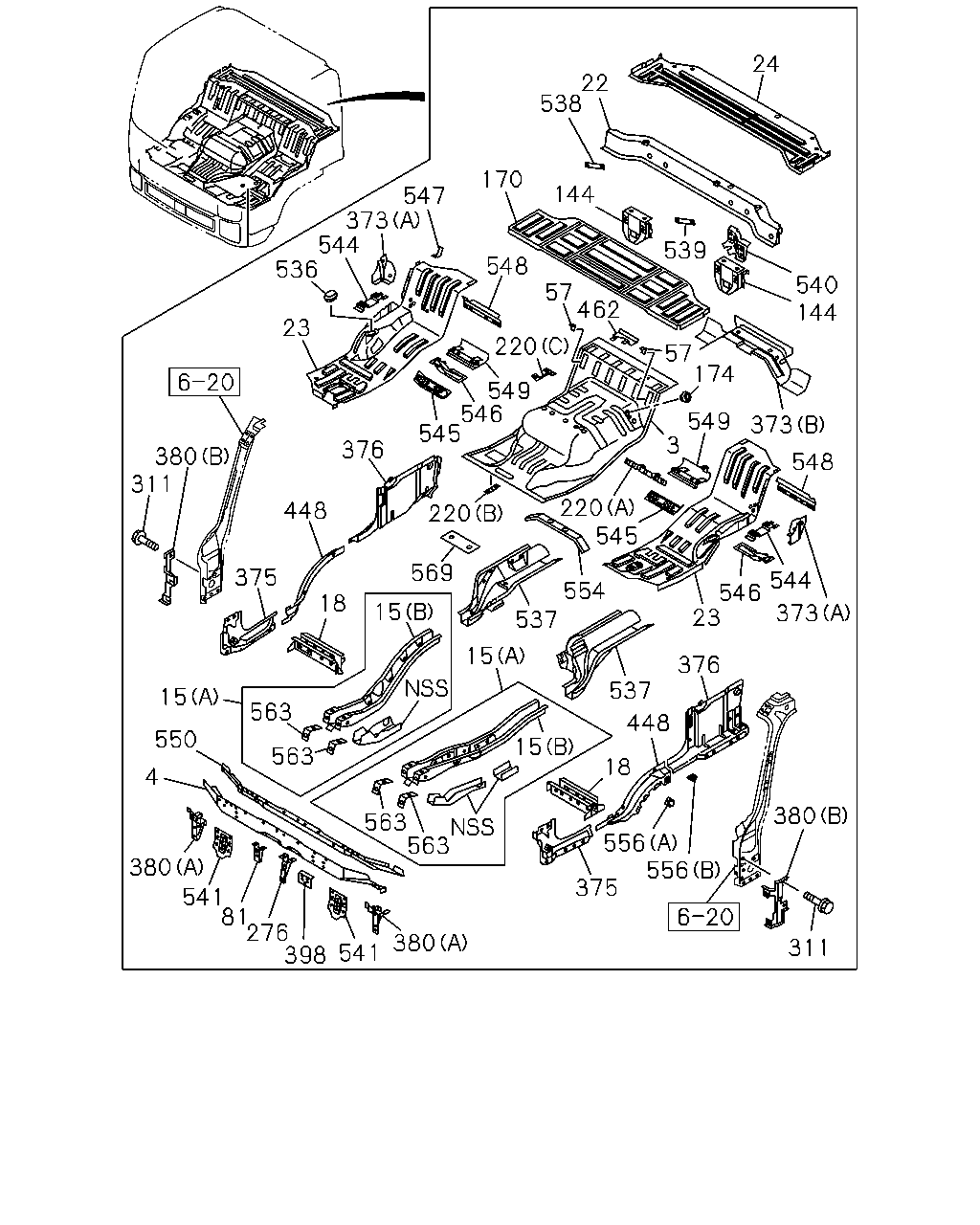

çizim 106961
24 22 538 170 144 547 373 544 536 539 548 540 144 57 462 23 220 57 174 549 546 545 549 3 373 376 380 311 548 220 545 448 220 569 375 544 546 23 554 537 18 15 373 15 376 537 15 563 448 550 563 15 18 4 563 563 380 556 556 380 375 541 81 276 398 380 311 541
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG
THA 		8-98167-035-0 01 1 1403-
3 HOOD ASM; ENG 8-97584-343-9 01 1 0807-1203
3 HOOD ASM; ENG 8-97584-343-9 01 1 1204-1211
3 HOOD ASM; ENG
THA 		8-98167-035-0 01 1 1212-1402
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1403-
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1212-1402
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 0807-1211
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1403-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1403-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1403-
15 FRAME; UNDER
(B) THA 		8-97584-412-6 01 1 1403-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1212-1402
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1212-1402
15 FRAME; UNDER
(B) THA 		8-97584-412-6 01 1 1212-1402
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 0807-1211
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 0807-1402
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 0807-1211
15 FRAME; UNDER
(B) THA 		8-97584-412-6 01 1 0807-1211
18 FRAME; FLOOR,CENTER SIDE 8-97584-398-4 01 1 1403-
18 FRAME; FLOOR,CENTER SIDE 8-97584-421-4 01 1 1403-
18 FRAME; FLOOR,CENTER SIDE 8-97584-398-4 01 1 1212-1402
18 FRAME; FLOOR,CENTER SIDE 8-97584-421-4 01 1 1212-1402
18 FRAME; FLOOR,CENTER SIDE 8-97584-398-4 01 1 0807-1211
18 FRAME; FLOOR,CENTER SIDE 8-97584-421-4 01 1 0807-1211
22 FRAME; FLOOR REAR
THA 		8-97584-431-5 01 1 1403-
22 FRAME; FLOOR REAR
THA 		8-97584-431-5 01 1 1212-1402
22 FRAME; FLOOR REAR
THA 		8-97584-431-5 01 1 0807-1211
23 PANEL; FLOOR,SIDE
THA 		8-97584-372-7 01 1 1403-
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 1403-
23 PANEL; FLOOR,SIDE
THA 		8-97584-372-7 01 1 1212-1402
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 1212-1402
23 PANEL; FLOOR,SIDE
THA 		8-97584-372-7 01 1 0807-1211
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 0807-1211
24 PANEL; BED PAN 8-97584-378-6 01 1 1403-
24 PANEL; BED PAN 8-97584-378-6 01 1 1212-1402
24 PANEL; BED PAN 8-97584-378-6 01 1 0807-1211
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1403-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1212-1402
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 0807-1211
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1403-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1212-1402
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0807-1211
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1403-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1403-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1212-1402
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1212-1402
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0807-1211
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0807-1211
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1403-
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1212-1402
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 0807-1211
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 0807-1107
174 GROMMET; AIR PIPE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> OD=35 		8-94122-971-0 01 1 1108-1112
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1108-1112
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1201-
220 PATCH
(A) THA 		8-97588-840-4 01 1 1403-
220 PATCH
(B) THA 		8-97589-603-3 01 1 1403-
220 PATCH
(A) THA 		8-97588-840-4 01 1 1212-1402
220 PATCH
(B) THA 		8-97589-603-3 01 1 1212-1402
220 PATCH
(C) 		8-97589-627-2 01 1 1212-1306
220 PATCH
(A) THA 		8-97588-840-4 01 1 0807-1211
220 PATCH
(B) THA 		8-97589-603-3 01 1 0807-1211
220 PATCH
(C) 		8-97589-627-2 01 1 0807-1211
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1403-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1212-1402
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 0807-1211
311 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 04 1 0807-
373 REINFORCEMENT; SEAT BELT
(B) THA 		8-97584-345-9 01 1 1404-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1404-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1404-
373 REINFORCEMENT; SEAT BELT
(B) THA 		8-97584-345-9 01 1 1212-1402
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1212-1402
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1212-1402
373 REINFORCEMENT; SEAT BELT
(B) THA 		8-97584-345-9 01 1 0807-1211
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 0807-1211
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 0807-1211
375 CLOSING; PILLAR 8-98044-897-3 01 1 1403-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1403-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1212-1402
375 CLOSING; PILLAR 8-98044-898-3 01 1 1212-1402
375 CLOSING; PILLAR 8-98044-897-3 01 1 0807-1211
375 CLOSING; PILLAR 8-98044-898-3 01 1 0807-1211
376 CLOSING; PILLAR,LWR
THA 		8-97589-556-5 01 1 1403-
376 CLOSING; PILLAR,LWR
THA 		8-98199-228-0 01 1 1403-
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1212-1402
376 CLOSING; PILLAR,LWR 8-97589-556-4 01 1 1212-1402
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 0807-1211
376 CLOSING; PILLAR,LWR 8-97589-556-4 01 1 0807-1211
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-053-0 01 1 1103-1211
380 BRACKET; HEAD LAMP
WHEEL BASE 6300MM<63W> 6HK1-TCS ENG<80L> P90 PROP SHAFT<C5T> (A) THA 		8-97924-053-0 01 1 1212-1402
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-053-0 01 1 1403-1403
380 BRACKET; HEAD LAMP
WHEEL BASE 6300MM<63W> 6HK1-TCS ENG<80L> P90 PROP SHAFT<C5T> (A) THA 		8-97924-053-0 01 1 1404-
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-054-0 01 1 1103-1211
380 BRACKET; HEAD LAMP
WHEEL BASE 6300MM<63W> 6HK1-TCS ENG<80L> P90 PROP SHAFT<C5T> (A) THA 		8-97924-054-0 01 1 1212-1402
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-054-0 01 1 1403-1403
380 BRACKET; HEAD LAMP
WHEEL BASE 6300MM<63W> 6HK1-TCS ENG<80L> P90 PROP SHAFT<C5T> (A) THA 		8-97924-054-0 01 1 1404-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1103-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1103-
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-053-0 01 1 0807-1102
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-054-0 01 1 0807-1102
398 BRACKET; PIPE SUPPORT
THA 		8-97948-272-0 01 1 1306-1306
398 BRACKET; PIPE SUPPORT
WHEEL BASE 6300MM<63W> 6HK1-TCS ENG<80L> P90 PROP SHAFT<C5T> THA 		8-97948-272-0 01 1 1307-1402
398 BRACKET; PIPE SUPPORT
THA 		8-97948-272-0 01 1 1403-1403
398 BRACKET; PIPE SUPPORT
WHEEL BASE 6300MM<63W> 6HK1-TCS ENG<80L> P90 PROP SHAFT<C5T> THA 		8-97948-272-0 01 1 1404-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0807-1211
398 BRACKET; PIPE SUPPORT
WHEEL BASE 6300MM<63W> 6HK1-TCS ENG<80L> P90 PROP SHAFT<C5T> 		8-97589-681-3 01 1 1212-1305
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1306-1306
448 CLOSING; ROCKER 8-97589-551-2 01 1 1403-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1403-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1212-1402
448 CLOSING; ROCKER 8-97589-552-2 01 1 1212-1402
448 CLOSING; ROCKER 8-97589-551-2 01 1 0807-1211
448 CLOSING; ROCKER 8-97589-552-2 01 1 0807-1211
462 BRACKET; EXTINGUISHER 8-97585-688-1 01 1 0807-1004
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0807-
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1403-
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1403-
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1212-1402
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1212-1402
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 0807-1211
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 0807-1211
538 REINFORCEMENT ASM; AIR INT DUCT
THA 		8-97610-207-2 01 1 1403-
538 REINFORCEMENT ASM; AIR INT DUCT
THA 		8-97610-207-2 01 1 1212-1402
538 REINFORCEMENT ASM; AIR INT DUCT
THA 		8-97610-207-2 01 1 0807-1211
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1403-
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1212-1402
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 0807-1211
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1403-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1212-1402
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 0807-1211
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1403-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1212-1402
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 0807-1211
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1404-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1404-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1212-1402
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1212-1402
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0807-1211
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0807-1211
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1403-
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1403-
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1212-1402
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1212-1402
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 0807-1211
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 0807-1211
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1403-
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1212-1402
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 0807-1211
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1403-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1212-1402
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 0807-1211
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1403-
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1403-
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1212-1402
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1212-1402
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 0807-1211
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 0807-1211
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1403-
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1403-
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1212-1402
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1212-1402
549 BRACKET; SEAT RR 8-97588-958-4 01 1 0807-1211
549 BRACKET; SEAT RR 8-97589-557-4 01 1 0807-1211
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1403-
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1403-1403
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 0807-1211
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1403-
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1212-1402
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 0807-1211
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 1403-
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 1403-
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 1212-1402
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 1212-1402
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 0807-1211
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 0807-1211
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1403-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1212-1402
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0807-1211
569 REINFORCEMENT; FRT,ENG HOOD
THA 		8-98108-359-1 01 1 1403-
569 REINFORCEMENT; FRT,ENG HOOD
THA 		8-98108-359-1 01 1 1212-1402
569 REINFORCEMENT; FRT,ENG HOOD
THA 		8-98108-359-1 01 1 0807-1211
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
