Isuzu WW
▶
PICKUP
▶
TFR
▶
51516 - TFR(INDIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-05 - CLUTCH PIPING
▶

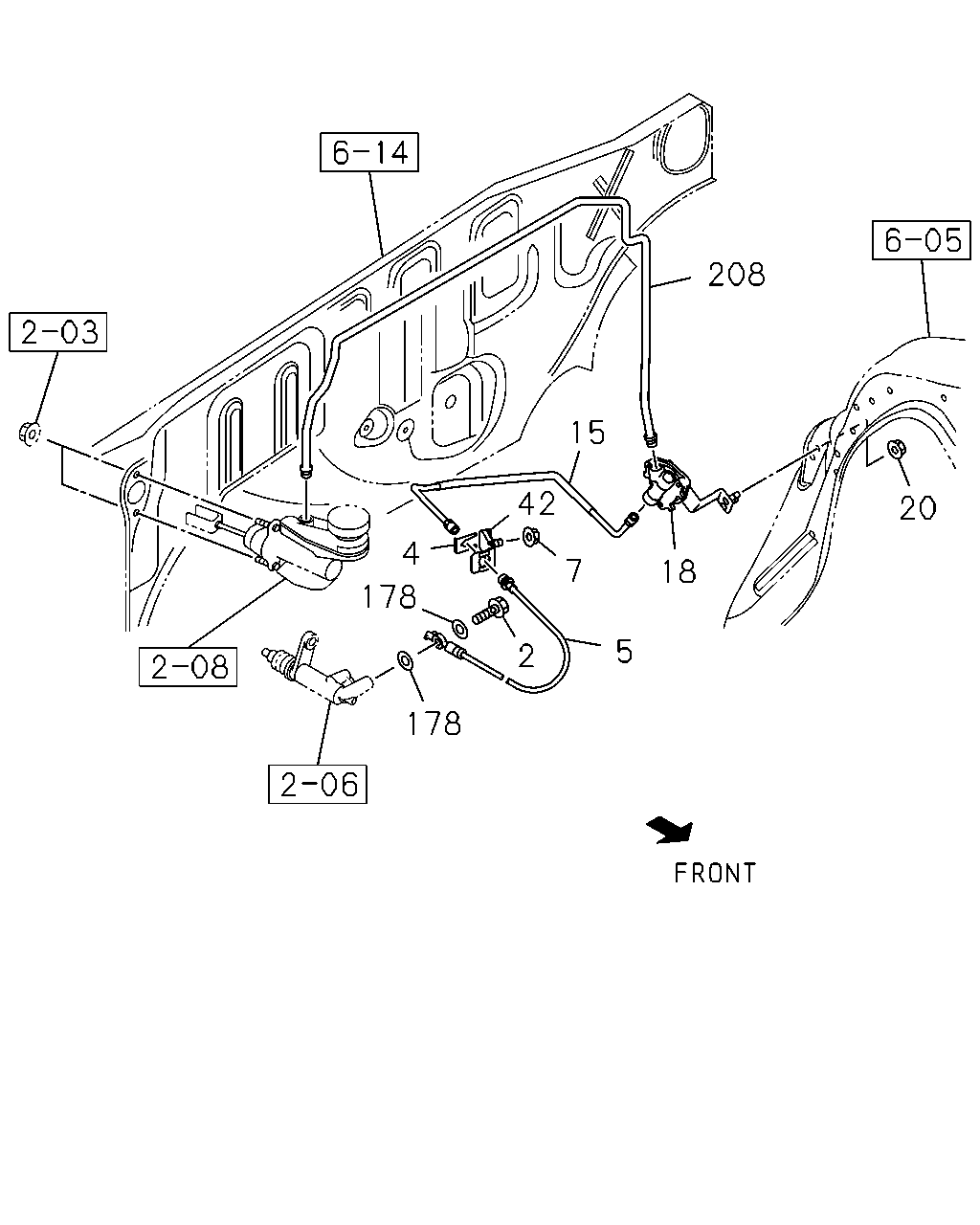

2-05 — CLUTCH PIPING
(#138039) — 20 parça
Tümü
A - M/T MUA 5 SPEED 5H
B - M/T MSG 5 SPEED
4
178
178
2
5
7
42
15
18
20
208
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
BOLT; EYE,SLAVE CYL
M10X22
5-09675-017-0
01
1
1405-1509
●
2
BOLT; EYE,SLAVE CYL
M10X22
5-09675-017-0
01
1
1510-
●
●
4
CLIP; FLEX HOSE,CLU CONT
8-97946-552-0
01
1
1405-1509
●
4
CLIP; FLEX HOSE,CLU CONT
8-97946-552-0
01
1
1510-
●
●
5
HOSE; FLEX,CLU PIPE
8-97942-498-0
01
1
1510-
●
5
HOSE; FLEX,CLU PIPE
8-97945-178-0
01
1
1405-
●
7
NUT; FLEX HOSE,CLU CONT
M8 FLANGE IMA
0-91180-108-0
01
1
1405-1509
●
7
NUT; FLEX HOSE,CLU CONT
M8 FLANGE IMA
0-91180-108-0
01
1
1510-
●
●
15
PIPE; CLU,FLEX HOSE
8-97944-803-0
01
1
1510-
●
15
PIPE; CLU,FLEX HOSE
8-97944-805-0
01
1
1405-
●
18
DAMPER ASM; CLU OIL
8-97945-174-0
01
1
1405-1509
●
18
DAMPER ASM; CLU OIL
8-97945-174-0
01
1
1510-
●
●
20
NUT; CLU OIL DAMPER
M6 FLANGE IMA
0-91180-106-0
02
1
1405-1509
●
20
NUT; CLU OIL DAMPER
M6 FLANGE IMA
0-91180-106-0
02
1
1510-
●
●
42
BRACKET; FLEX HOSE,CLU CONT
8-97943-835-0
01
1
1405-1509
●
42
BRACKET; FLEX HOSE,CLU CONT
8-97943-835-0
01
1
1510-
●
●
178
GASKET; FLEX HOSE TO M/CYL
ID=10.2 OD=16.0 IMA
9-09571-410-0
02
1
1405-1509
●
178
GASKET; FLEX HOSE TO M/CYL
ID=10.2 OD=16.0 IMA
9-09571-410-0
02
1
1510-
●
●
208
PIPE; OIL,M/CYL TO DAMPER CYL
8-97944-795-0
01
1
1405-1509
●
208
PIPE; OIL,M/CYL TO DAMPER CYL
8-97944-795-0
01
1
1510-
●
●
