Isuzu WW
▶
PICKUP
▶
TFR
▶
51516 - TFR(INDIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

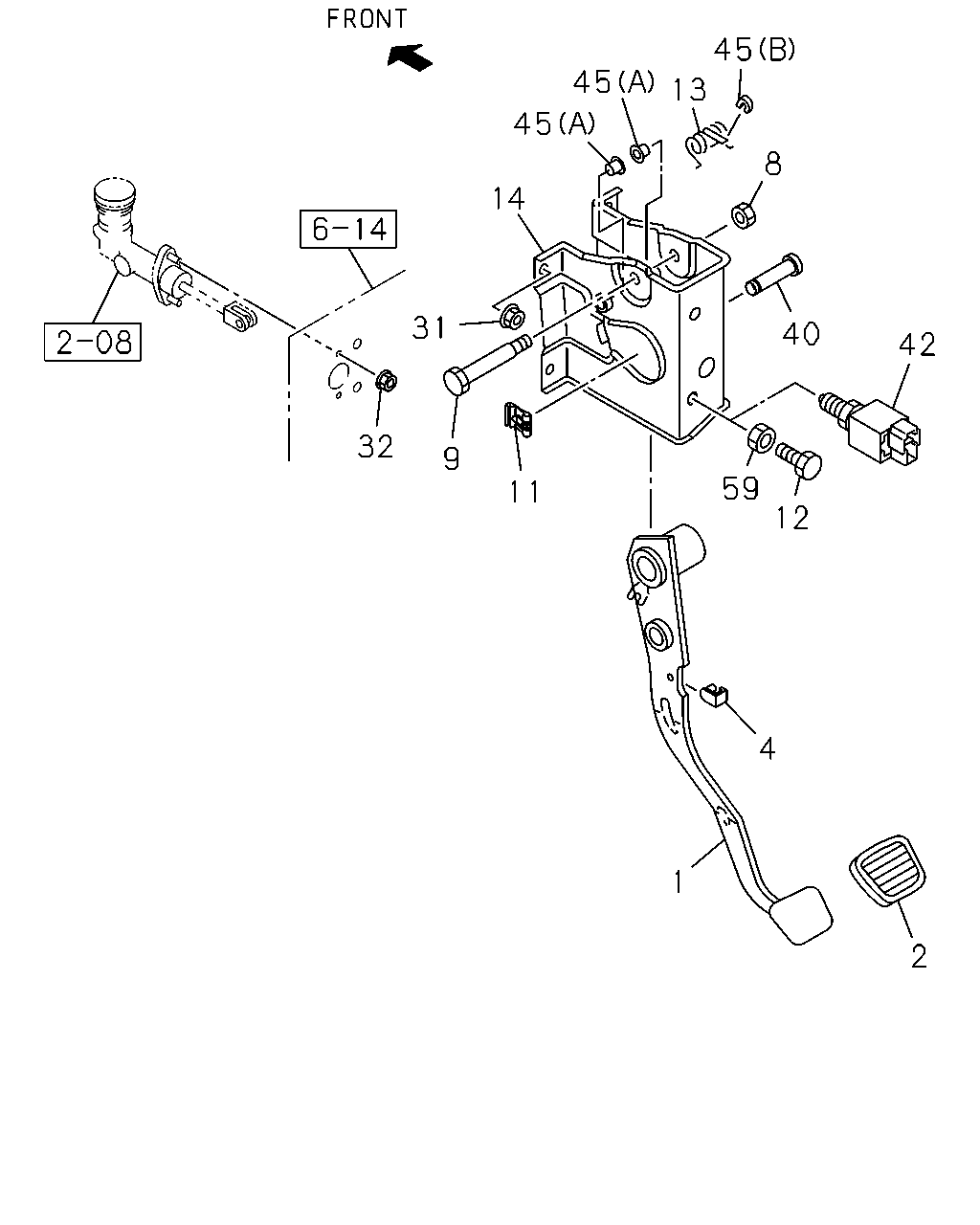

2-03 — CLUTCH PEDAL AND CONTROL
(#138038) — 18 parça
Tümü
A - TFB5CF
B - TFB5SF
C - TFB5WF
32
31
11
9
14
45
45
45
13
8
40
59
42
12
4
2
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
PEDAL; CLU
8-97942-311-0
01
1
1405-
●
●
●
2
COVER; CLU PEDAL
IMA
8-97318-799-0
01
1
1405-
●
●
●
4
STOPPER; CLU PEDAL
8-94463-258-0
01
1
1405-
●
●
●
8
NUT; PIN TO PEDAL
M10 LOCK NUT FLANGE
0-91380-010-0
01
1
1405-
●
●
●
9
PIN; CLU PEDAL
8-97942-315-0
01
1
1405-
●
●
●
11
PIN; SNAP,PUSH ROD TO PEDAL
IMA
8-98007-161-0
01
1
1405-
●
●
●
12
BOLT; CLU PEDAL ADJ
M10X35 FLANGE
0-28651-035-0
01
1
1405-1509
●
●
●
12
BOLT; CLU PEDAL ADJ
4JK1-TCX ENG(LR0) M10X35 FLANGE
0-28651-035-0
01
1
1510-
●
●
●
13
SPRING; ASSIST,CLU PEDAL
IMA
8-97942-312-0
01
1
1405-
●
●
●
14
BRACKET ASM; CLU PEDAL MTG
8-97942-310-0
01
1
1405-
●
●
●
31
NUT; MTG BRKT TO BODY
M8 FLANGE IMA
0-91180-108-0
04
1
1405-
●
●
●
32
NUT; BRKT TO CLU M/CYL
M8 FLANGE IMA
0-91180-108-0
02
1
1405-
●
●
●
40
PIN; JOINT,CLU DAMPER
OD=7.9 L=27.5 IMA
8-97312-338-0
01
1
1405-
●
●
●
42
SWITCH; CLU
4JA1-TC ENG(L4Z)
8-97358-315-0
01
1
1510-
●
●
●
45
BUSHING; ASSIST SPRING,CLU PEDAL
(A) IMA
8-97942-313-0
02
1
1405-
●
●
●
45
BUSHING; ASSIST SPRING,CLU PEDAL
(B) IMA
8-97942-314-0
01
1
1405-
●
●
●
59
NUT; CLU PEDAL ADJ
M10
0-91110-510-0
01
1
1405-1509
●
●
●
59
NUT; CLU PEDAL ADJ
4JK1-TCX ENG(LR0) M10
0-91110-510-0
01
1
1510-
●
●
●
