1-50 — EXHAUST PIPE AND SILENCER (#138036) — 38 parça

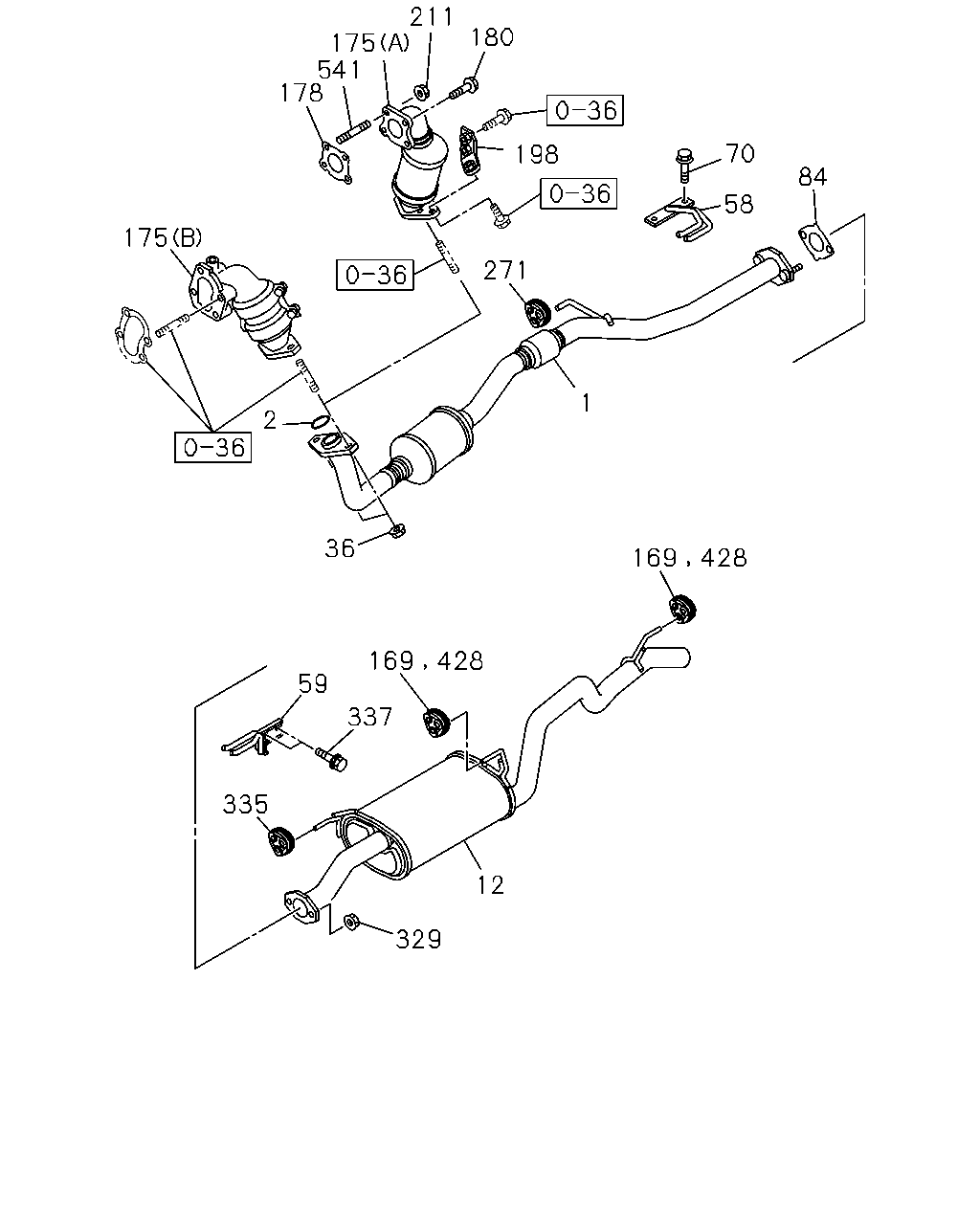

çizim 417049
211 180 175 541 178 175 2 36 271 198 70 58 84 428 169 428 169 59 337 335 12 329 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH 8-98283-464-0 01 1 1510- ●
1 PIPE; EXH 8-98154-908-0 01 1 1405- ●
2 GASKET; PIPE TO MANIF
IMA 		8-98017-270-0 01 1 1405-1509 ●
2 GASKET; PIPE TO MANIF
IMA 		8-98017-270-0 01 1 1510- ● ●
12 SILENCER ASM; EXH 8-98305-354-0 01 1 1510- ●
12 SILENCER ASM; EXH 8-97380-266-1 01 1 1405-1506 ●
12 SILENCER ASM; EXH 8-98305-349-0 01 1 1507- ●
36 NUT; EXH PIPE
M10 FLANGE IMA 		8-97096-192-1 02 1 1405-1509 ●
36 NUT; EXH PIPE
M10 FLANGE IMA 		8-97096-192-1 02 1 1510- ● ●
58 BRACKET; EXH PIPE,RR
IMA 		8-97368-450-0 01 1 1405-1509 ●
58 BRACKET; EXH PIPE,RR
IMA 		8-97368-450-0 01 1 1510- ● ●
59 BRACKET; EXH SILENCER,FRT
IMA 		8-97365-312-0 01 1 1405-1509 ●
59 BRACKET; EXH SILENCER,FRT
IMA 		8-97365-312-0 01 1 1510- ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 1405-1508 ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER IMA 		8-97945-706-0 02 1 1509-1509 ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER IMA 		8-97945-706-0 02 1 1510- ● ●
84 GASKET; EXH PIPE
ID=65 IMA 		8-97263-052-0 01 1 1405-1509 ●
84 GASKET; EXH PIPE
ID=65 IMA 		8-97263-052-0 01 1 1510- ● ●
169 RING; DAMPER,EXH PIPE
IMA 		8-97289-169-0 01 1 1405-1509 ●
169 RING; DAMPER,EXH PIPE
IMA 		8-97289-169-0 01 1 1510- ● ●
175 CONVERTER; CATALYST
(B) 		8-97306-532-2 01 1 1510- ●
175 CONVERTER; CATALYST
(A) 		8-98156-386-0 01 1 1405- ●
178 GASKET; CONV TO MANIF
IMA 		8-98132-538-0 01 1 1405- ●
180 BOLT; CONV TO PIPE
M8X43 HEX SOCKET IMA 		8-98065-481-0 02 1 1510- ●
180 BOLT; CONV TO PIPE
M8X23 FLANGE IMA 		8-97378-077-0 02 1 1405- ●
198 BRACKET; CONV MTG 8-98020-516-1 01 1 1405- ●
211 NUT; CONV
M8 FLANGE IMA 		8-97379-384-0 02 1 1405- ●
271 RUBBER; HANGER,RR PIPE
IMA 		8-97289-169-0 01 1 1405-1509 ●
271 RUBBER; HANGER,RR PIPE
IMA 		8-97289-169-0 01 1 1510- ● ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE IMA 		0-91180-110-0 02 1 1405-1509 ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE IMA 		0-91180-110-0 02 1 1510- ● ●
335 RUBBER; SUPPORT,SILENCER
IMA 		8-97289-169-0 01 1 1405-1509 ●
335 RUBBER; SUPPORT,SILENCER
IMA 		8-97289-169-0 01 1 1510- ● ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER 		8-98050-928-0 02 1 1405-1508 ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER IMA 		8-97945-706-0 02 1 1509- ●
428 RUBBER; MTG,CLAMP,EXH PIPE
IMA 		8-97289-169-0 01 1 1405-1509 ●
428 RUBBER; MTG,CLAMP,EXH PIPE
IMA 		8-97289-169-0 01 1 1510- ● ●
541 STUD; CONV TO PIPE
M8X25 L=36 IMA 		8-97378-062-0 02 1 1405- ●
