Isuzu WW
▶
PICKUP
▶
TFR
▶
51516 - TFR(INDIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶
1-41 — FUEL PIPING; CHASSIS
(#138035) — 153 parça
Tümü
A - 4JA1-TC ENG
B - 4JK1-TCX ENG
◀
[141A] 4JK1(NO.2) (35 parça)
[141A] 4JK1(NO.1) (38 parça)
[141A] 4JA1(NO.1) (37 parça)

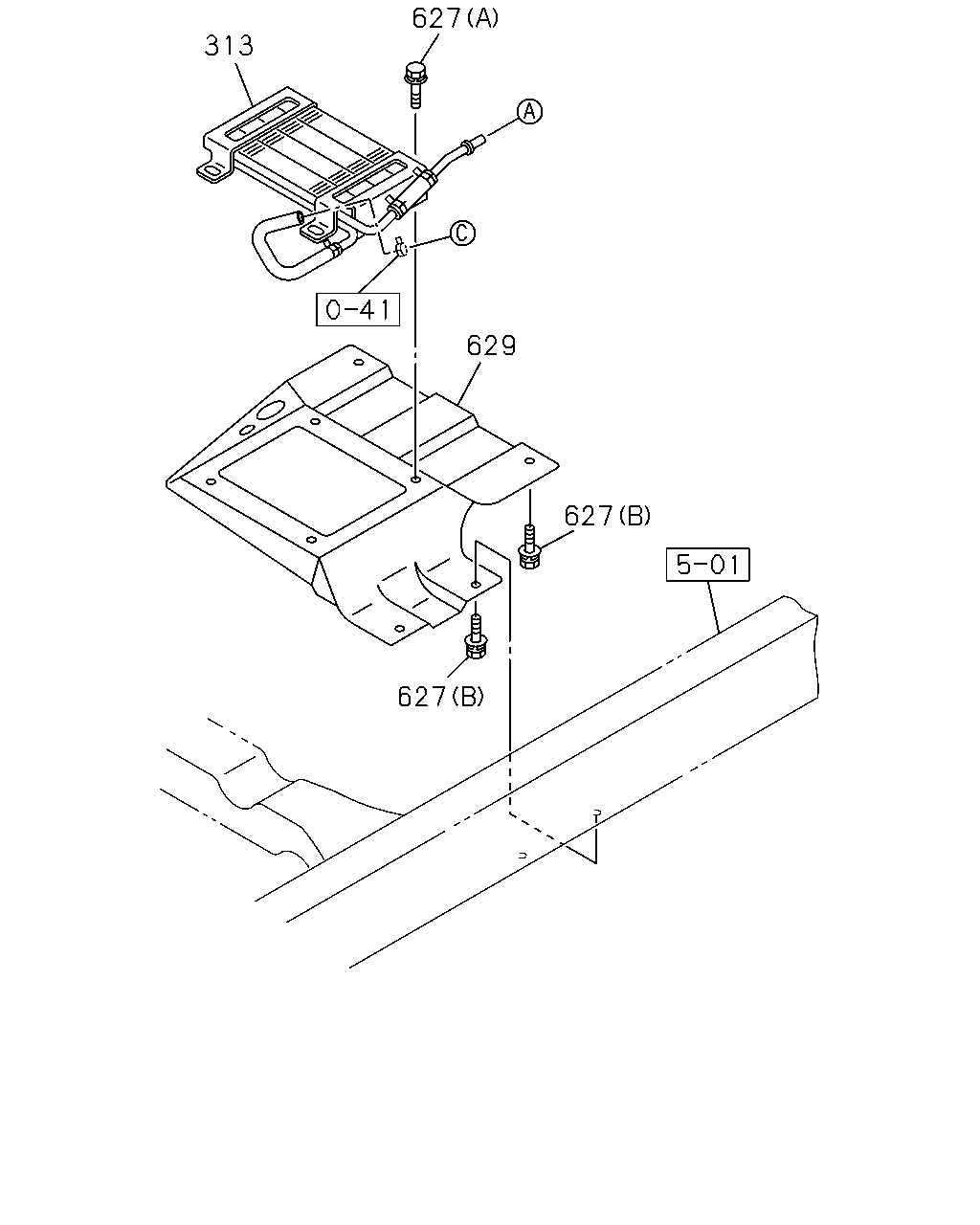

[141A] FUEL COOLER ASM (8 parça)
[141A] 4JA1(NO.2) (35 parça)
▶

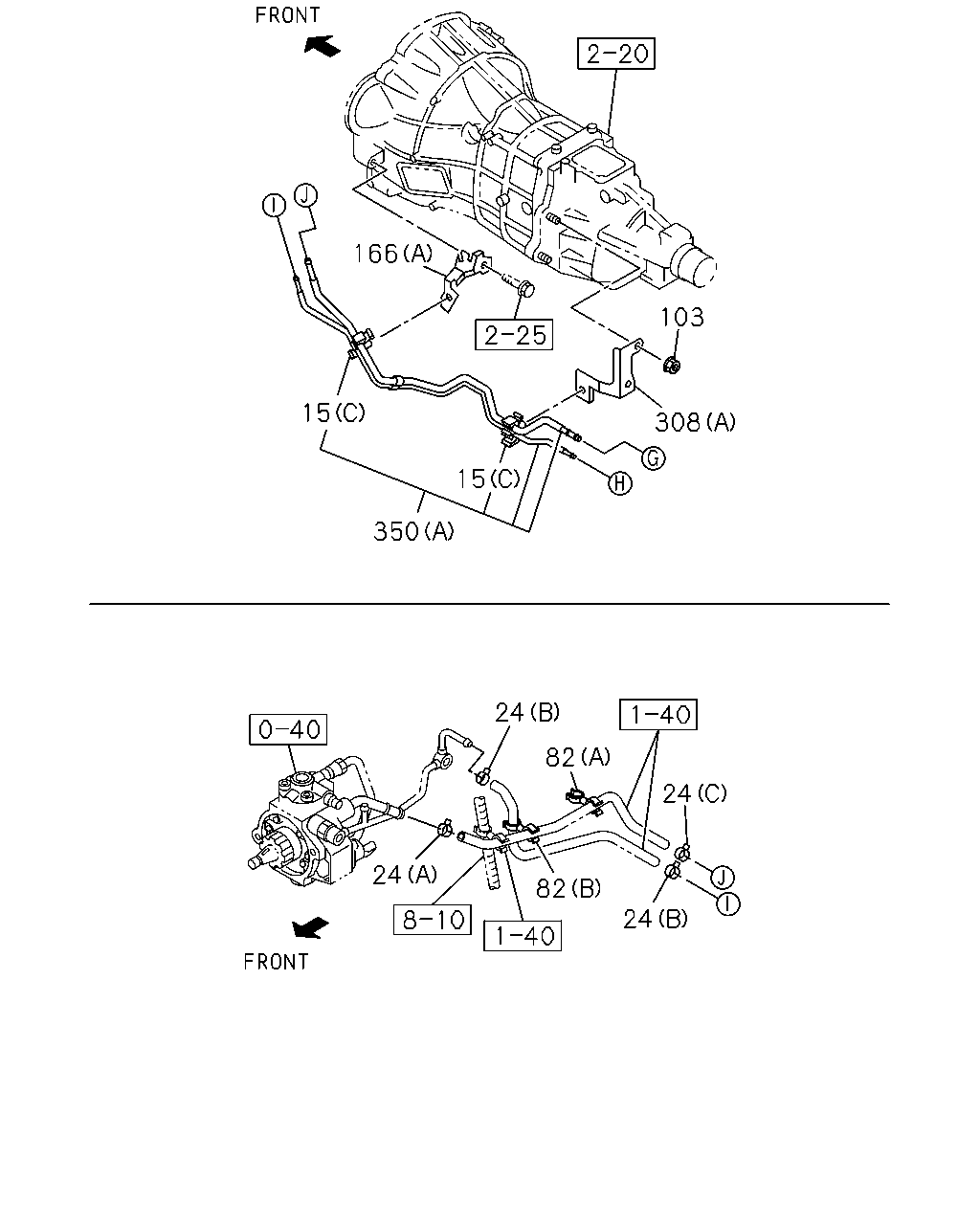

166
15
350
15
308
103
24
82
24
24
82
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
15
CLIP; FUEL PIPE
(D)
8-98283-886-0
01
1
1510-
●
15
CLIP; FUEL PIPE
(D)
8-98283-886-0
02
1
1510-
●
15
CLIP; FUEL PIPE
(A) IND
8-97251-125-0
01
1
1405-
●
15
CLIP; FUEL PIPE
M/T MUA 5 SPEED 5H(MWQ) (C)
8-97944-137-0
02
1
1405-
●
15
CLIP; FUEL PIPE
M/T MUA 5 SPEED 5H(MWQ) (B)
8-98179-603-0
01
1
1405-
●
24
CLIP; FUEL HOSE
(E) ID=11.5 IMA
8-98051-892-0
02
1
1510-
●
24
CLIP; FUEL HOSE
(E) ID=11.5 IMA
8-98051-892-0
04
1
1510-
●
24
CLIP; FUEL HOSE
(G) ID=17.2 IMA
8-98052-395-0
01
1
1510-
●
24
CLIP; FUEL HOSE
(G) ID=17.2 IMA
8-98052-395-0
02
1
1510-
●
24
CLIP; FUEL HOSE
(G) ID=17.2 IMA
8-98052-395-0
03
1
1510-
●
24
CLIP; FUEL HOSE
(F) IMA
8-98233-886-0
01
1
1510-
●
24
CLIP; FUEL HOSE
(A) ID=17.8
8-97944-611-0
01
1
1405-
●
24
CLIP; FUEL HOSE
M/T MUA 5 SPEED 5H(MWQ) (B) ID=11.5
8-98008-096-0
02
1
1405-
●
24
CLIP; FUEL HOSE
(B) ID=11.5
8-98008-096-0
03
1
1405-
●
24
CLIP; FUEL HOSE
(C) ID=16 IMA
8-98030-682-0
01
1
1405-
●
24
CLIP; FUEL HOSE
(D) ID=14.2
8-98035-873-0
01
1
1405-
●
24
CLIP; FUEL HOSE
M/T MUA 5 SPEED 5H(MWQ) (D) ID=14.2
8-98035-873-0
02
1
1405-
●
24
CLIP; FUEL HOSE
(D) ID=14.2
8-98035-873-0
03
1
1405-
●
24
CLIP; FUEL HOSE
(E) ID=11.5 IMA
8-98051-892-0
01
1
1405-
●
82
CLIP; FUEL HOSE
(B) ID=13 & 16.5
8-98192-457-0
01
1
1510-
●
82
CLIP; FUEL HOSE
(A) ID=11.8 & ID=18.6
8-97333-094-0
02
1
1405-1410
●
82
CLIP; FUEL HOSE
(A) ID=11.8 & ID=18.6
8-97333-094-0
01
1
1411-1509
●
82
CLIP; FUEL HOSE
(A) ID=11.8 & ID=18.6
8-97333-094-0
01
1
1411-1509
●
82
CLIP; FUEL HOSE
(A) ID=11.8 & ID=18.6
8-97333-094-0
01
1
1510-
●
●
82
CLIP; FUEL HOSE
(A) ID=11.8 & ID=18.6
8-97333-094-0
01
1
1510-
●
103
NUT; BRKT
M10 FLANGE IMA
0-91180-110-0
02
1
1405-1509
●
103
NUT; BRKT
M10 FLANGE IMA
0-91180-110-0
02
1
1510-
●
●
166
PROTECTOR; FUEL HOSE
(B)
8-98050-707-0
01
1
1510-
●
166
PROTECTOR; FUEL HOSE
(A)
8-97944-738-0
01
1
1405-
●
308
BRACKET; FUEL PIPE
(B)
8-98050-709-0
01
1
1510-
●
308
BRACKET; FUEL PIPE
(A)
8-97944-746-0
01
1
1405-
●
350
PIPE; FUEL,DEL & RET
(C)
8-98283-887-0
01
1
1510-
●
350
PIPE; FUEL,DEL & RET
(D)
8-98283-891-0
01
1
1510-
●
350
PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5H(MWQ) (A)
8-97944-716-1
01
1
1405-
●
350
PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5H(MWQ) (B)
8-98177-460-0
01
1
1405-
●
350

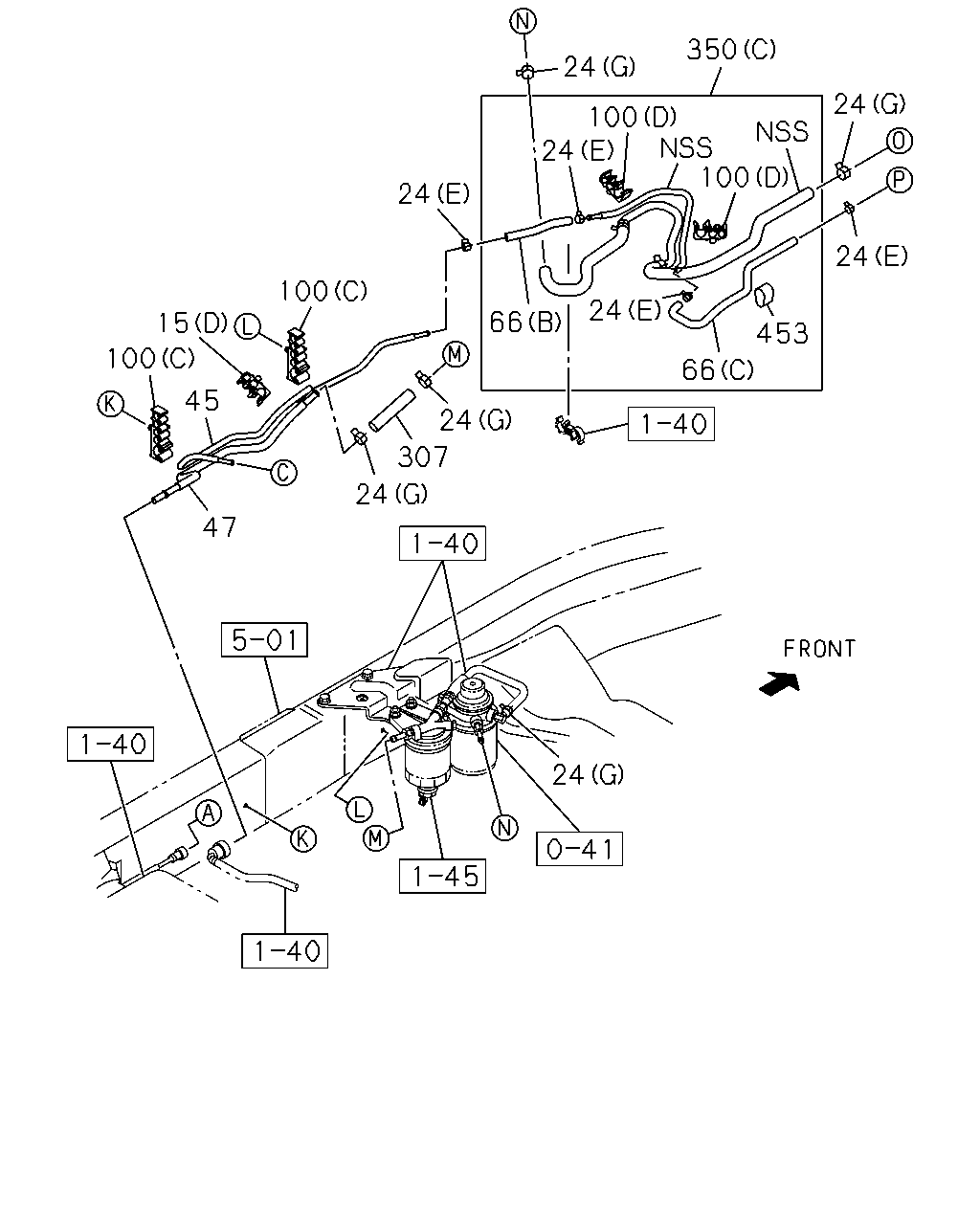

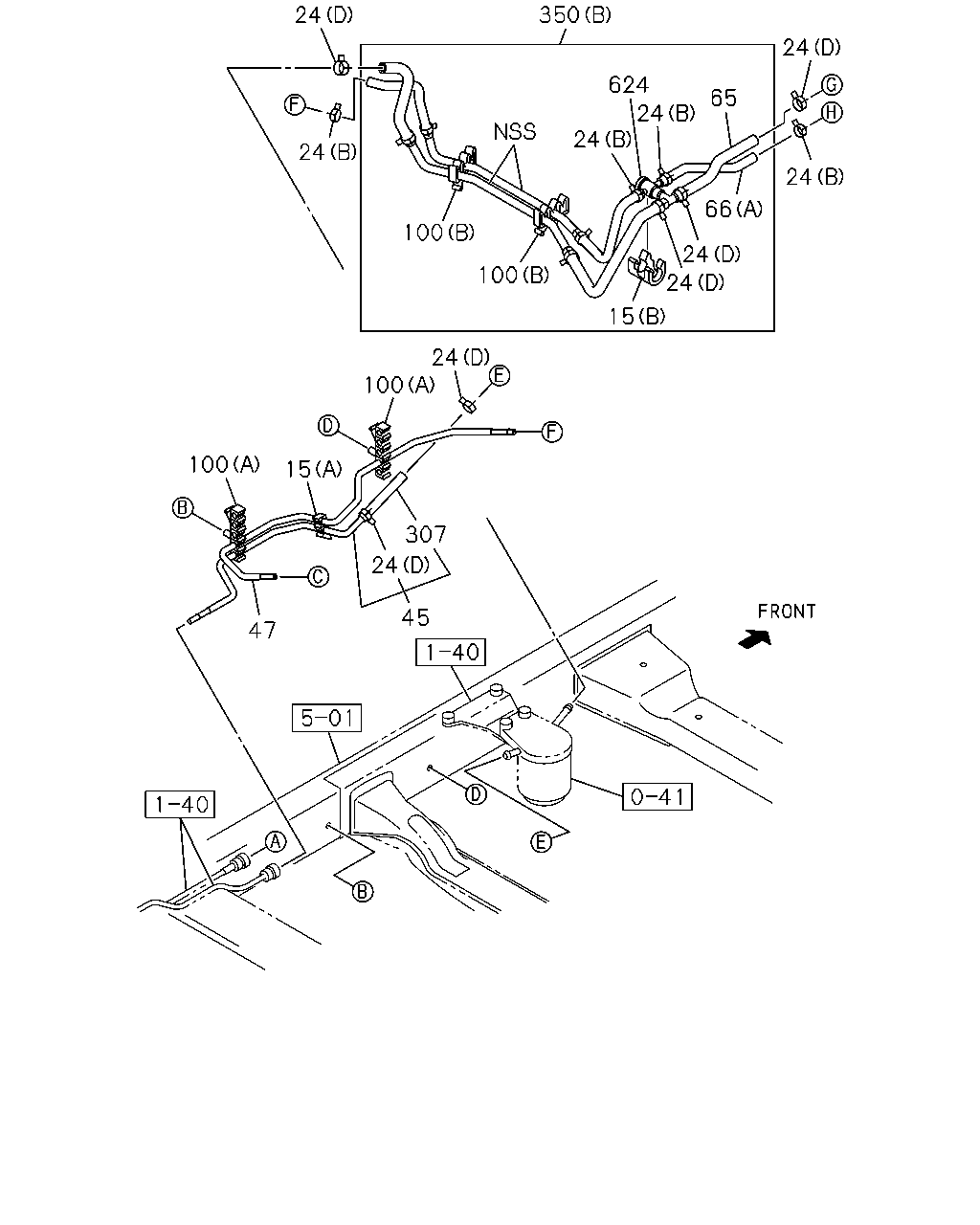

624
24
100
100
15
24
24
66
24
65
24
24
24
24
24
100
15
100
47
45
24
307
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
15
CLIP; FUEL PIPE
(D)
8-98283-886-0
01
1
1510-
●
15
CLIP; FUEL PIPE
(D)
8-98283-886-0
02
1
1510-
●
15
CLIP; FUEL PIPE
(A) IND
8-97251-125-0
01
1
1405-
●
15
CLIP; FUEL PIPE
M/T MUA 5 SPEED 5H(MWQ) (C)
8-97944-137-0
02
1
1405-
●
15
CLIP; FUEL PIPE
M/T MUA 5 SPEED 5H(MWQ) (B)
8-98179-603-0
01
1
1405-
●
24
CLIP; FUEL HOSE
(E) ID=11.5 IMA
8-98051-892-0
02
1
1510-
●
24
CLIP; FUEL HOSE
(E) ID=11.5 IMA
8-98051-892-0
04
1
1510-
●
24
CLIP; FUEL HOSE
(G) ID=17.2 IMA
8-98052-395-0
01
1
1510-
●
24
CLIP; FUEL HOSE
(G) ID=17.2 IMA
8-98052-395-0
02
1
1510-
●
24
CLIP; FUEL HOSE
(G) ID=17.2 IMA
8-98052-395-0
03
1
1510-
●
24
CLIP; FUEL HOSE
(F) IMA
8-98233-886-0
01
1
1510-
●
24
CLIP; FUEL HOSE
(A) ID=17.8
8-97944-611-0
01
1
1405-
●
24
CLIP; FUEL HOSE
M/T MUA 5 SPEED 5H(MWQ) (B) ID=11.5
8-98008-096-0
02
1
1405-
●
24
CLIP; FUEL HOSE
(B) ID=11.5
8-98008-096-0
03
1
1405-
●
24
CLIP; FUEL HOSE
(C) ID=16 IMA
8-98030-682-0
01
1
1405-
●
24
CLIP; FUEL HOSE
(D) ID=14.2
8-98035-873-0
01
1
1405-
●
24
CLIP; FUEL HOSE
M/T MUA 5 SPEED 5H(MWQ) (D) ID=14.2
8-98035-873-0
02
1
1405-
●
24
CLIP; FUEL HOSE
(D) ID=14.2
8-98035-873-0
03
1
1405-
●
24
CLIP; FUEL HOSE
(E) ID=11.5 IMA
8-98051-892-0
01
1
1405-
●
45
PIPE; FUEL,DELIVERY
8-97944-613-0
01
1
1510-
●
45
PIPE; FUEL,DELIVERY
IND
8-97944-626-1
01
1
1405-
●
47
PIPE; FUEL,RETURN
IND
8-98051-783-1
01
1
1405-1509
●
47
PIPE; FUEL,RETURN
IND
8-98051-783-1
01
1
1510-
●
●
65
HOSE; FUEL,DELIVERY PIPE
M/T MUA 5 SPEED 5H(MWQ)
8-97944-135-0
01
1
1405-
●
66
HOSE; FUEL,RETURN PIPE
(B)
8-98283-889-0
01
1
1510-
●
66
HOSE; FUEL,RETURN PIPE
(C)
8-98283-890-0
01
1
1510-
●
66
HOSE; FUEL,RETURN PIPE
M/T MUA 5 SPEED 5H(MWQ) (A)
8-98060-821-0
01
1
1405-
●
100
CLIP; FUEL PIPE
(C) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 IMA
8-98113-394-0
02
1
1510-
●
100
CLIP; FUEL PIPE
(D)
8-98283-886-0
02
1
1510-
●
100
CLIP; FUEL PIPE
(A) IND
8-97251-128-0
02
1
1405-
●
100
CLIP; FUEL PIPE
M/T MUA 5 SPEED 5H(MWQ) (B) ID=10.3X3
8-98051-899-0
02
1
1405-
●
307
HOSE ASM; FUEL,DELIVERY & RETURN
L=90 SERVICED BY L=3000
0-01662-300-0
01
1
1510-
●
307
HOSE ASM; FUEL,DELIVERY & RETURN
L=150 SERVICED BY L=3000
0-01658-300-0
01
1
1405-
●
350
PIPE; FUEL,DEL & RET
(C)
8-98283-887-0
01
1
1510-
●
350
PIPE; FUEL,DEL & RET
(D)
8-98283-891-0
01
1
1510-
●
350
PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5H(MWQ) (A)
8-97944-716-1
01
1
1405-
●
350
PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5H(MWQ) (B)
8-98177-460-0
01
1
1405-
●
624
VALVE; 1 WAY,FUEL
M/T MUA 5 SPEED 5H(MWQ)
8-97375-919-0
01
1
1405-
●
24
45
47
24
307
24
100
15
100
66
66
24
24
24
24
350
100
24
100
453
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
15
CLIP; FUEL PIPE
(D)
8-98283-886-0
01
1
1510-
●
15
CLIP; FUEL PIPE
(D)
8-98283-886-0
02
1
1510-
●
15
CLIP; FUEL PIPE
(A) IND
8-97251-125-0
01
1
1405-
●
15
CLIP; FUEL PIPE
M/T MUA 5 SPEED 5H(MWQ) (C)
8-97944-137-0
02
1
1405-
●
15
CLIP; FUEL PIPE
M/T MUA 5 SPEED 5H(MWQ) (B)
8-98179-603-0
01
1
1405-
●
24
CLIP; FUEL HOSE
(E) ID=11.5 IMA
8-98051-892-0
02
1
1510-
●
24
CLIP; FUEL HOSE
(E) ID=11.5 IMA
8-98051-892-0
04
1
1510-
●
24
CLIP; FUEL HOSE
(G) ID=17.2 IMA
8-98052-395-0
01
1
1510-
●
24
CLIP; FUEL HOSE
(G) ID=17.2 IMA
8-98052-395-0
02
1
1510-
●
24
CLIP; FUEL HOSE
(G) ID=17.2 IMA
8-98052-395-0
03
1
1510-
●
24
CLIP; FUEL HOSE
(F) IMA
8-98233-886-0
01
1
1510-
●
24
CLIP; FUEL HOSE
(A) ID=17.8
8-97944-611-0
01
1
1405-
●
24
CLIP; FUEL HOSE
M/T MUA 5 SPEED 5H(MWQ) (B) ID=11.5
8-98008-096-0
02
1
1405-
●
24
CLIP; FUEL HOSE
(B) ID=11.5
8-98008-096-0
03
1
1405-
●
24
CLIP; FUEL HOSE
(C) ID=16 IMA
8-98030-682-0
01
1
1405-
●
24
CLIP; FUEL HOSE
(D) ID=14.2
8-98035-873-0
01
1
1405-
●
24
CLIP; FUEL HOSE
M/T MUA 5 SPEED 5H(MWQ) (D) ID=14.2
8-98035-873-0
02
1
1405-
●
24
CLIP; FUEL HOSE
(D) ID=14.2
8-98035-873-0
03
1
1405-
●
24
CLIP; FUEL HOSE
(E) ID=11.5 IMA
8-98051-892-0
01
1
1405-
●
45
PIPE; FUEL,DELIVERY
8-97944-613-0
01
1
1510-
●
45
PIPE; FUEL,DELIVERY
IND
8-97944-626-1
01
1
1405-
●
47
PIPE; FUEL,RETURN
IND
8-98051-783-1
01
1
1405-1509
●
47
PIPE; FUEL,RETURN
IND
8-98051-783-1
01
1
1510-
●
●
66
HOSE; FUEL,RETURN PIPE
(B)
8-98283-889-0
01
1
1510-
●
66
HOSE; FUEL,RETURN PIPE
(C)
8-98283-890-0
01
1
1510-
●
66
HOSE; FUEL,RETURN PIPE
M/T MUA 5 SPEED 5H(MWQ) (A)
8-98060-821-0
01
1
1405-
●
100
CLIP; FUEL PIPE
(C) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 IMA
8-98113-394-0
02
1
1510-
●
100
CLIP; FUEL PIPE
(D)
8-98283-886-0
02
1
1510-
●
100
CLIP; FUEL PIPE
(A) IND
8-97251-128-0
02
1
1405-
●
100
CLIP; FUEL PIPE
M/T MUA 5 SPEED 5H(MWQ) (B) ID=10.3X3
8-98051-899-0
02
1
1405-
●
307
HOSE ASM; FUEL,DELIVERY & RETURN
L=90 SERVICED BY L=3000
0-01662-300-0
01
1
1510-
●
307
HOSE ASM; FUEL,DELIVERY & RETURN
L=150 SERVICED BY L=3000
0-01658-300-0
01
1
1405-
●
350
PIPE; FUEL,DEL & RET
(C)
8-98283-887-0
01
1
1510-
●
350
PIPE; FUEL,DEL & RET
(D)
8-98283-891-0
01
1
1510-
●
350
PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5H(MWQ) (A)
8-97944-716-1
01
1
1405-
●
350
PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5H(MWQ) (B)
8-98177-460-0
01
1
1405-
●
453
BAND; FLEX HOSE
IMA
8-98233-888-0
01
1
1510-
●
627
627
629
627
313
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
313
COOLER ASM; FUEL
8-97946-973-0
01
1
1405-1509
●
313
COOLER ASM; FUEL
8-97946-973-0
01
1
1510-
●
●
627
BOLT; FUEL CLR
(A) M6X20 FLANGE IMA
0-28650-620-0
04
1
1405-1509
●
627
BOLT; FUEL CLR
(A) M6X20 FLANGE IMA
0-28650-620-0
04
1
1510-
●
●
627
BOLT; FUEL CLR
(B) M10X28 W/LK&PL WASHER IMA
8-97945-706-0
04
1
1405-1509
●
627
BOLT; FUEL CLR
(B) M10X28 W/LK&PL WASHER IMA
8-97945-706-0
04
1
1510-
●
●
629
BRACKET; FUEL CLR
8-97945-577-0
01
1
1405-1509
●
629
BRACKET; FUEL CLR
8-97945-577-0
01
1
1510-
●
●

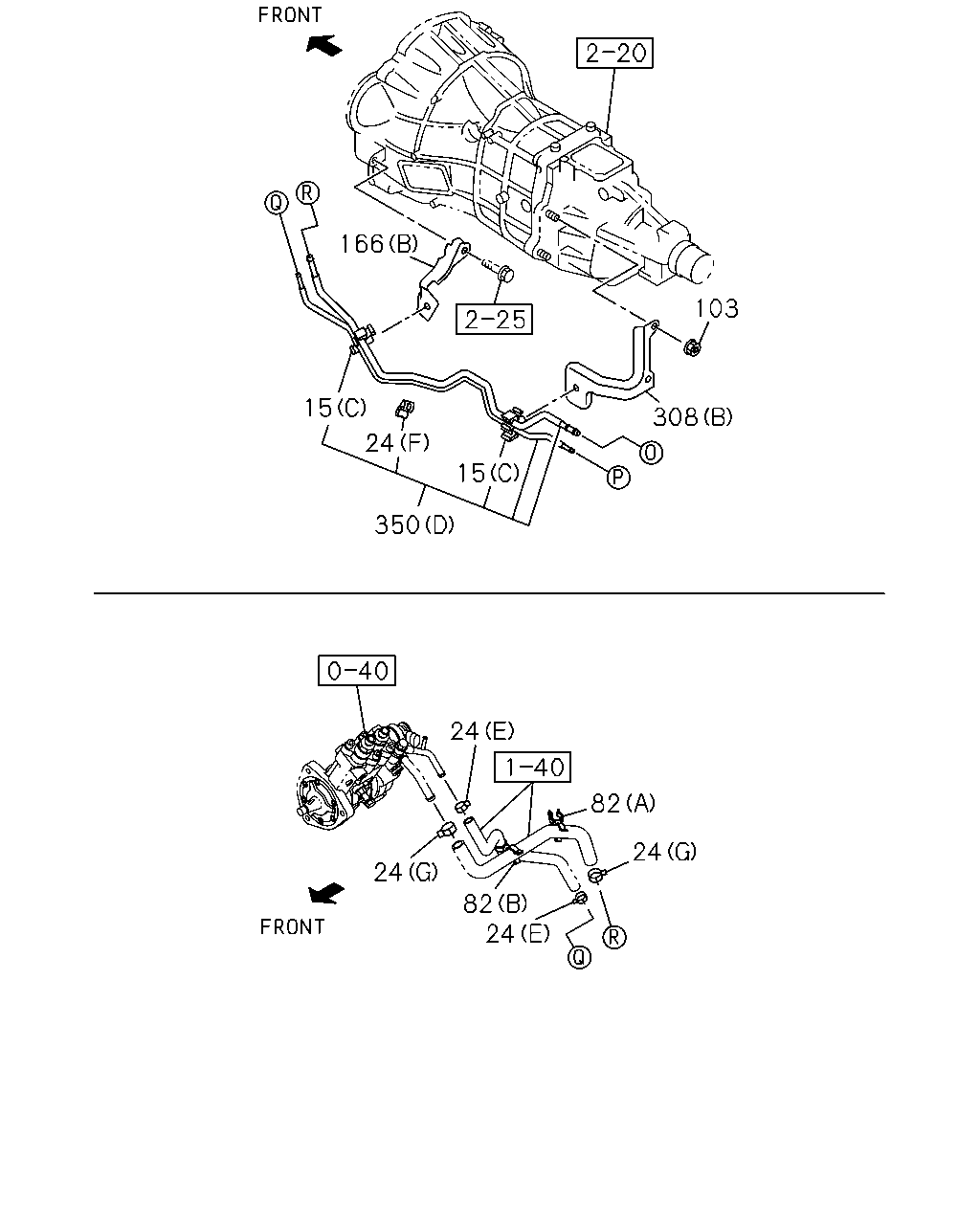

24
82
24
24
82
24
308
103
166
15
15
24
350
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
15
CLIP; FUEL PIPE
(D)
8-98283-886-0
01
1
1510-
●
15
CLIP; FUEL PIPE
(D)
8-98283-886-0
02
1
1510-
●
15
CLIP; FUEL PIPE
(A) IND
8-97251-125-0
01
1
1405-
●
15
CLIP; FUEL PIPE
M/T MUA 5 SPEED 5H(MWQ) (C)
8-97944-137-0
02
1
1405-
●
15
CLIP; FUEL PIPE
M/T MUA 5 SPEED 5H(MWQ) (B)
8-98179-603-0
01
1
1405-
●
24
CLIP; FUEL HOSE
(E) ID=11.5 IMA
8-98051-892-0
02
1
1510-
●
24
CLIP; FUEL HOSE
(E) ID=11.5 IMA
8-98051-892-0
04
1
1510-
●
24
CLIP; FUEL HOSE
(G) ID=17.2 IMA
8-98052-395-0
01
1
1510-
●
24
CLIP; FUEL HOSE
(G) ID=17.2 IMA
8-98052-395-0
02
1
1510-
●
24
CLIP; FUEL HOSE
(G) ID=17.2 IMA
8-98052-395-0
03
1
1510-
●
24
CLIP; FUEL HOSE
(F) IMA
8-98233-886-0
01
1
1510-
●
24
CLIP; FUEL HOSE
(A) ID=17.8
8-97944-611-0
01
1
1405-
●
24
CLIP; FUEL HOSE
M/T MUA 5 SPEED 5H(MWQ) (B) ID=11.5
8-98008-096-0
02
1
1405-
●
24
CLIP; FUEL HOSE
(B) ID=11.5
8-98008-096-0
03
1
1405-
●
24
CLIP; FUEL HOSE
(C) ID=16 IMA
8-98030-682-0
01
1
1405-
●
24
CLIP; FUEL HOSE
(D) ID=14.2
8-98035-873-0
01
1
1405-
●
24
CLIP; FUEL HOSE
M/T MUA 5 SPEED 5H(MWQ) (D) ID=14.2
8-98035-873-0
02
1
1405-
●
24
CLIP; FUEL HOSE
(D) ID=14.2
8-98035-873-0
03
1
1405-
●
24
CLIP; FUEL HOSE
(E) ID=11.5 IMA
8-98051-892-0
01
1
1405-
●
82
CLIP; FUEL HOSE
(B) ID=13 & 16.5
8-98192-457-0
01
1
1510-
●
82
CLIP; FUEL HOSE
(A) ID=11.8 & ID=18.6
8-97333-094-0
02
1
1405-1410
●
82
CLIP; FUEL HOSE
(A) ID=11.8 & ID=18.6
8-97333-094-0
01
1
1411-1509
●
82
CLIP; FUEL HOSE
(A) ID=11.8 & ID=18.6
8-97333-094-0
01
1
1411-1509
●
82
CLIP; FUEL HOSE
(A) ID=11.8 & ID=18.6
8-97333-094-0
01
1
1510-
●
●
82
CLIP; FUEL HOSE
(A) ID=11.8 & ID=18.6
8-97333-094-0
01
1
1510-
●
103
NUT; BRKT
M10 FLANGE IMA
0-91180-110-0
02
1
1405-1509
●
103
NUT; BRKT
M10 FLANGE IMA
0-91180-110-0
02
1
1510-
●
●
166
PROTECTOR; FUEL HOSE
(B)
8-98050-707-0
01
1
1510-
●
166
PROTECTOR; FUEL HOSE
(A)
8-97944-738-0
01
1
1405-
●
308
BRACKET; FUEL PIPE
(B)
8-98050-709-0
01
1
1510-
●
308
BRACKET; FUEL PIPE
(A)
8-97944-746-0
01
1
1405-
●
350
PIPE; FUEL,DEL & RET
(C)
8-98283-887-0
01
1
1510-
●
350
PIPE; FUEL,DEL & RET
(D)
8-98283-891-0
01
1
1510-
●
350
PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5H(MWQ) (A)
8-97944-716-1
01
1
1405-
●
350
PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5H(MWQ) (B)
8-98177-460-0
01
1
1405-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
