Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#138034) — 184 parça

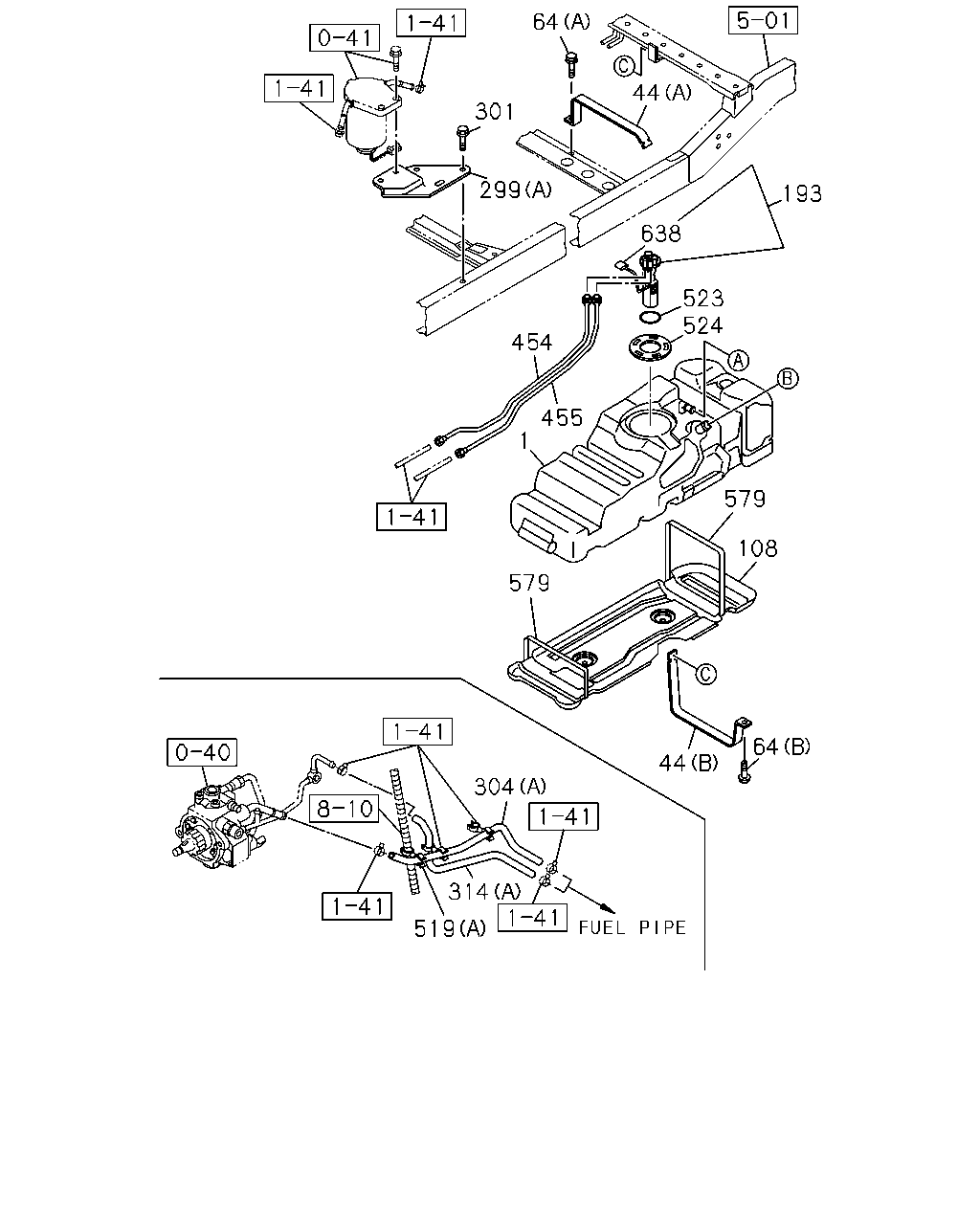

64 44 304 314 519 579 579 108 524 523 193 44 638 454 455 1 301 299 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL	8-97943-901-0	01	1	1510-	●
1	TANK; FUEL	8-97944-573-0	01	1	1405-		●
44	BAND; FUEL TANK (A)	8-97944-281-0	01	1	1405-1509		●
44	BAND; FUEL TANK (A)	8-97944-281-0	01	1	1510-	●	●
44	BAND; FUEL TANK (B)	8-97944-282-0	01	1	1405-		●
64	BOLT; FUEL TANK (A) M10X35 FLANGE IMA	0-28661-035-0	01	1	1405-1509		●
64	BOLT; FUEL TANK (A) M10X35 FLANGE IMA	0-28661-035-0	01	1	1510-	●	●
64	BOLT; FUEL TANK (B) M10X50 FLANGE IMA	8-97301-165-0	01	1	1405-1509		●
64	BOLT; FUEL TANK (B) M10X50 FLANGE IMA	8-97301-165-0	01	1	1510-	●	●
108	PROTECTOR; FUEL TANK	8-97943-300-0	01	1	1405-1509		●
108	PROTECTOR; FUEL TANK	8-97943-300-0	01	1	1510-	●	●
193	PUMP; FUEL	8-98284-588-0	01	1	1510-	●
193	PUMP; FUEL	8-98159-357-0	01	1	1405-		●

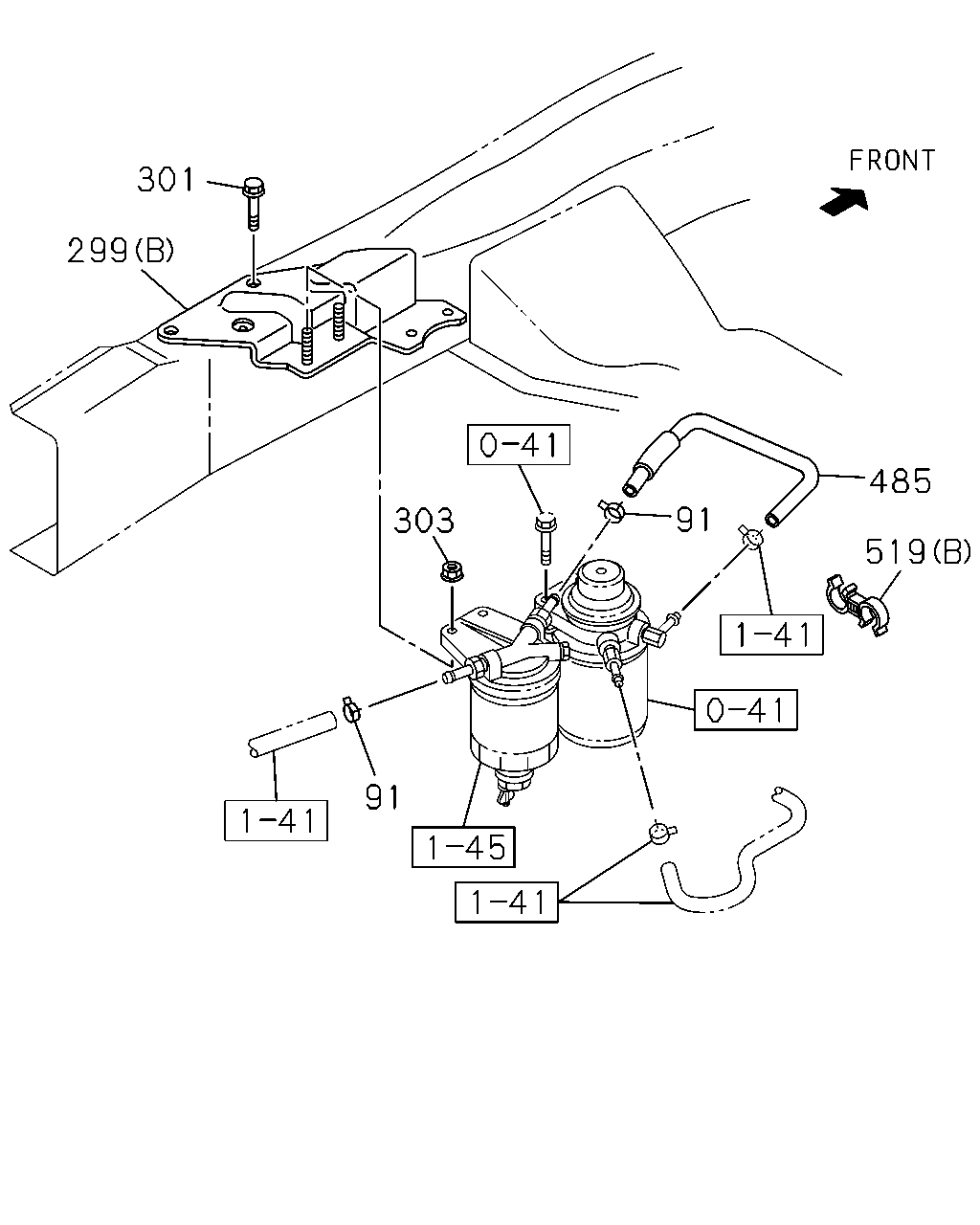

299	BRACKET; FUEL FILTER (B)	8-97945-089-0	01	1	1510-	●
299	BRACKET; FUEL FILTER (A)	8-97945-336-0	01	1	1405-		●
301	BOLT; BRKT TO SEDIMENTER M10X25 FLANGE IMA	0-28651-025-0	02	1	1405-1509		●
301	BOLT; BRKT TO SEDIMENTER M10X25 FLANGE IMA	0-28651-025-0	02	1	1510-	●	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (B)	8-98288-932-0	01	1	1510-	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (A)	8-97944-783-0	01	1	1405-		●
314	HOSE; RUBBER,FUEL RETURN (B)	8-98283-883-0	01	1	1510-	●
314	HOSE; RUBBER,FUEL RETURN (A)	8-97944-784-2	01	1	1405-		●
454	PIPE; FUEL,DELIVERY	8-98283-963-0	01	1	1510-	●
454	PIPE; FUEL,DELIVERY	8-97943-511-0	01	1	1405-		●
455	PIPE; FUEL,RETURN	8-97945-528-0	01	1	1405-1509		●
455	PIPE; FUEL,RETURN	8-97945-528-0	01	1	1510-	●	●
519	RETAINER; FUEL PUMP (B) ID=18 & 18	8-94323-068-0	01	1	1510-	●
519	RETAINER; FUEL PUMP (A) ID=20 & 16.5	8-94486-835-0	01	1	1405-		●
523	SEAL; FUEL SENSOR	8-97943-141-0	01	1	1405-1509		●
523	SEAL; FUEL SENSOR	8-97943-141-0	01	1	1510-	●	●
524	RING; RETAINER	8-97942-306-0	01	1	1405-1509		●
524	RING; RETAINER	8-97942-306-0	01	1	1510-	●	●
579	BAND; FUEL TANK TO PROTECTOR	8-97329-245-0	02	1	1405-1509		●
579	BAND; FUEL TANK TO PROTECTOR	8-97329-245-0	02	1	1510-	●	●
638	SENSOR; FUEL LEVEL	8-97945-259-0	01	1	1405-1509		●
638	SENSOR; FUEL LEVEL	8-97945-259-0	01	1	1510-	●	●

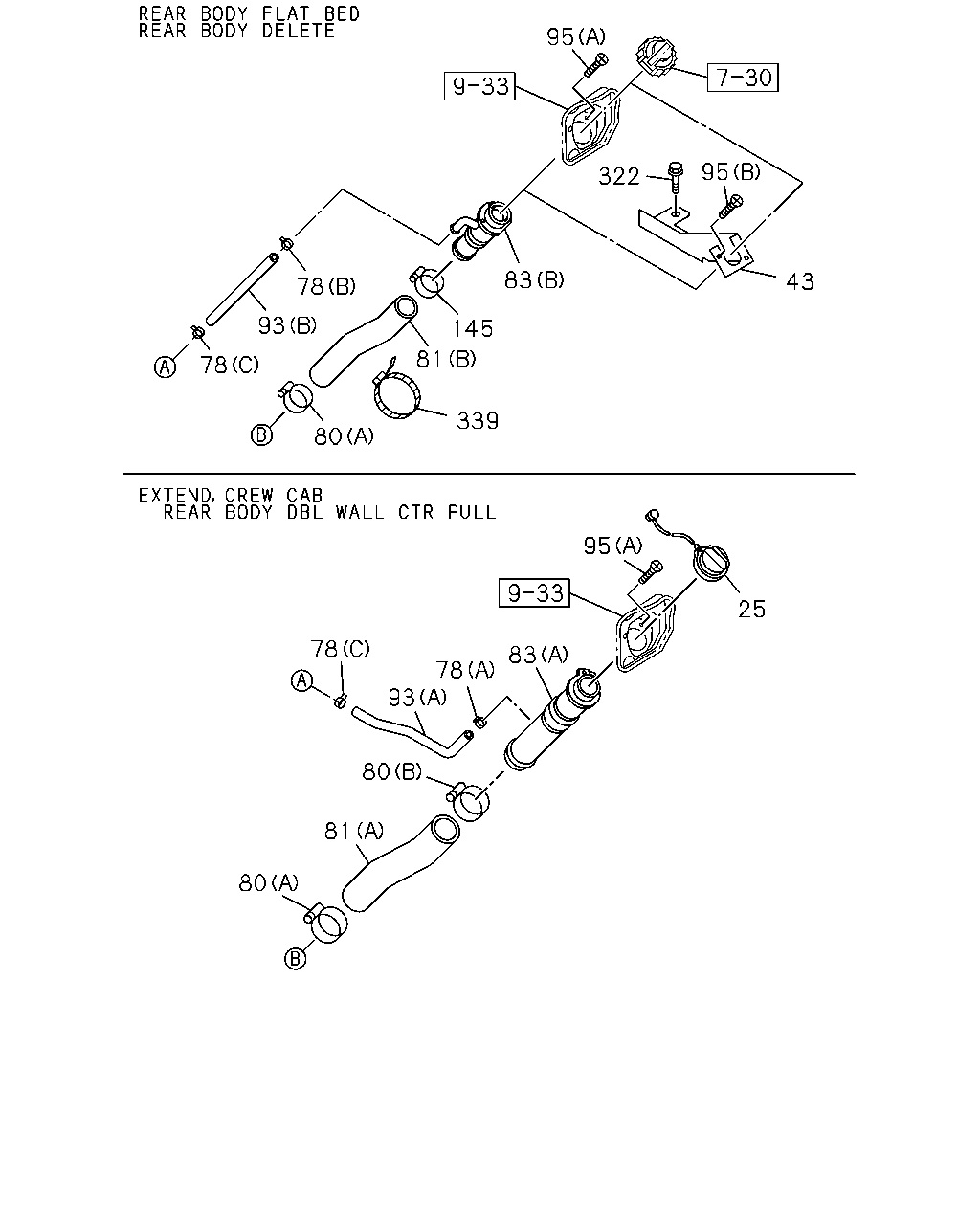

78 93 78 83 145 81 339 80 322 95 43 25 95 83 78 93 78 80 81 80 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	CAP; FILLER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63)	8-97308-614-1	01	1	1510-	●	●
25	CAP; FILLER,FUEL TANK EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63)	8-97369-560-0	01	1	1405-1509		●
25	CAP; FILLER,FUEL TANK CREW CAB(TF*W)	8-97369-560-0	01	1	1405-1509		●
25	CAP; FILLER,FUEL TANK EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63)	8-97369-560-0	01	1	1510-	●	●
25	CAP; FILLER,FUEL TANK CREW CAB(TF*W)	8-97369-560-0	01	1	1510-	●	●
43	BRACKET; FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) REAR BODY DELETE(8HH)	8-97941-908-1	01	1	1510-	●	●
78	CLIP; BREATHER HOSE REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (D) ID=20.8 IMA	8-97944-127-0	01	1	1510-	●	●
78	CLIP; BREATHER HOSE REAR BODY FLAT BED(E39) (B) ID=28	9-09915-421-1	01	1	1405-1509		●
78	CLIP; BREATHER HOSE 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B) ID=28	9-09915-421-1	01	1	1510-	●	●
78	CLIP; BREATHER HOSE EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (B)	8-98097-945-0	01	1	1405-1509		●
78	CLIP; BREATHER HOSE EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (B)	8-98097-945-0	01	1	1510-	●	●
78	CLIP; BREATHER HOSE (C) ID=24.3	8-97945-557-0	01	1	1405-1509		●
78	CLIP; BREATHER HOSE (C) ID=24.3	8-97945-557-0	01	1	1510-	●	●
78	CLIP; BREATHER HOSE CREW CAB(TF*W) (A)	8-98097-946-0	01	1	1405-1509		●
78	CLIP; BREATHER HOSE CREW CAB(TF*W) (A)	8-98097-946-0	01	1	1510-	●	●
80	CLIP; FILLER HOSE EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (B)	8-98097-947-0	01	1	1405-1509		●
80	CLIP; FILLER HOSE CREW CAB(TF*W) (B)	8-98097-947-0	01	1	1405-1509		●
80	CLIP; FILLER HOSE 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) REAR BODY DBL WALL CTR PULL(E63) (B)	8-98097-947-0	01	1	1510-	●	●
80	CLIP; FILLER HOSE CREW CAB(TF*W) (B)	8-98097-947-0	01	1	1510-	●	●
80	CLIP; FILLER HOSE (A) ID=54	9-09915-412-1	01	1	1405-1509		●
80	CLIP; FILLER HOSE (A) ID=54	9-09915-412-1	01	1	1510-	●	●
81	HOSE; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-781-0	01	1	1510-	●	●
81	HOSE; FUEL FILLER EXTEND CAB(TF*C) REAR BODY FLAT BED(E39) (B)	8-97944-449-0	01	1	1405-1509	●	●
81	HOSE; FUEL FILLER REGULAR CAB(TF*S) (B)	8-97944-449-0	01	1	1405-1509	●	●
81	HOSE; FUEL FILLER 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B)	8-97944-449-0	01	1	1510-	●	●
81	HOSE; FUEL FILLER EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-300-0	01	1	1405-1509		●
81	HOSE; FUEL FILLER EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-300-0	01	1	1510-	●	●
81	HOSE; FUEL FILLER CREW CAB(TF*W) (A)	8-97942-301-0	01	1	1405-1509		●
81	HOSE; FUEL FILLER CREW CAB(TF*W) (A)	8-97942-301-0	01	1	1510-	●	●
83	NECK; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (C)	8-97945-351-0	01	1	1510-	●	●
83	NECK; FUEL FILLER EXTEND CAB(TF*C) REAR BODY FLAT BED(E39) (B)	8-98024-001-0	01	1	1405-1509		●
83	NECK; FUEL FILLER REGULAR CAB(TF*S) (B)	8-98024-001-0	01	1	1405-1509		●
83	NECK; FUEL FILLER 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B)	8-98024-001-0	01	1	1510-	●	●
83	NECK; FUEL FILLER EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-303-0	01	1	1405-1509		●
83	NECK; FUEL FILLER EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-303-0	01	1	1510-	●	●
83	NECK; FUEL FILLER CREW CAB(TF*W) (A)	8-97943-306-0	01	1	1405-1509		●
83	NECK; FUEL FILLER CREW CAB(TF*W) (A)	8-97943-306-0	01	1	1510-	●	●
93	HOSE; BREATHER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-782-0	01	1	1510-	●	●
93	HOSE; BREATHER,FUEL TANK EXTEND CAB(TF*C) REAR BODY FLAT BED(E39) (B)	8-97305-696-1	01	1	1405-1509	●	●
93	HOSE; BREATHER,FUEL TANK REGULAR CAB(TF*S) (B)	8-97305-696-1	01	1	1405-1509	●	●
93	HOSE; BREATHER,FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B)	8-97305-696-1	01	1	1510-	●	●
93	HOSE; BREATHER,FUEL TANK EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-302-0	01	1	1405-1509		●
93	HOSE; BREATHER,FUEL TANK EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-302-0	01	1	1510-	●	●
93	HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) (A)	8-97942-303-0	01	1	1405-1509		●
93	HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) (A)	8-97942-303-0	01	1	1510-	●	●
95	SCREW; FILLER NECK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) REAR BODY DELETE(8HH) (B) M6X16	8-98022-271-0	02	1	1510-	●	●
95	SCREW; FILLER NECK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (C)	8-98022-272-0	01	1	1510-	●	●
95	SCREW; FILLER NECK REAR BODY FLAT BED(E39) (B) M6X16	8-98022-271-0	03	1	1405-1509		●
95	SCREW; FILLER NECK REAR BODY FLAT BED(E39) (B) M6X16	8-98022-271-0	03	1	1510-	●	●
95	SCREW; FILLER NECK REAR BODY DBL WALL CTR PULL(E63) (A) M5X16 TAPPING W/PL WASHER IMA	8-98039-091-0	01	1	1405-1509		●
95	SCREW; FILLER NECK EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A) M5X16 TAPPING W/PL WASHER IMA	8-98039-091-0	01	1	1510-	●	●
95	SCREW; FILLER NECK CREW CAB(TF*W) (A) M5X16 TAPPING W/PL WASHER IMA	8-98039-091-0	01	1	1510-	●	●
145	CLIP; HOSE,FILLER NECK REAR BODY FLAT BED(E39) ID=57	9-09915-036-1	01	1	1405-1509		●
145	CLIP; HOSE,FILLER NECK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) ID=57	9-09915-036-1	01	1	1510-	●	●
322	BOLT; BRKT FIX 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) REAR BODY DELETE(8HH) M12X25 FLANGE	0-28651-225-0	01	1	1510-	●	●
339	CLIP; BAND,FUEL HOSE REAR BODY FLAT BED(E39) L=330	5-09709-118-0	02	1	1405-1509		●
339	CLIP; BAND,FUEL HOSE 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) L=330	5-09709-118-0	02	1	1510-	●	●

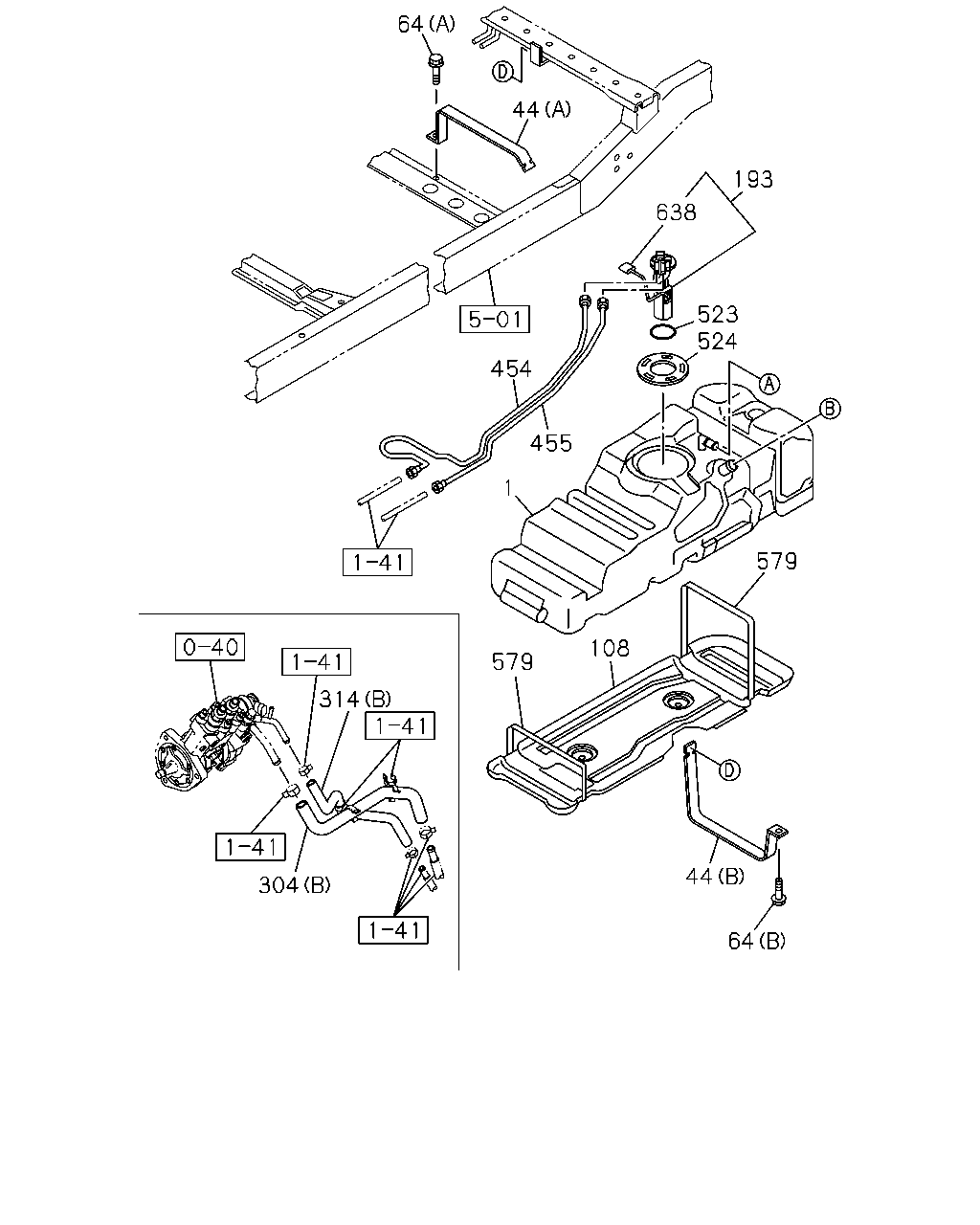

454 455 1 579 108 44 64 579 524 523 638 193 64 44 304 314

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL	8-97943-901-0	01	1	1510-	●
1	TANK; FUEL	8-97944-573-0	01	1	1405-		●
44	BAND; FUEL TANK (A)	8-97944-281-0	01	1	1405-1509		●
44	BAND; FUEL TANK (A)	8-97944-281-0	01	1	1510-	●	●
44	BAND; FUEL TANK (B)	8-97944-282-0	01	1	1405-		●
64	BOLT; FUEL TANK (A) M10X35 FLANGE IMA	0-28661-035-0	01	1	1405-1509		●
64	BOLT; FUEL TANK (A) M10X35 FLANGE IMA	0-28661-035-0	01	1	1510-	●	●
64	BOLT; FUEL TANK (B) M10X50 FLANGE IMA	8-97301-165-0	01	1	1405-1509		●
64	BOLT; FUEL TANK (B) M10X50 FLANGE IMA	8-97301-165-0	01	1	1510-	●	●
108	PROTECTOR; FUEL TANK	8-97943-300-0	01	1	1405-1509		●
108	PROTECTOR; FUEL TANK	8-97943-300-0	01	1	1510-	●	●
193	PUMP; FUEL	8-98284-588-0	01	1	1510-	●
193	PUMP; FUEL	8-98159-357-0	01	1	1405-		●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (B)	8-98288-932-0	01	1	1510-	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (A)	8-97944-783-0	01	1	1405-		●
314	HOSE; RUBBER,FUEL RETURN (B)	8-98283-883-0	01	1	1510-	●
314	HOSE; RUBBER,FUEL RETURN (A)	8-97944-784-2	01	1	1405-		●
454	PIPE; FUEL,DELIVERY	8-98283-963-0	01	1	1510-	●
454	PIPE; FUEL,DELIVERY	8-97943-511-0	01	1	1405-		●
455	PIPE; FUEL,RETURN	8-97945-528-0	01	1	1405-1509		●
455	PIPE; FUEL,RETURN	8-97945-528-0	01	1	1510-	●	●
523	SEAL; FUEL SENSOR	8-97943-141-0	01	1	1405-1509		●
523	SEAL; FUEL SENSOR	8-97943-141-0	01	1	1510-	●	●
524	RING; RETAINER	8-97942-306-0	01	1	1405-1509		●
524	RING; RETAINER	8-97942-306-0	01	1	1510-	●	●
579	BAND; FUEL TANK TO PROTECTOR	8-97329-245-0	02	1	1405-1509		●
579	BAND; FUEL TANK TO PROTECTOR	8-97329-245-0	02	1	1510-	●	●
638	SENSOR; FUEL LEVEL	8-97945-259-0	01	1	1405-1509		●
638	SENSOR; FUEL LEVEL	8-97945-259-0	01	1	1510-	●	●

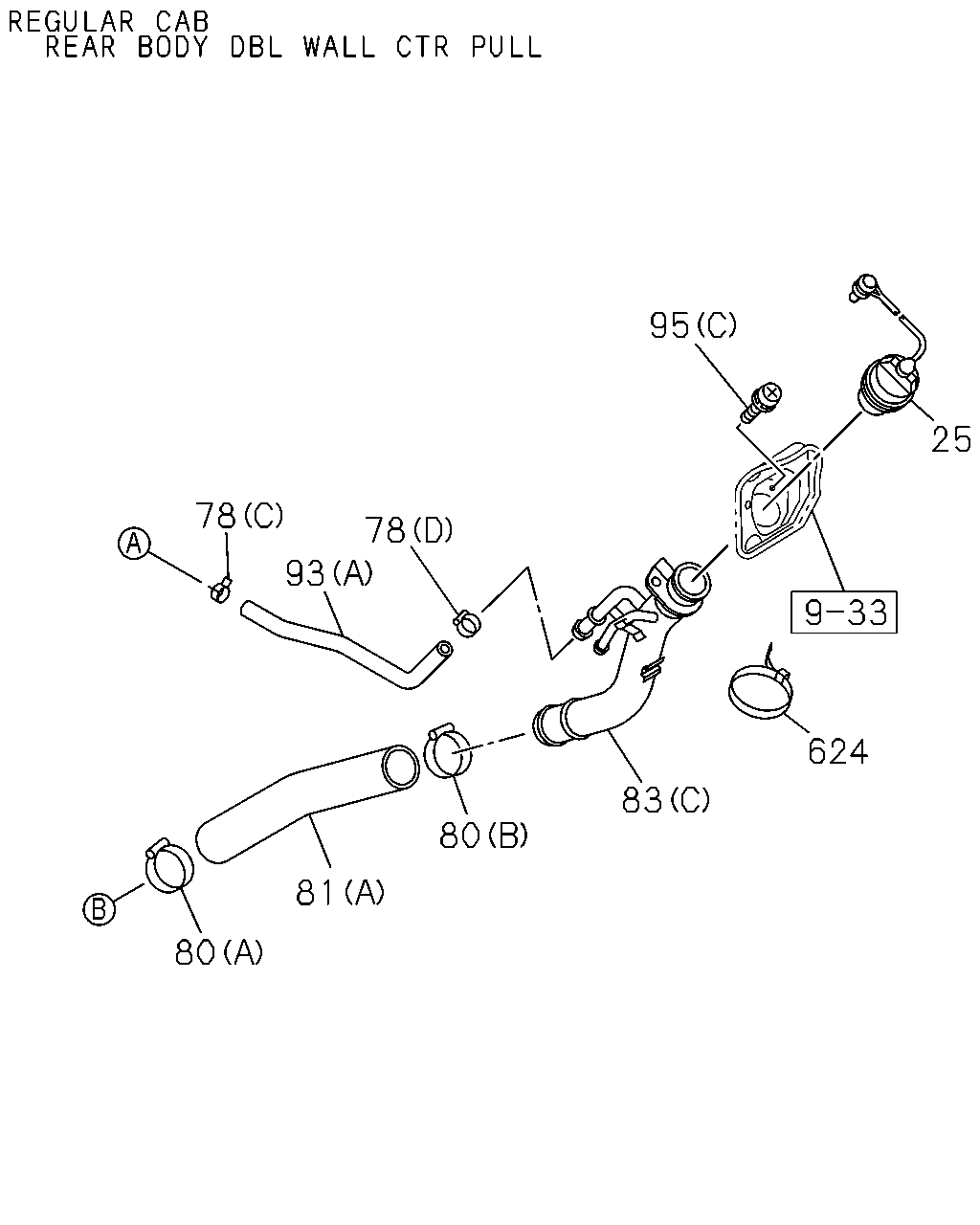

78 78 93 95 25 624 83 80 81 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	CAP; FILLER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63)	8-97308-614-1	01	1	1510-	●	●
25	CAP; FILLER,FUEL TANK EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63)	8-97369-560-0	01	1	1405-1509		●
25	CAP; FILLER,FUEL TANK CREW CAB(TF*W)	8-97369-560-0	01	1	1405-1509		●
25	CAP; FILLER,FUEL TANK EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63)	8-97369-560-0	01	1	1510-	●	●
25	CAP; FILLER,FUEL TANK CREW CAB(TF*W)	8-97369-560-0	01	1	1510-	●	●
78	CLIP; BREATHER HOSE REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (D) ID=20.8 IMA	8-97944-127-0	01	1	1510-	●	●
78	CLIP; BREATHER HOSE REAR BODY FLAT BED(E39) (B) ID=28	9-09915-421-1	01	1	1405-1509		●
78	CLIP; BREATHER HOSE 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B) ID=28	9-09915-421-1	01	1	1510-	●	●
78	CLIP; BREATHER HOSE EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (B)	8-98097-945-0	01	1	1405-1509		●
78	CLIP; BREATHER HOSE EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (B)	8-98097-945-0	01	1	1510-	●	●
78	CLIP; BREATHER HOSE (C) ID=24.3	8-97945-557-0	01	1	1405-1509		●
78	CLIP; BREATHER HOSE (C) ID=24.3	8-97945-557-0	01	1	1510-	●	●
78	CLIP; BREATHER HOSE CREW CAB(TF*W) (A)	8-98097-946-0	01	1	1405-1509		●
78	CLIP; BREATHER HOSE CREW CAB(TF*W) (A)	8-98097-946-0	01	1	1510-	●	●
80	CLIP; FILLER HOSE EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (B)	8-98097-947-0	01	1	1405-1509		●
80	CLIP; FILLER HOSE CREW CAB(TF*W) (B)	8-98097-947-0	01	1	1405-1509		●
80	CLIP; FILLER HOSE 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) REAR BODY DBL WALL CTR PULL(E63) (B)	8-98097-947-0	01	1	1510-	●	●
80	CLIP; FILLER HOSE CREW CAB(TF*W) (B)	8-98097-947-0	01	1	1510-	●	●
80	CLIP; FILLER HOSE (A) ID=54	9-09915-412-1	01	1	1405-1509		●
80	CLIP; FILLER HOSE (A) ID=54	9-09915-412-1	01	1	1510-	●	●
81	HOSE; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-781-0	01	1	1510-	●	●
81	HOSE; FUEL FILLER EXTEND CAB(TF*C) REAR BODY FLAT BED(E39) (B)	8-97944-449-0	01	1	1405-1509	●	●
81	HOSE; FUEL FILLER REGULAR CAB(TF*S) (B)	8-97944-449-0	01	1	1405-1509	●	●
81	HOSE; FUEL FILLER 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B)	8-97944-449-0	01	1	1510-	●	●
81	HOSE; FUEL FILLER EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-300-0	01	1	1405-1509		●
81	HOSE; FUEL FILLER EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-300-0	01	1	1510-	●	●
81	HOSE; FUEL FILLER CREW CAB(TF*W) (A)	8-97942-301-0	01	1	1405-1509		●
81	HOSE; FUEL FILLER CREW CAB(TF*W) (A)	8-97942-301-0	01	1	1510-	●	●
83	NECK; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (C)	8-97945-351-0	01	1	1510-	●	●
83	NECK; FUEL FILLER EXTEND CAB(TF*C) REAR BODY FLAT BED(E39) (B)	8-98024-001-0	01	1	1405-1509		●
83	NECK; FUEL FILLER REGULAR CAB(TF*S) (B)	8-98024-001-0	01	1	1405-1509		●
83	NECK; FUEL FILLER 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B)	8-98024-001-0	01	1	1510-	●	●
83	NECK; FUEL FILLER EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-303-0	01	1	1405-1509		●
83	NECK; FUEL FILLER EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-303-0	01	1	1510-	●	●
83	NECK; FUEL FILLER CREW CAB(TF*W) (A)	8-97943-306-0	01	1	1405-1509		●
83	NECK; FUEL FILLER CREW CAB(TF*W) (A)	8-97943-306-0	01	1	1510-	●	●
93	HOSE; BREATHER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97943-782-0	01	1	1510-	●	●
93	HOSE; BREATHER,FUEL TANK EXTEND CAB(TF*C) REAR BODY FLAT BED(E39) (B)	8-97305-696-1	01	1	1405-1509	●	●
93	HOSE; BREATHER,FUEL TANK REGULAR CAB(TF*S) (B)	8-97305-696-1	01	1	1405-1509	●	●
93	HOSE; BREATHER,FUEL TANK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (B)	8-97305-696-1	01	1	1510-	●	●
93	HOSE; BREATHER,FUEL TANK EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-302-0	01	1	1405-1509		●
93	HOSE; BREATHER,FUEL TANK EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97942-302-0	01	1	1510-	●	●
93	HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) (A)	8-97942-303-0	01	1	1405-1509		●
93	HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) (A)	8-97942-303-0	01	1	1510-	●	●
95	SCREW; FILLER NECK 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) REAR BODY DELETE(8HH) (B) M6X16	8-98022-271-0	02	1	1510-	●	●
95	SCREW; FILLER NECK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (C)	8-98022-272-0	01	1	1510-	●	●
95	SCREW; FILLER NECK REAR BODY FLAT BED(E39) (B) M6X16	8-98022-271-0	03	1	1405-1509		●
95	SCREW; FILLER NECK REAR BODY FLAT BED(E39) (B) M6X16	8-98022-271-0	03	1	1510-	●	●
95	SCREW; FILLER NECK REAR BODY DBL WALL CTR PULL(E63) (A) M5X16 TAPPING W/PL WASHER IMA	8-98039-091-0	01	1	1405-1509		●
95	SCREW; FILLER NECK EXTEND CAB(TF*C) REAR BODY DBL WALL CTR PULL(E63) (A) M5X16 TAPPING W/PL WASHER IMA	8-98039-091-0	01	1	1510-	●	●
95	SCREW; FILLER NECK CREW CAB(TF*W) (A) M5X16 TAPPING W/PL WASHER IMA	8-98039-091-0	01	1	1510-	●	●
624	CLIP; BAND REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63)	8-97942-789-0	01	1	1510-	●	●

301 299 303 519 485 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
91	CLAMP; FUEL HOSE ID=17.2 IMA	8-98052-395-0	02	1	1510-	●
299	BRACKET; FUEL FILTER (B)	8-97945-089-0	01	1	1510-	●
299	BRACKET; FUEL FILTER (A)	8-97945-336-0	01	1	1405-		●
301	BOLT; BRKT TO SEDIMENTER M10X25 FLANGE IMA	0-28651-025-0	02	1	1405-1509		●
301	BOLT; BRKT TO SEDIMENTER M10X25 FLANGE IMA	0-28651-025-0	02	1	1510-	●	●
303	NUT; SEDIMENTER BRKT M10 FLANGE IMA	0-91180-110-0	02	1	1510-	●
485	HOSE; FUEL	8-97363-675-0	01	1	1510-	●
519	RETAINER; FUEL PUMP (B) ID=18 & 18	8-94323-068-0	01	1	1510-	●
519	RETAINER; FUEL PUMP (A) ID=20 & 16.5	8-94486-835-0	01	1	1405-		●

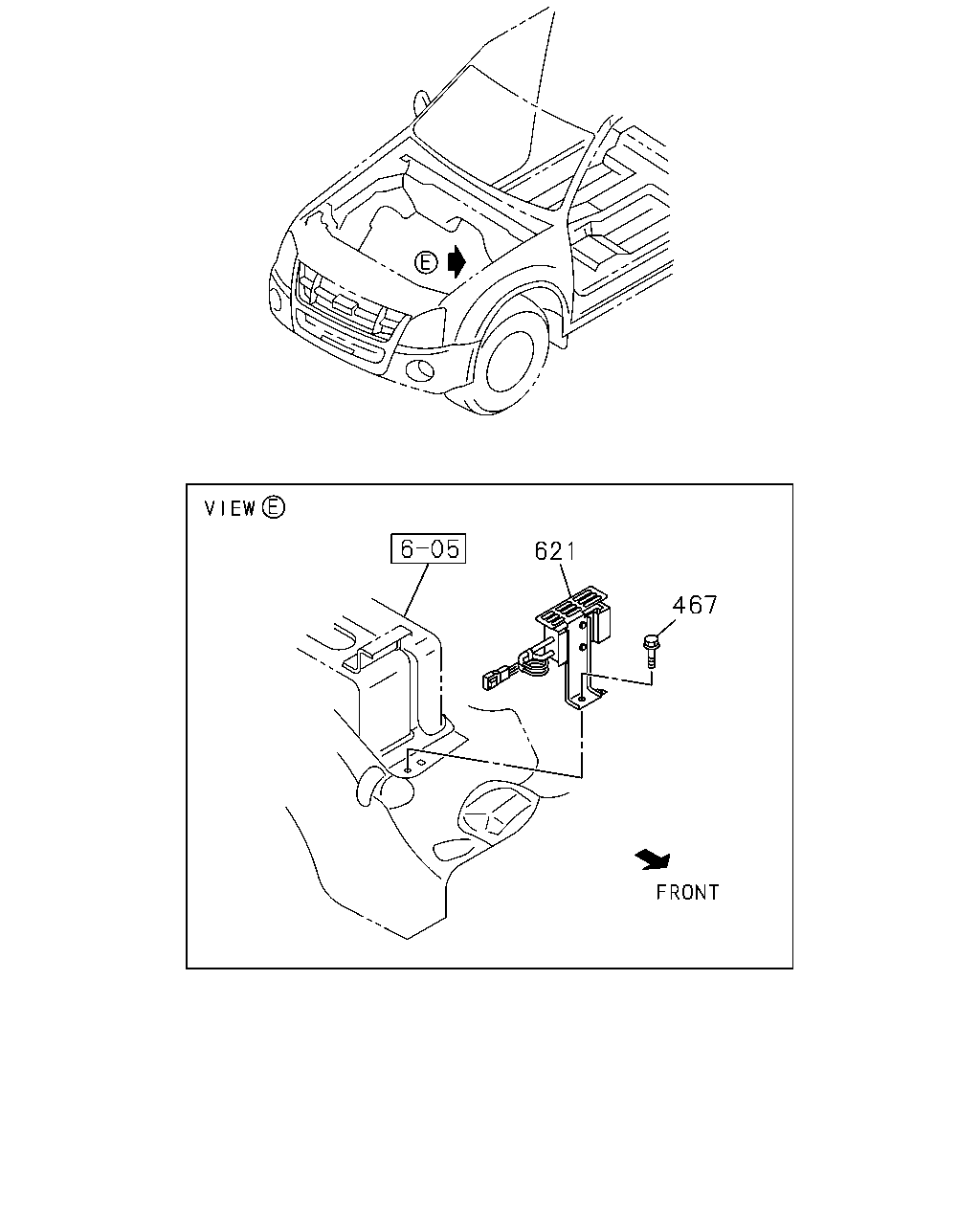

467 621

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	467	BOLT M6X16 FLANGE IMA	0-28650-616-0	01	1	1405-		●
	621	RESISTOR ASM; FUEL PUMP	8-98041-186-0	01	1	1405-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
