Isuzu WW
▶
PICKUP
▶
TFR
▶
51516 - TFR(INDIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-35 - CHARGE AIR COOLER
▶
1-35 — CHARGE AIR COOLER
(#138033) — 63 parça
Tümü
A - 4JA1-TC ENG
B - 4JK1-TCX ENG
◀

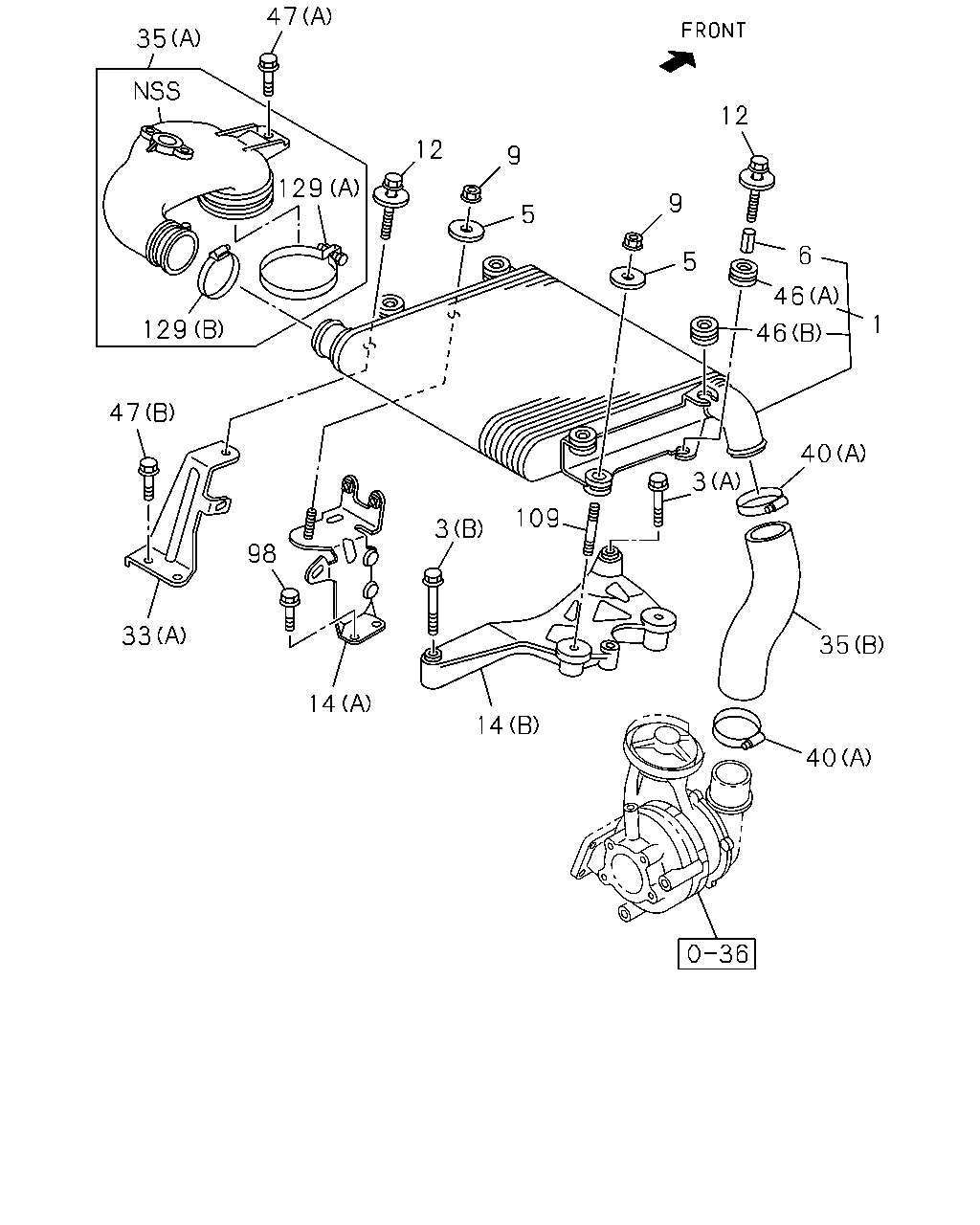

[135A] 4JK1 (36 parça)

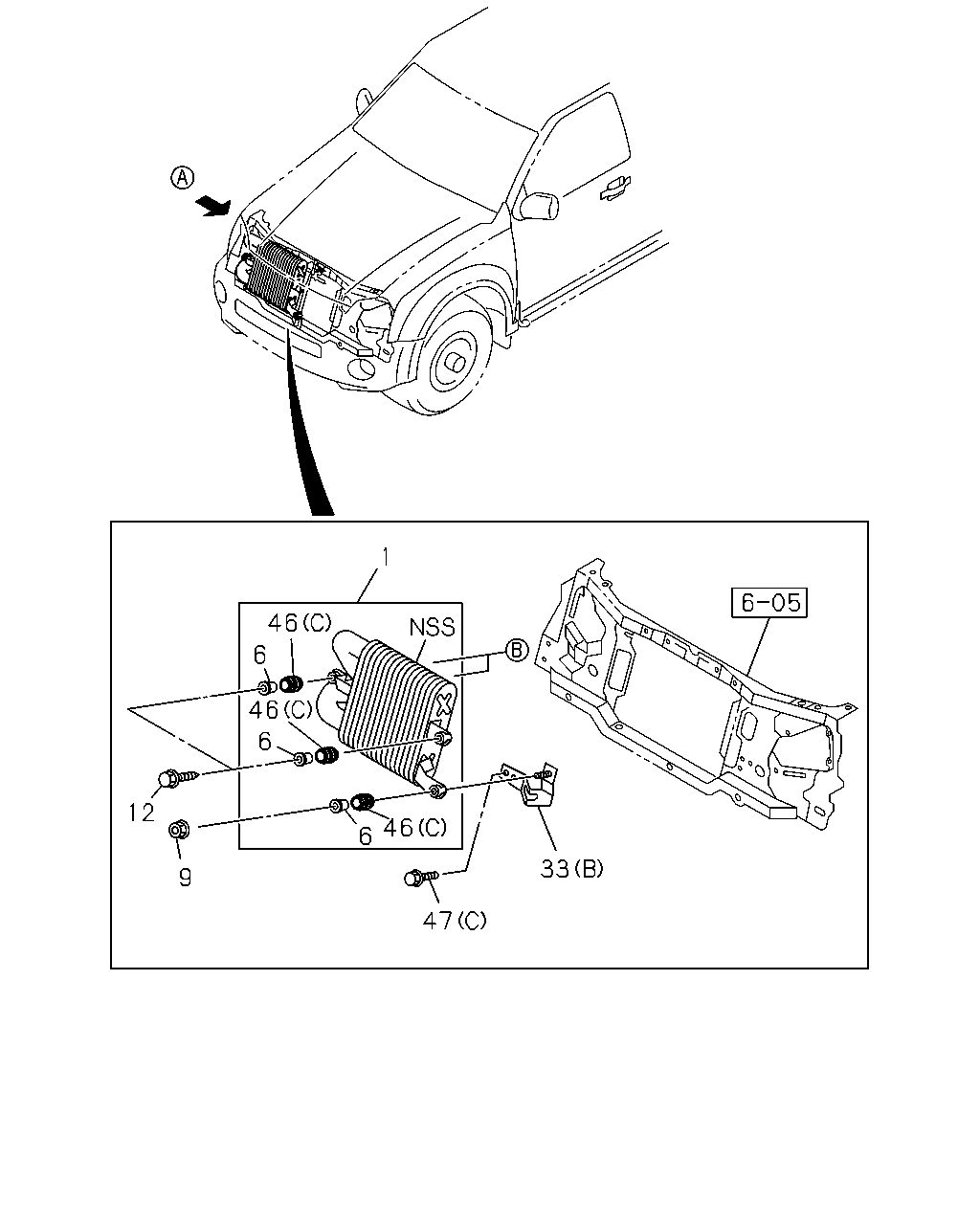

[135A] 4JA1(NO.1) (16 parça)

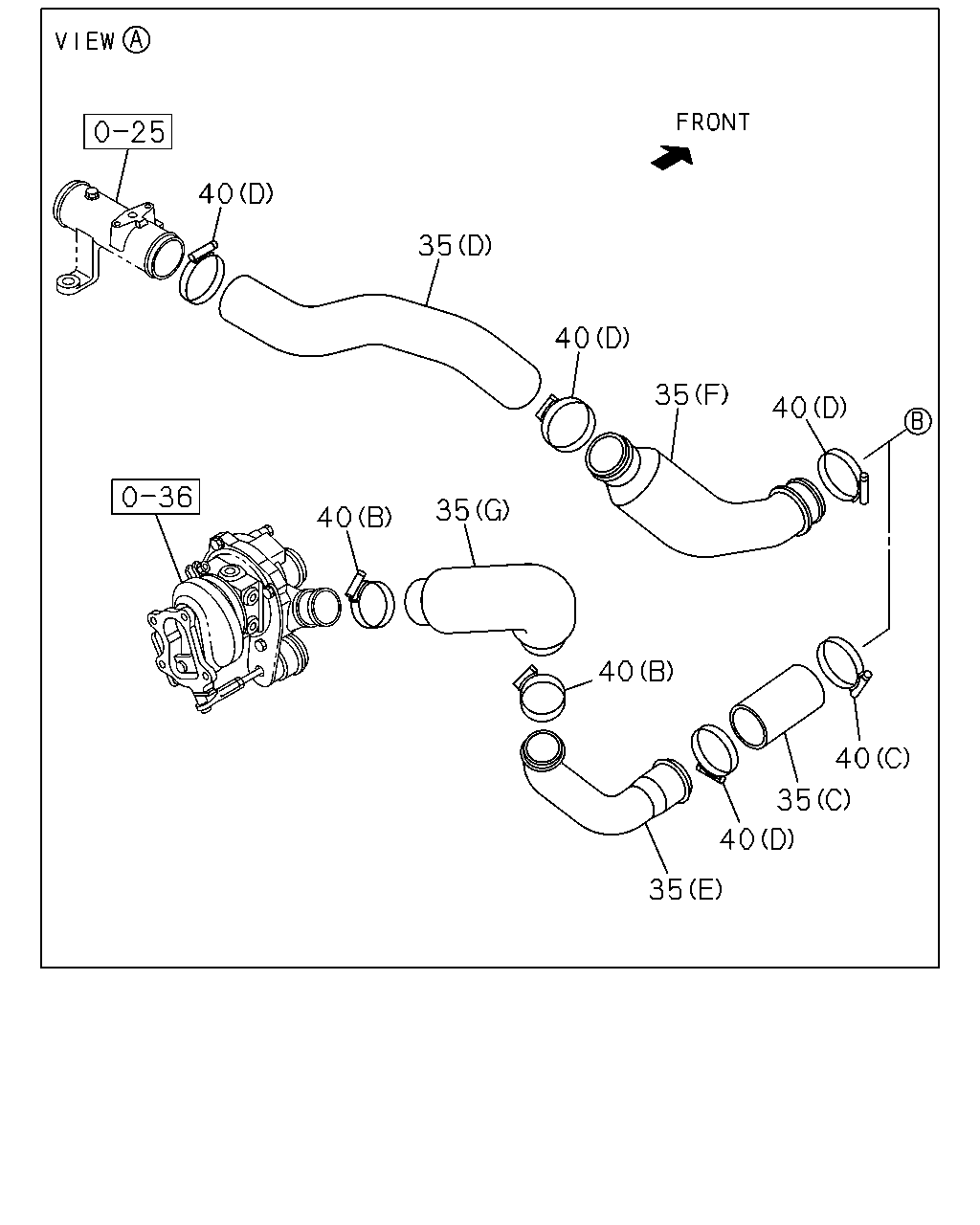

[135A] 4JA1(NO.2) (11 parça)
▶
47
35
129
12
129
9
5
12
5
9
6
46
46
40
35
40
3
109
3
98
47
33
14
15
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COOLER; CHARGE AIR
8-98000-192-0
01
1
1510-
●
1
COOLER; CHARGE AIR
8-98114-815-0
01
1
1405-
●
3
BOLT; CHARGE AIR COOLER
(A) M8X50 FLANGE IMA
0-28050-850-0
01
1
1405-
●
3
BOLT; CHARGE AIR COOLER
(B) M8X60 FLANGE IMA
0-28050-860-0
01
1
1405-
●
5
WASHER; PL,CHARGE AIR COOLER
ID=8.5 OD=36
8-94221-082-0
02
1
1405-
●
6
COLLAR; MTG,CHARGE AIR COOLER
8-97942-932-0
03
1
1510-
●
6
COLLAR; MTG,CHARGE AIR COOLER
8-97107-898-0
04
1
1405-
●
9
NUT; CHARGE AIR COOLER
M8 FLANGE IMA
0-91180-108-0
01
1
1510-
●
9
NUT; CHARGE AIR COOLER
M8 FLANGE IMA
0-91180-108-0
02
1
1405-
●
12
BOLT; CHARGE AIR COOLER
M8X32.5 W/PL WASHER IMA
8-98136-077-0
02
1
1510-
●
12
BOLT; CHARGE AIR COOLER
8-98044-006-0
02
1
1405-
●
14
BRACKET; CHARGE AIR COOLER
(A)
8-98012-016-3
01
1
1405-
●
14
BRACKET; CHARGE AIR COOLER
(B)
8-98039-405-0
01
1
1405-
●
33
BRACKET; CHARGE AIR COOLER,FRT
(B)
8-97326-994-0
01
1
1510-
●
33
BRACKET; CHARGE AIR COOLER,FRT
(A)
8-97389-214-2
01
1
1405-
●
35
HOSE; CONNECTING
(C)
8-97320-881-2
01
1
1510-
●
35
HOSE; CONNECTING
(D)
8-97352-075-0
01
1
1510-
●
35
HOSE; CONNECTING
(E)
8-97362-177-0
01
1
1510-
●
35
HOSE; CONNECTING
(F)
8-97363-522-0
01
1
1510-
●
35
HOSE; CONNECTING
(G)
8-98283-983-0
01
1
1510-
●
35
HOSE; CONNECTING
(A)
8-98076-084-0
01
1
1405-
●
35
HOSE; CONNECTING
(B)
8-98160-197-0
01
1
1405-
●
40
CLIP; RUBBER HOSE
(B)
8-98133-395-0
02
1
1510-
●
40
CLIP; RUBBER HOSE
(C) ID=45-65 IMA
8-98133-396-0
01
1
1510-
●
40
CLIP; RUBBER HOSE
(D) ID=50-70
8-98141-460-0
04
1
1510-
●
40
CLIP; RUBBER HOSE
(A) ID=60-65
8-98096-418-0
02
1
1405-
●
46
RUBBER; MTG,CHARGE AIR COOLER
(C)
8-97942-930-0
03
1
1510-
●
46
RUBBER; MTG,CHARGE AIR COOLER
(B)
8-97181-886-0
04
1
1405-
●
46
RUBBER; MTG,CHARGE AIR COOLER
(A)
8-97232-774-0
04
1
1405-
●
47
BOLT; CHARGE AIR COOLER BRKT
(C) M8X20 FLANGE IMA
0-28650-820-0
02
1
1510-
●
47
BOLT; CHARGE AIR COOLER BRKT
(B) M8X16 FLANGE IMA
0-28050-816-0
02
1
1405-
●
47
BOLT; CHARGE AIR COOLER BRKT
(A) M6X16 FLANGE IMA
0-28650-616-0
01
1
1405-
●
98
BOLT; BRKT TO CHARGE AIR COOLER
M8X16 FLANGE IMA
0-28050-816-0
02
1
1405-
●
109
STUD; BRKT
M8X40 L=52 IMA
0-41010-840-0
01
1
1405-
●
129
CLAMP; HOSE
(A)
8-98080-783-0
01
1
1405-
●
129
CLAMP; HOSE
(B)
8-98080-785-0
01
1
1405-
●
1
46
6
46
6
12
6
47
33
46
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COOLER; CHARGE AIR
8-98000-192-0
01
1
1510-
●
1
COOLER; CHARGE AIR
8-98114-815-0
01
1
1405-
●
6
COLLAR; MTG,CHARGE AIR COOLER
8-97942-932-0
03
1
1510-
●
6
COLLAR; MTG,CHARGE AIR COOLER
8-97107-898-0
04
1
1405-
●
9
NUT; CHARGE AIR COOLER
M8 FLANGE IMA
0-91180-108-0
01
1
1510-
●
9
NUT; CHARGE AIR COOLER
M8 FLANGE IMA
0-91180-108-0
02
1
1405-
●
12
BOLT; CHARGE AIR COOLER
M8X32.5 W/PL WASHER IMA
8-98136-077-0
02
1
1510-
●
12
BOLT; CHARGE AIR COOLER
8-98044-006-0
02
1
1405-
●
33
BRACKET; CHARGE AIR COOLER,FRT
(B)
8-97326-994-0
01
1
1510-
●
33
BRACKET; CHARGE AIR COOLER,FRT
(A)
8-97389-214-2
01
1
1405-
●
46
RUBBER; MTG,CHARGE AIR COOLER
(C)
8-97942-930-0
03
1
1510-
●
46
RUBBER; MTG,CHARGE AIR COOLER
(B)
8-97181-886-0
04
1
1405-
●
46
RUBBER; MTG,CHARGE AIR COOLER
(A)
8-97232-774-0
04
1
1405-
●
47
BOLT; CHARGE AIR COOLER BRKT
(C) M8X20 FLANGE IMA
0-28650-820-0
02
1
1510-
●
47
BOLT; CHARGE AIR COOLER BRKT
(B) M8X16 FLANGE IMA
0-28050-816-0
02
1
1405-
●
47
BOLT; CHARGE AIR COOLER BRKT
(A) M6X16 FLANGE IMA
0-28650-616-0
01
1
1405-
●
40
35
40
35
40
35
40
40
35
35
40
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
35
HOSE; CONNECTING
(C)
8-97320-881-2
01
1
1510-
●
35
HOSE; CONNECTING
(D)
8-97352-075-0
01
1
1510-
●
35
HOSE; CONNECTING
(E)
8-97362-177-0
01
1
1510-
●
35
HOSE; CONNECTING
(F)
8-97363-522-0
01
1
1510-
●
35
HOSE; CONNECTING
(G)
8-98283-983-0
01
1
1510-
●
35
HOSE; CONNECTING
(A)
8-98076-084-0
01
1
1405-
●
35
HOSE; CONNECTING
(B)
8-98160-197-0
01
1
1405-
●
40
CLIP; RUBBER HOSE
(B)
8-98133-395-0
02
1
1510-
●
40
CLIP; RUBBER HOSE
(C) ID=45-65 IMA
8-98133-396-0
01
1
1510-
●
40
CLIP; RUBBER HOSE
(D) ID=50-70
8-98141-460-0
04
1
1510-
●
40
CLIP; RUBBER HOSE
(A) ID=60-65
8-98096-418-0
02
1
1405-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
