1-31 — AIR DUCT (#138032) — 44 parça

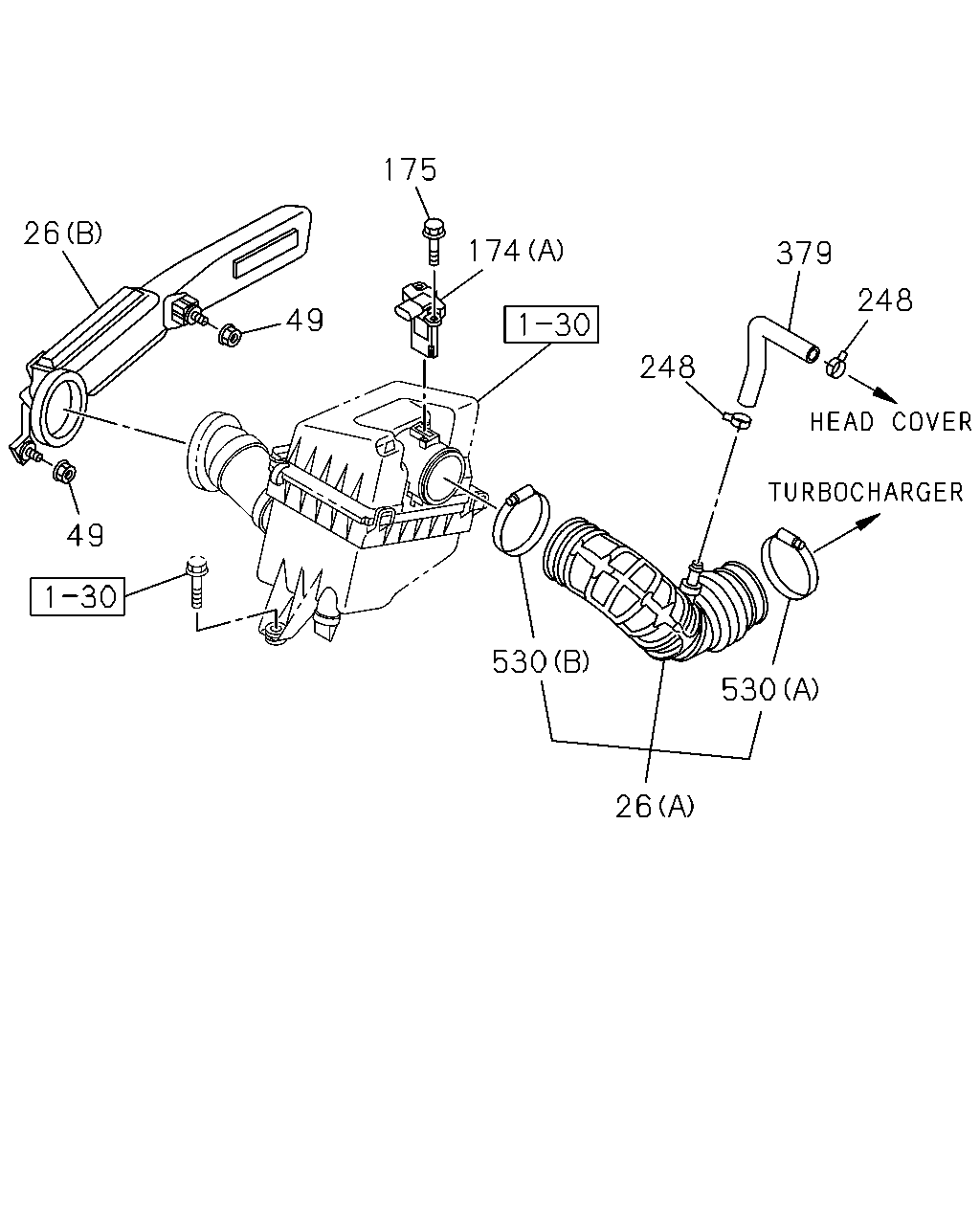

çizim 417002
26 49 175 174 248 379 248 530 530 26 49
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT
(C) 		8-97379-281-0 01 1 1510- ●
26 DUCT; AIR INT
(D) 		8-98293-012-0 01 1 1510-1511 ●
26 DUCT; AIR INT
(D) 		8-98123-483-0 01 1 1512- ●
26 DUCT; AIR INT
(A) 		8-98000-986-0 01 1 1405- ●
26 DUCT; AIR INT
(B) 		8-98029-373-1 01 1 1405- ●
49 NUT; AIR DUCT
M6 FLANGE IMA 		0-91180-106-0 02 1 1405-1509 ●
49 NUT; AIR DUCT
M6 FLANGE IMA 		0-91180-106-0 02 1 1510- ● ●
174 SENSOR; AIR FLOW CONT
(B) 		8-98320-409-0 01 1 1510- ●
174 SENSOR; AIR FLOW CONT
(A) IMA 		8-97601-967-0 01 1 1405-1509 ●
174 SENSOR; AIR FLOW CONT
(A) IMA 		8-97601-967-0 01 1 1510- ● ●
175 BOLT; AIR FLOW CONT SENSOR
M4X10 W/LK&PL WASHER IMA 		0-36230-410-0 02 1 1405-1509 ●
175 BOLT; AIR FLOW CONT SENSOR
M4X10 W/LK&PL WASHER IMA 		0-36230-410-0 02 1 1510- ● ●
248 CLIP; RUBBER HOSE
ID=20.4 IMA 		8-94121-113-0 02 1 1405- ●
379 HOSE; RUBBER 8-98008-134-0 01 1 1405- ●
530 CLAMP; AIR DUCT
(C) 		8-97943-201-0 01 1 1510- ●
530 CLAMP; AIR DUCT
(D) 		8-98132-485-0 01 1 1510- ●
530 CLAMP; AIR DUCT
(E) 		8-98132-487-0 01 1 1510- ●
530 CLAMP; AIR DUCT
(A) 		8-98052-417-0 01 1 1405- ●
530 CLAMP; AIR DUCT
(B) 		8-98052-418-0 01 1 1405- ●

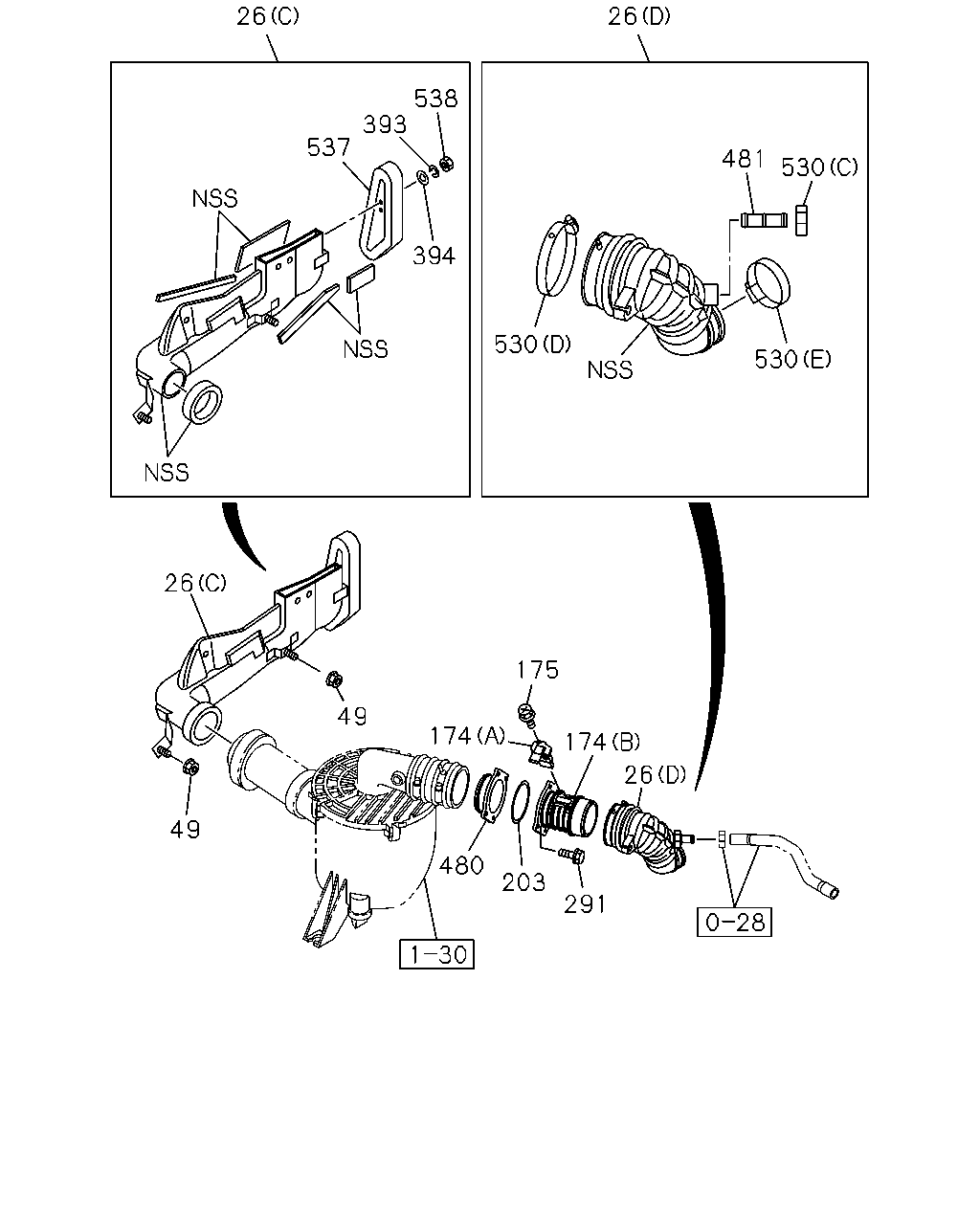

çizim 498136
26 537 393 538 26 481 530 530 530 394 26 49 49 174 175 174 26 291 203 480
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT
(C) 		8-97379-281-0 01 1 1510- ●
26 DUCT; AIR INT
(D) 		8-98293-012-0 01 1 1510-1511 ●
26 DUCT; AIR INT
(D) 		8-98123-483-0 01 1 1512- ●
26 DUCT; AIR INT
(A) 		8-98000-986-0 01 1 1405- ●
26 DUCT; AIR INT
(B) 		8-98029-373-1 01 1 1405- ●
49 NUT; AIR DUCT
M6 FLANGE IMA 		0-91180-106-0 02 1 1405-1509 ●
49 NUT; AIR DUCT
M6 FLANGE IMA 		0-91180-106-0 02 1 1510- ● ●
174 SENSOR; AIR FLOW CONT
(B) 		8-98320-409-0 01 1 1510- ●
174 SENSOR; AIR FLOW CONT
(A) IMA 		8-97601-967-0 01 1 1405-1509 ●
174 SENSOR; AIR FLOW CONT
(A) IMA 		8-97601-967-0 01 1 1510- ● ●
175 BOLT; AIR FLOW CONT SENSOR
M4X10 W/LK&PL WASHER IMA 		0-36230-410-0 02 1 1405-1509 ●
175 BOLT; AIR FLOW CONT SENSOR
M4X10 W/LK&PL WASHER IMA 		0-36230-410-0 02 1 1510- ● ●
203 RUBBER; SEAL 8-97240-056-0 01 1 1510- ●
291 BOLT; ACL 8-97069-572-0 04 1 1510- ●
393 WASHER; LK,AIR DUCT 8-97943-214-0 02 1 1510- ●
394 WASHER; PL,AIR DUCT 8-97943-213-0 02 1 1510- ●
480 ADAPTER
IND 		8-97445-050-0 01 1 1510- ●
481 PIPE; PCV 8-97943-204-0 01 1 1510- ●
530 CLAMP; AIR DUCT
(C) 		8-97943-201-0 01 1 1510- ●
530 CLAMP; AIR DUCT
(D) 		8-98132-485-0 01 1 1510- ●
530 CLAMP; AIR DUCT
(E) 		8-98132-487-0 01 1 1510- ●
530 CLAMP; AIR DUCT
(A) 		8-98052-417-0 01 1 1405- ●
530 CLAMP; AIR DUCT
(B) 		8-98052-418-0 01 1 1405- ●
537 PLATE; AIR DUCT 8-97367-574-1 01 1 1510- ●
538 NUT; PLATE,AIR DUCT 8-97943-215-0 02 1 1510- ●
