◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#138031) — 49 parça

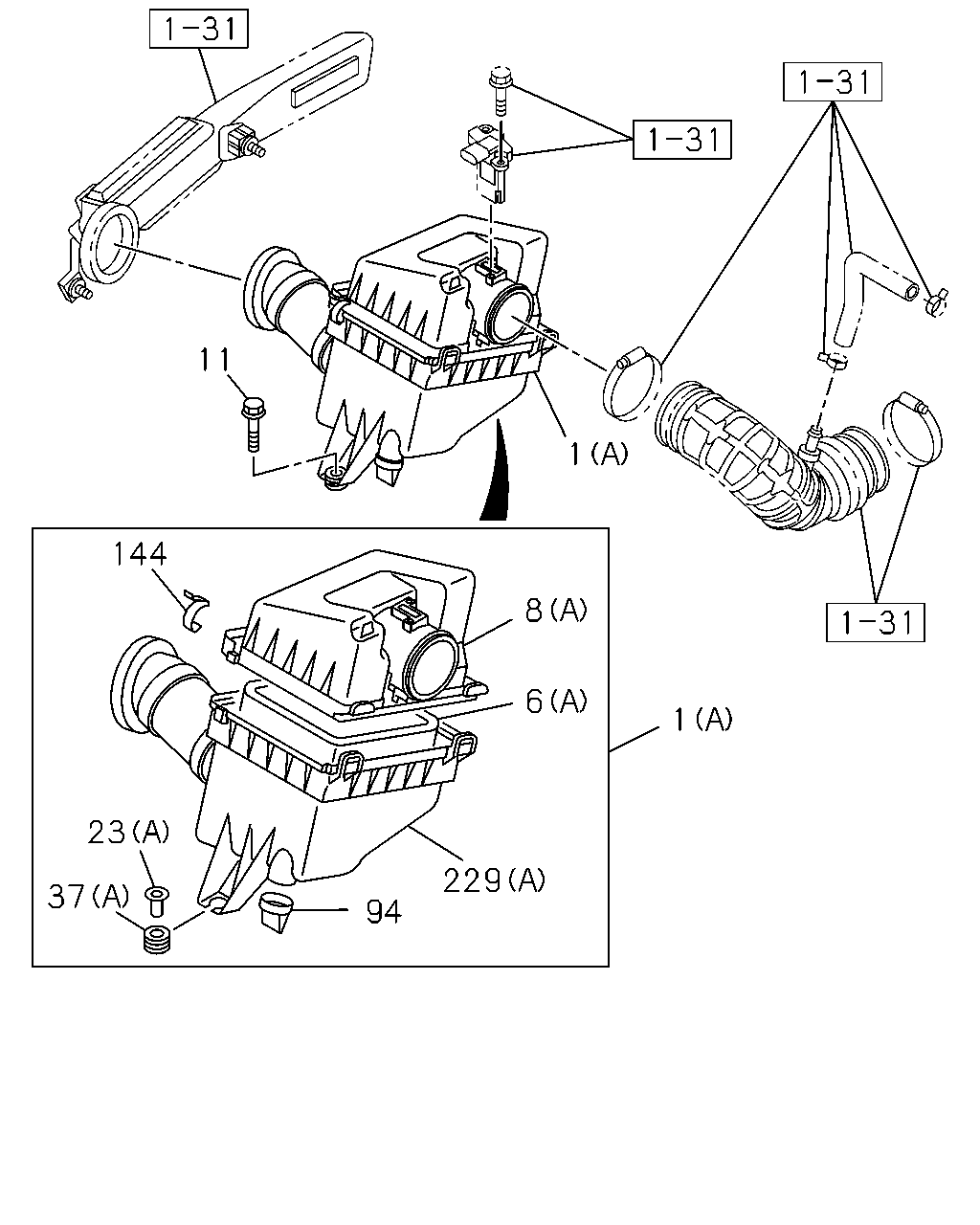

çizim 417230
11 144 23 37 94 6 8 229 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
AIR CLEANER DRY ELEMENT<S9R> (B) 		8-98282-532-0 01 1 1510- ●
1 CLEANER ASM; AIR
(A) 		8-98008-888-2 01 1 1405-1509 ●
1 CLEANER ASM; AIR
AIR CLEANER DRY ELEMENT<S9R> (A) 		8-98008-888-2 01 1 1510- ●
6 FILTER; ACL
AIR CLEANER DRY ELEMENT<S9R> (B) 		8-97944-570-0 01 1 1510- ●
6 FILTER; ACL
(A) 		8-98027-480-0 01 1 1405-1509 ●
6 FILTER; ACL
AIR CLEANER DRY ELEMENT<S9R> (A) 		8-98027-480-0 01 1 1510- ●
8 COVER ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> (B) 		8-98282-564-0 01 1 1510- ●
8 COVER ASM; ACL
(A) 		8-98036-124-1 01 1 1405-1509 ●
8 COVER ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> (A) 		8-98036-124-1 01 1 1510- ●
11 BOLT; ACL
M8X30 FLANGE IMA 		0-28650-830-0 03 1 1405-1509 ●
11 BOLT; ACL
M8X30 FLANGE IMA 		0-28650-830-0 03 1 1510- ● ●
23 COLLAR; ACL STAY
AIR CLEANER DRY ELEMENT<S9R> (B) 		8-97942-932-0 03 1 1510- ●
23 COLLAR; ACL STAY
(A) 		8-98036-127-0 03 1 1405-1509 ●
23 COLLAR; ACL STAY
AIR CLEANER DRY ELEMENT<S9R> (A) 		8-98036-127-0 03 1 1510- ●
37 RUBBER; MTG,ACL
AIR CLEANER DRY ELEMENT<S9R> (B) 		8-97942-930-0 03 1 1510- ●
37 RUBBER; MTG,ACL
(A) 		8-98036-126-0 03 1 1405-1509 ●
37 RUBBER; MTG,ACL
AIR CLEANER DRY ELEMENT<S9R> (A) 		8-98036-126-0 03 1 1510- ●
94 VALVE; VACUATOR
IMA 		8-94447-157-0 01 1 1405-1509 ●
94 VALVE; VACUATOR
AIR CLEANER DRY ELEMENT<S9R> IMA 		8-94447-157-0 01 1 1510- ● ●
144 CLIP; ACL
IMA 		8-97324-624-0 02 1 1405-1509 ●
144 CLIP; ACL
AIR CLEANER DRY ELEMENT<S9R> IMA 		8-97324-624-0 02 1 1510- ●
229 BODY ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> (B) 		8-97942-929-0 01 1 1510- ●
229 BODY ASM; ACL
(A) 		8-98036-125-0 01 1 1405-1509 ●
229 BODY ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> (A) 		8-98036-125-0 01 1 1510- ●

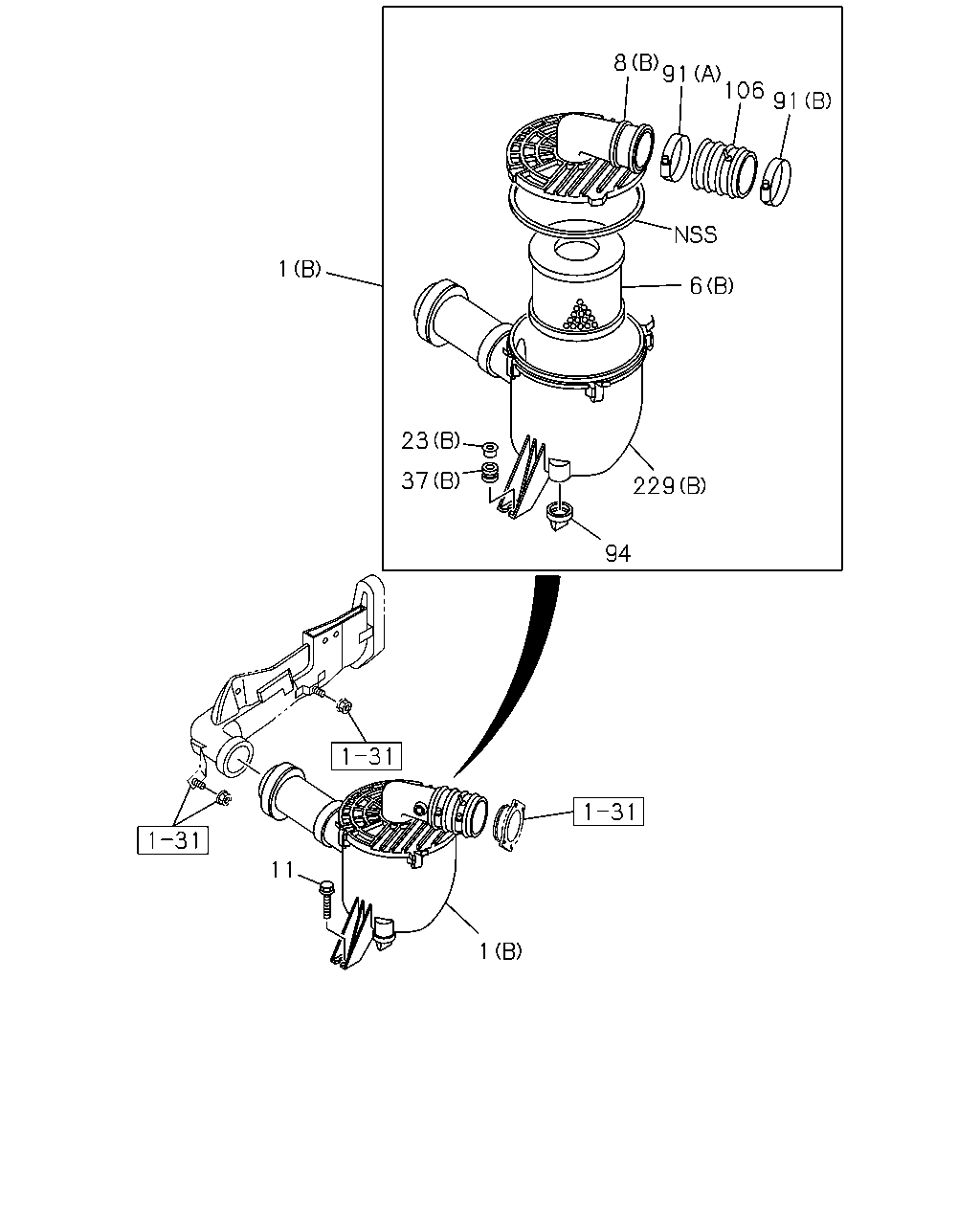

çizim 498135
8 91 106 91 6 229 94 37 23 1 11 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
AIR CLEANER DRY ELEMENT<S9R> (B) 		8-98282-532-0 01 1 1510- ●
1 CLEANER ASM; AIR
(A) 		8-98008-888-2 01 1 1405-1509 ●
1 CLEANER ASM; AIR
AIR CLEANER DRY ELEMENT<S9R> (A) 		8-98008-888-2 01 1 1510- ●
6 FILTER; ACL
AIR CLEANER DRY ELEMENT<S9R> (B) 		8-97944-570-0 01 1 1510- ●
6 FILTER; ACL
(A) 		8-98027-480-0 01 1 1405-1509 ●
6 FILTER; ACL
AIR CLEANER DRY ELEMENT<S9R> (A) 		8-98027-480-0 01 1 1510- ●
8 COVER ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> (B) 		8-98282-564-0 01 1 1510- ●
8 COVER ASM; ACL
(A) 		8-98036-124-1 01 1 1405-1509 ●
8 COVER ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> (A) 		8-98036-124-1 01 1 1510- ●
11 BOLT; ACL
M8X30 FLANGE IMA 		0-28650-830-0 03 1 1405-1509 ●
11 BOLT; ACL
M8X30 FLANGE IMA 		0-28650-830-0 03 1 1510- ● ●
23 COLLAR; ACL STAY
AIR CLEANER DRY ELEMENT<S9R> (B) 		8-97942-932-0 03 1 1510- ●
23 COLLAR; ACL STAY
(A) 		8-98036-127-0 03 1 1405-1509 ●
23 COLLAR; ACL STAY
AIR CLEANER DRY ELEMENT<S9R> (A) 		8-98036-127-0 03 1 1510- ●
37 RUBBER; MTG,ACL
AIR CLEANER DRY ELEMENT<S9R> (B) 		8-97942-930-0 03 1 1510- ●
37 RUBBER; MTG,ACL
(A) 		8-98036-126-0 03 1 1405-1509 ●
37 RUBBER; MTG,ACL
AIR CLEANER DRY ELEMENT<S9R> (A) 		8-98036-126-0 03 1 1510- ●
91 CLAMP
AIR CLEANER DRY ELEMENT<S9R> (A) 		8-97357-105-0 01 1 1510- ●
91 CLAMP
AIR CLEANER DRY ELEMENT<S9R> (B) 		8-97357-106-0 01 1 1510- ●
94 VALVE; VACUATOR
IMA 		8-94447-157-0 01 1 1405-1509 ●
94 VALVE; VACUATOR
AIR CLEANER DRY ELEMENT<S9R> IMA 		8-94447-157-0 01 1 1510- ● ●
106 HOSE; CONN,ACL
AIR CLEANER DRY ELEMENT<S9R> 		8-98282-550-0 01 1 1510- ●
229 BODY ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> (B) 		8-97942-929-0 01 1 1510- ●
229 BODY ASM; ACL
(A) 		8-98036-125-0 01 1 1405-1509 ●
229 BODY ASM; ACL
AIR CLEANER DRY ELEMENT<S9R> (A) 		8-98036-125-0 01 1 1510- ●
