1-11 — RADIATOR HOSE AND SUB TANK (#138030) — 25 parça

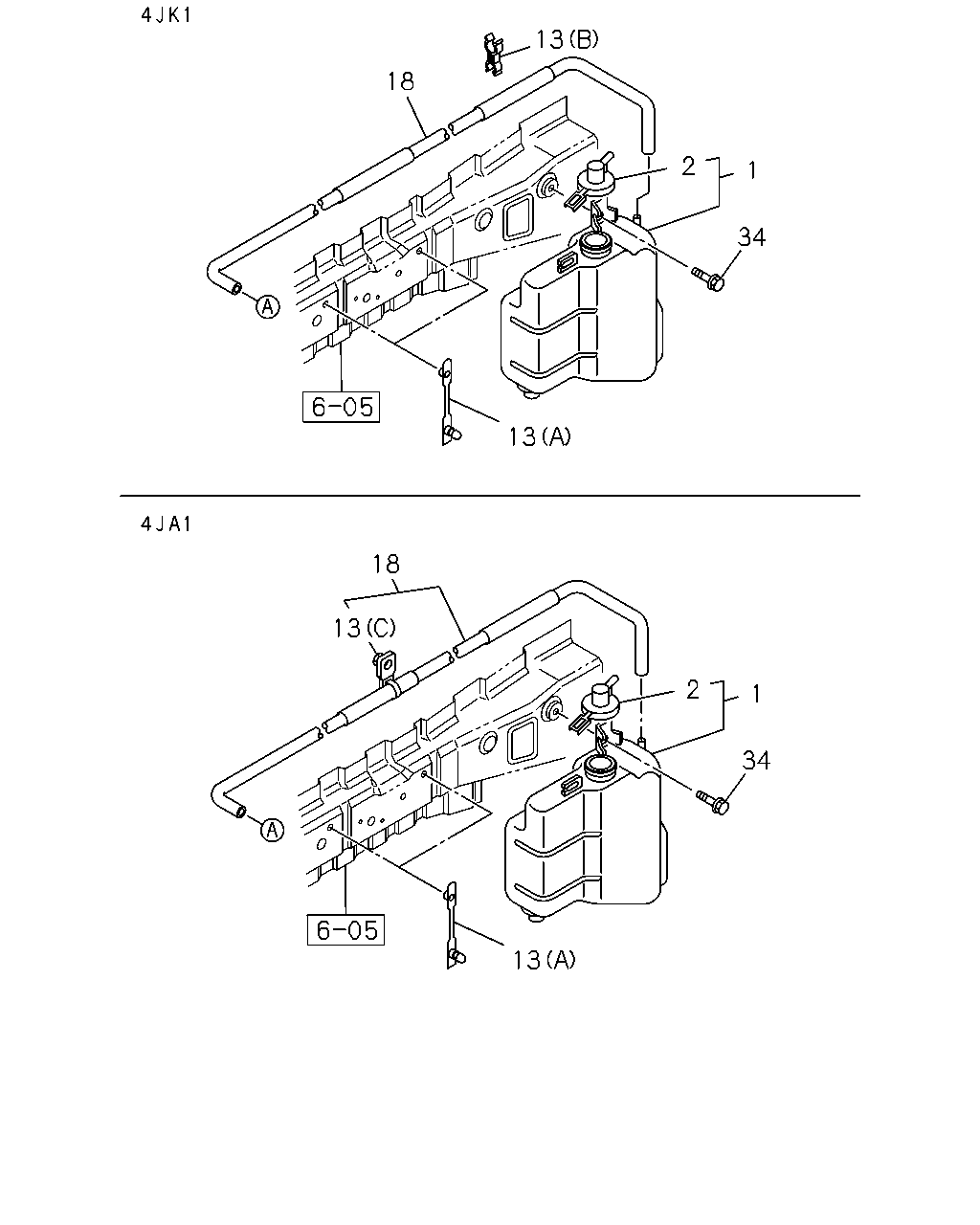

çizim 417184
18 13 2 1 34 13 18 13 13 34 1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; SURGE,RAD 8-97941-501-3 01 1 1405-1509 ●
1 TANK; SURGE,RAD 8-97941-501-3 01 1 1510- ● ●
2 CAP; SURGE TANK 8-97333-354-0 01 1 1405-1509 ●
2 CAP; SURGE TANK 8-97333-354-0 01 1 1510- ● ●
13 CLIP; HOSE,SURGE TANK
(C) 		8-94373-241-0 01 1 1510- ●
13 CLIP; HOSE,SURGE TANK
(A) L=88 		8-94239-338-0 02 1 1405-1509 ●
13 CLIP; HOSE,SURGE TANK
(A) L=88 		8-94239-338-0 02 1 1510- ● ●
13 CLIP; HOSE,SURGE TANK
(B) ID=25 & 11 		8-97068-799-0 01 1 1405- ●
18 HOSE; RAD TO SURGE TANK 8-97362-955-0 01 1 1510- ●
18 HOSE; RAD TO SURGE TANK 8-97373-405-0 01 1 1405- ●
34 BOLT; RESERVE TANK
M6X20 W/WASHER IMA 		8-98056-282-0 01 1 1405-1509 ●
34 BOLT; RESERVE TANK
M6X20 W/WASHER IMA 		8-98056-282-0 01 1 1510- ● ●

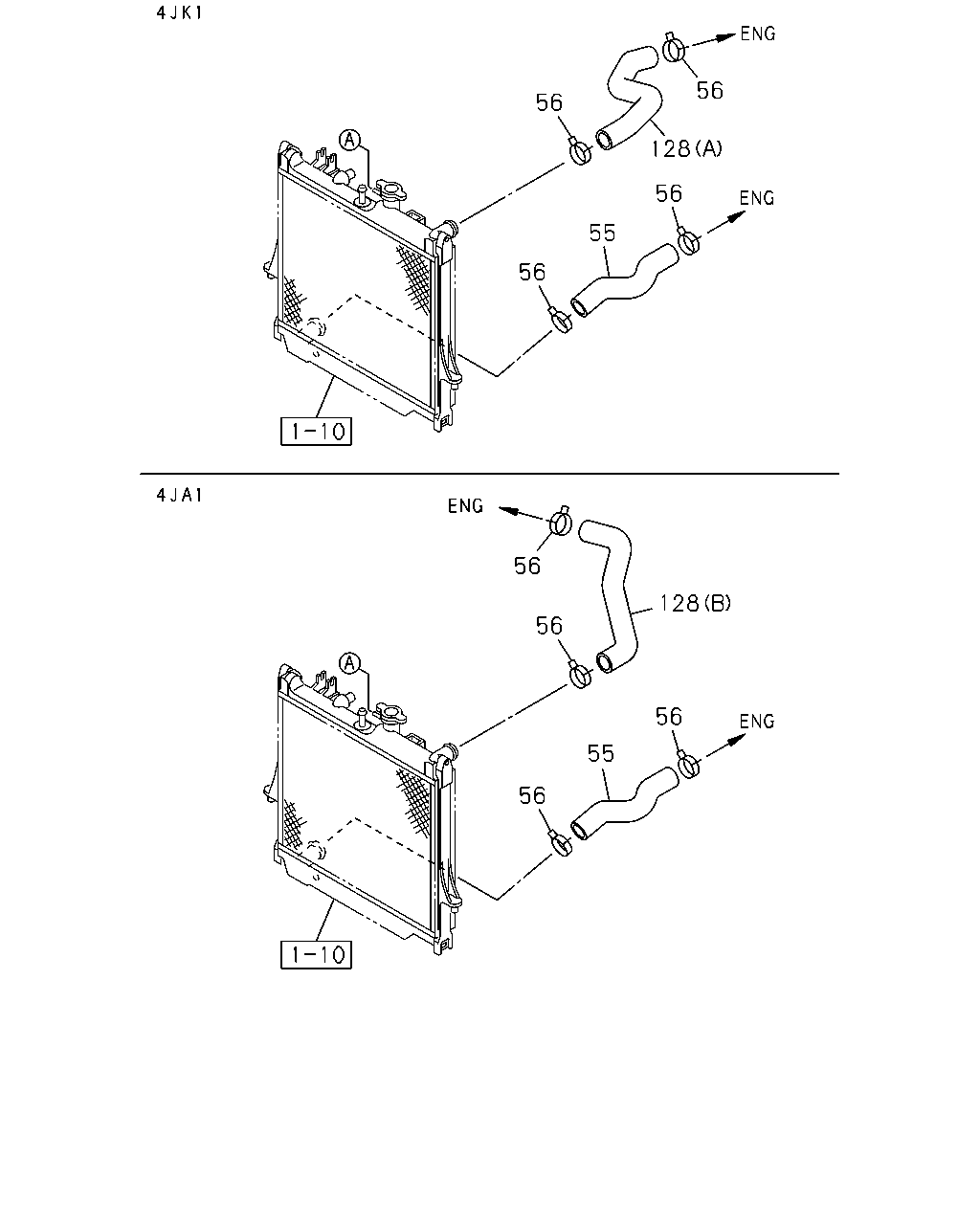

çizim 498427
56 55 56 56 128 56 56 56 55 56 56 128
BalonParca AdiParca NoAdetTipApplied Date A B
55 HOSE; WATER,RAD OUTLET 8-98003-995-0 01 1 1510- ●
55 HOSE; WATER,RAD OUTLET 8-97363-605-1 01 1 1405- ●
56 CLIP; WATER HOSE,RAD
ID=40.5 IMA 		8-97313-472-0 03 1 1510- ●
56 CLIP; WATER HOSE,RAD
ID=42 		8-98133-958-0 01 1 1510- ●
56 CLIP; WATER HOSE,RAD
ID=40.5 IMA 		8-97313-472-0 02 1 1411- ●
56 CLIP; WATER HOSE,RAD
ID=40.5 IMA 		8-97313-472-0 02 1 1405-1410 ●
56 CLIP; WATER HOSE,RAD
ID=40.5 IMA 		8-97313-472-0 02 1 1405-1410 ●
56 CLIP; WATER HOSE,RAD
ID=40.5 IMA 		8-97313-472-0 01 1 1411-1509 ●
56 CLIP; WATER HOSE,RAD
ID=40.5 IMA 		8-97313-472-0 01 1 1411-1509 ●
56 CLIP; WATER HOSE,RAD
ID=40.5 IMA 		8-97313-472-0 01 1 1510- ● ●
56 CLIP; WATER HOSE,RAD
ID=40.5 IMA 		8-97313-472-0 01 1 1510- ●
128 HOSE; WATER,RAD INL
(B) 		8-98003-996-0 01 1 1510- ●
128 HOSE; WATER,RAD INL
(A) 		8-97363-604-1 01 1 1405- ●
