0-32 — WATER PIPING; ENGINE (#138015) — 21 parça

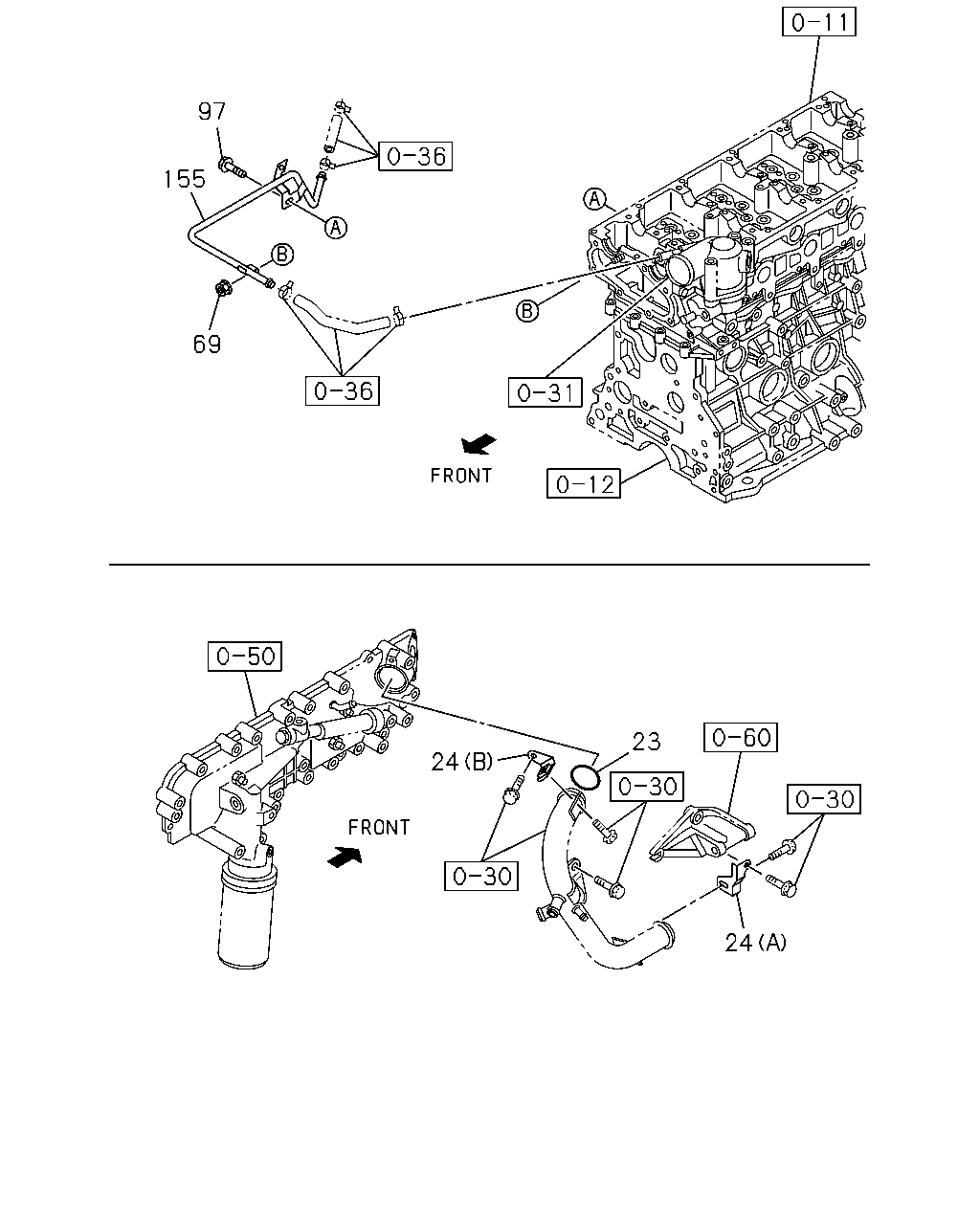

97 155 69 24 23 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	GASKET; SUCTION PIPE TO BLOCK IND	8-97447-928-0	01	1	1510-	●
23	GASKET; SUCTION PIPE TO BLOCK	0-95690-338-0	01	1	1405-		●
24	BRACKET; WATER PIPE (B)	8-97377-505-1	01	1	1405-		●
24	BRACKET; WATER PIPE (A)	8-98039-450-0	01	1	1405-		●
69	NUT; WATER PIPE M6 FLANGE IMA	0-91180-206-0	01	1	1405-		●
97	BOLT; WATER PIPE M6X12 FLANGE IMA	0-28050-612-0	01	1	1405-		●
155	PIPE ASM; WATER	8-98011-508-1	01	1	1405-		●

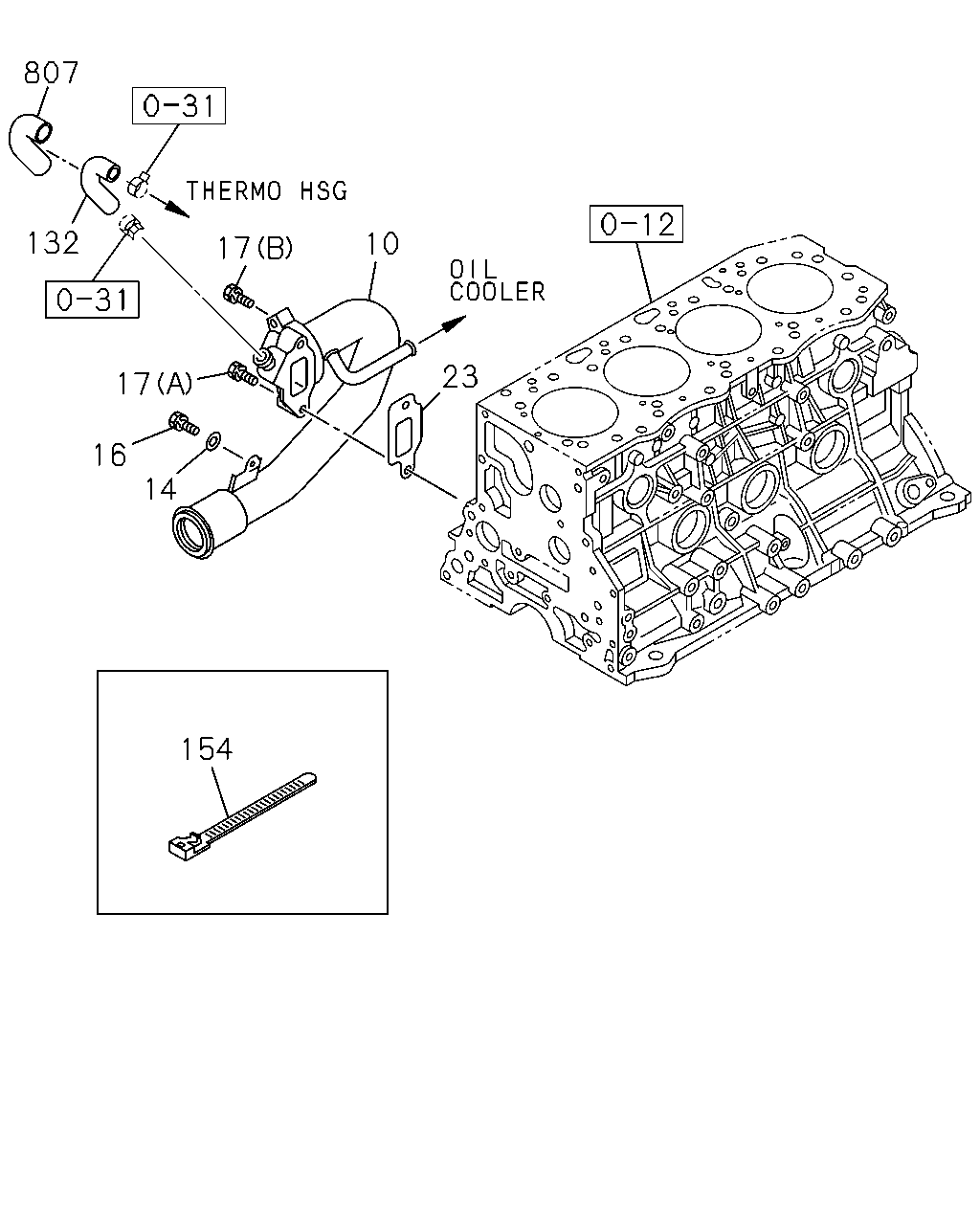

807 132 17 16 14 154 17 10 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	PIPE; SUCTION IND	8-97445-417-0	01	1	1510-	●
14	WASHER; PL,INL PIPE TO BRKT IND	8-97447-917-0	01	1	1510-	●
16	BOLT; INL PIPE M8X20 W/LK WASHER IND	8-97446-871-0	01	1	1510-	●
17	BOLT; SUCTION PIPE (B) M8X45 W/LK WASHER IND	8-97446-873-0	01	1	1510-	●
17	BOLT; SUCTION PIPE (A) M8X22 W/LK WASHER IND	8-97448-017-0	01	1	1510-	●
23	GASKET; SUCTION PIPE TO BLOCK IND	8-97447-928-0	01	1	1510-	●
23	GASKET; SUCTION PIPE TO BLOCK	0-95690-338-0	01	1	1405-		●
132	HOSE; WATER PIPE IND	8-97447-929-0	01	1	1510-	●
154	CLIP; WATER HOSE L=170 IMA	5-09707-054-0	02	1	1510-	●
807	INSULATOR; HOSE IMA	8-98031-884-0	01	1	1510-	●

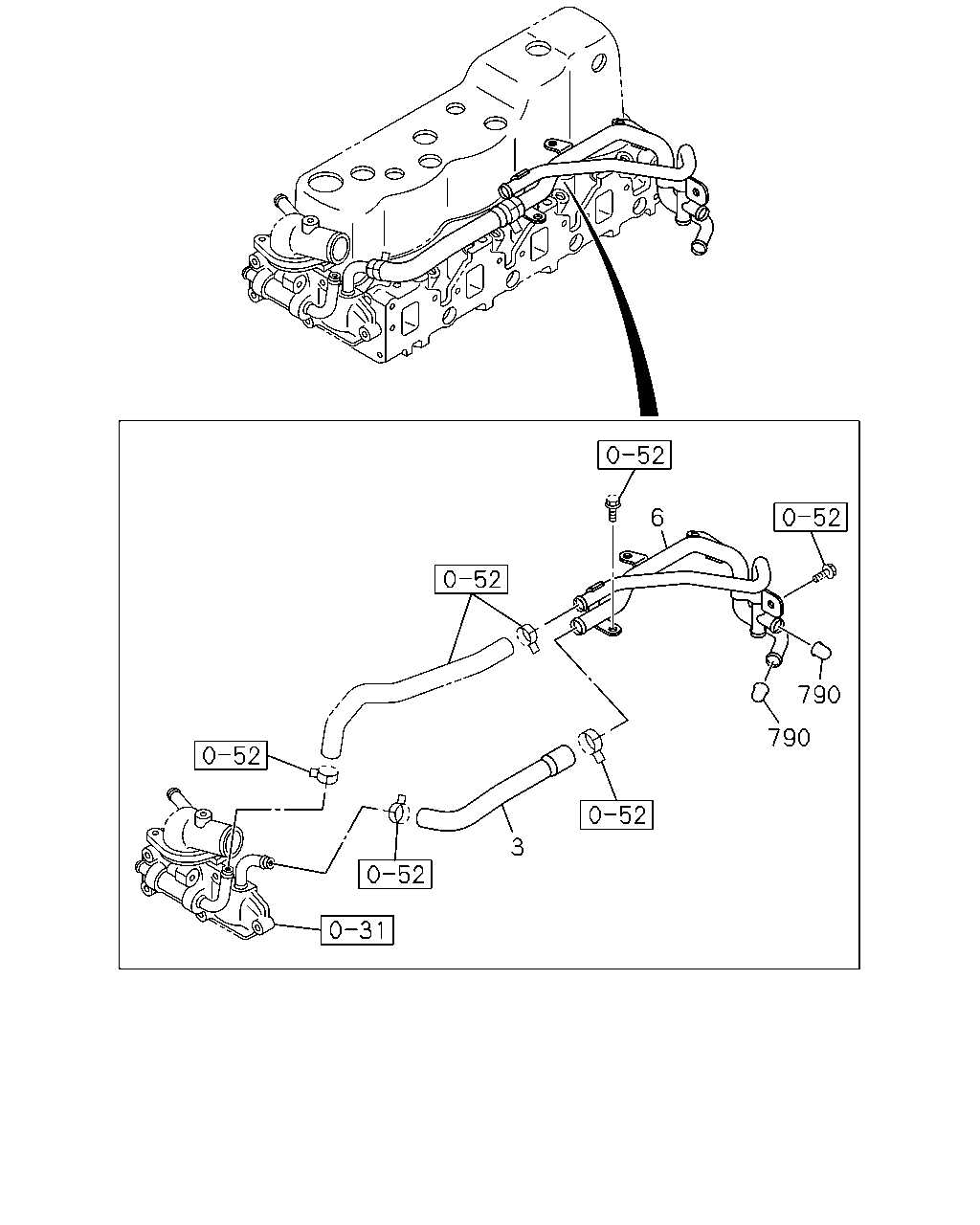

3 790 790 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
3	HOSE; WATER,OIL COOLER IND	8-97445-013-0	01	1	1510-	●
6	CONNECTOR; HTR & COOLER HOSE AIR CONDITIONER MANUAL CONT(C60) IND	8-97445-103-1	01	1	1510-	●
6	CONNECTOR; HTR & COOLER HOSE VENTILATION RAM AIR(6TN) IND	8-97445-104-1	01	1	1510-	●
790	CAP VENTILATION RAM AIR(6TN)	8-94414-688-0	02	1	1510-	●
